robs ss said:
Just made some changes:
  • Fitted black headlight bucket & instrument buckets (Matt's new CNC ones)
  • Fitted black brake plate & RH rear wheel cover (both these & above parts done with the 2K epoxy can in satin black)
  • Fitted red tank & side covers bought from our @Dellis - gives quite a different look, I think.
View attachment 94314
Click to expand...
Awesome bike!! How about those wheels are they 18 " front and rear ?

Pictures of your Norton Commandos

Scanning through all of these amazing photos, it is interesting to note that, like human portraits, the Norton Commando definitely has its favourite face. Now, I wonder why?

alan hodge said:
knock...stunning! is that original paint/gel? tell more.
Click to expand...

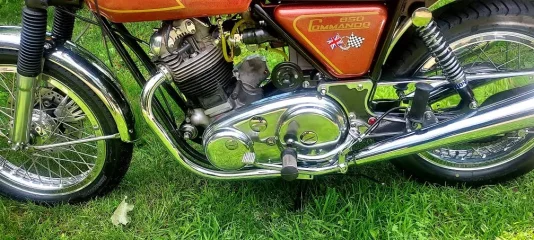

Not original. Alot of flake in the paint job. Actually resembles a carnival ride paint style. Was painted by previous owner, not really my style and will probably repaint at some point.

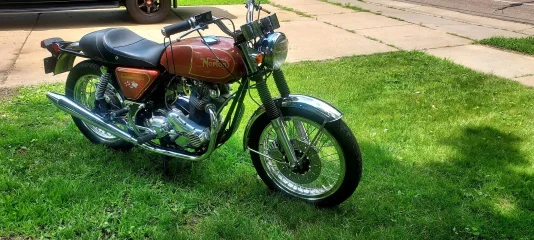

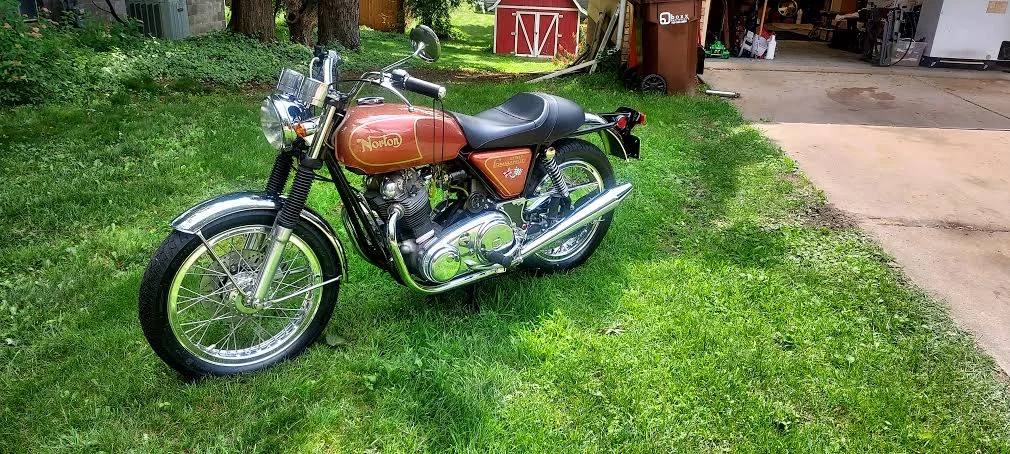

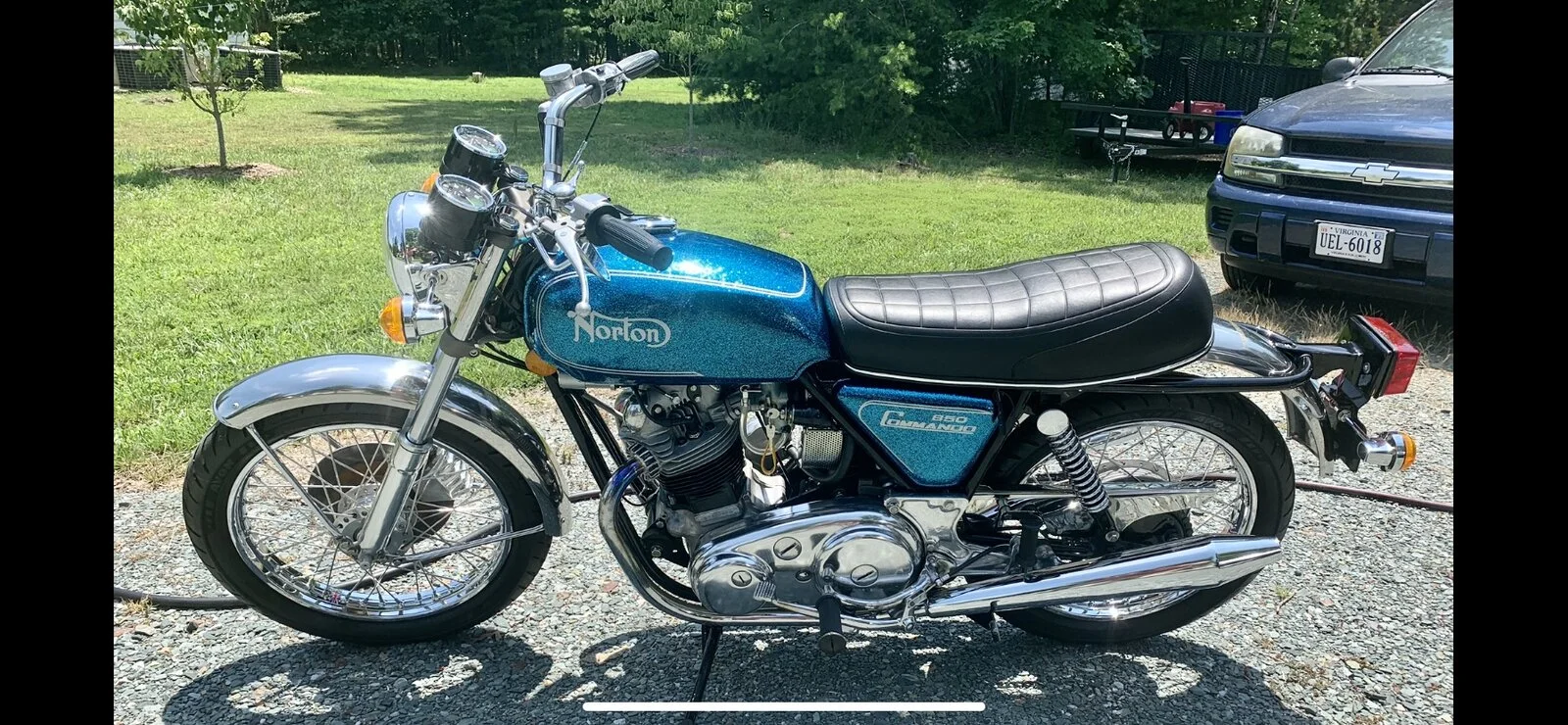

I just finished this 74 . Well almost, ( Is it ever really finished?) I'm waiting for my CNW starter kit. Next year front brake and Landsdound kit. I would like to thank you folks for ideas, tech advice and being part of this great site!


Attachments

  • Pictures of your Norton Commandos
    466.8 KB · Views: 246
  • Pictures of your Norton Commandos
    152.6 KB · Views: 236
  • Pictures of your Norton Commandos
    429.5 KB · Views: 234
  • Pictures of your Norton Commandos
    152.4 KB · Views: 255
Last edited:
Curt13 said:
I just finished this 74 . Well almost, ( Is it ever really finished?) I'm waiting for my CNW starter kit. Next year front brake and Landsdound kit. I would like to thank you folks for ideas, tech advice and being part of this great site!
Click to expand...
Congratulations, look after it and the rewards for the time spent doing the work correctly will put a smile on your face

Curt13 said:
I just finished this 74 . Well almost, ( Is it ever really finished?) I'm waiting for my CNW starter kit. Next year front brake and Landsdound kit. I would like to thank you folks for ideas, tech advice and being part of this great site!
Click to expand...

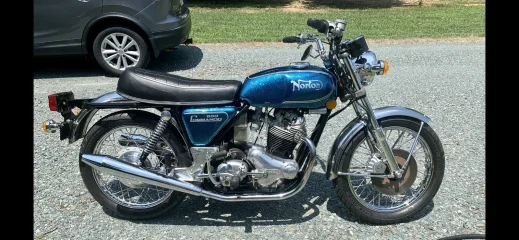

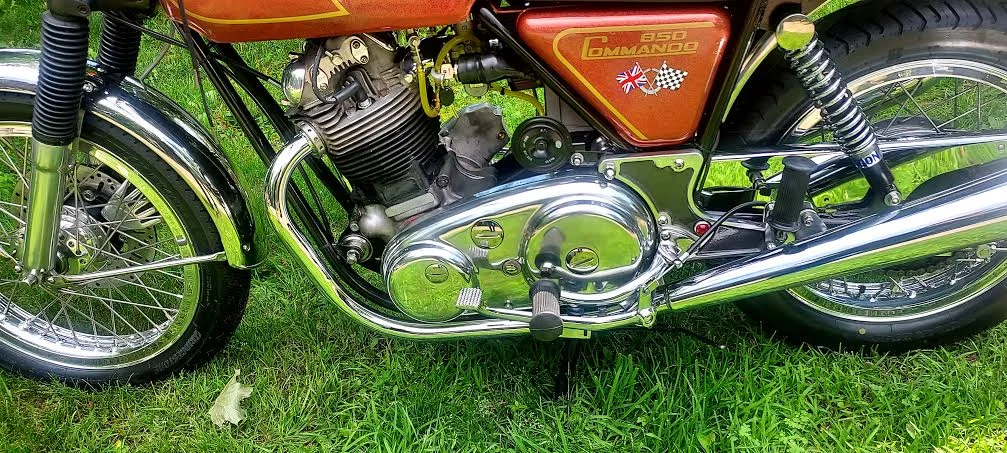

I also just finished giving my 74 a birthday that I've had for 37 years
Been very rewarding ...looking for a new project...This is a great site with a world of mechanical information literally


Attachments

  • Pictures of your Norton Commandos
    618.3 KB · Views: 229
  • Pictures of your Norton Commandos
    308.5 KB · Views: 223
  • Pictures of your Norton Commandos
    266.3 KB · Views: 210
  • Pictures of your Norton Commandos
    388.6 KB · Views: 193
  • Pictures of your Norton Commandos
    418.2 KB · Views: 194

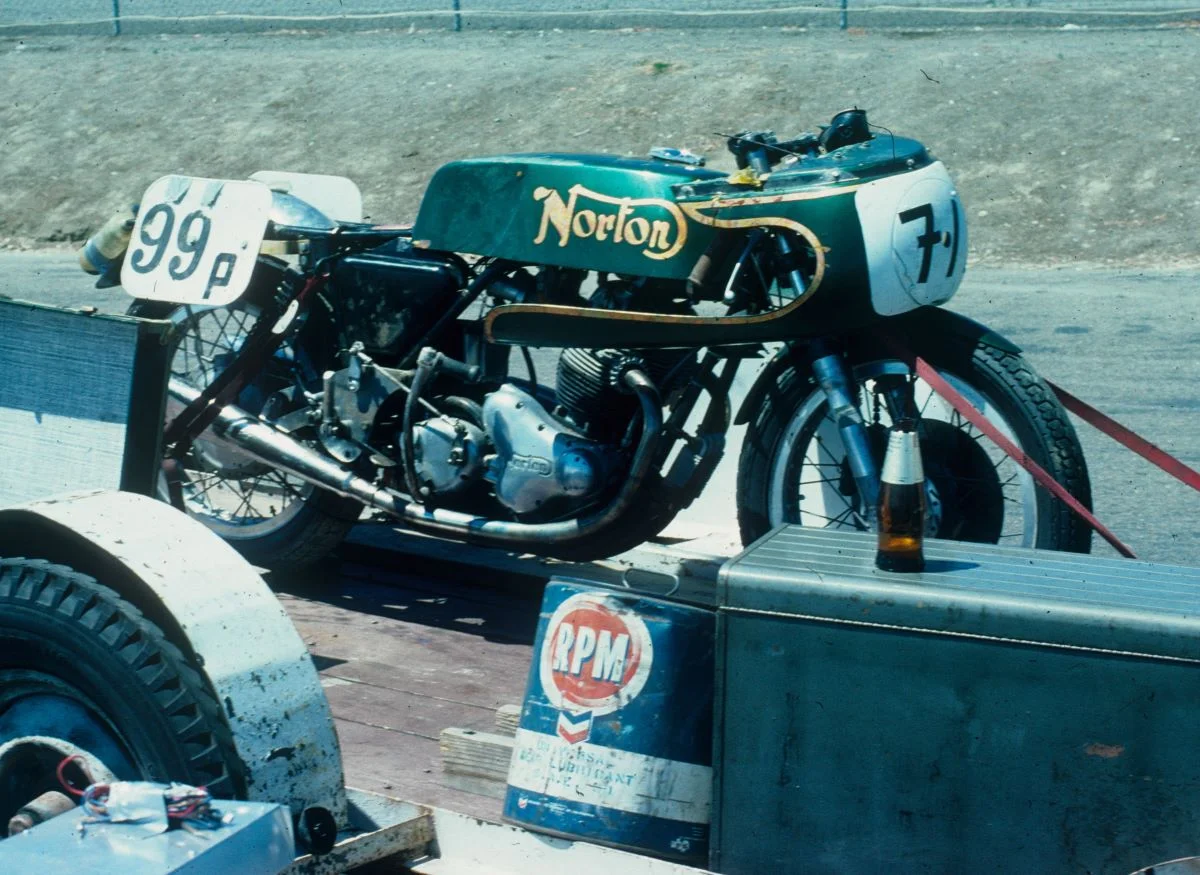

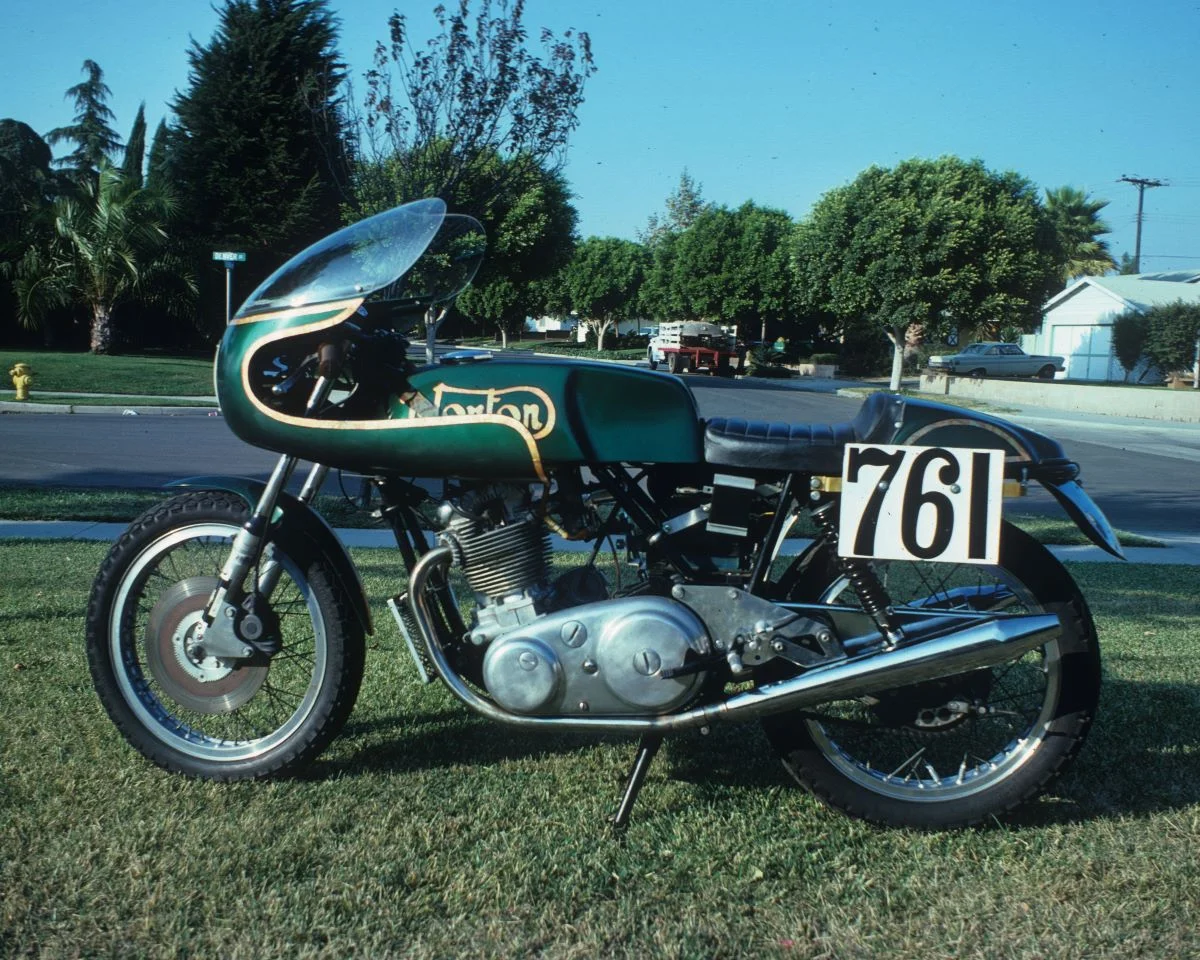

Just ran accross some old slides and ran them through the scanner. This is my old PR as it was in 1975, and then after my crash at Sears Point in 1977. Green and gold was just one of four different colors I painted it over its lifetime. When I bought it from Dan Gurney in the early '70s, he had painted it dark purple to reduce it's visibility to the police. I immediately re-painted it to yellow, but repainted it several times in different colors after crashes on the track. I eventually settled on yellow, and that's what the current owner has kept it at.

Pictures of your Norton Commandos


Pictures of your Norton Commandos


Ken

Ken, you must have been quite a pioneer having a left shift crossover linkage back then (2nd pick) !

Fast Eddie said:
Ken, you must have been quite a pioneer having a left shift crossover linkage back then (2nd pick) !
Click to expand...

I didn't notice that when I posted the pictures. I did the conversion right after crashing my RD350 race bike at Phoenix raceway. I was racing both the Norton and the Yamaha, and got confused over the foot controls heading into the corner. I ran off the track and crashed the Yamaha. I didn't keep the crossover linkage very long. I eventually got used to switching between left and right shift bikes, and never had that particular problem again.

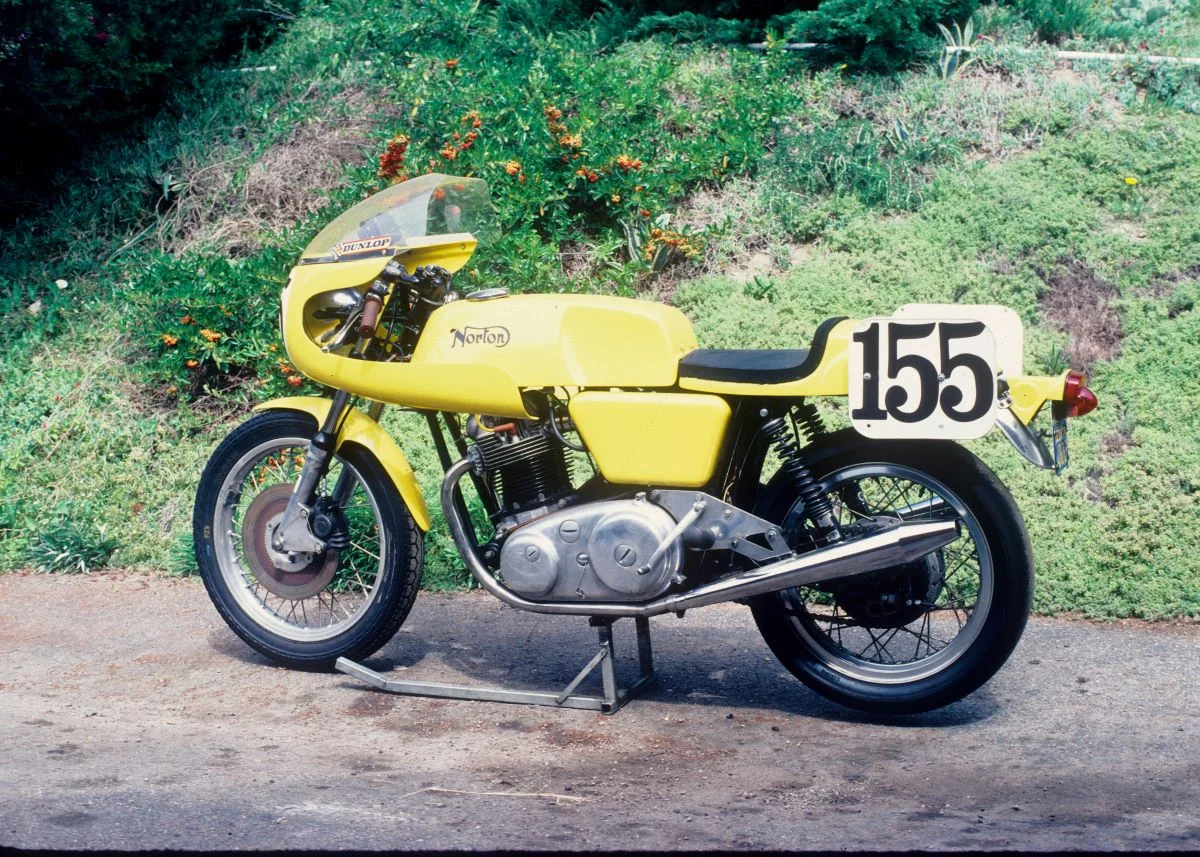

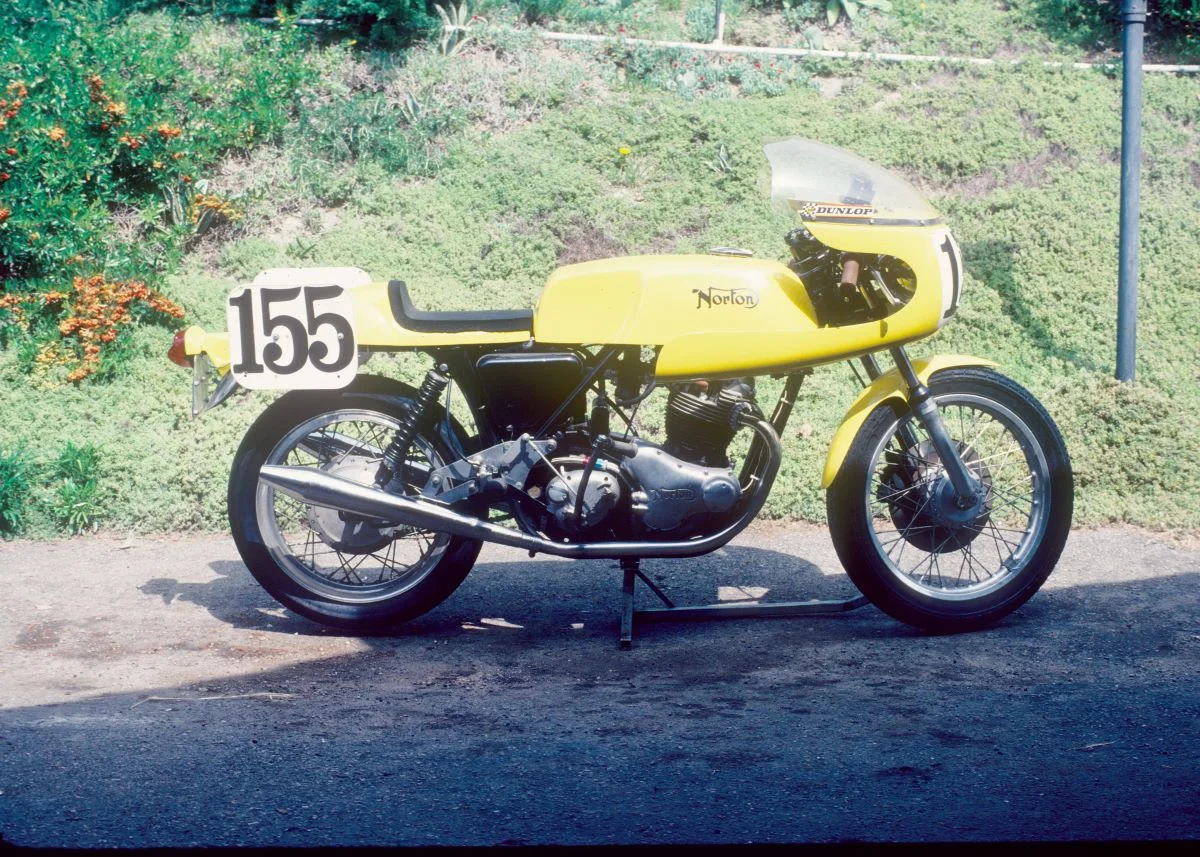

These are pocs of the bike with the same crossover configuration after painting it yellow again.

Pictures of your Norton Commandos


Pictures of your Norton Commandos

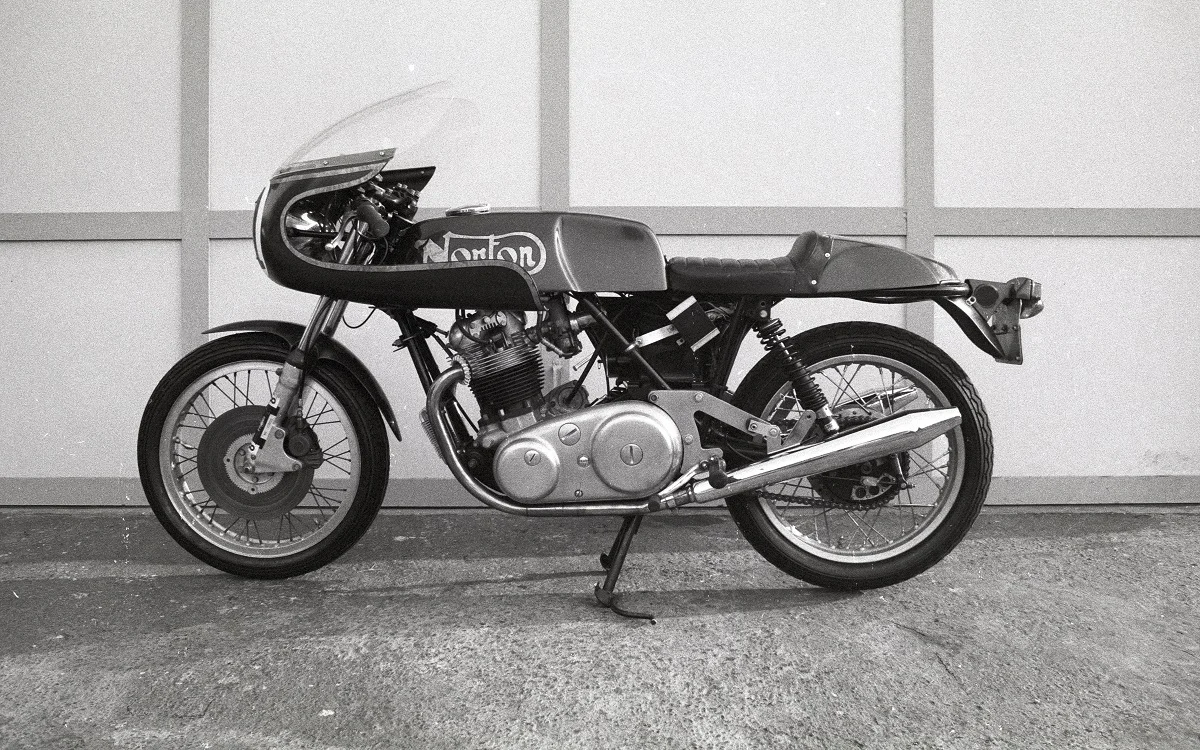

These two shots show a different configuration with the crossover shaft in a lower location, starting with a Dunstall conversion and makings a few mods.

Pictures of your Norton Commandos


Ken

Pictures of your Norton Commandos


And now, all these years later, I'm doing just the opposite, converting my Mk3 restomod to right shift:rolleyes:

Ken
