1969 Commando revitalization.
- Thread starter Jackman
- Start date
B+Bogus
VIP MEMBER
- Joined
- Jun 28, 2009
- Messages
- 2,283
The pilot screw setting is a guide only.
The air circuit can get easily clogged up, as already said, but the final setting must be done on a warmed up motor to obtain the best idle. This can vary between carbs on the same bike, so fine tuning of both sides is key, and in conjunction with the idle screws.
they can be as low as half a turn from closed.
The air circuit can get easily clogged up, as already said, but the final setting must be done on a warmed up motor to obtain the best idle. This can vary between carbs on the same bike, so fine tuning of both sides is key, and in conjunction with the idle screws.
they can be as low as half a turn from closed.
concours
VIP MEMBER
- Joined
- Dec 29, 2011
- Messages
- 10,080
Take the bowls off.
Swarf is drill chips, etc.
Also check that everything is snug. My jet holders were loose from new.
What size Allen are you using? I've had no luck with SAE or metric. The tools are either far too small or too big.Is there better tools or better bolts that would make bolting the intake easier? Here’s what I’m using for wrenches a cut down Allen head along with a ball Allen head , they help but if there’s a better way please help me out.
- Joined
- Nov 20, 2004
- Messages
- 21,090

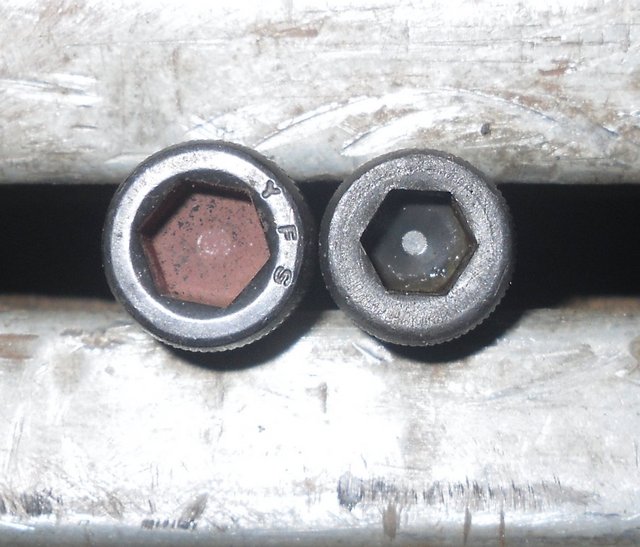

The original 5/16" manifold screws were Whitworth (below right) that took a 7/32" Allen key, however, these are often replaced with incorrect UNC screws as both threads are 18 TPI although Whit is 55 degree and UNC is 60 degree (below left) which takes a 1/4" Allen key so I don't know why you haven't found a key to fit and the originals certainly aren't metric.

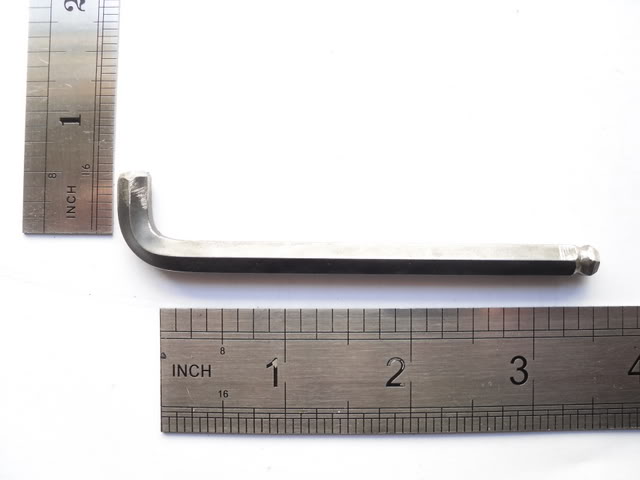

A ball end can easily be ground into the long end of the Allen key to spin the screw in or out.
Last edited:
