Need a good CNC machinist for fabrication of a special part in the USA, anybody know of one?


jimbo

VIP MEMBER
Joined
Sep 25, 2004
Messages
1,841
Country flag

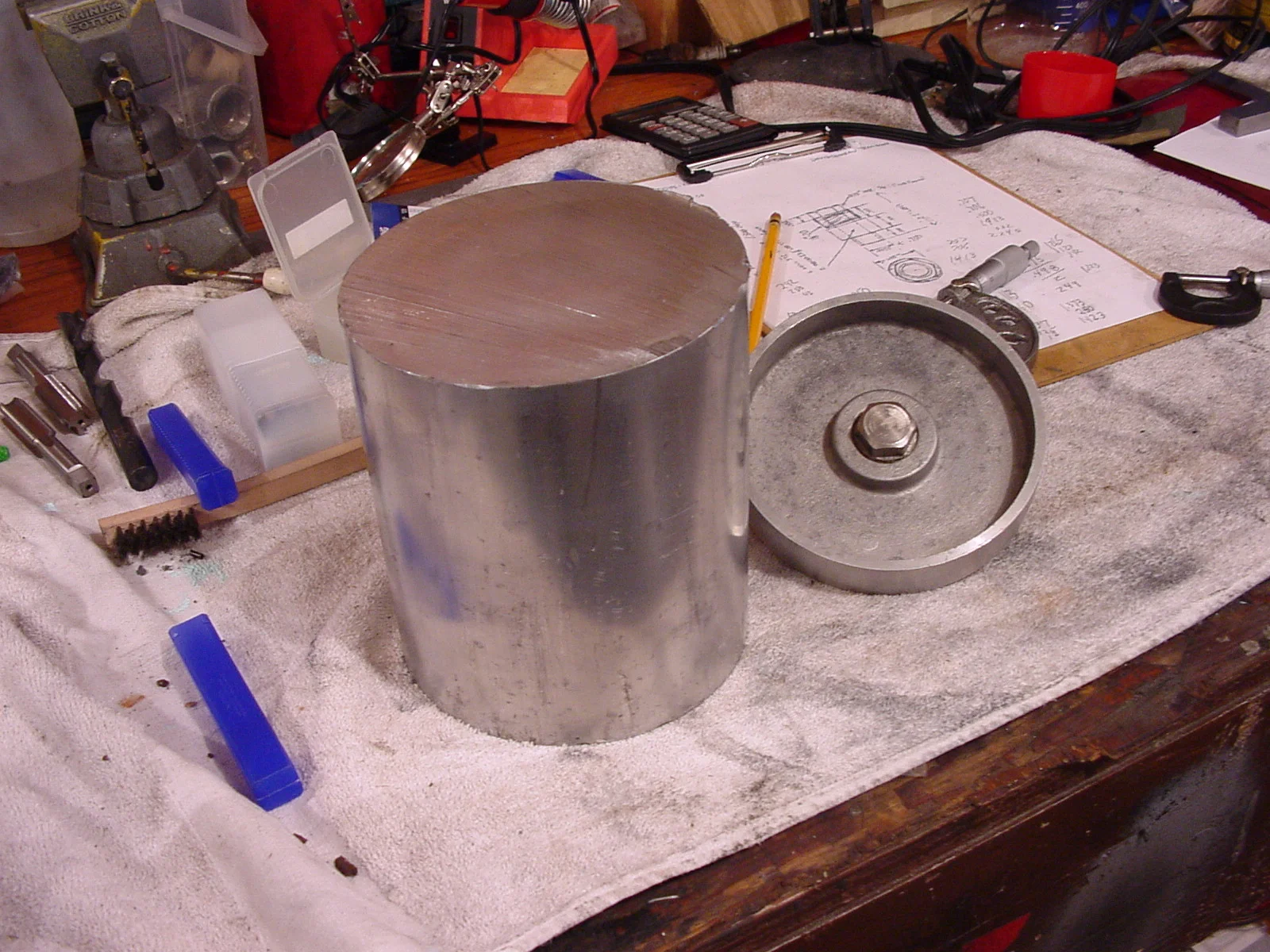

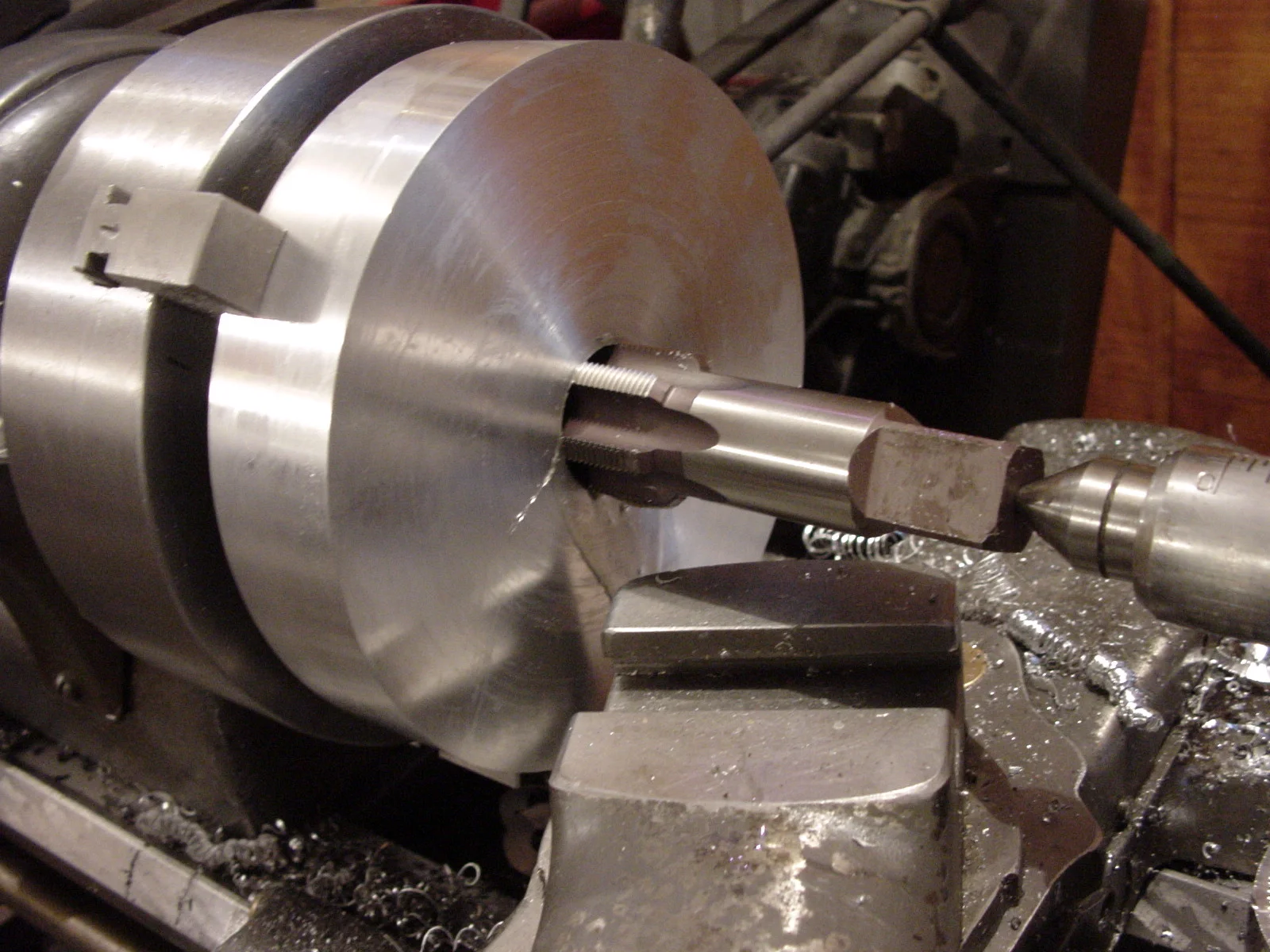

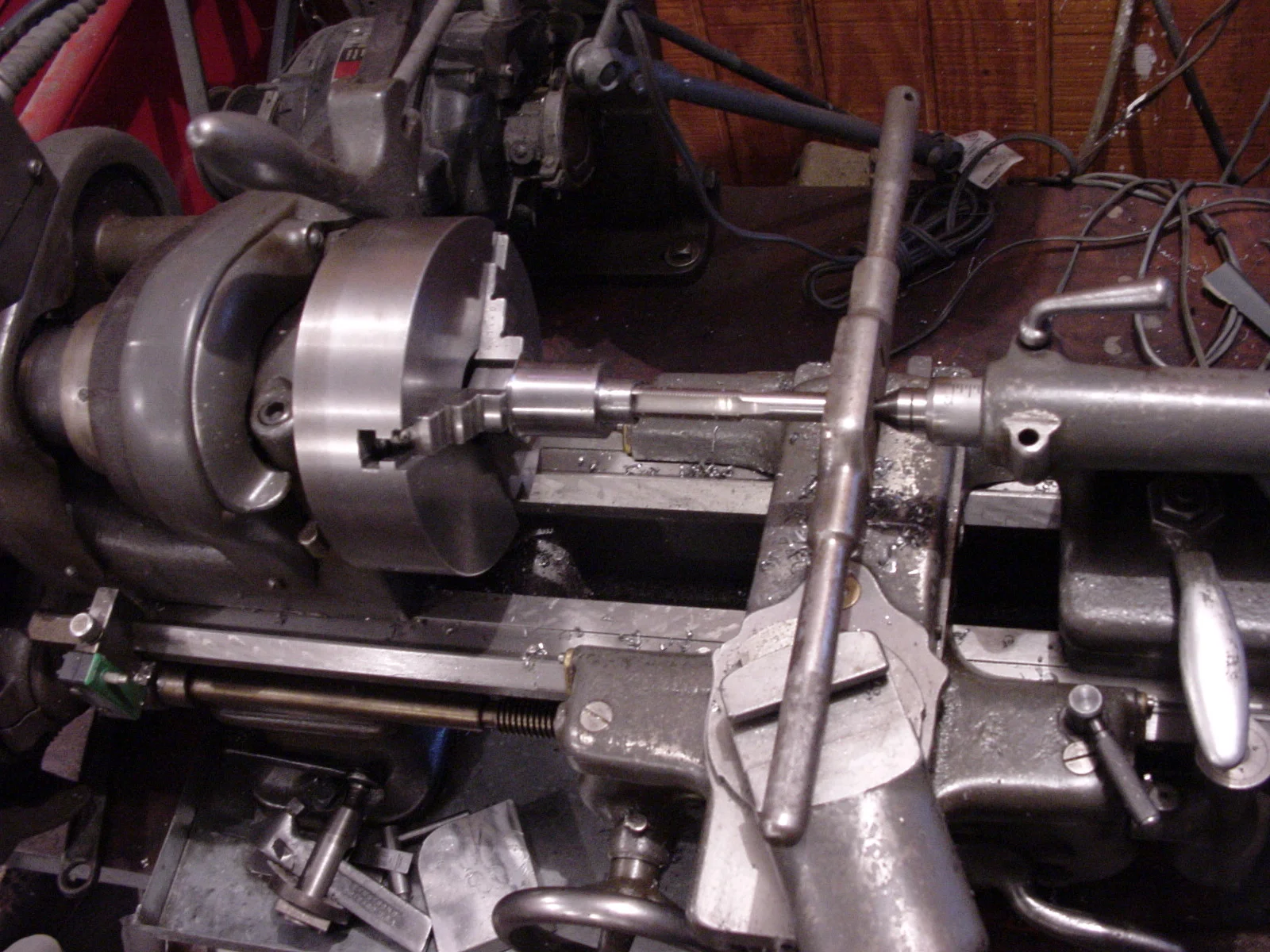

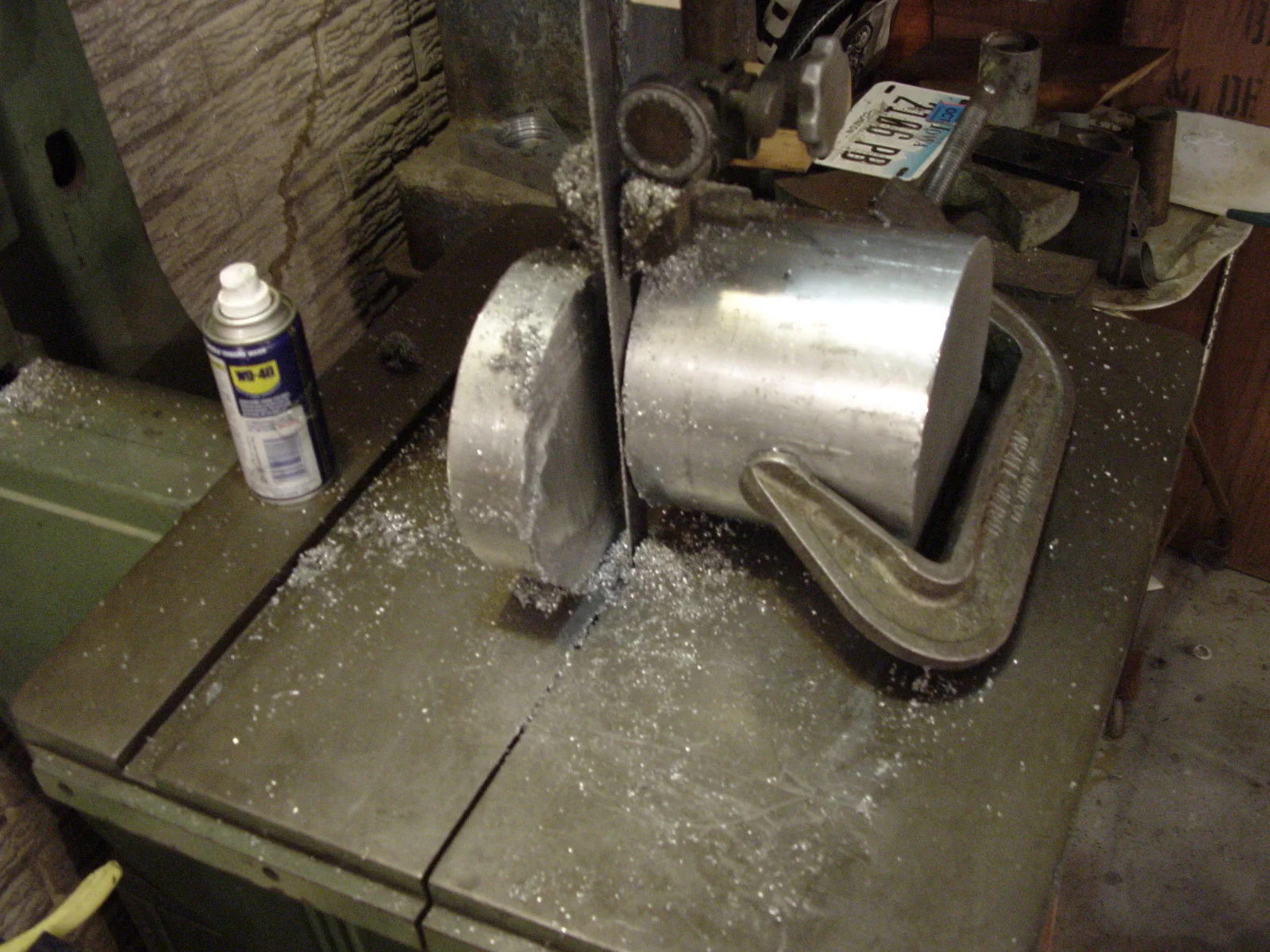

mill and lathe, but I might have got past the most difficult step, more to come.


Attachments

  • Need a  good CNC  machinist for fabrication of  a special part in the USA
    70.1 KB · Views: 55
  • Need a  good CNC  machinist for fabrication of  a special part in the USA
    489.2 KB · Views: 49
  • Need a  good CNC  machinist for fabrication of  a special part in the USA
    530.6 KB · Views: 45
  • Need a  good CNC  machinist for fabrication of  a special part in the USA
    484.2 KB · Views: 43
  • Need a  good CNC  machinist for fabrication of  a special part in the USA
    463.7 KB · Views: 50

Shelby-Right

VIP MEMBER
Joined
Jan 28, 2022
Messages
404
Country flag
Set up for a cnc job i:e the program isn't usually cost effective for one offs , if it's just dividing head then a good machinist or tool maker with mill , would do the trick .


concours

VIP MEMBER
Joined
Dec 29, 2011
Messages
6,806
Country flag
Easy lathe job. Any nearby machine shop can help.
I've know the owner here 30 years.
Need a  good CNC  machinist for fabrication of  a special part in the USA


jimbo

VIP MEMBER
Joined
Sep 25, 2004
Messages
1,841
Country flag

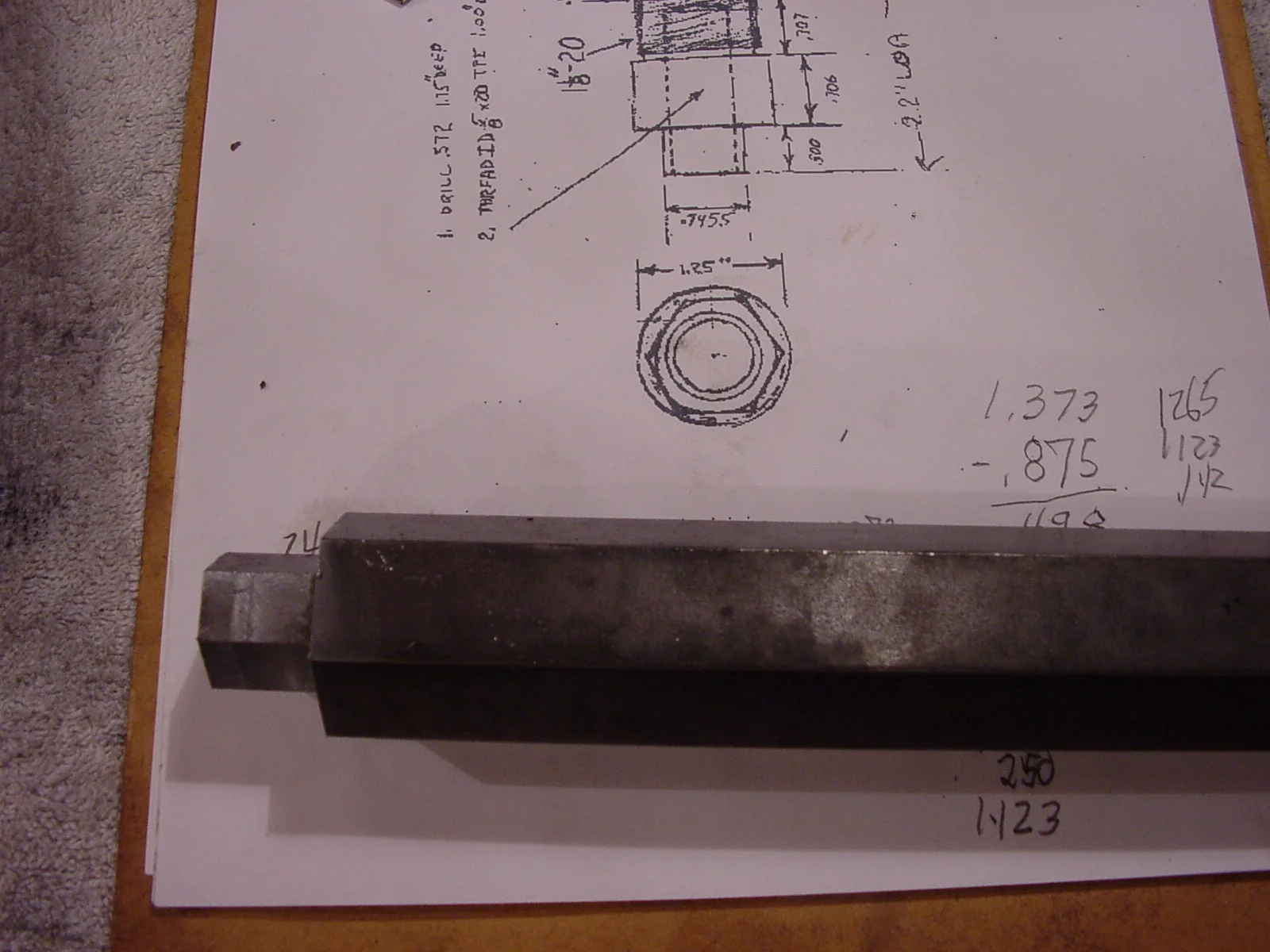

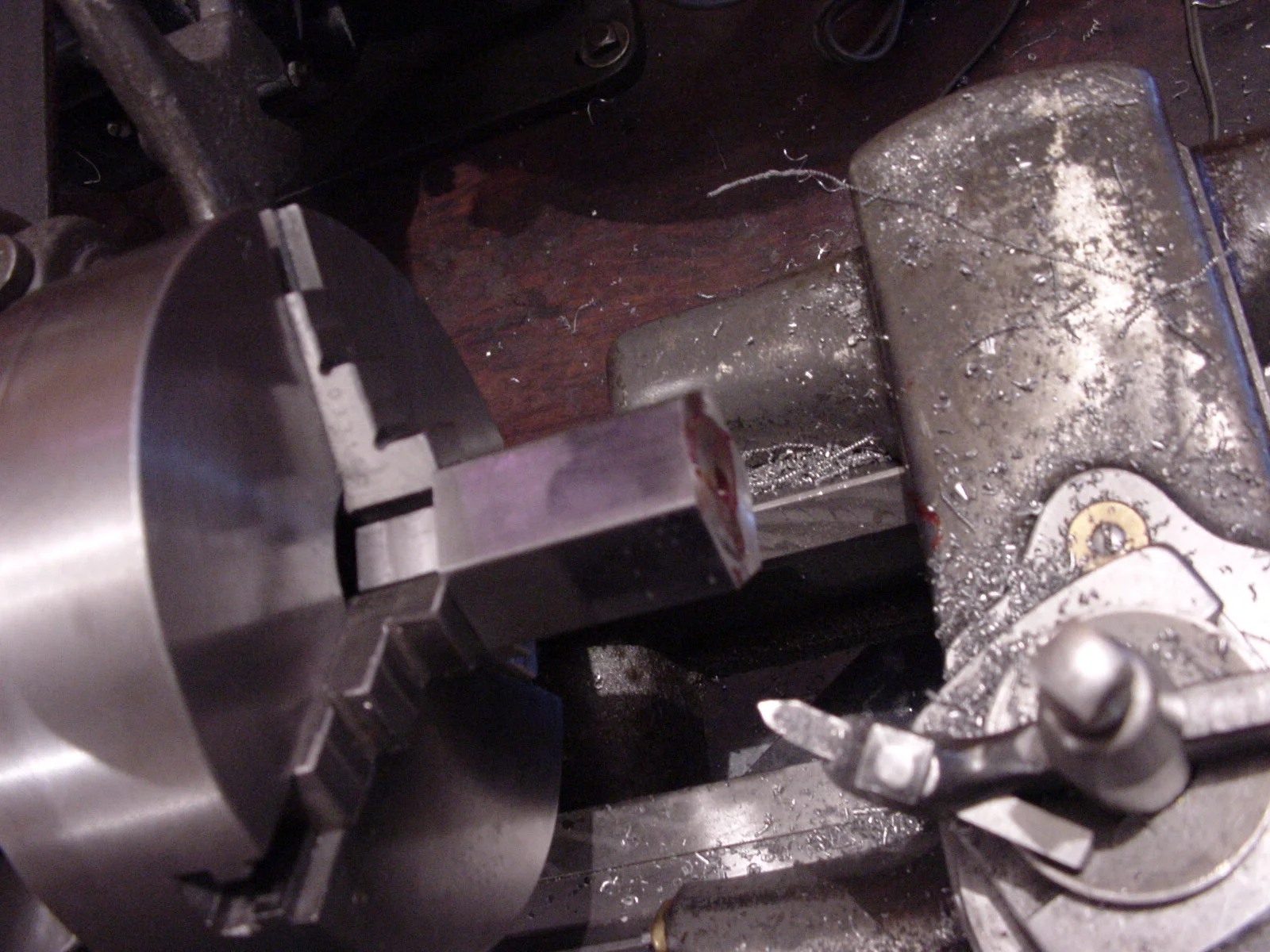

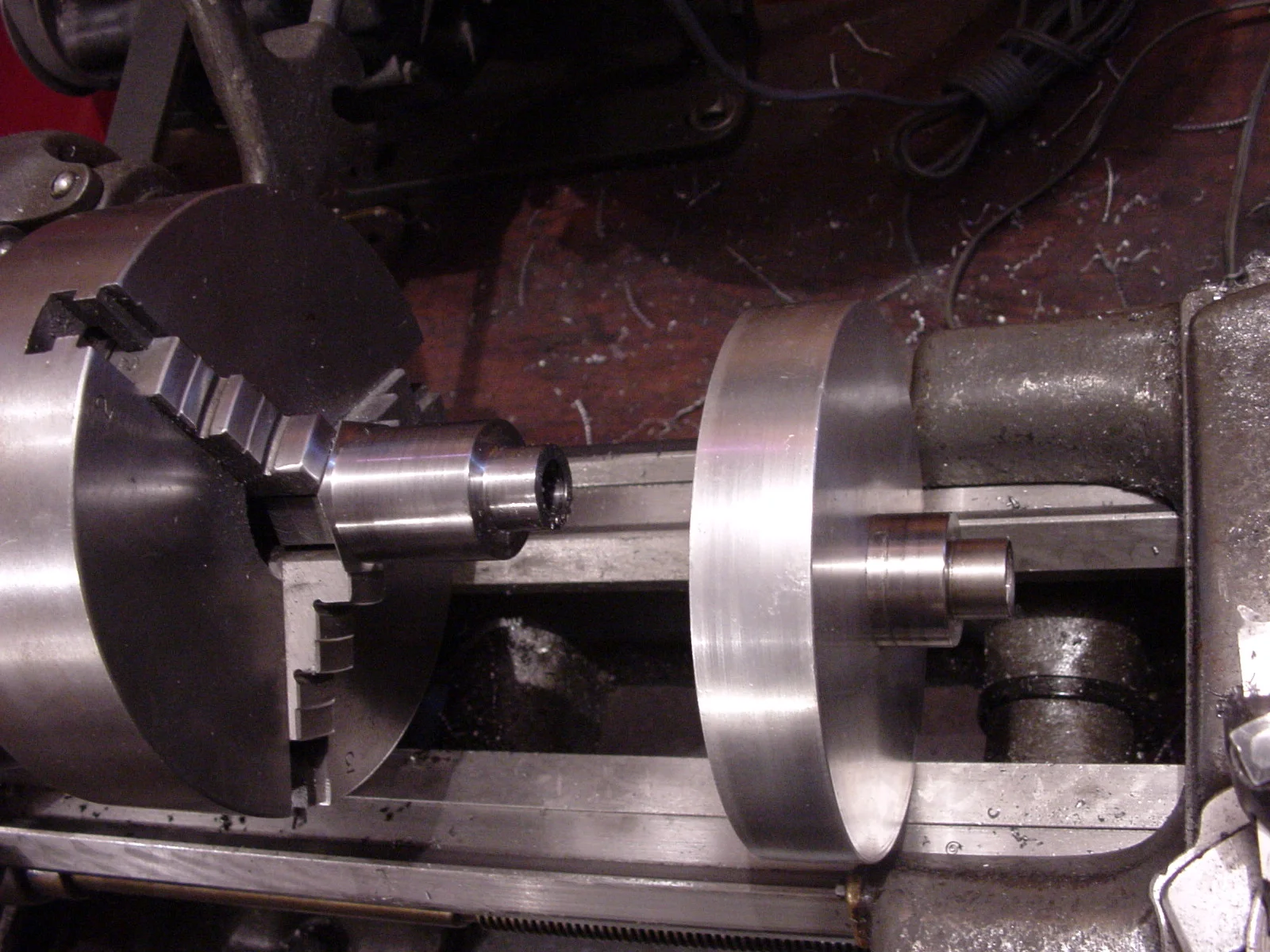

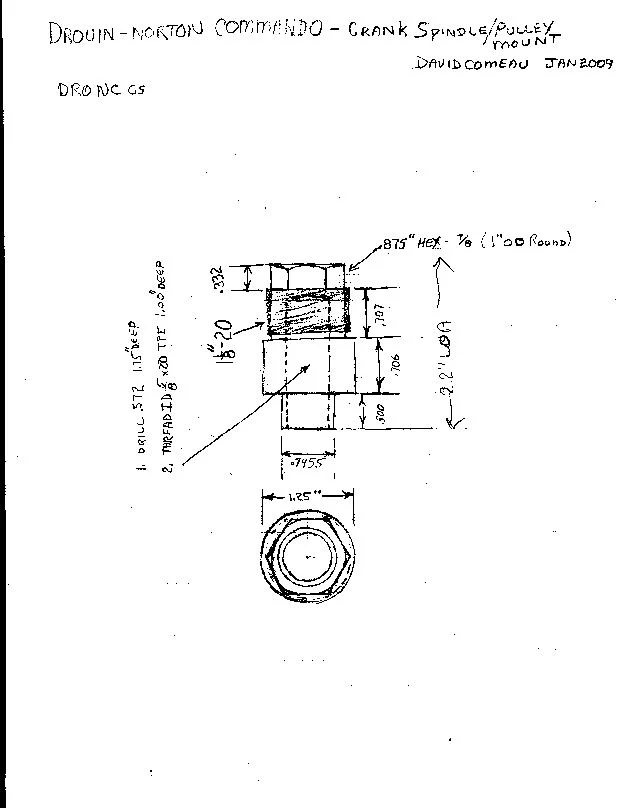

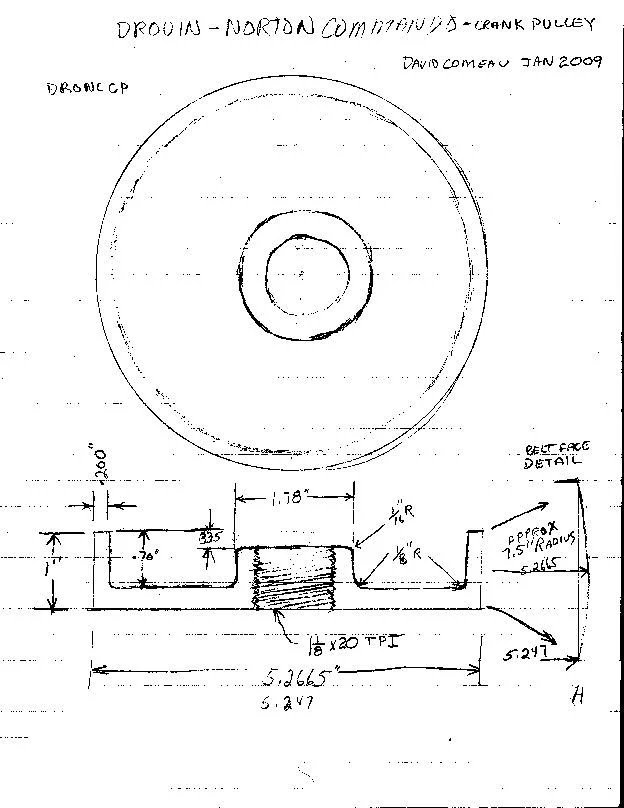

not easy for me and my old small machines. No indexing head ( hence the need to use a hex bar ), the pulley just clears the lathe table, you can't true the inner side of the pulley up on the spindle without it unscrewing . No cross feed and the need to excavate .700" of material on the outer side is a pain. A one piece assembly made of steel would be the ticket , but impossible for me to machine a hex recessed inside a bore.


concours

VIP MEMBER
Joined
Dec 29, 2011
Messages
6,806
Country flag
not easy for me and my old small machines. No indexing head ( hence the need to use a hex bar ), the pulley just clears the lathe table, you can't true the inner side of the pulley up on the spindle without it unscrewing . No cross feed and the need to excavate .700" of material on the outer side is a pain. A one piece assembly made of steel would be the ticket , but impossible for me to machine a hex recessed inside a bore. View attachment 102445 View attachment 102446 View attachment 102447 View attachment 102448
No problem. Any lathe equipped with live tooling will bust that right out.


concours

VIP MEMBER
Joined
Dec 29, 2011
Messages
6,806
Country flag
Last edited:

concours

VIP MEMBER
Joined
Dec 29, 2011
Messages
6,806
Country flag
You're welcome. 🧰 Glad I could help.
I'll buy myself a beer.🍺
