My détailed NORTON COMBAT of BORDEAUX

Joined
Sep 16, 2006
Messages
14
This is a list of the modifications on my 750 , 72 Combat .
Without damaging the original apearance , they make the bike as reliable and pleasant to ride as a modern bike , exept for the electric starter .
the 2 most important areas of improvement are the brakes and the cooling : I live in southern France where it can get very hot , so I added an oil cooler that opens at 83 deg. an oil pressure and temperature gauge .
It has an 850 clutch , a Boyer red microdigital ignition , anti dive forks , double discs with Lockheed calipers ( like the John Player Nortons) ,
RH6S head with 850 guides .
Lightened and polished cam followers .
Carburettors have hard chromed slides for less wear .
rubber coated cam chain tensioner .
Real oil seal on kickstart shaft .
Mk 3 isolastics , Mike Hemmings head steady .
Koni shocks , originally for BMW 1000RS but with softer springs ,
18 inch rims to compensate for the exta length of the shocks .
Raised clip ons with Brembo racing master cylinder from 916 Ducati .
23 T gearbox sprocket to allow high speed cruising .
Special side stand that does not damage the frame tubes .
The result is very satisfying .
the bike is very comfortable , brakes very well and keeps a good oil pressure , even at longer distances at high speed .
The Avon M20 tires give it exellent grip and stability at all speeds .
:D



My détailed NORTON COMBAT of BORDEAUX



My détailed NORTON COMBAT of BORDEAUX

Joined
Aug 21, 2006
Messages
748
Country flag
Une photo s'il vous plait!!


nortonf1 said:
This is a list of the modifications on my 750 , 72 Combat .
Without damaging the original apearance , they make the bike as reliable and pleasant to ride as a modern bike , exept for the electric starter .
the 2 most important areas of improvement are the brakes and the cooling : I live in southern France where it can get very hot , so I added an oil cooler that opens at 83 deg. an oil pressure and temperature gauge .
It has an 850 clutch , a Boyer red microdigital ignition , anti dive forks , double discs with Lockheed calipers ( like the John Player Nortons) ,
RH6S head with 850 guides .
Lightened and polished cam followers .
Carburettors have hard chromed slides for less wear .
rubber coated cam chain tensioner .
Real oil seal on kickstart shaft .
Mk 3 isolastics , Mike Hemmings head steady .
Koni shocks , originally for BMW 1000RS but with softer springs ,
18 inch rims to compensate for the exta length of the shocks .
Raised clip ons with Brembo racing master cylinder from 916 Ducati .
23 T gearbox sprocket to allow high speed cruising .
Special side stand that does not damage the frame tubes .
The result is very satisfying .
the bike is very comfortable , brakes very well and keeps a good oil pressure , even at longer distances at high speed .
The Avon M20 tires give it exellent grip and stability at all speeds .
:D

Joined
Sep 16, 2006
Messages
14

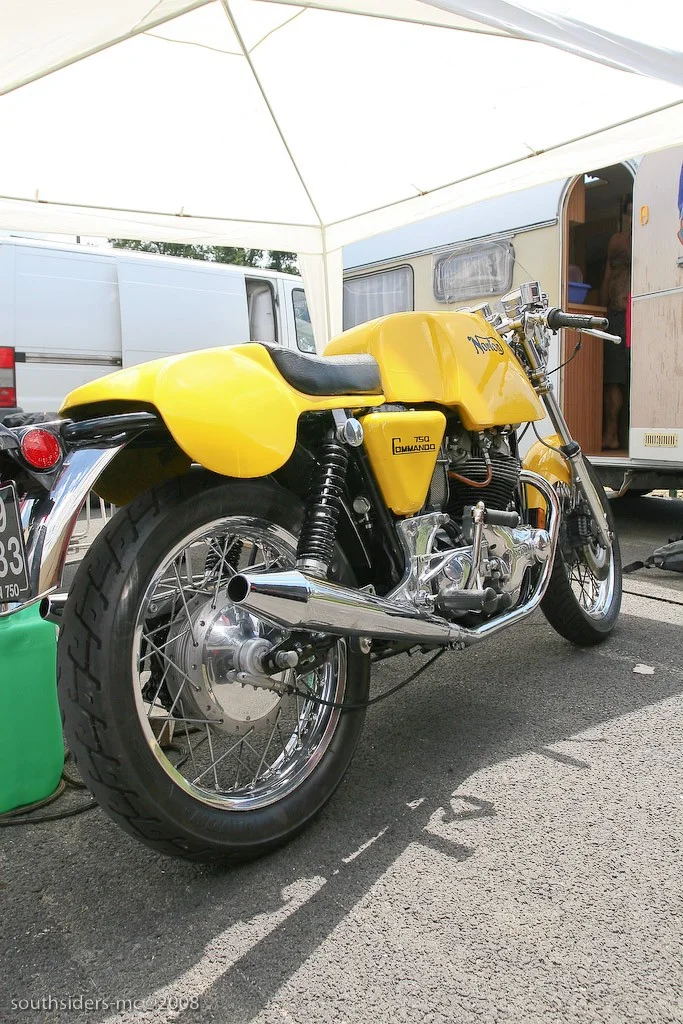

Une photo de ma commando ,j'aimerai !
Faut il la passer au webmaster ??????




tpeever said:
Une photo s'il vous plait!!


nortonf1 said:
This is a list of the modifications on my 750 , 72 Combat .
Without damaging the original apearance , they make the bike as reliable and pleasant to ride as a modern bike , exept for the electric starter .
the 2 most important areas of improvement are the brakes and the cooling : I live in southern France where it can get very hot , so I added an oil cooler that opens at 83 deg. an oil pressure and temperature gauge .
It has an 850 clutch , a Boyer red microdigital ignition , anti dive forks , double discs with Lockheed calipers ( like the John Player Nortons) ,
RH6S head with 850 guides .
Lightened and polished cam followers .
Carburettors have hard chromed slides for less wear .
rubber coated cam chain tensioner .
Real oil seal on kickstart shaft .
Mk 3 isolastics , Mike Hemmings head steady .
Koni shocks , originally for BMW 1000RS but with softer springs ,
18 inch rims to compensate for the exta length of the shocks .
Raised clip ons with Brembo racing master cylinder from 916 Ducati .
23 T gearbox sprocket to allow high speed cruising .
Special side stand that does not damage the frame tubes .
The result is very satisfying .
the bike is very comfortable , brakes very well and keeps a good oil pressure , even at longer distances at high speed .
The Avon M20 tires give it exellent grip and stability at all speeds .
:D

Joined
Mar 15, 2009
Messages
4,686
Country flag
A very nice Commando. Looks perfect for high speed cruising through the countryside.

Ken

Joined
Oct 19, 2005
Messages
18,978
Country flag
A special good one there. Should cruise motorways over the ton all day long with 23T. What do you mean by anti-dive forks fitted?

Joined
Nov 20, 2008
Messages
1,362
Country flag

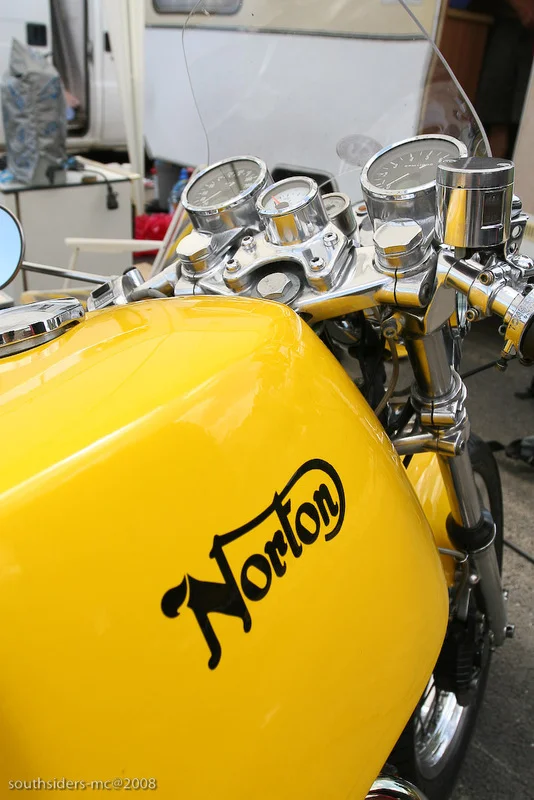

Nice looking machine. Can you post some more photos! What triple clamps are those? How many gallons is the front brake reservoir? ;) (it looks huge without a handle sticking off it :D and finally what is mounted above the lower triple clamp, it it your headlight mount?

Joined
Jan 22, 2008
Messages
2,585
Country flag
swooshdave said:
Torontonian said:
:shock: Rouge Bordeaux sil' vous plait. No jaune vin . Magnifique !

Did you tell him to post more pictures in Eastern Canadianese?

I think even google translate would be confused unless it had a Molson translator added on ;)

Jean

Superbe ta Norton 8)

Joined
Oct 6, 2013
Messages
865
RennieK said:
Nice looking machine. Can you post some more photos! What triple clamps are those? How many gallons is the front brake reservoir? ;) (it looks huge without a handle sticking off it :D and finally what is mounted above the lower triple clamp, it it your headlight mount?


Brake reservoir!! Here in Oz we would use that as a "stubby holder"
