fork tube diameter?

S

SpitfireRick

Joined

Dec 19, 2005

Messages

35

• Oct 10, 2006

• #1

gents, of course somewhere listed there is the diameter of the upper fork tube, but maybe someone can save me the time and let me know. I am interested in fitting clip ons and a new head lamp bracket, so I need this info.
thanks in advance,
Rick



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,415

• Oct 10, 2006

• #2

Stanchion O/D = 1.3589/1.3574 inches (34.518mm/34.480mm).



S

SpitfireRick

Joined

Dec 19, 2005

Messages

35

• Oct 10, 2006

• #3

LAB,
so does that mean I need a 34mm or 35mm bracket/clip on?
Rick
PS....thanks for the quick reply



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,415

• Oct 10, 2006

• #4

= 34.5mm!

Depends on the type I suppose?
Many types are just a split tube clamp with lugs and bolts to pull them up tight, others could be machined especially to fit?
So maybe worth asking the supplier?
---------------------
Update

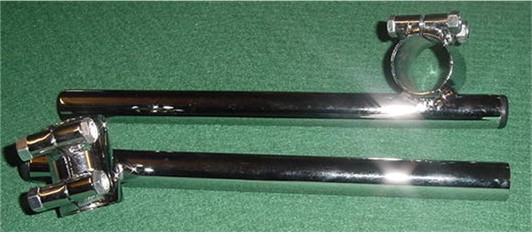

The split tube type advertised by RGM are described as "35mm".

http://www.rgmmotors.co.uk/images/full/full_601b.jpg



7

79x100

Joined

May 19, 2006

Messages

1,612

• Oct 10, 2006

• #5

Be a bit careful here, you won't be able for instance to get Tommasellis with alloy fittings to clamp properly, although chromed steel cheaper types will. The clamps will be a bit overtightened though.
