DummyNator

manx850

Joined

Aug 15, 2012

Messages

164

• Jul 19, 2021

• #1

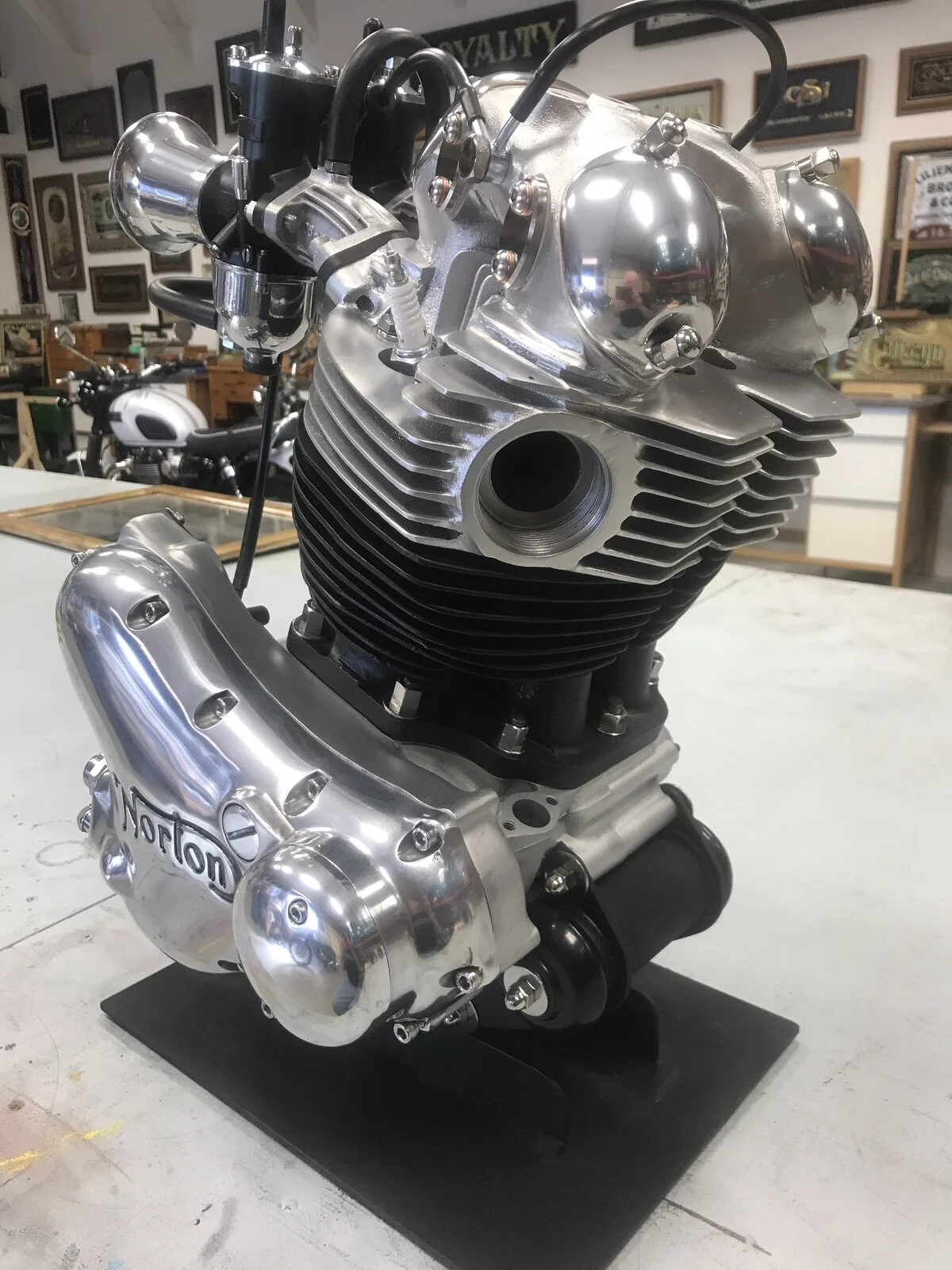

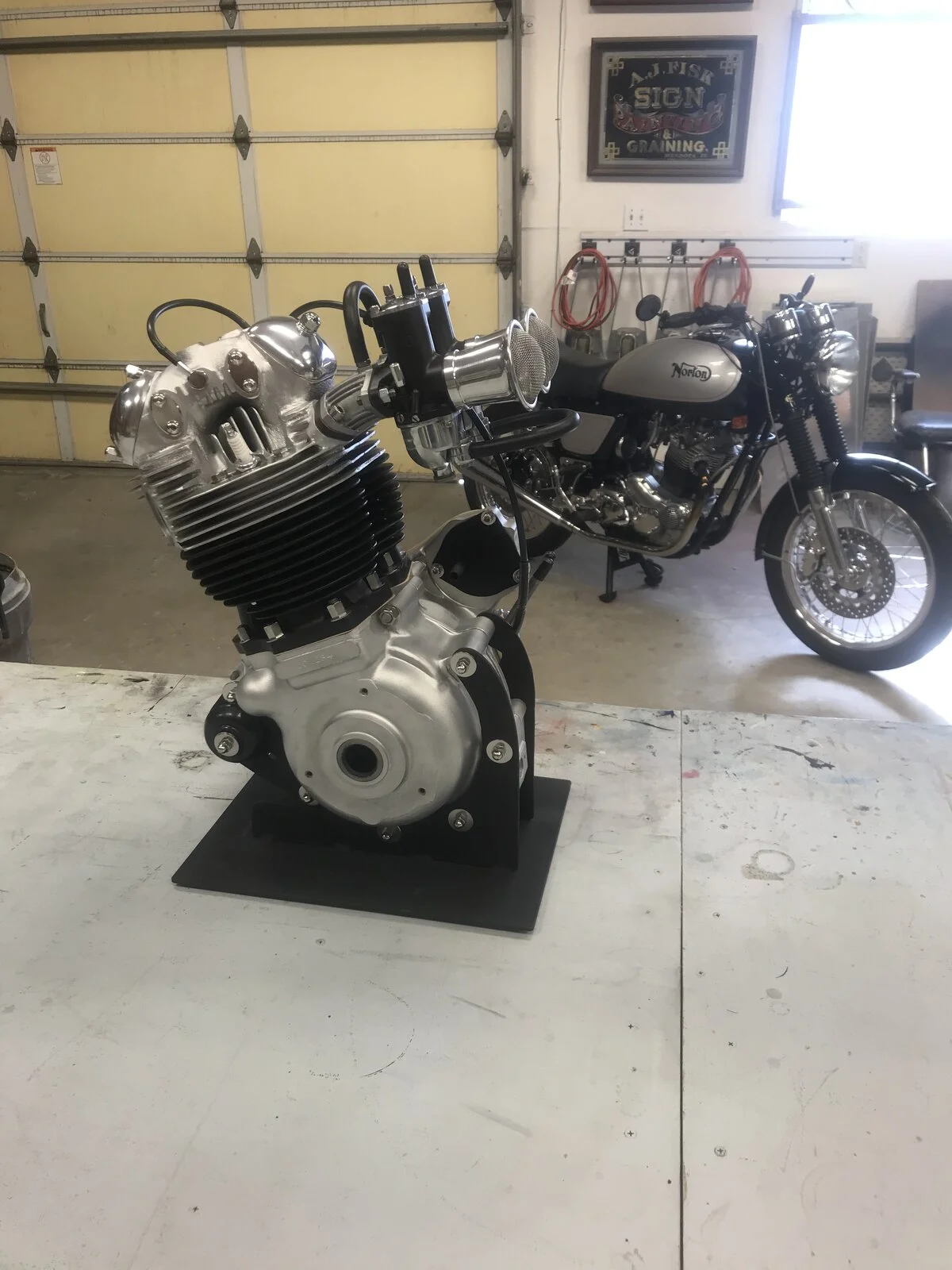

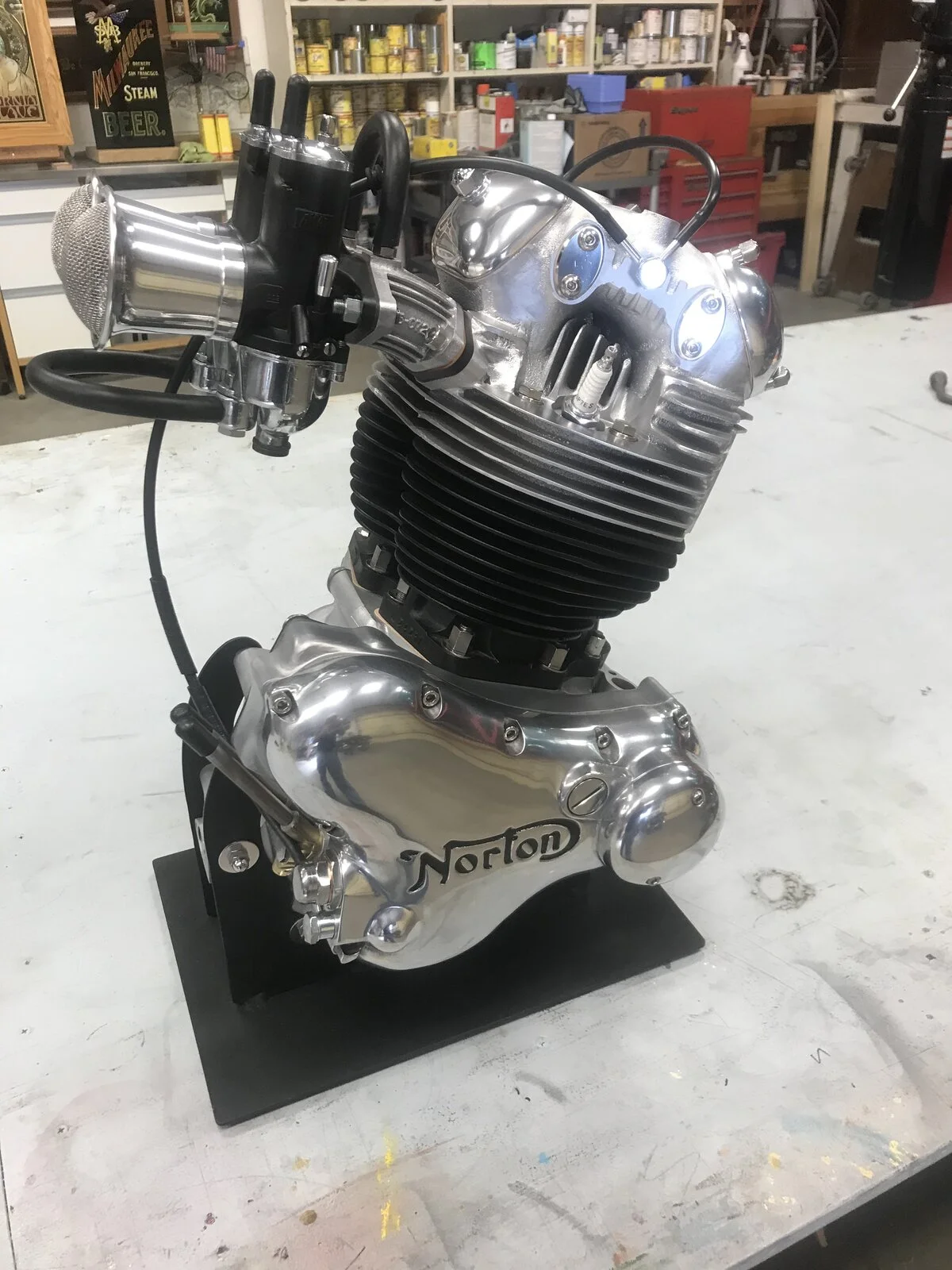

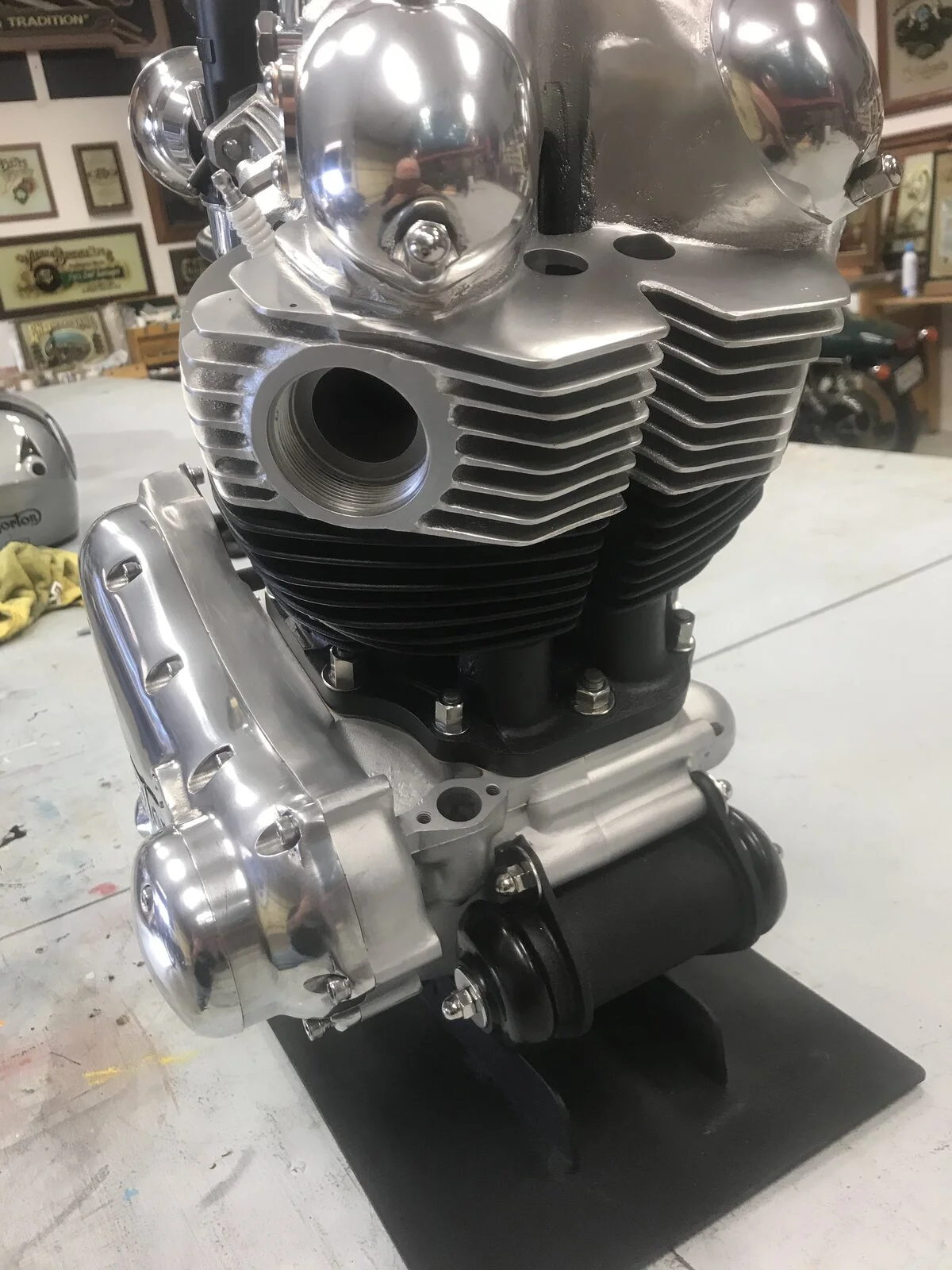

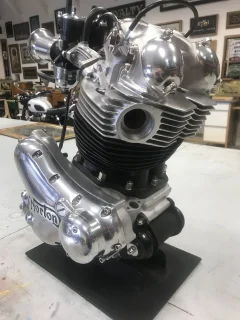

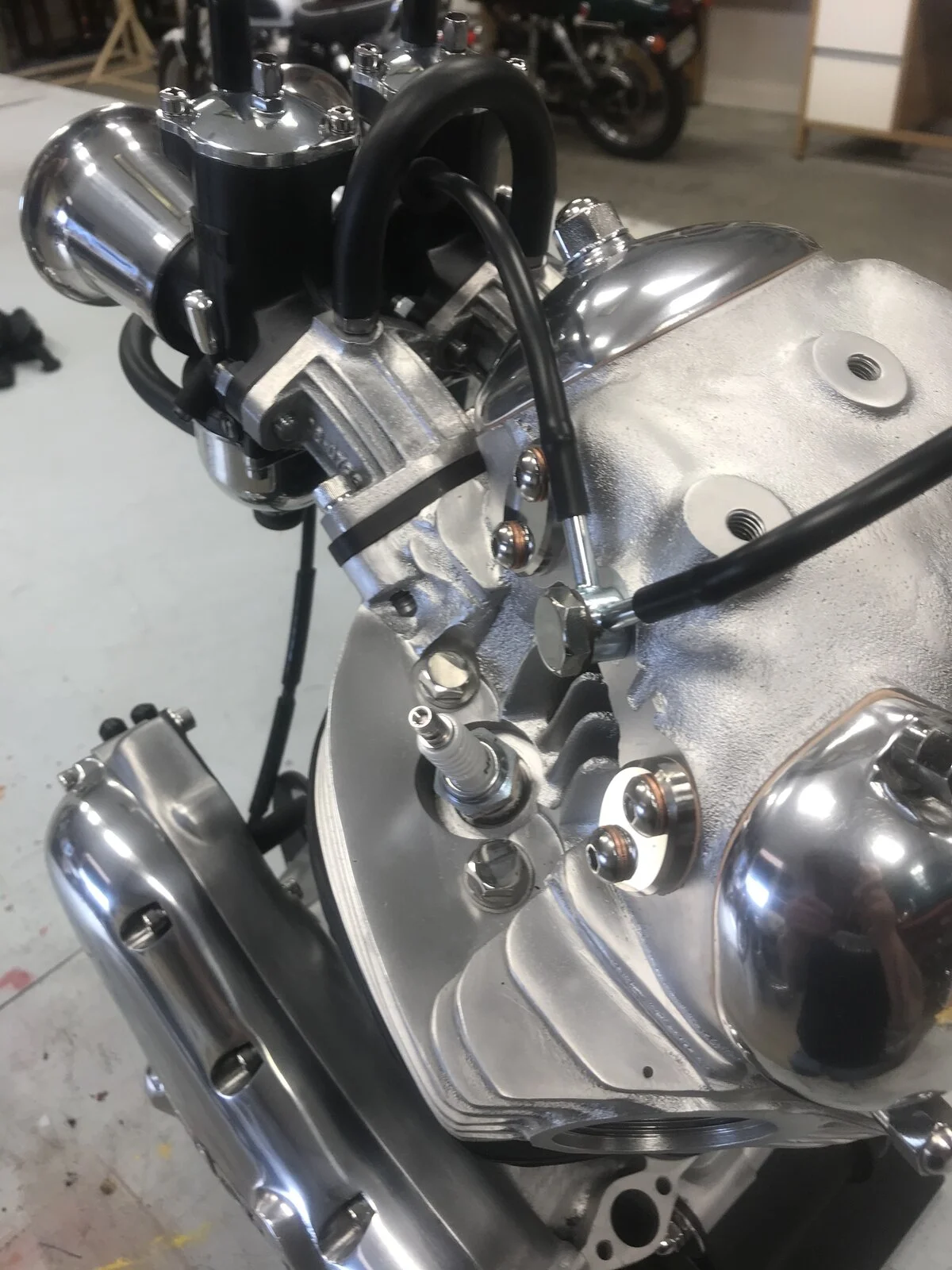

DummyNator. I put together this display motor from old parts, Combat cases , Atlas barrels, MK3 timing cover, cylinder head? not sure! Some new hardware, old carbs, engine plates are 090 aluminum. Deburred the terrible Norton castings!



Attachments

•

  192.7 KB · Views: 346
•

  202.4 KB · Views: 327
•

  204.6 KB · Views: 301
•

  167.9 KB · Views: 315
•

  163.7 KB · Views: 313
•

  140.5 KB · Views: 345

A

aboatguy

Joined

Apr 17, 2021

Messages

8

• Jul 19, 2021

• #2

Cool display piece!



gortnipper

Joined

Nov 11, 2013

Messages

5,396

• Jul 19, 2021

• #3

Put some blue LEDs in the stacks and some red ones in the exhaust ports, and fire it up!



baz

VIP MEMBER

Joined

May 26, 2010

Messages

7,906

• Jul 20, 2021

• #4

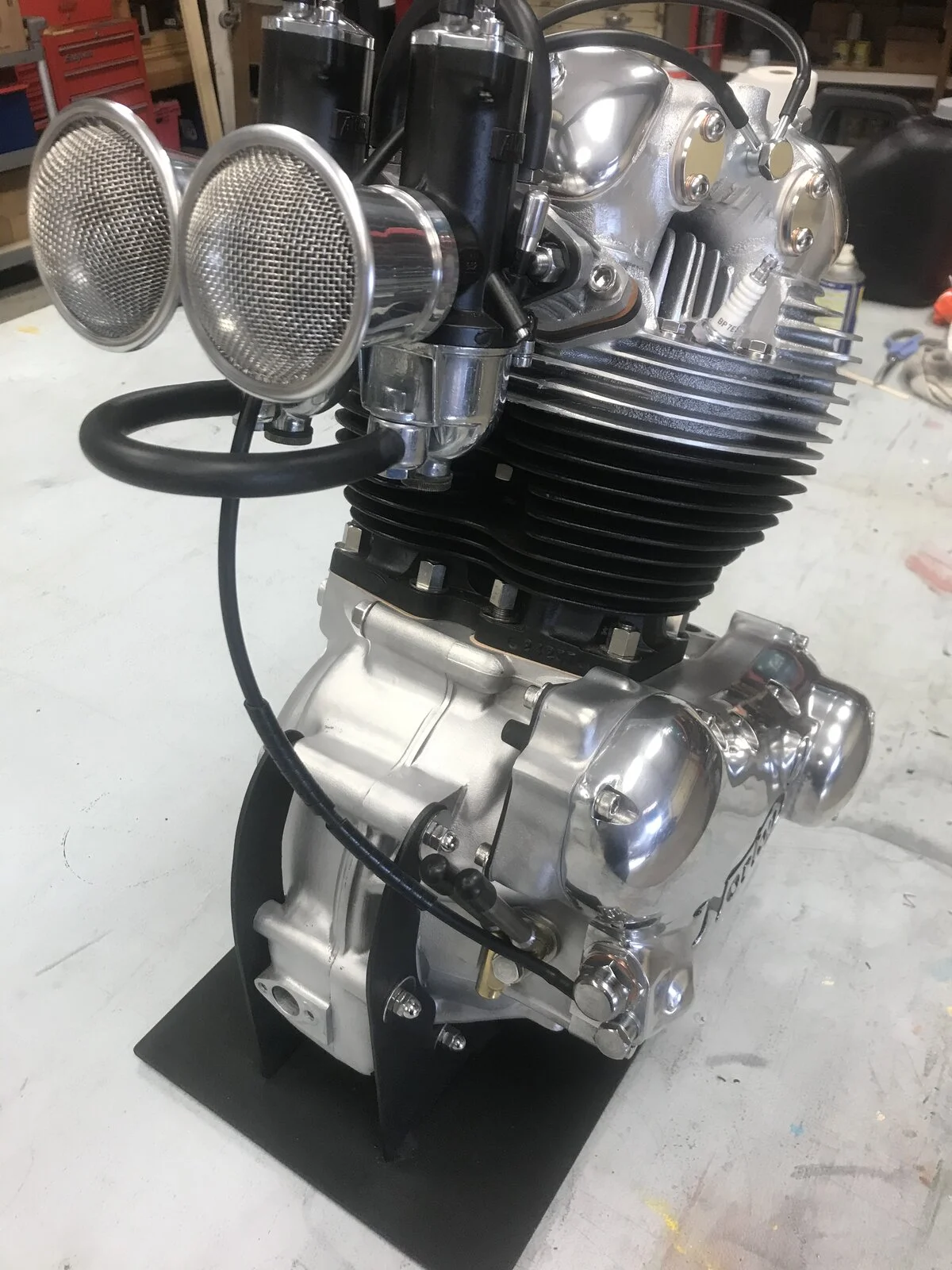

You need to remove those mesh filters off the bell mouths or it'll run rich at high rpm!!



Flatspot

VIP MEMBER

Joined

Jan 30, 2020

Messages

1,279

• Jul 20, 2021

• #5

Don’t forget to torque down that loose barrel nut.



EstuaryBoy

Joined

Mar 7, 2020

Messages

3,156

• Jul 20, 2021

• #6

What oil are you using? !!



kommando

Joined

May 7, 2005

Messages

7,163

• Jul 20, 2021

• #7

EstuaryBoy said:

What oil are you using? !!

Click to expand...

Leaky oil



baz

VIP MEMBER

Joined

May 26, 2010

Messages

7,906

• Jul 20, 2021

• #8

EstuaryBoy said:

What oil are you using? !!

Click to expand...

Fully synthetic of course



Schwany

Joined

Apr 22, 2020

Messages

3,165

• Jul 20, 2021

• #9

Real nice job!!

That is a lot of work. I started to deburr an old head I have laying around and said to myself, "The heck with that. It'll take for ever."



Hortons Norton

VIP MEMBER

Joined

Oct 12, 2007

Messages

2,068

• Jul 20, 2021

• #10

Less vibration!



manx850

Joined

Aug 15, 2012

Messages

164

• Jul 20, 2021

• #11

Landspeedracer said:

Don’t forget to torque down that loose barrel nut.

Click to expand...

did that on purpose to see if you would spot it.....



manx850

Joined

Aug 15, 2012

Messages

164

• Jul 20, 2021

• #12

EstuaryBoy said:

What oil are you using? !!

Click to expand...

None and it still leaks.....



mean gene

VIP MEMBER

Joined

Dec 21, 2020

Messages

1,297

• Jul 20, 2021

• #13

I see the problem right off No Crank!!! LOL Great job lots of work just for display



YING

Pittsboro,NC

VIP MEMBER

Joined

Aug 12, 2011

Messages

1,187

• Jul 21, 2021

• #14

manx850 said:

DummyNator. I put together this display motor from old parts, Combat cases , Atlas barrels, MK3 timing cover, cylinder head? not sure! Some new hardware, old carbs, engine plates are 090 aluminum. Deburred the terrible Norton castings!

Click to expand...

How did you go about demurring the cases?What tools,die grinder,etc?
Thanks,Mike



Onder

VIP MEMBER

Joined

May 11, 2010

Messages

4,264

• Jul 21, 2021

• #15

Files. :-O



manx850

Joined

Aug 15, 2012

Messages

164

• Jul 22, 2021

• #16

YING said:

How did you go about demurring the cases?What tools,die grinder,etc?
Thanks,Mike

Click to expand...

A good compressor with an air grinder, various wheel grades then sandblast and vapor blast!



cliffa

VIP MEMBER

Joined

May 26, 2013

Messages

4,129

• Jul 22, 2021

• #17

Was the Norton logo on the timing cover painted from the factory ?



Richard Tool

VIP MEMBER

Joined

Aug 3, 2019

Messages

1,655

• Jul 22, 2021

• #18

love it !



YING

Pittsboro,NC

VIP MEMBER

Joined

Aug 12, 2011

Messages

1,187

• Jul 25, 2021

• #19

manx850 said:

A good compressor with an air grinder, various wheel grades then sandblast and vapor blast!

Click to expand...

Thanks!
