Unfortunately, that's not true. Anything with solder joints is subject to vibration failure. I'm in the process of returning a tail lamp to superbrightleds because it flickers when my engine is running. It's fine with no vibration.
Bummer !


Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag
I was running a 65/100 off-road H-4 bulb in a Stanley lens. I love those Stanley lens on the early Japanese bikes, good sharp break off on low beam and long bright light where you need it on high beam. Problem is the bulb was a pig when is came to power consumption. Early Wings have an issue with inadequate alternator output, so when I started adding to the load I had a charging issue at idle and low speed. I installed a bulb that physically resembled Paul’s bulb I think it might be 4K. It’s bright as could be but it doesn’t have the same sharpness as that H-4.
I rode to work this morning and started out in the dark so I paid attention to the light. To me the LED, as bright as it is, does not light up the road as well as the H-4 in that Stanley lens. So I guess it comes down to experimenting with different bulb/ lens
Pete


Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag
Nigel,
I doubt he makes his own bulbs. He buys from a vendor, I’m willing to bet it’s the same bulb. Somewhere I have a photo of my bulb. Guess Baz won’t know for sure till he tries it out.
Pete


lcrken

VIP MEMBER
Joined
Mar 15, 2009
Messages
4,043
Country flag
Just a reminder that the low beam pattern is different between headlamps for right-side driving (US, etc.) and for left side driving (UK, etc.). If you use the wrong one, you will be blinding oncoming traffic instead of illuminating the driving side shoulder.

Ken


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,148
Country flag
Nigel,
I doubt he makes his own bulbs. He buys from a vendor
I doubt anyone would argue with that!

My point is more that he puts effort into sourcing really good stuff and must be very selective with his vendors.

There is an awful lot of crap out there, more than ever I’d say, especially emanating from our Chinese friends. There is also more availability of some really good kit though too. But sorting the wheat from the chaff is tricky, especially for a layperson like me!

Add to that the issue of mass counterfitting that we have these days and there must be dozens of similar looking products out there, but their performance is very much unknown.

In this case, yours may or may not be the same, I don’t know. But it’s a minefield out there and if folk just buy something that looks similar off of eBay, they are really taking pot luck!

Personally, that’s why I prefer to pay a couple of £ more and use trusted retailers.


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
2,746
Country flag
Just a reminder that the low beam pattern is different between headlamps for right-side driving (US, etc.) and for left side driving (UK, etc.). If you use the wrong one, you will be blinding oncoming traffic instead of illuminating the driving side shoulder.

Ken
Is it the bulb or the lens that's most responsible for that? I just ordered one of Goffy's H4's and he's in the UK so... hope it works OK in the States.


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,148
Country flag
Is it the bulb or the lens that's most responsible for that? I just ordered one of Goffy's H4's and he's in the UK so... hope it works OK in the States.
It’s the lens so you should be fine.

Did you go for the 5k one? I’ve got a couple of those coming and am keen to try them out.


Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag
Nigel,
I don’t think it’s about the Benjamin’s in this case. The focus of the bulb is determined by the location of the light source in relationship to the curve of the reflecting surface on the back of the lens and the lens surface. This has been the pitfall of the LED substitution from the onset. Some combinations work better than others. Some don’t work at all.
My initial point was maybe a complete unit specially designed to work together might be a better choice than a hit or miss deal. One thing for sure, every LED headlight I have seen coming at me has always been eye catcher and a great defensive strategy.
I know Dereck from down under installed a NightHawk (I believe that’s what it was) and swears by it. Not sure if we resolved anything here but it was interesting
Pete


maylar

VIP MEMBER
Joined
May 13, 2007
Messages
2,746
Country flag
It’s the lens so you should be fine.

Did you go for the 5k one? I’ve got a couple of those coming and am keen to try them out.
Yeah, the 5K. I use a Wipac lenz with pilot lamp I bought from a Mini parts supplier. It's worked great with halogen bulbs. I'm keen to try it too.


baz

VIP MEMBER
Joined
May 26, 2010
Messages
2,253
Country flag
Is it the bulb or the lens that's most responsible for that? I just ordered one of Goffy's H4's and he's in the UK so... hope it works OK in the States.
It's the lens


concours

VIP MEMBER
Joined
Dec 29, 2011
Messages
4,192
Country flag
Unfortunately, that's not true. Anything with solder joints is subject to vibration failure. I'm in the process of returning a tail lamp to superbrightleds because it flickers when my engine is running. It's fine with no vibration.
I bought the 3 entire vehicles worth (MKIV VW’s) of “superbrightleds” and they failed miserably. Went off like flashcubes...
They’ll never get a penny more from me.


Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag

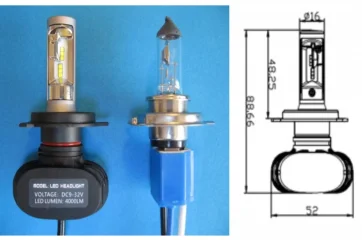

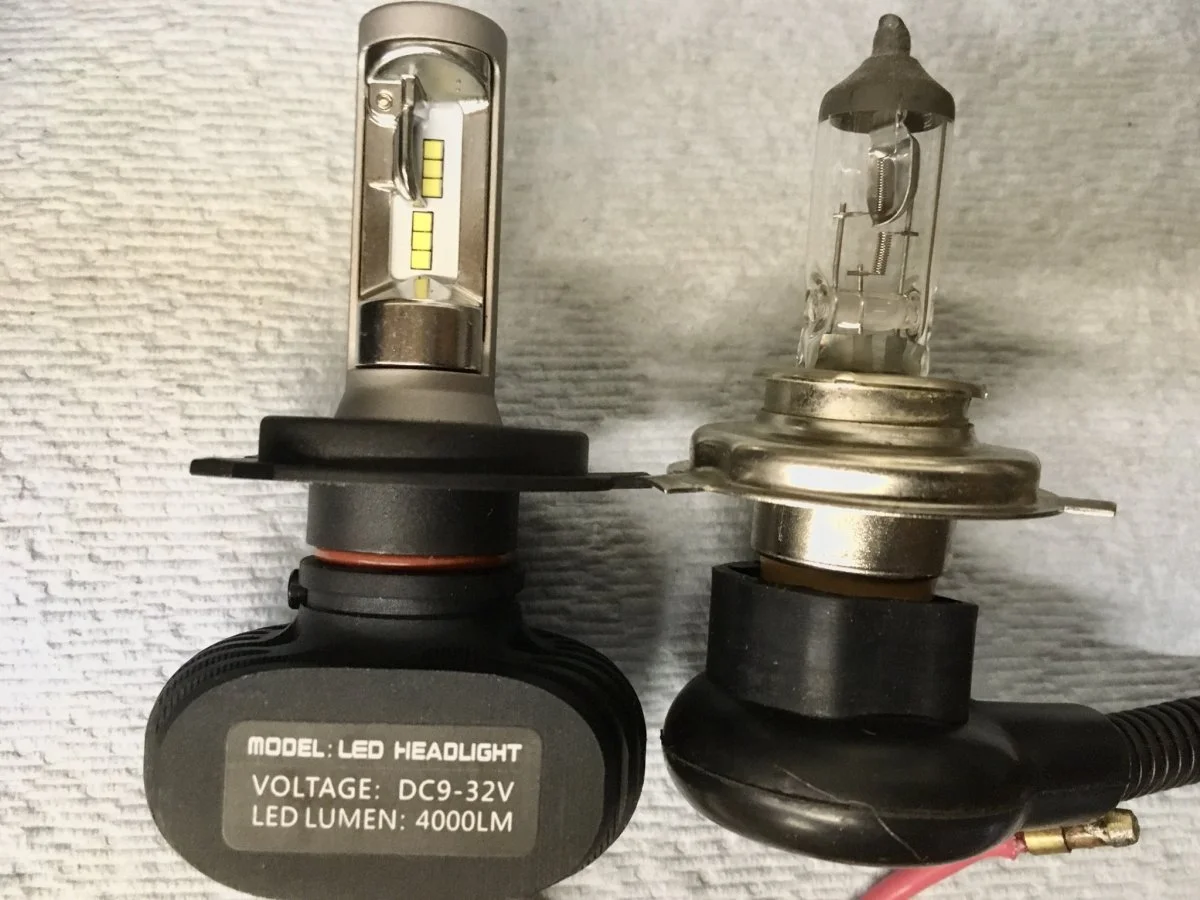

912941CE-A938-4128-BE53-6D329C52C686.jpeg 4C880E11-A108-44CA-A058-64A5EC2148F2.jpeg4A213825-AE27-4BC8-B7E3-2FC51A2B0FFF.jpeg

Just as a follow up.
Both bulbs are unbranded and except for the quoted operating temps both have identical specs as far as I can see.
Bulb on far left is Paul’s


concours

VIP MEMBER
Joined
Dec 29, 2011
Messages
4,192
Country flag
“Add to that the issue of mass counterfitting that we have these days and there must be dozens of similar looking products out there, but their performance is very much unknown”

This.

  • Like
Reactions: baz

Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag
“Add to that the issue of mass counterfitting that we have these days and there must be dozens of similar looking products out there, but their performance is very much unknown”

This.
If both this bulbs have no manufactures name, which one is the “real” thing?
Besides that the issues I am addressing is the focal point of the bulb. The light source of each of this bulbs and the H-4 is in the exact same location in relationship to the reflecting surface. Most bulbs do not project the light in the forward direction. They depend on the parabolic design of the reflector. Since I used the same lens the beam should be identical on all of the bulbs. Thereby the light “pattern” not the brightness should be the same between all the bulbs. This is the weak point of LED substitution in a H-4 lens assembly. It has been discussed here before. There have been a lot of improvement since I bought my first LED headlight bulb, and maybe some combinations of lens/bulbs work very good. I know in my case I tried 3 different lens and two different bulbs with the same results. The H-4 bulb in a H-4 lens always gave the best beam pattern. But I run the LED’s because of power consumption and sheer brightness for daylight driving. This is from personal experience and some experimenting. Others may have different results, if so please add to this conversation.
Pete


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,148
Country flag
If both this bulbs have no manufactures name, which one is the “real” thing?
That’s the whole point / issue with regards to counterfeit goods. And having a manufacturer’s name on makes no difference.

Which is why, although it is no guarantee, buying from a trusted supplier is safer. At least you put the odds a little bit more in your favour.


baz

VIP MEMBER
Joined
May 26, 2010
Messages
2,253
Country flag
All of the above is the reason for the original question IE what are people actually using
I wanted a recommendation from somebody for an actual product
But having said that this post has thrown up some interesting stuff
Well to me it has anyway
Cheers


Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag
That’s the whole point / issue with regards to counterfeit goods. And having a manufacturer’s name on makes no difference.

Which is why, although it is no guarantee, buying from a trusted supplier is safer. At least you put the odds a little bit more in your favour.
Nigel,

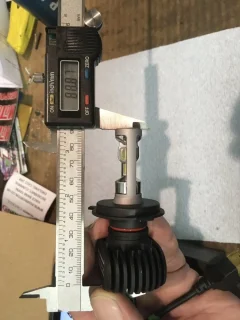

I understand what you are saying, and I wish I had one of Paul’s bulbs here to test. But the point I’m trying to make is the focal point (no pun intended). As far as I understand an LED itself is not a “focused” bulb. It depends (like most bulbs) on the reflector. They work in combination together. I measured my bulbs (H-4 and LED) and compared them to Paul’s. They are identical. I am confident that the LED’s in question will react the same.
I am not criticizing Paul’s product, I am just interested in the science behind it. Experimenting with light and sound waves was always one of my favorite experiments in high school Physics.
Ok got to finish my coffee and cut some firewood today. Winters coming soon.
Pete


Deets55

VIP MEMBER
Joined
Oct 3, 2013
Messages
1,209
Country flag
All of the above is the reason for the original question IE what are people actually using
I wanted a recommendation from somebody for an actual product
But having said that this post has thrown up some interesting stuff
Well to me it has anyway
Cheers
Baz,
I would have liked to have seen more input on this myself. I starting to look for a better night time bulb myself. Maybe I’ll take Jim Comstock’s advice and try a HID system.
Pete


Fast Eddie

VIP MEMBER
Joined
Oct 4, 2013
Messages
12,148
Country flag
Baz, highly recommended by a modern Triumph riding mate, not tried them myself:
