Starting cafe racer restoration Commando 850 MK3 from Spain

On this as on several other parts and kits like the carburetors I will better follow your expert advice. On classic bikes projects it is always quite tough to estimate a budget because it always goes up quite more than expected!

Definitely good value in doing the job right the first time on these machines to keep them reliable

Today I tested a small Lithium battery with a CCA 300A that I normally use on my Ducatis 1100cc. I wanted to test how the Commando starter motor behave and also test the battery power.
Since the bike has virtually not electric wiring I just directly connected the battery to the frame and then to the starter input screw, my surprise came when the starter just freely spins but it looks like not being engaged to the engine. I exchanged positive and negative leads only to get the same result: free spinning but not moving the crankshaft and engine at all.
I then removed the two small screws that apparently join the starter to the engine and I tried to remove the starter by pull it but it seems to be locked... or there must be another screws or parts I need to undo first?
Can you give some clue about the starter motor behavior before I start opening the primary transmission cover to find out?

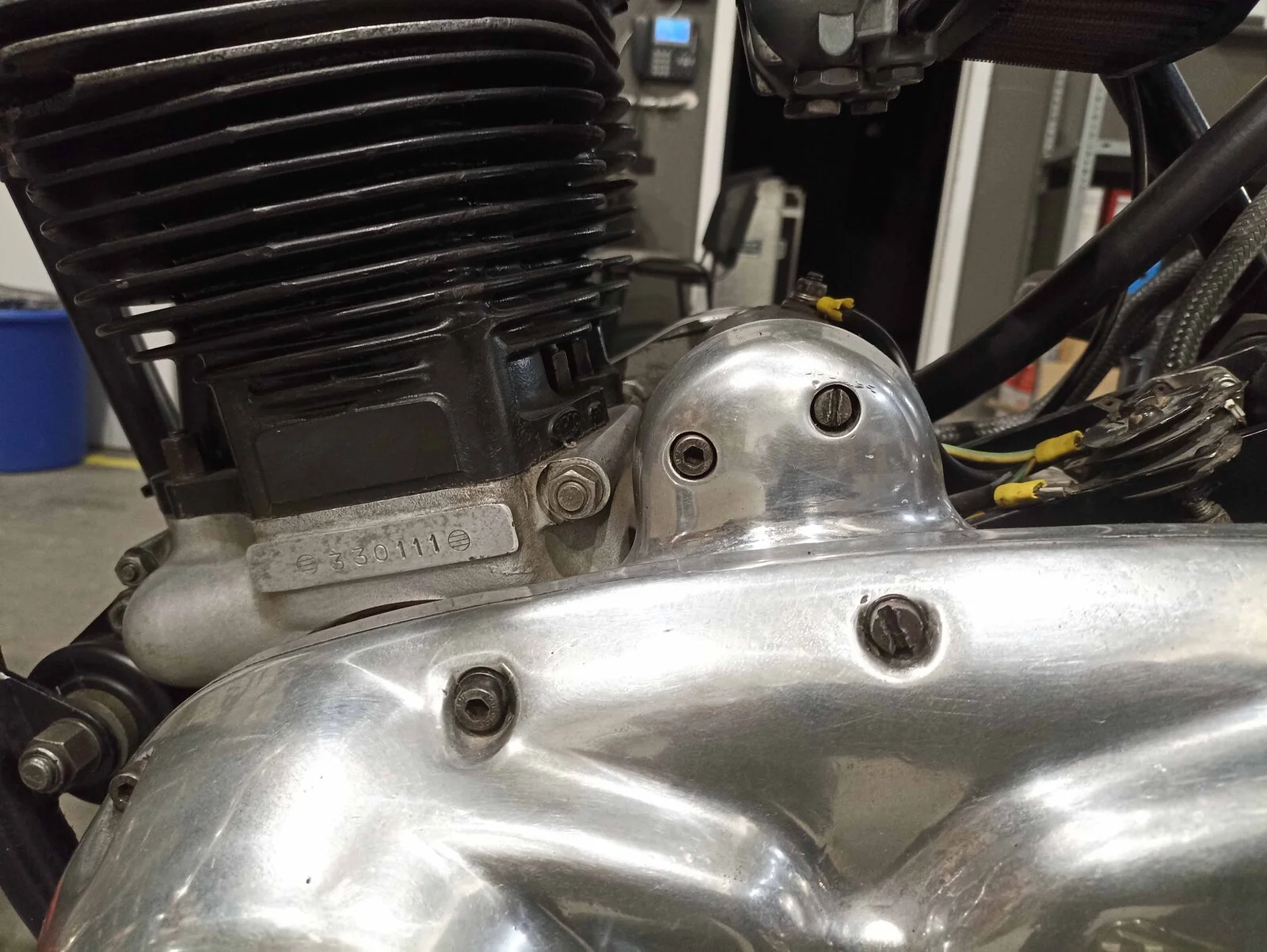

Do you mean this flat one?


Attachments

  • Starting cafe racer restoration Commando 850 MK3 from Spain
    297.7 KB · Views: 119
javifoto70 said:
Do you mean this flat one?
Click to expand...

Yes, the slot head primary cover screw.

javifoto70 said:
Can you give some clue about the starter motor behavior before I start opening the primary transmission cover to find out?
Click to expand...

Probably a missing Edit: broken or flipped-over starter sprag, or the complete starter motor drive is missing.

Last edited:
IIRC the idler gear spindle locates in the front of the starter too (item 4 in the diagram)
It's just a press fit but can be stubborn!!

andover-norton.co.uk

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.
andover-norton.co.uk

Then I will open the primary cover to find out. I hope it will be some simple issue that makes the starter not to connect with its gear.

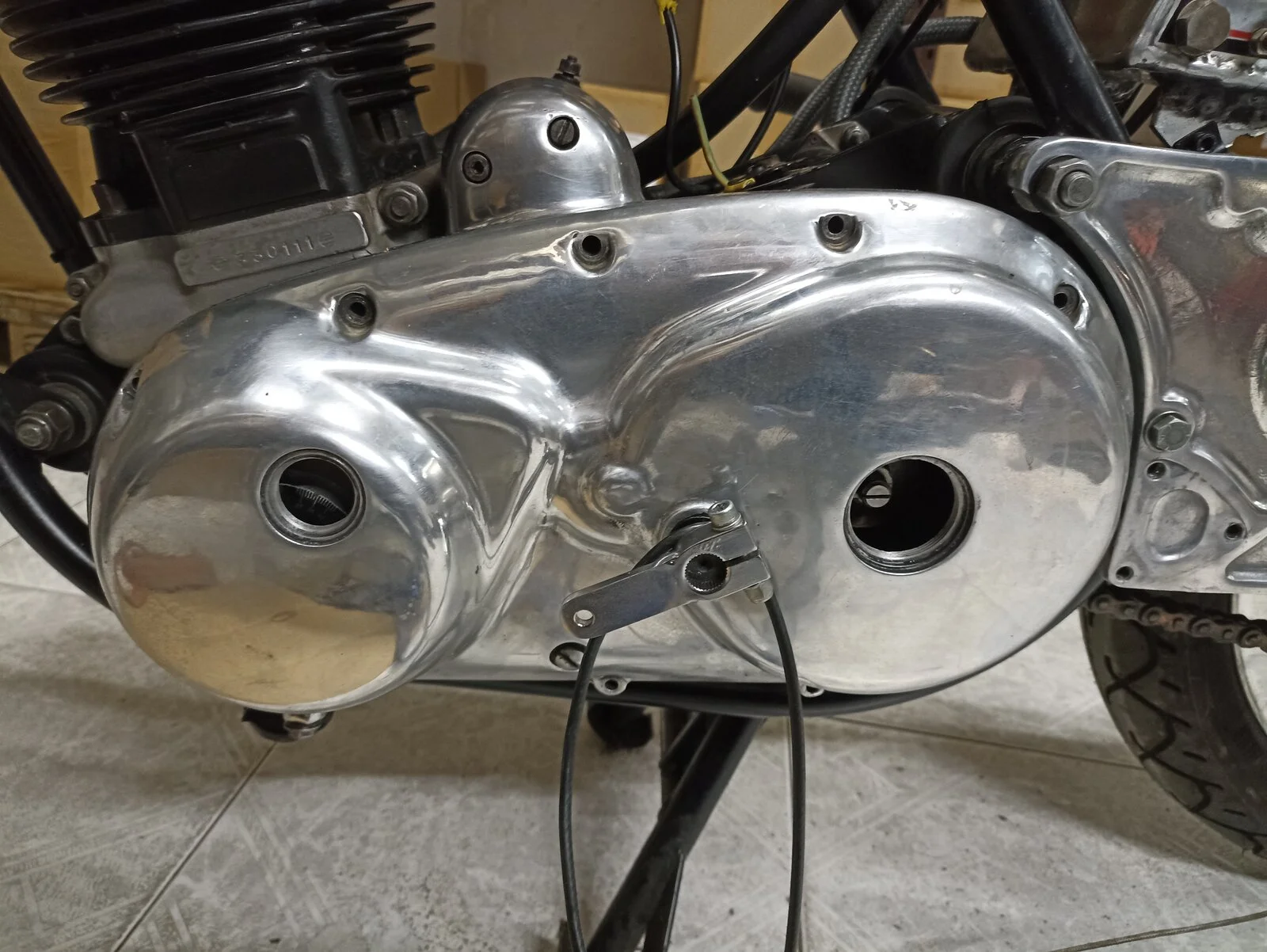

Today I unsuccessfully tried to remove the primary transmission cover along two hours. The previous owner applied gasket seal that is completely stuck. I tried pulling from the gear change lever, hammering protecting the cover with a pieze of wood, heating up with a heat gun.. no way.
The cover is blocked and sticked.

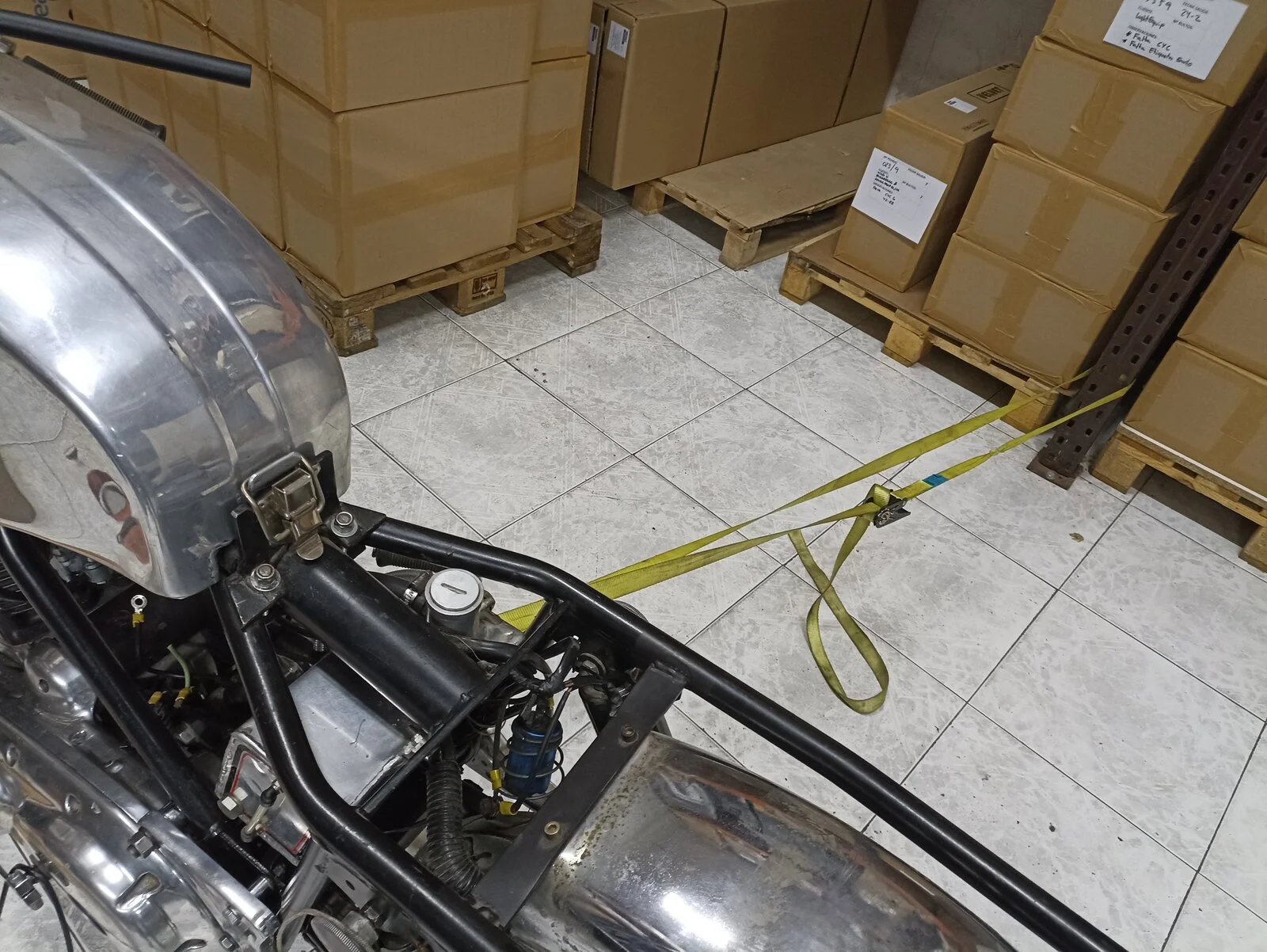

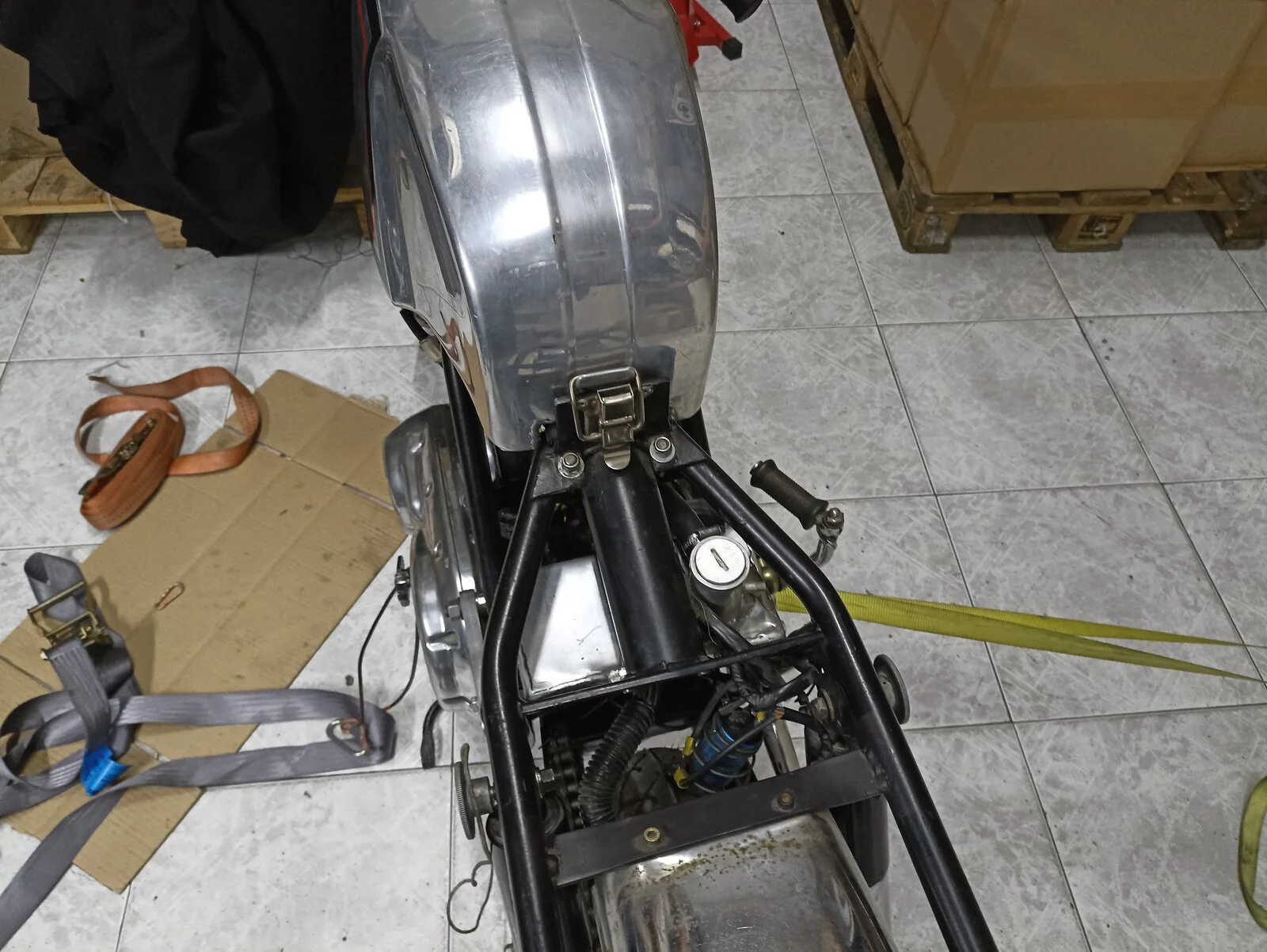

Desperate I even used a steel ratchet tie down to hold the bike frame from one side and pull with another ratchet strap from the other but even so I did no move the cover. I was afraid of getting hurt or cause a disaster and I did not applied full pull with the ratchet.

Any suggestions about how to remove the stubborn cover?


Attachments

  • Starting cafe racer restoration Commando 850 MK3 from Spain
    296.9 KB · Views: 88
  • Starting cafe racer restoration Commando 850 MK3 from Spain
    360.8 KB · Views: 106
  • Starting cafe racer restoration Commando 850 MK3 from Spain
    286.6 KB · Views: 100

mark III primary cover removal

Have removed all 11 cover bolts and knocked all round the cover with a rubber mallet but it seems stuck on the gasket/ dowels. i really don't want to start trying to drive something in the joint. any bright ideas how to get it off without damage - a big search effort hasn't shown anything up...
www.accessnorton.com www.accessnorton.com

Thank you for the link, in fact I followed it and that is why I have been pulling from the gear change lever with confidence but with no success.
The only thing from the post I need to try is getting single edge razor blade to cut the gasket carefully.

javifoto70 said:
Thank you for the link, in fact I followed it and that is why I have been pulling from the gear change lever with confidence but with no success.
The only thing from the post I need to try is getting single edge razor blade to cut the gasket carefully.
Click to expand...
The single edge razor blade although tedious will work.

javifoto70 said:
Today I unsuccessfully tried to remove the primary transmission cover along two hours. The previous owner applied gasket seal that is completely stuck. I tried pulling from the gear change lever, hammering protecting the cover with a pieze of wood, heating up with a heat gun.. no way.
The cover is blocked and sticked.
Desperate I even used a steel ratchet tie down to hold the bike frame from one side and pull with another ratchet strap from the other but even so I did no move the cover. I was afraid of getting hurt or cause a disaster and I did not applied full pull with the ratchet.

Any suggestions about how to remove the stubborn cover?
Click to expand...
Is your clutch still connected and working?
If so try screwing the inspection cover back in with a packer behind against the clutch adjuster
Then operate the clutch and see if that will push it off

baz said:
Is your clutch still connected and working?
If so try screwing the inspection cover back in with a packer behind against the clutch adjuster
Then operate the clutch and see if that will push it off
Click to expand...
A fine bladed craft knife would have sorted it i would have thought

As suggested using a shave blade and some patient I cut the gasket all around and the cover came off easily. The blade was very thin so I did not cause noticeable damage to the case or cover.
Without the blade it would have been almost impossible to take the cover off.
Here the pictures of how the gears are. Next will be finding out whatĀ“s wrong with the starter E-starter gear.
