Official Oil Line Routing Thread (2010)

Discussion in 'Norton Commando Motorcycles (Classic)' started by swooshdave, Apr 17, 2010.

  1. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009

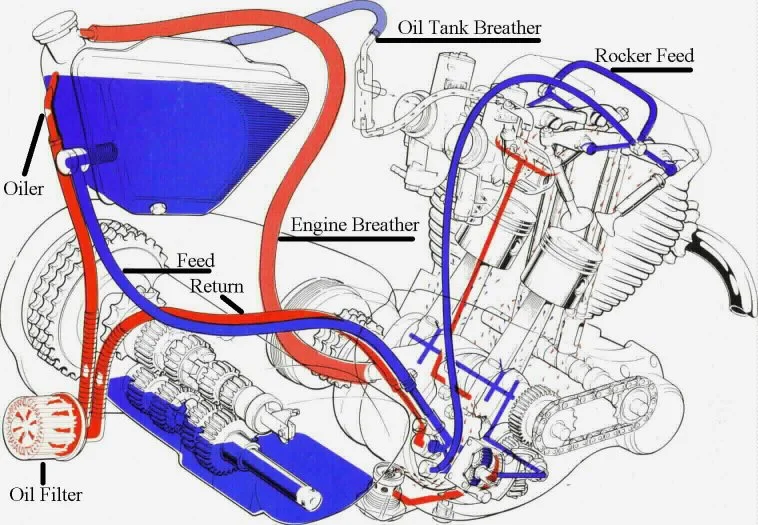

    While there have been several topics on oil line routing not one had any pictures! (At least not with a cursory search) I mean aside from the one from the workshop manual.

    [​IMG]

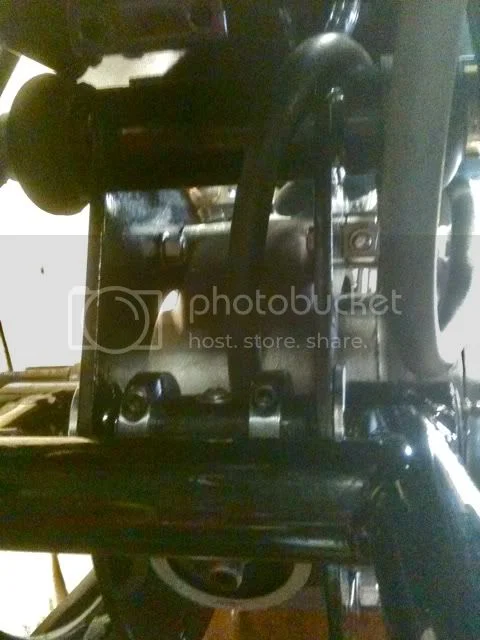

    This shows which lines go where but not exactly how to get them there.

    [​IMG]

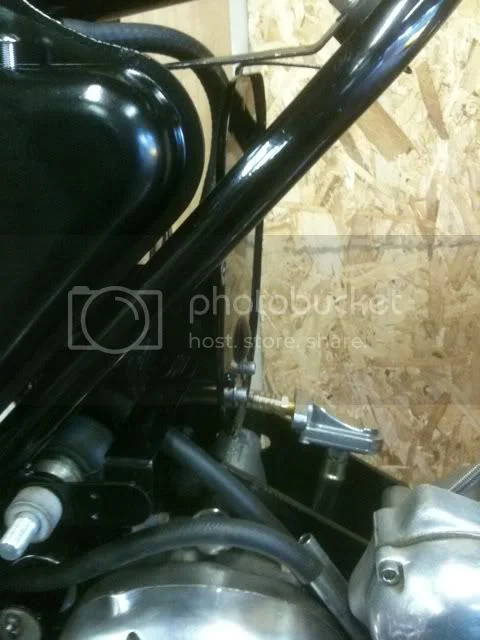

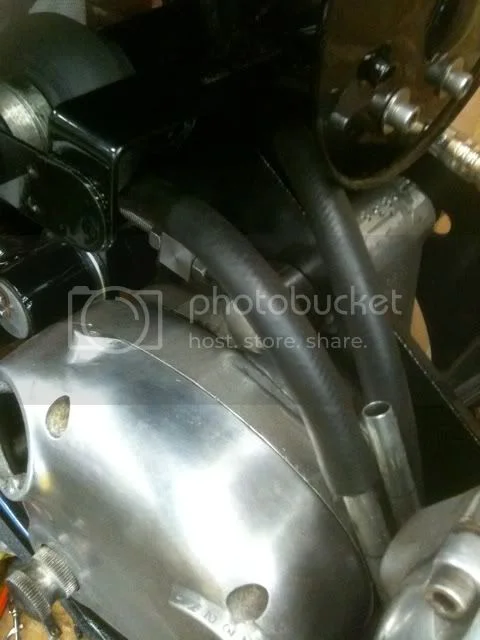

    Outside line goes to the banjo.

    [​IMG]

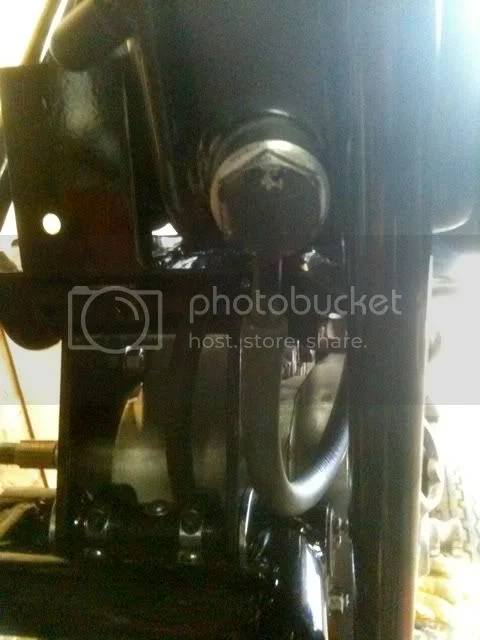

    Here it is from the back.

    [​IMG]

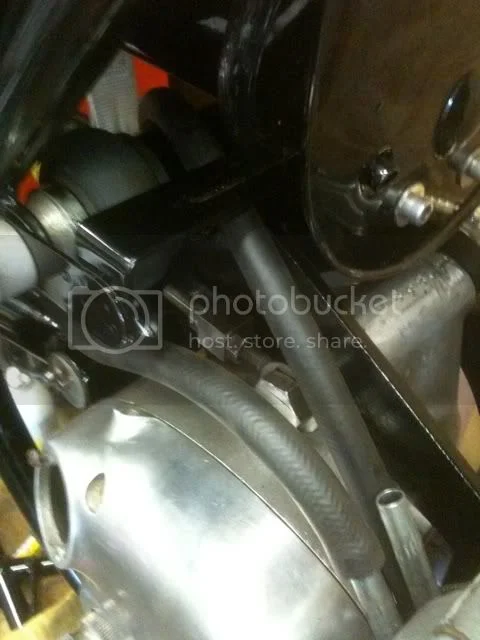

    The inside line goes to the filter. I just have it sitting here for placement purposes.

    [​IMG]

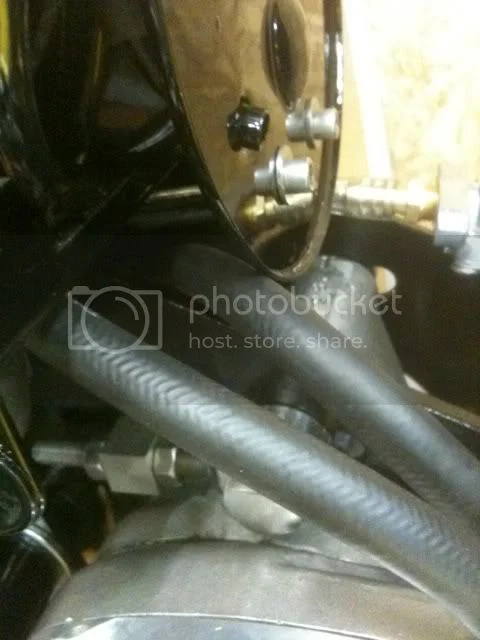

    I went up and over the rear iso and down to the filter.

    The last line will come up from the filter housing right to the tube on the tank.

    What say you? Am I close?

  2. chris plant

    chris plant

    Joined:
    Nov 6, 2008
    swoosh,you,re close, just follow the diagram it shows you where they should be its up to you which route you want to take

  3. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    That how my wife says I navigate. I usually get lost. :mrgreen:

  4. 2Wheels

    2Wheels

    Joined:
    Aug 8, 2009

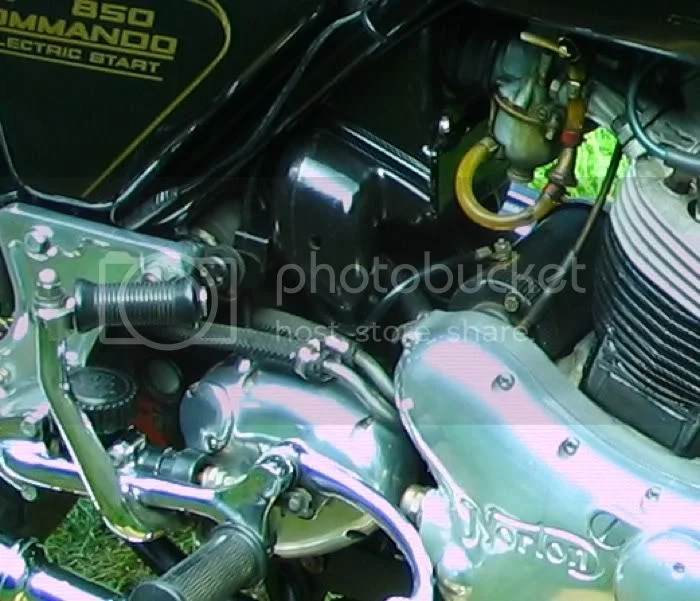

    I think the hose to the filter goes between the engine cradle, not over the rear iso on the outside. At least that is how it is on my bike.

    Never any problems.
    [​IMG]

  5. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
  6. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
    Both lines go parallel to each other through the cradle. The metal spiral protectors are necessary if you want the lines to not chaff through.

  7. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    I certainly would not want to route the feed pipe as well as the return through cradle -as there's no reason to do so? Doing that would also divert the feed pipe away from the easiest natural path between the oil tank banjo and the oil pipe junction block.
    Also the parts diagrams show there's no spiral protector on the feed pipe (incorrect '72 diagram excepted) only on the return, which suggests that the feed pipe isn't intended to pass through the cradle.

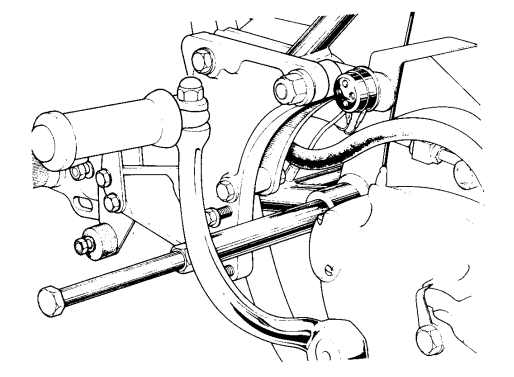

    The drawing: Fig. F8 in section F of the factory manual shows what I would consider to be the correct routing for the feed pipe: http://britmoto.com/manuals/Manuals/750_man.pdf (pdf page 94).

  8. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    Now, cram a second, upper swingarm section, and a bunch of rising rate linkage in the space behind the engine, and try routing those lines again!

    (It can be done, but your options are far fewer)

  9. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Through the cradle where? Parts diagrams and factory illustrations don't show what you are talking about. Do you mean through the cradle below the rear iso?

    [​IMG]
    [​IMG]

    Is this what you mean? It's a much shorter path but there are "sharp" edges on both the cradle and airbox to contend with.

  10. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    [​IMG]

    Last edited: Jul 2, 2019
  11. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    [​IMG]

    Last edited: Jul 2, 2019
  12. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Thanks for the pic. Sadly that's not an option for me with extra adjuster.

  13. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    What extra (gearbox?) adjuster?
    http://www.nortonmotors.de/ANIL/Norton% ... &Plate=005


    I thought any second adjuster fitted on the drive side of the cradle?

    (Mine's a MkIII, so it doesn't have an adjuster)

  14. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Exactly.

  15. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    But the fact that yours has the adjuster shouldn't mean there's insufficient clearance to route the pipe through the cradle, especially as maylar reckons he can get both of them through there, and I don't believe he owns a MkIII?

  16. Hortons Norton

    Hortons Norton

    Joined:
    Oct 12, 2007

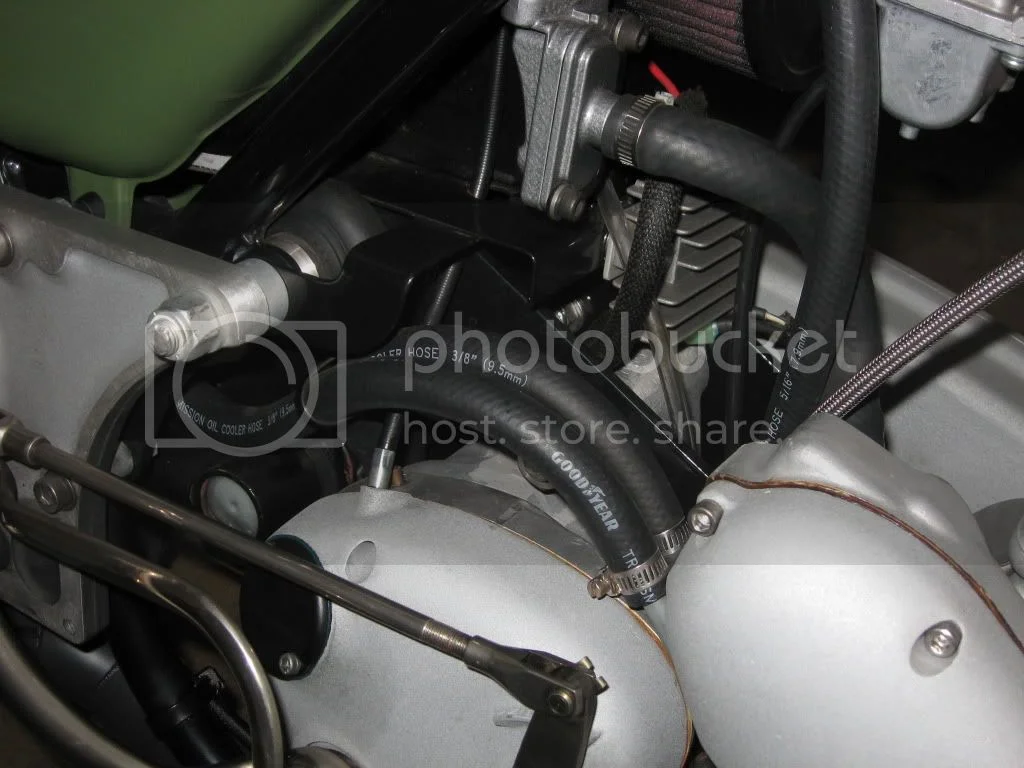

    Here's some photos of the routing with an adjuster, Very clean and it doesn't touch.
    [​IMG]

    [​IMG]

    [​IMG]

  17. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Until he posts a picture we don't know where he's routing his.

    But those pics from Horton look great. Thanks!

  18. Hortons Norton

    Hortons Norton

    Joined:
    Oct 12, 2007
  19. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I feel like I know your bike a little too well after that last picture. Like I should leave some money on the seat or something...

  20. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Here's the "Oil filter kit fitting instructions" http://britmoto.com/manuals/Manuals/Oil_Kit.pdf

    Quote:
    ________________________________________________

    "8. Slide the protection springs over both new oil return pipes.


    9. Route the kickstart side oil return pipe up through the space between the engine plate and rear of the gearbox casing, over the top of the gearbox inner cover and engage to the inboard oil junction block pipe at least 1┬╝in. (32mm), securing with the new screw type clip."

    ________________________________________________


    Your oil pipe look as if it could be thicker walled (and therefore stiffer) than the original, so that would probably make fitting it a little more difficult-but maybe not impossible? I think a protection spring would be a useful addition.
