Oil return line routing around the Horn

Status
Not open for further replies.

Drummer99

VIP MEMBER
Joined
Oct 18, 2013
Messages
157
Country flag
I am having a difficult time finding a route from the oil filter up the oil tank on the return line The horn seems to be in the way and necessitates the line having a tight turn in it as it joins onto the oil tank I am concerned about the hose collapsing at that point or blocking the flow. Any thoughts or pictures would be appreciated. I know one option is to move the horn. Thx Drummer99

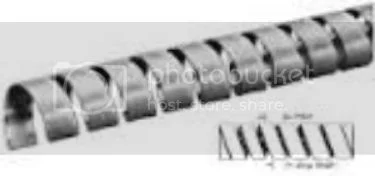

I have my 750 oil return lines routing through the swing arm and horn area. I used "flat spring guard" at the lower sections where it has to bend and twist to get around. It has worked great for me so far.
