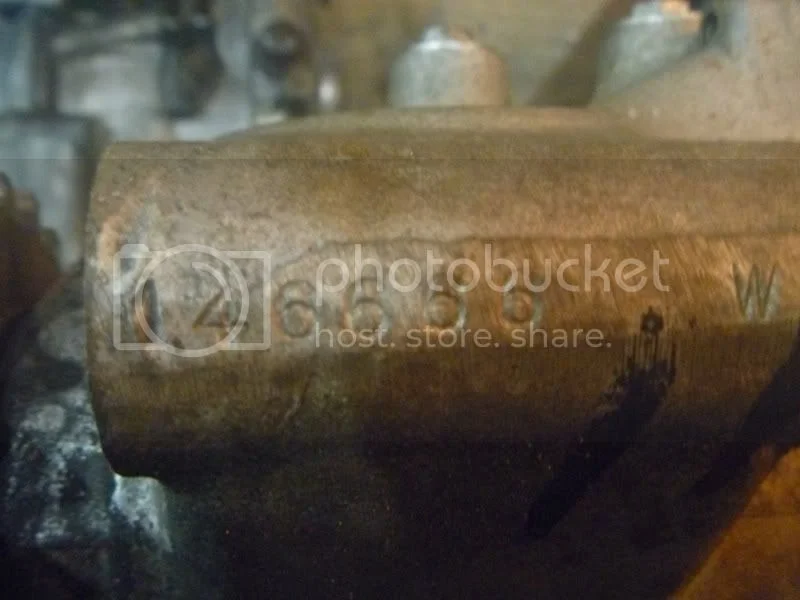

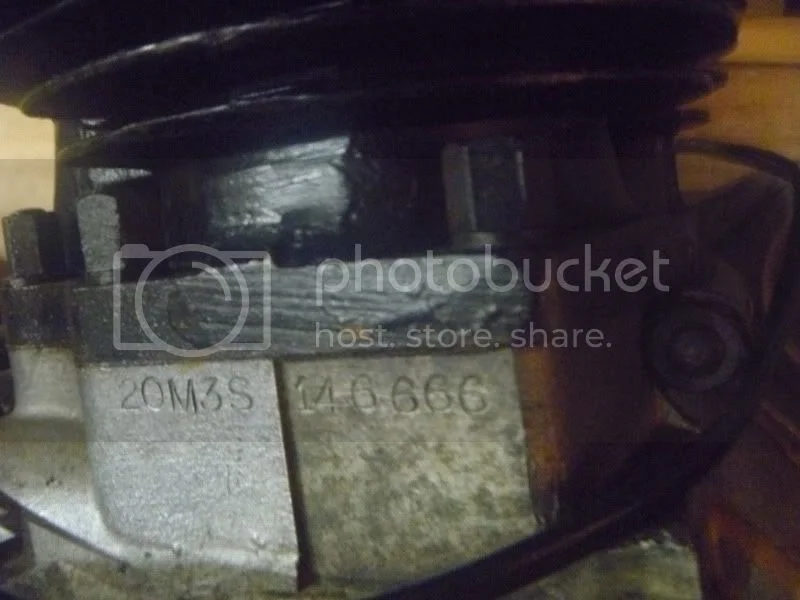

Hello, just in the last months of 2011 i purchased a 1971 Commando a US import to New Zealand not sure what model it was when new, So the problem is I cant make sense of the engine,frame,gearbox numbers. The numbers all match (# 146666) but it has the older style yokes and this matches the early frame ?. Problem is just about all 71s I have scene in photos seem to have later style yokes. I don't want to start the restoration till I can ID the bike correctly. Thanks.
Help on frame ID
- Thread starter kiwi46
- Start date
- Status
- Joined
- Nov 20, 2004
- Messages
- 20,422
Welcome kiwi46
Yes, a 1971 model would normally have had the later yokes with the stem as part of the upper yoke assembly. This change was supposed to have occurred at serial number 141783.
http://www.nortonmotors.de/ANIL/Norton% ... &Plate=011
If you decide to look for another set of yokes then you need a matched pair suitable for a 750 frame. Fitting 850 yokes (marked "ANG" on the underside) to a 750 frame will alter steering geometry.
kiwi46 said:
Yes, a 1971 model would normally have had the later yokes with the stem as part of the upper yoke assembly. This change was supposed to have occurred at serial number 141783.
http://www.nortonmotors.de/ANIL/Norton% ... &Plate=011
If you decide to look for another set of yokes then you need a matched pair suitable for a 750 frame. Fitting 850 yokes (marked "ANG" on the underside) to a 750 frame will alter steering geometry.
Hi thanks for the replies guys, I'm in Invercargill, Thats in the mainland of New Zealand
, I will post photos of the bike asap, but have just found this minute I have lost all the photos of the post strip down photos of the bike and piece by piece photos as I disassembled the bike and I'm not happy with myself, I put alot on having the shots I took to help with the build of the bike. Bugger.
, I will post photos of the bike asap, but have just found this minute I have lost all the photos of the post strip down photos of the bike and piece by piece photos as I disassembled the bike and I'm not happy with myself, I put alot on having the shots I took to help with the build of the bike. Bugger.- Joined
- Jul 25, 2010
- Messages
- 5,865

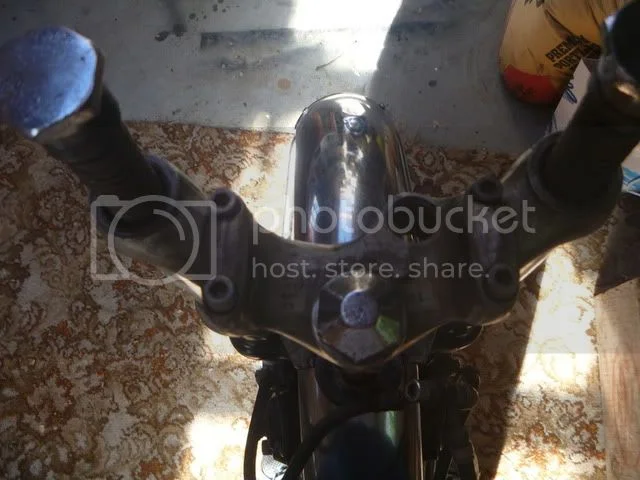

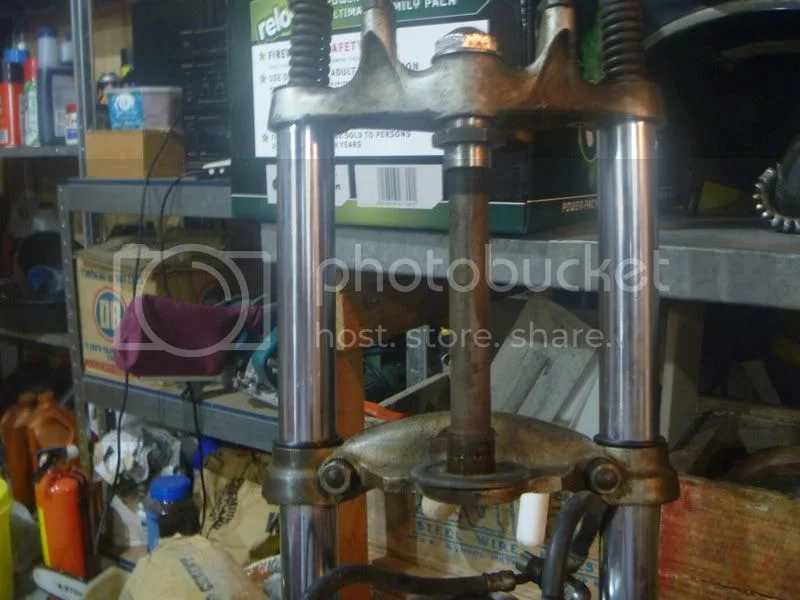

Looks like series one lower tripleclamp,
the ' Dominator ' headlamp clamp type .
Someone here will I.D. it through the lower frame brace / centerstand mount , though .

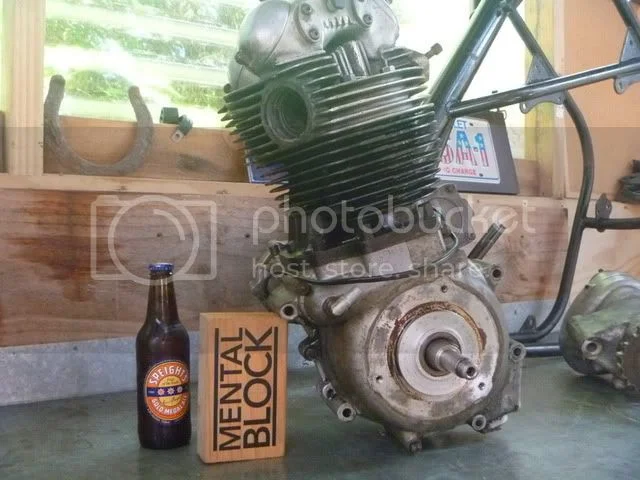

Cant see the breather on your cases , l.h. cam end . Could be the rear ' Mag ' position
Ignition system/ Tacho drive on timing cover type ? ? ?
Probably wrong on all counts , looks like the second series cases .
Looks nice and straight .
Is it a Fastback , ' S ' , Roadster or Wot ??
the ' Dominator ' headlamp clamp type .
Someone here will I.D. it through the lower frame brace / centerstand mount , though .
Cant see the breather on your cases , l.h. cam end . Could be the rear ' Mag ' position
Ignition system/ Tacho drive on timing cover type ? ? ?
Probably wrong on all counts , looks like the second series cases .
Looks nice and straight .
Is it a Fastback , ' S ' , Roadster or Wot ??
- Joined
- Nov 20, 2004
- Messages
- 20,422

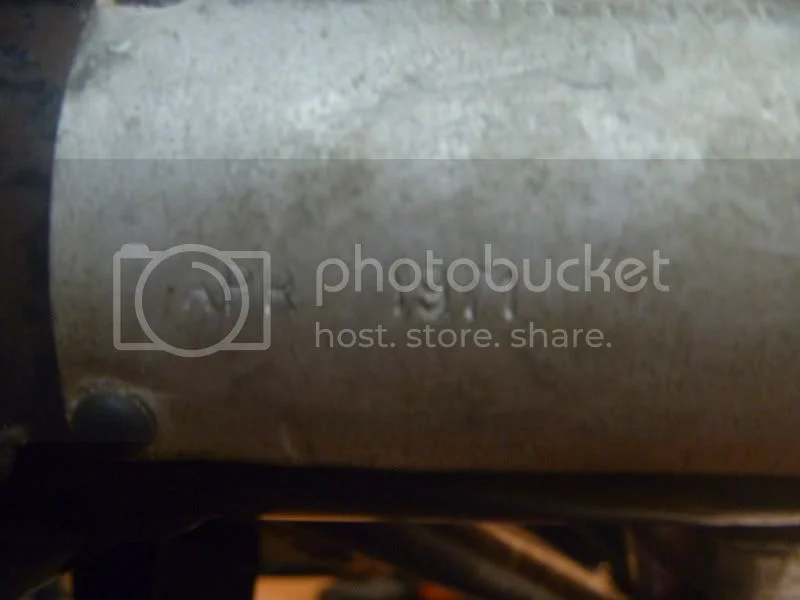

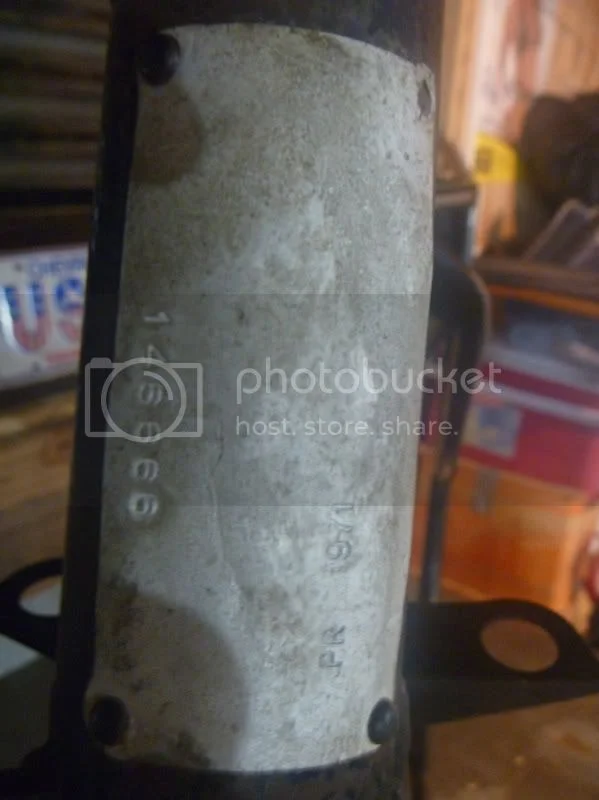

kiwi46 said:ID Tag (2)

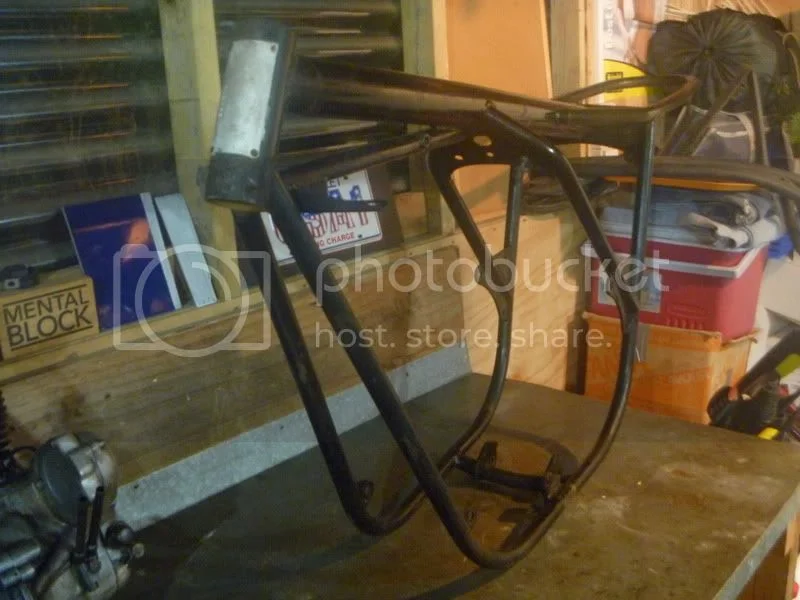

The frame appears to be the '69-'70 type with the bracing tube below the gearbox and centre stand mounting lugs-which might explain why the yokes are 'pre-'71.
http://www.nortonproject.org/1969.htm
DogT
VIP MEMBER
- Joined
- Jan 20, 2009
- Messages
- 7,394

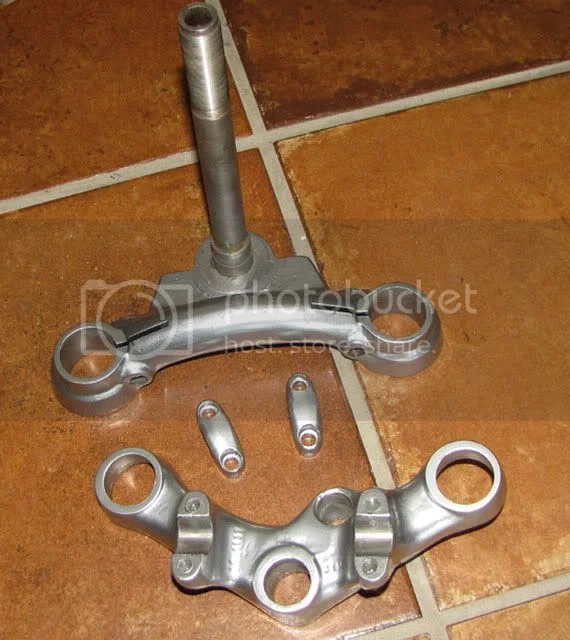

The lower yoke part appears to be the 69/70 type, not sure about the upper one. I can't see if you have the tapped holes in the upper one for mounting the halo headlamp holder though. Here's mine.
The frame is for sure 69/70 with that centre stand arrangement.
Dave
69S
The frame is for sure 69/70 with that centre stand arrangement.
Dave
69S
72Combat said:kiwi46 said:Hi thanks for the replies guys, I'm in Invercargill, Thats in the mainland of New Zealand
Real Mainlanders don't drink DB :roll:
Or is that pretend mainlanders drink lion red?
My 71 (also april) and 103 bikes before the numbers above has the newer frame without the bottom brace
- Joined
- Jul 25, 2010
- Messages
- 5,865
AH , but if they stacked all the frames in the frame shed , the last ones out would be the Oldest , if it didnt have a Back door
- Joined
- Jul 25, 2010
- Messages
- 5,865
Theres a few drwbacks and limitations to doing a ' back to stock ' Resto . Like looseing those brakes !
8)
Quite a few ' rat ' bikes are years of development and refinement by someone in touch with its limitartions ,
and a fairly logical set of priorities . Checking it over for a freshen up might be a less expensive and more
prctical option .At least dont right off the guys endevours as worthless , its obviously been done to be riden .
Strip & clean of the running gear , checking it FIRST ( The Swing Arm Pin comes to mind ! :lol: ) and budgeting
the build would be the go , if you want it on the road for next summer . Of course some people prefer pulling
things to bits to rideing them . If theres the Norton Crowd down there , it might pay to get a few observers in .
8) Quite a few ' rat ' bikes are years of development and refinement by someone in touch with its limitartions ,
and a fairly logical set of priorities . Checking it over for a freshen up might be a less expensive and more
prctical option .At least dont right off the guys endevours as worthless , its obviously been done to be riden .
Strip & clean of the running gear , checking it FIRST ( The Swing Arm Pin comes to mind ! :lol: ) and budgeting
the build would be the go , if you want it on the road for next summer . Of course some people prefer pulling
things to bits to rideing them . If theres the Norton Crowd down there , it might pay to get a few observers in .
- Joined
- Jul 3, 2009
- Messages
- 915

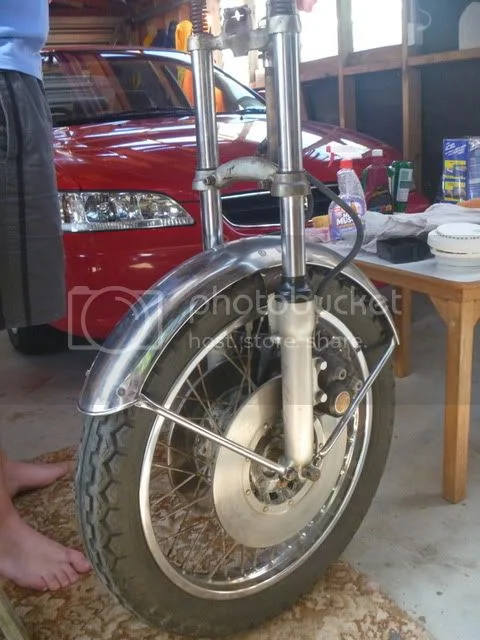

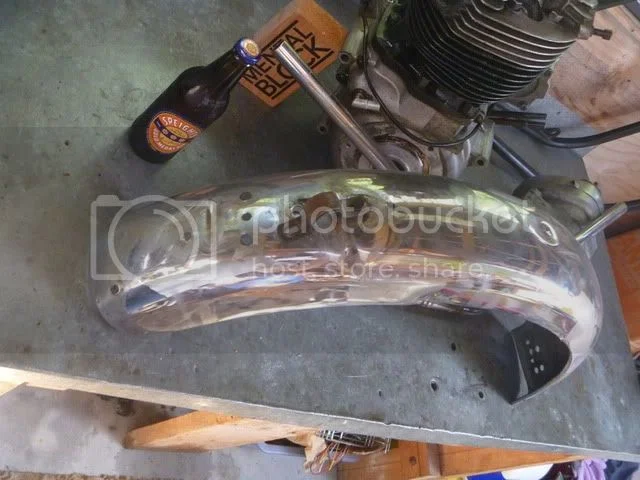

Rear guard has the indentation for the tyre pump which mounts to right side of frame rear tube and is pre 71 as are the yokes the forks and wheel look kawasaki to me, does it have a centre mounted oil tank [hopefully Dogt will cime in with a picture] and steel levers.
Al
Al
- Joined
- Jul 25, 2010
- Messages
- 5,865
Theyre Roadholders , on it . If thats a Kwakersiki H2 dual disc , you could name youre price ,They wanted about half what the bike sold for , for the second disc . :lol: :lol: Just leave it there to upset the unfortunate sods .
Looks like the Chrome Narrow front Guard , will be the ' Long ' Stays ( Dog T )
to me . What are the rear shock mounts ? same inside as outside , at the rear .
Looks like the Chrome Narrow front Guard , will be the ' Long ' Stays ( Dog T )
to me . What are the rear shock mounts ? same inside as outside , at the rear .

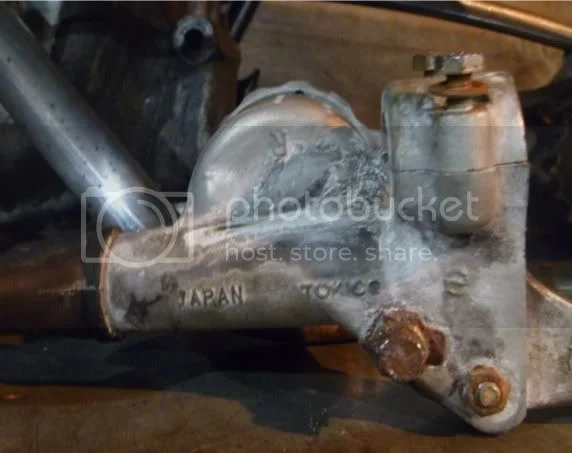

Hi just finished my Speights and my son who has just finished putting the pics on the site, what a good boy. Having probs resizing photos sorry maybe toooo much speights. The front wheel has only made in japan written on it but the calipers have TAYICO cast on them and if google search shows different bikes they supply brakes etc for. Hope these photos can help.
Oil Tank

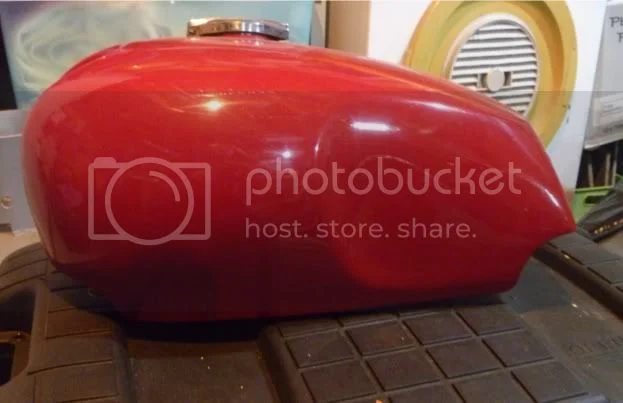

Gas Tank

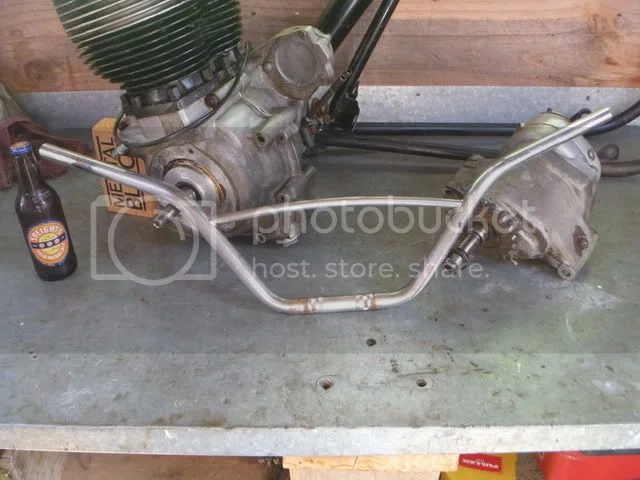

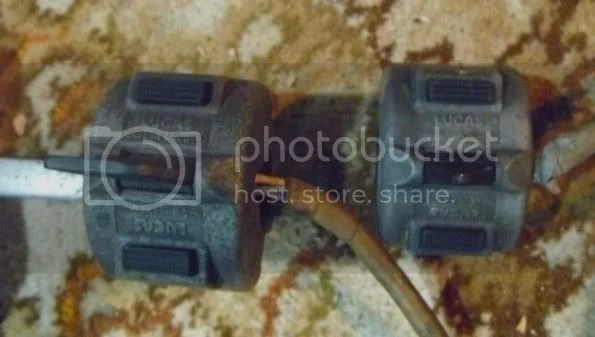

Controls
Brakes

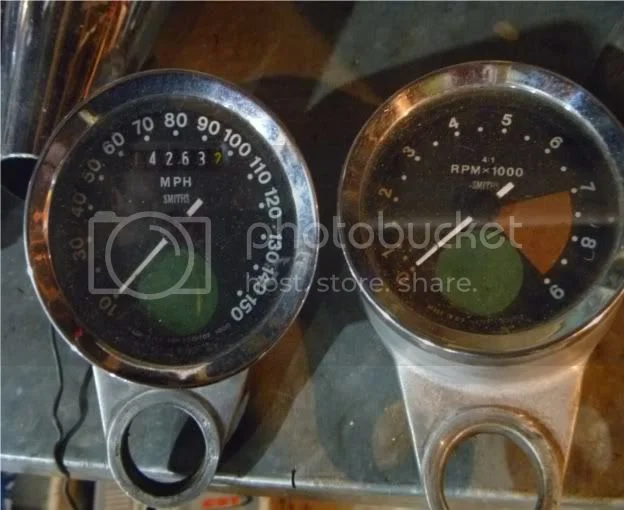

Gauges
Oil Tank
Gas Tank
Controls
Brakes
Gauges
DogT
VIP MEMBER
- Joined
- Jan 20, 2009
- Messages
- 7,394
That's certainly a 71 or later oil tank. Looks like you have a mis-mash of years there, not to say it can't all be good. Depends on what your final concept is. Up to you, I'd just rebuild it and replace what I wanted to change. As long as you have good title, no reason it shouldn't be a good bike in the end.
Dave
69S
Dave
69S
