From the photo the mainshaft looks like it got really hot. If this is so it likely lost it's temper and hardness in that area. Try buffing it with a strip of fine emery cloth, maybe it's just oil burnt on there. If the steel is discoloured I'd replace it.

RennieK said:
From the photo the mainshaft looks like it got really hot. If this is so it likely lost it's temper and hardness in that area. Try buffing it with a strip of fine emery cloth, maybe it's just oil burnt on there. If the steel is discoloured I'd replace it.
Click to expand...

So should I get it re-hardened or replace it, if it's bad?

I'd look for a used one or take a chance on buying a whole new used trans on ebay or just buy a new one. On the assembly line when they make them they can use a specific blend of steel and temper it with a particular method and then harden to a specific depth under very controlled conditions. Even sending it back to the manufacturer could cost as much or more than buying a new one as they may not want to deal with it. I could be wrong about that though and there may be places that would do it according to modern standards for a reasonable price.

I generally stay away from metallurgy but.....to get a soft piece of steel through hardened it must be quenched with involves heating to a high temperature and dropping it in a bucket of oil or water. The metal is not the same shape after this process so it must be machined. Costly for a repair guy.
There are some low temperature surface hardening techniques be they're probably not cost effective, either. If you really got the piece hot enough for it to soften it's probably not straight any more.

If the bluing is from heat it's structurally weakened/ more brittle. I'd replace it.

I was an indution hardening tech and a spline roller tech, grinding tech, among other things. It's a little more complicated than just quenching as the quench has to be timed. Too much or too little can create cracks and change the hardness. heat placement is important to size distortion and heat pattern. after quench the part must be tempered. The heat must not distort the shape too much, or the id of the roller will be out of spec. The hardness is important not just structurally, but also for the finish-grinder.

pelican said:
If the bluing is from heat it's structurally weakened/ more brittle. I'd replace it.

I was an indution hardening tech and a spline roller tech, grinding tech, among other things. It's a little more complicated than just quenching as the quench has to be timed. Too much or too little can create cracks and change the hardness. heat placement is important to size distortion and heat pattern. after quench the part must be tempered. The heat must not distort the shape too much, or the id of the roller will be out of spec. The hardness is important not just structurally, but also for the finish-grinder.
Click to expand...

Gearbox Teardown with plenty of pictures

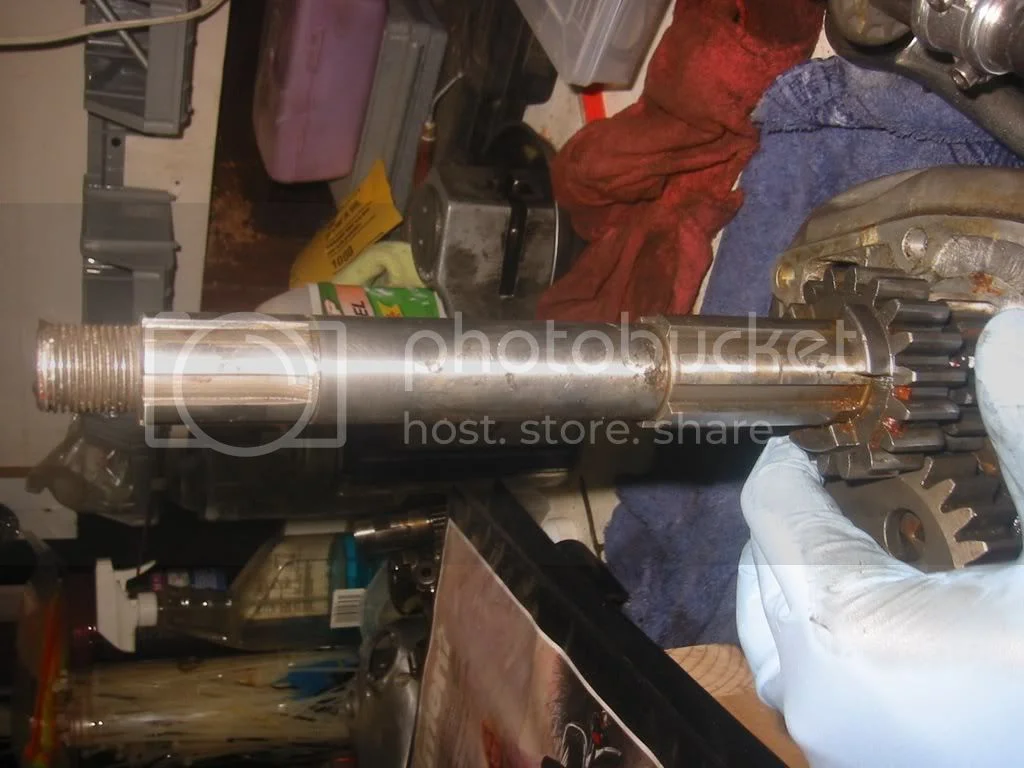

Well, a bit grungy but I sure don't think it's blued.

Looks good to me Dave, if a bit phallic - but I'm going to rise above these "tranny" references....
:roll:

Well, wait, by "rise above" I meant...oh never mind.

I'm so glad I didn't say, "damned good-looking shaft...." :oops:

Cool but it does look a little pitted. Hopefully your new bushings are tight and you can polish the surface some more.

RennieK said:
Cool but it does look a little pitted. Hopefully your new bushings are tight and you can polish the surface some more.
Click to expand...

It's not going to be perfect but it's not as bad as it looks. Still have a bit of cleaning to do. I need to uncover my parts cleaner and go at it.


Attachments

  • Gearbox Teardown with plenty of pictures
    54.6 KB · Views: 208
Re: Gearbox Teardown with plenty *more* pictures

Ok, more gearbox pictures.

First, I'm sure I'm not going to get much sympathy for this, but to even get to my work bench I have to push one car out of the garage and roll three bikes out of the way. That's my excuse for not getting out there more often and I'm sticking with it.

Gearbox Teardown with plenty of pictures


First up is removing the mainshaft nut. Stuck it in the vise (not too tightly) and off she came. Few light taps with the rubber mallet and out came the shaft.

Gearbox Teardown with plenty of pictures

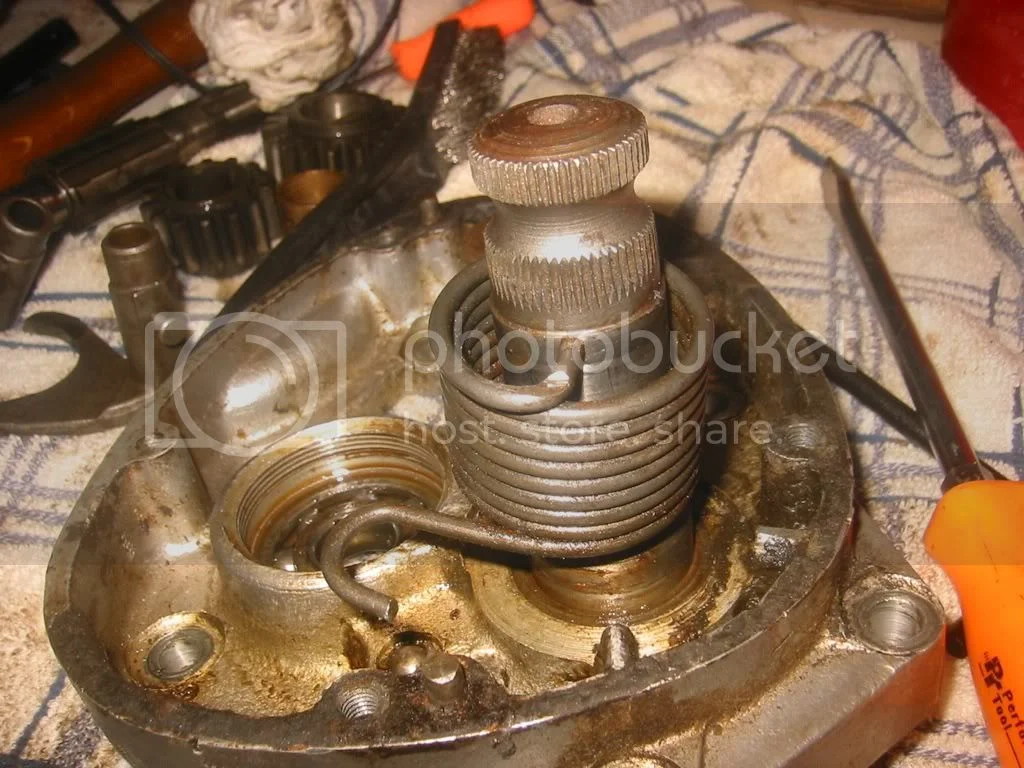

Next up was the kickstart shaft. The rebuild kit has a spring so this one is going away.

Gearbox Teardown with plenty of pictures


And the pawl. $20 for a new one? Is it worth it?

Gearbox Teardown with plenty of pictures


Anyone want to guess if I got the gears in the right order?



So parts all cleaned. Cases look ok. Light polish on the outer cover and it should be good.

Gearbox Teardown with plenty of pictures



So, the one thing that has me stumped is how to do you replace all the bushes? I assume the ones in the cases my pop out when I heat the cases? What about the ones inside the gears? Only one fell out during disassembly, the rest look to be in there good. Thoughts?

Warm up the gear (oven at 200) put ice on the bushing and quickly tap out the bushing using a socket or what ever you can find that has a smaller diameter as a drift while supporting the gear on something solid.

You can press it out in a vice using a socket that is slightly smaller in diameter so it passes through the gear while supporting the back side of the gear with a bigger socket that can "swallow" the bushing. Hot and cold is good this way too.

Re: Gearbox Teardown with plenty *more* pictures

swooshdave said:
What about the ones inside the gears? Only one fell out during disassembly, the rest look to be in there good.
Click to expand...

Only layshaft first gear and sleeve gear bushes are supposed to be a tight fit, the other two should push out easily.

For bush removal, I like to thread in an appropriate tap, then chuck the tap into a vise and knock the gear/cover/kickstart assembly/etc. away with a hammer/drift/mallet. For covers, a bit of heat helps. I wouldn't heat a gear, for fear of losing some hardening.

I would have replaced that pawl, yes, as it appears the wear is through the hardened surface already. Although it's not hard to do so later, as you can do in situ.

BrianK said:
For bush removal, I like to thread in an appropriate tap, then chuck the tap into a vise and knock the gear/cover/kickstart assembly/etc. away with a hammer/drift/mallet. For covers, a bit of heat helps. I wouldn't heat a gear, for fear of losing some hardening.

I would have replaced that pawl, yes, as it appears the wear is through the hardened surface already. Although it's not hard to do so later, as you can do in situ.
Click to expand...

I was thinking of putting gears in an oven, thuse relatievely easy to modulate temperature. I don't think 3-500 degrees is going to have any affect on hardening. I think it's not until you get hot enough to turn the metal a colors, such as red that you are in trouble. Am I right?

I'd rather get the gearbox back together than hold off waiting for a pawl. Look for a future post on replacing a pawl... :mrgreen:

I don't see those temperatures having any effect on hardening.

Yeah, like I said, I'd do the pawl now, but I do tend to have a "throw new parts at it" approach that I can't really afford! Still, my bikes are my children. Oh, plus my real children, of course!

Pawl replacement is real easy. Knock the pin out. Put the pawl and spring back into position. Knock the pin back in.

Good luck!

BrianK said:
I don't see those temperatures having any effect on hardening.

Yeah, like I said, I'd do the pawl now, but I do tend to have a "throw new parts at it" approach that I can't really afford! Still, my bikes are my children. Oh, plus my real children, of course!

Pawl replacement is real easy. Knock the pin out. Put the pawl and spring back into position. Knock the pin back in.

Good luck!
Click to expand...

I was surprised at how easily the pin came out. There is a small spring in the rebuild kit, I think it's for the pawl.

Gearbox Teardown with plenty of pictures

So I kinda forgot about this set of bushing/bearing drivers. I can't remember what I bought them for but this sure seemed like a good time to break them out. Of course I got it from Harbor Freight.

Gearbox Teardown with plenty of pictures

Gearbox Teardown with plenty of pictures

Driving in the sleeve gear bushing.

Gearbox Teardown with plenty of pictures

Gearbox Teardown with plenty of pictures

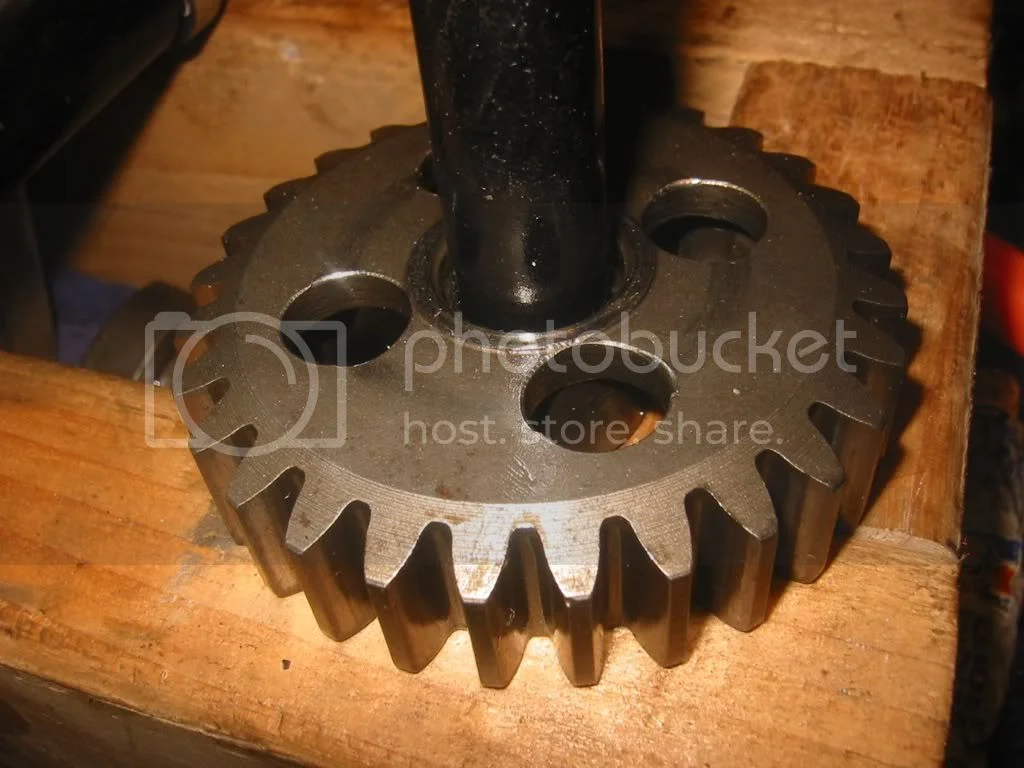

Driving the First gear layshaft gear bushing out.

Gearbox Teardown with plenty of pictures

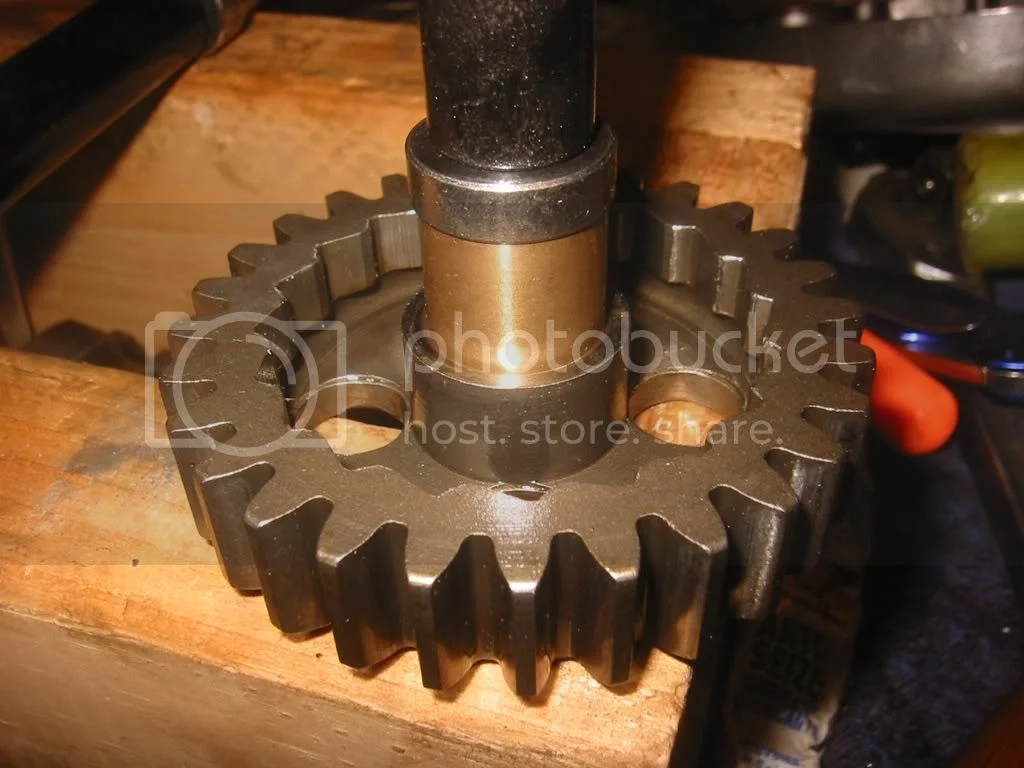

Driving the new bushing in.

Gearbox Teardown with plenty of pictures

All the other bushings went in fine and fit back on their respective shafts... except this one. Bushing ID is too big by a couple thou. My choices are to remove the new bushing and put the old one back in or try to get this one reamed to fit. Assuming I can find someone I know who has a reamer...

Do you mean too small? I.e., tight on the shaft?

BTDT. At the suggestion of another board member, I used valve grinding compound on the shaft, and worked it into the bushing and turned around and around to wear a little clearance there. Cleaned thoroughly, worked pretty well.

BrianK said:
Do you mean too small? I.e., tight on the shaft?

BTDT. At the suggestion of another board member, I used valve grinding compound on the shaft, and worked it into the bushing and turned around and around to wear a little clearance there. Cleaned thoroughly, worked pretty well.
Click to expand...

Yes, ID too small. Can't even get the shaft on it to grind it down.
