Frankenbike

Discussion in 'Norton Motorcycle Rebuilds' started by Norcoastal, Dec 13, 2019.

  1. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Looking better than factory.... Merry Christmas Tambien.

    Norcoastal likes this.
  2. cjandme

    cjandme

    Joined:
    Feb 5, 2011
    Shoot, I don't know what do you think?

  3. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    My kids got me a nice bench grinder and a blast cabinet for Christmas. How great is that?

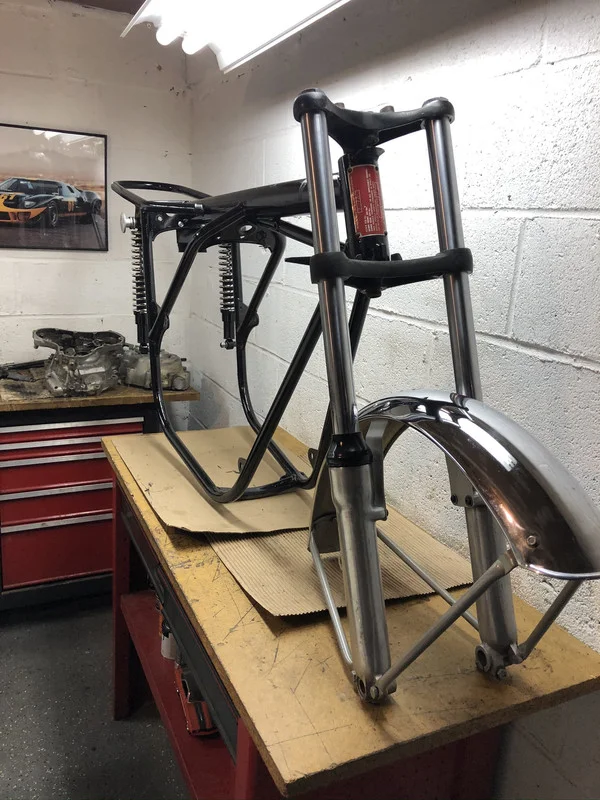

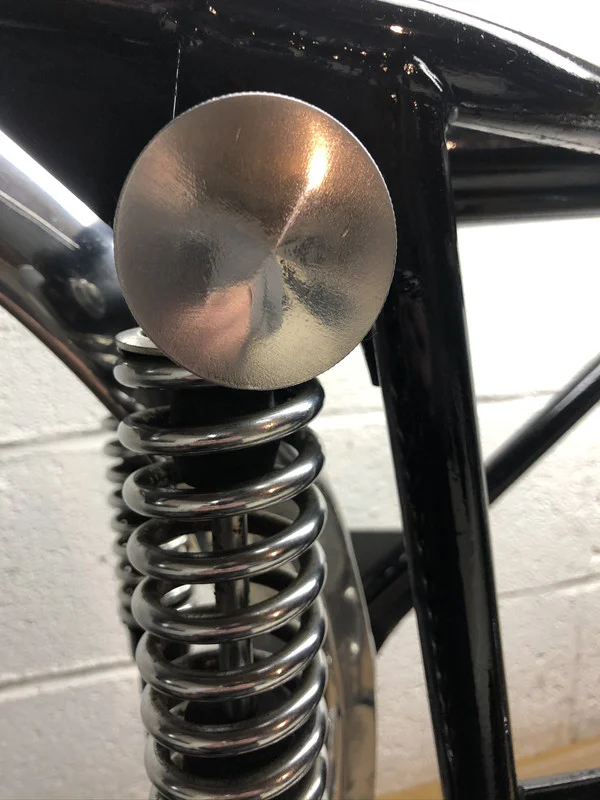

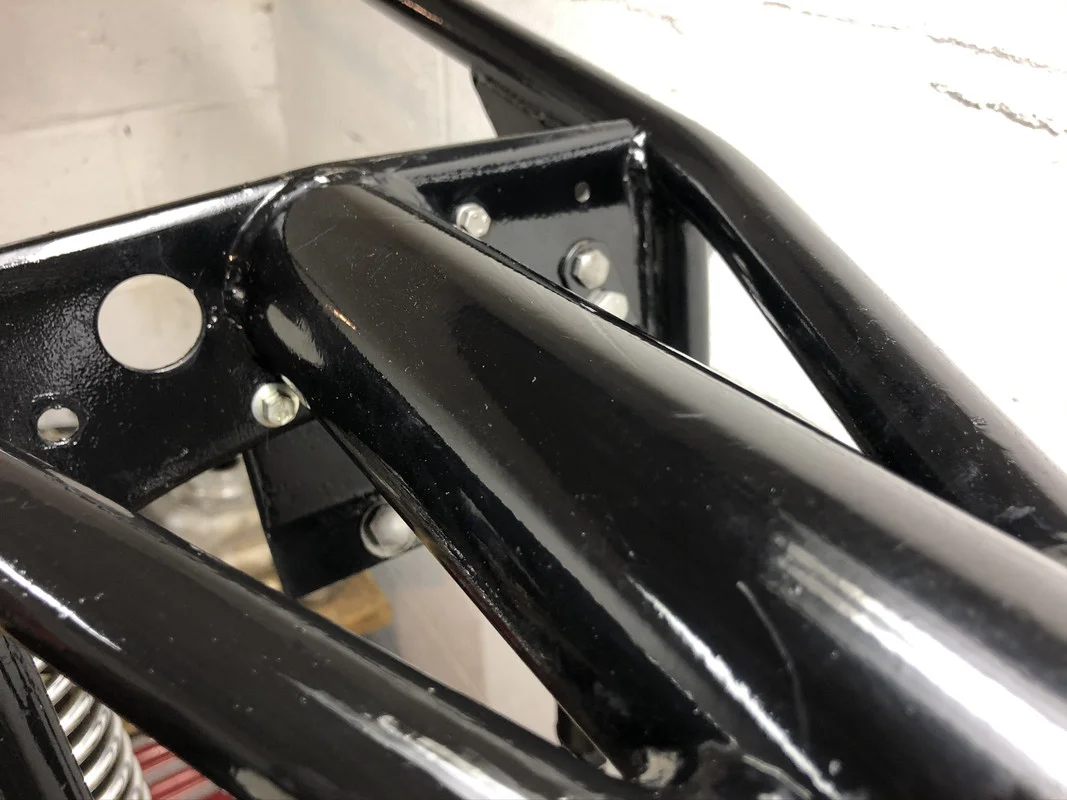

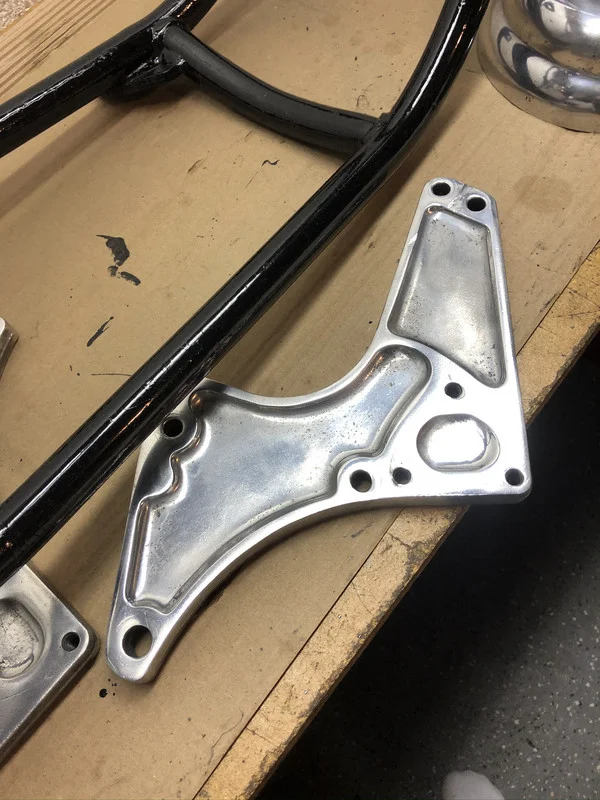

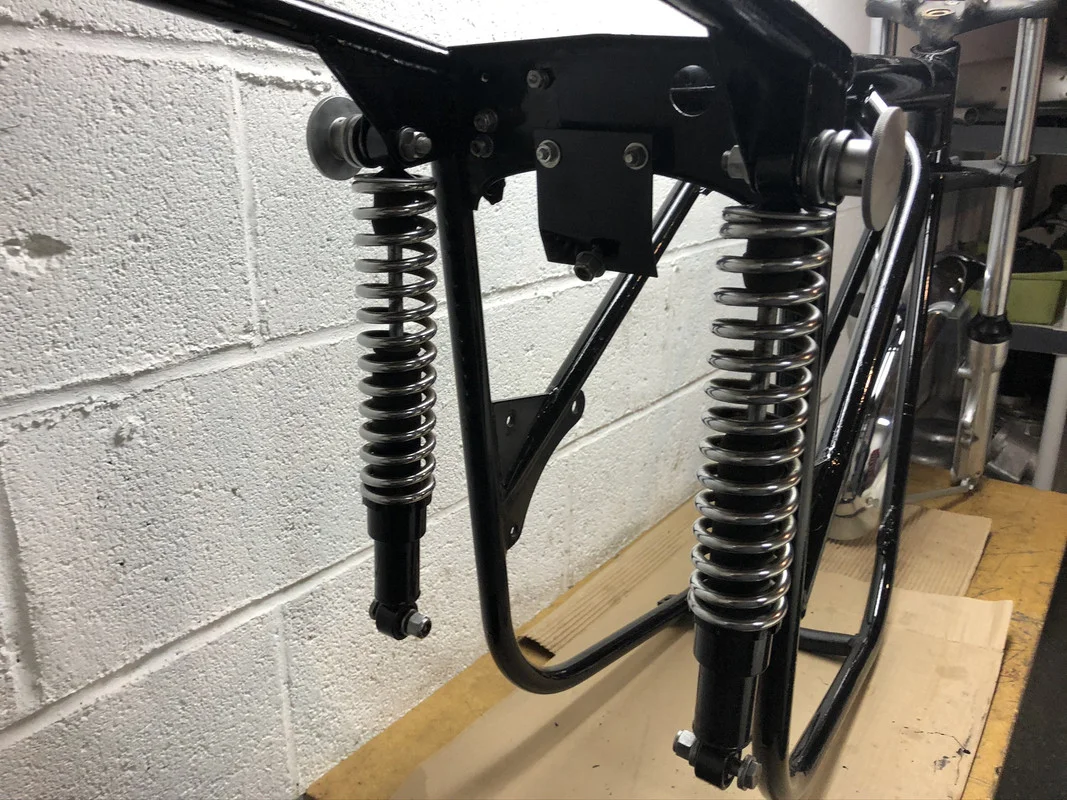

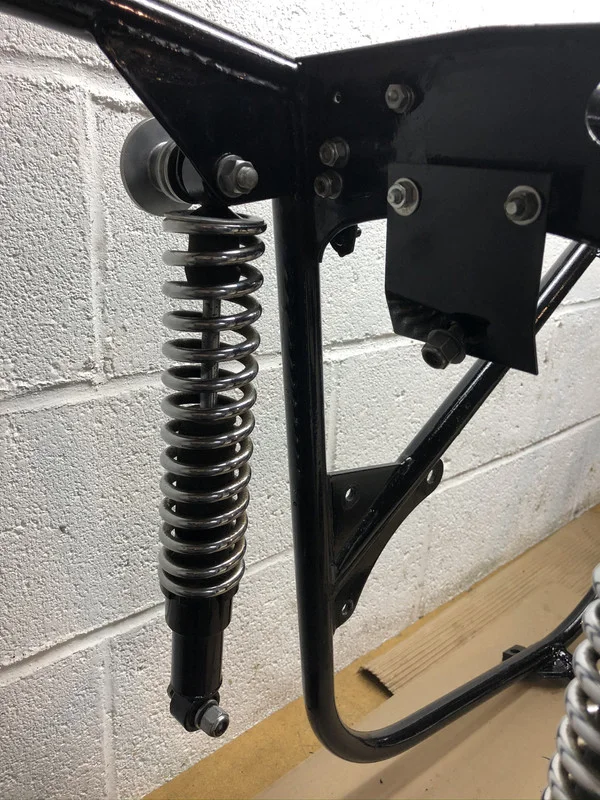

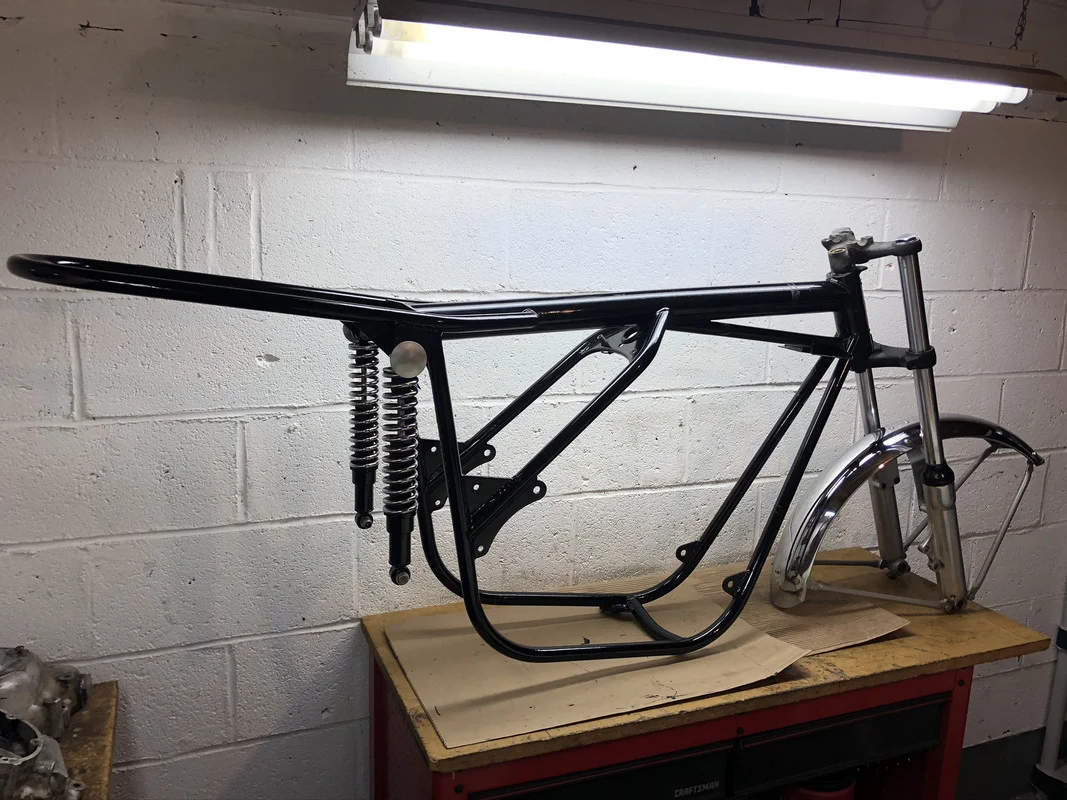

    Making some progress...

    [​IMG]

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]


    [​IMG]

    [​IMG]

    Last edited: Dec 26, 2019
  4. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    I have no idea and funds are a little cut off for the holidays. Let me send you a PM in January? Hope that’s going to be ok.

    Merry Christmas!

    cjandme likes this.
  5. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Does anyone have one swing arm bearing?

  6. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Why just one?

  7. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    The guy I got the swing from sent me one new bearing with it because that’s all he could find, so I just need one.

    Nobody should break up a set, but if you have an odd single bearing, let me know.

    Thanks

  8. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Enlightenment comes to those who seek answers.

  9. Richard Tool

    Richard Tool

    Joined:
    Aug 3, 2019
    PM sent re: swing arm - check your inboxes

    jbruney likes this.
  10. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    The swing arm I have had brass bearings in the arm. I just knocked them out and they appear to be in ok shape.

    How bad do they need to be to need replacing?

  11. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    They should be sintered bronze ('Oilite').
    https://www.bowman.co.uk/bearings/oilite-bearings-self-lubricating-bearings
    Why then, did you remove them?
    The bushes/bushings should be a tight fit in the swingarm as they move with the swingarm around the fixed (to the cradle) spindle.
    The swingarm doesn't pivot on the bushes if that was perhaps what you were thinking?

    Without the swingarm spindle and bushes in position then it's difficult for anyone to say.

    Last edited: Dec 26, 2019
  12. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    The swing arm was (is) in such bad shape, I just assumed that it would be better to have new bushings while it’s apart.

    I have one new bushing, I’ll just find one more somewhere so I have two new ones or just buy a new set.

  13. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016

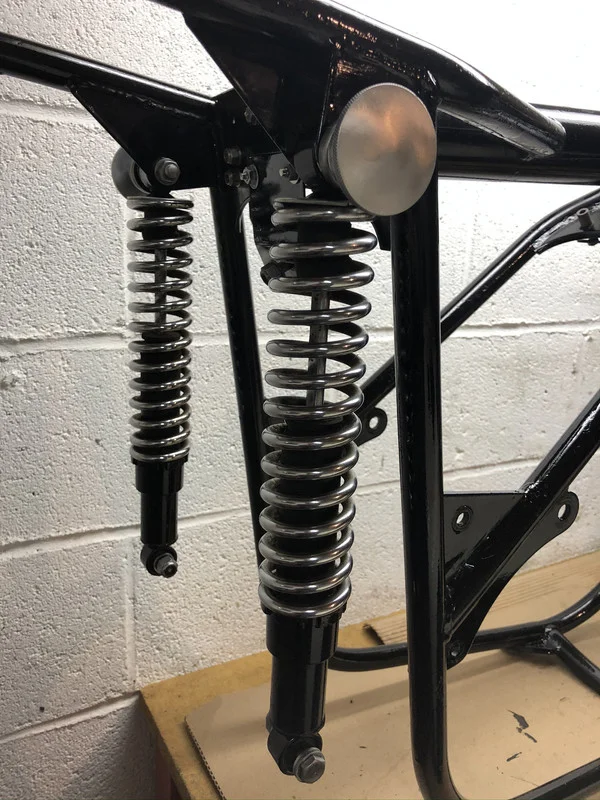

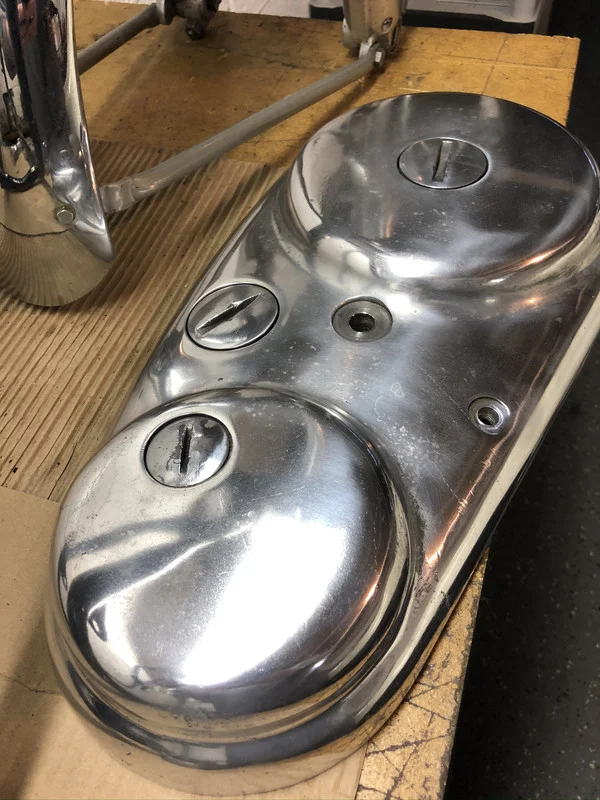

    I’m learning how to use the new bench grinder the kids got me for Christmas.

    [​IMG]

    [​IMG]

    [​IMG]

  14. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    I am in the middle of my ‘73 850 restore. The frame is painted and I’m working my way around.

    I have the front engine mount, but I have no idea how to remove the rubber isolastics from the inside.

    I tried to hit them out, but my hammer just bounced up in the air like I was on a trampoline.

    I’m sure this has been covered many times before, but my search came up with nothing that I need.

    Any suggestions?

    I’m enjoying my holiday time off and I’m making progress. The triple trees have the paint removed and are primed. I took the advice off of someone on this site and bought Seymour nickel spray paint and the trees are next.

    Once the new blasting cabinet arrives, the engine cases, swing arm and air cleaner plates are getting blasted and painted.

    This was not a bike I’m restoring, rather a frame with matching cases that I’m gathering parts for from all over the place; eBay for the small stuff and people on this site for other stuff.

    I think the only thing I’m missing on the frame is the rear CUSH wheel and the small top pieces that hold the handle bars on the triple tree, and yes, the handlebars also. I just picked up a center stand, correct head steady and a trans cradle. Oh yeah, I need the pegs and the gauge holders. The search continues!

    One of the members here is holding a front wheel, chain guard and a tail light assembly.

    I think I have everything else to complete the frame...I think.

    Last edited: Dec 31, 2019
  15. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004

    From 14:12

  16. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    THANK YOU, THANK YOU, THANK YOU!!!

    It’s amazing what you can do with a little instruction. I had no idea how I was going to remove these and now they’re out!

    I removed the rubbers and the interior ones just fell apart and turned into dust...literally.

    Now I’m going to search for your video on how to install new ones. I need to sand blast the mount and paint it first, but after that, it’s new ios’

    Thanks again!

  17. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    They're not my video(s).

    Note that the replacement front Isolastic is the vernier conversion kit:

  18. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Just watched this one.

    Whoever made these videos has the patience of a saint.

  19. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    Please don't blast your cases with anything other than baking soda
    If you bead blast them etc you will never be able to remove all the glass beads

  20. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Thanks baz. I’ve been told that and that’s what I’m planning on using. I was also told to wash them well in water after blasting.
