Frankenbike

Discussion in 'Norton Motorcycle Rebuilds' started by Norcoastal, Dec 13, 2019.

  1. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    So I got my bare frame Monday night. It’s a 1973 850. I also picked up a few parts over the next day. More parts are coming tomorrow and next week, but I am missing so much.

    You guys call it a Bitsa, I’ve always called them Frankenbikes. It’s a matching numbers frame, engine case and transmission case with clean title.

    I am beginning my fist Norton and I’m pumped. Maybe even a little OCD.

    I’m going to get cleaning and getting everything ready while my search continues for parts, but this is part of the fun.

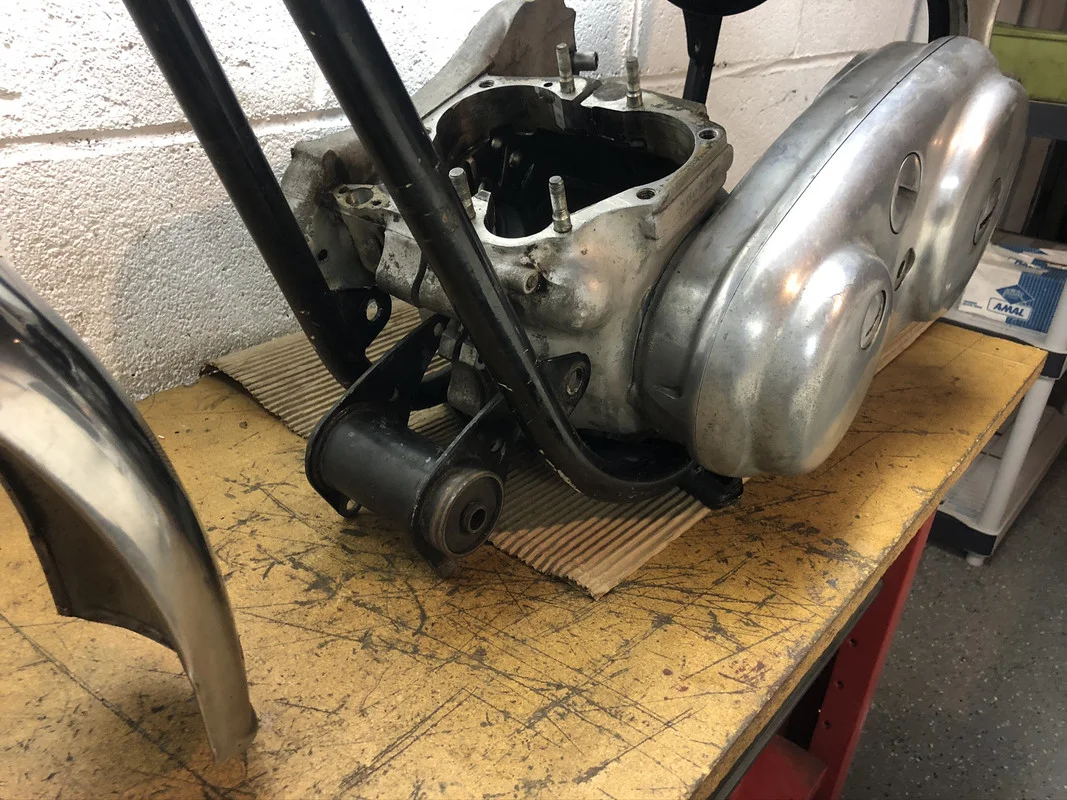

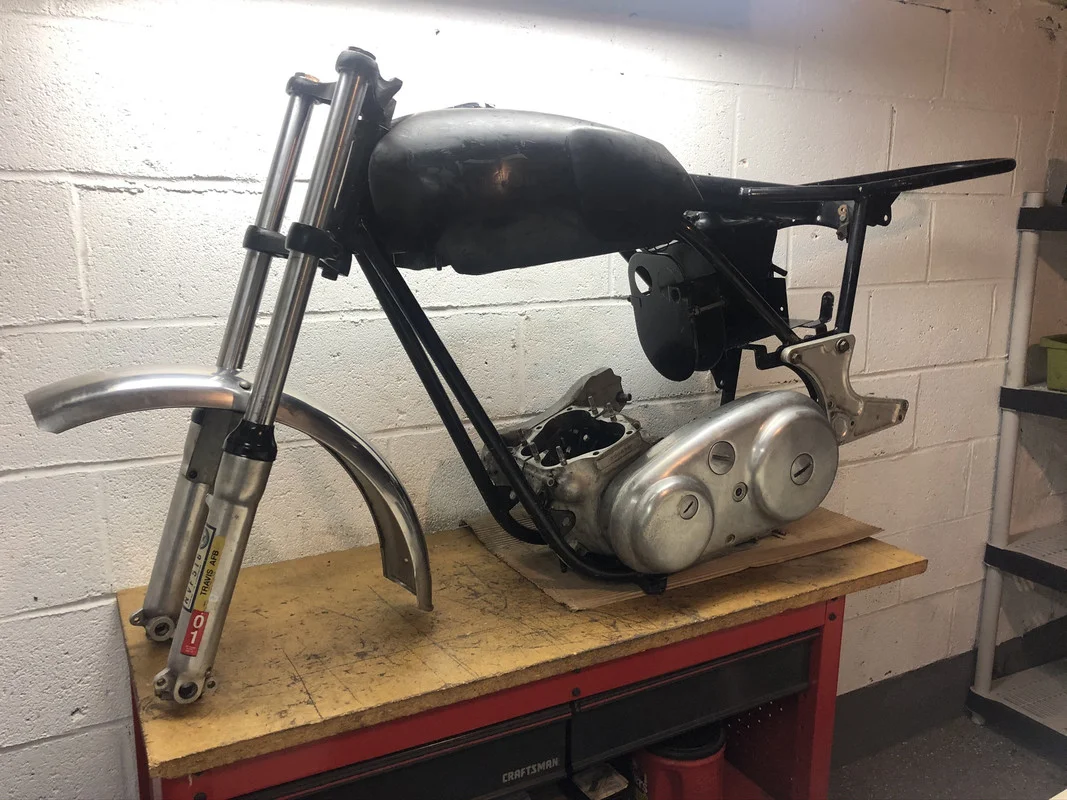

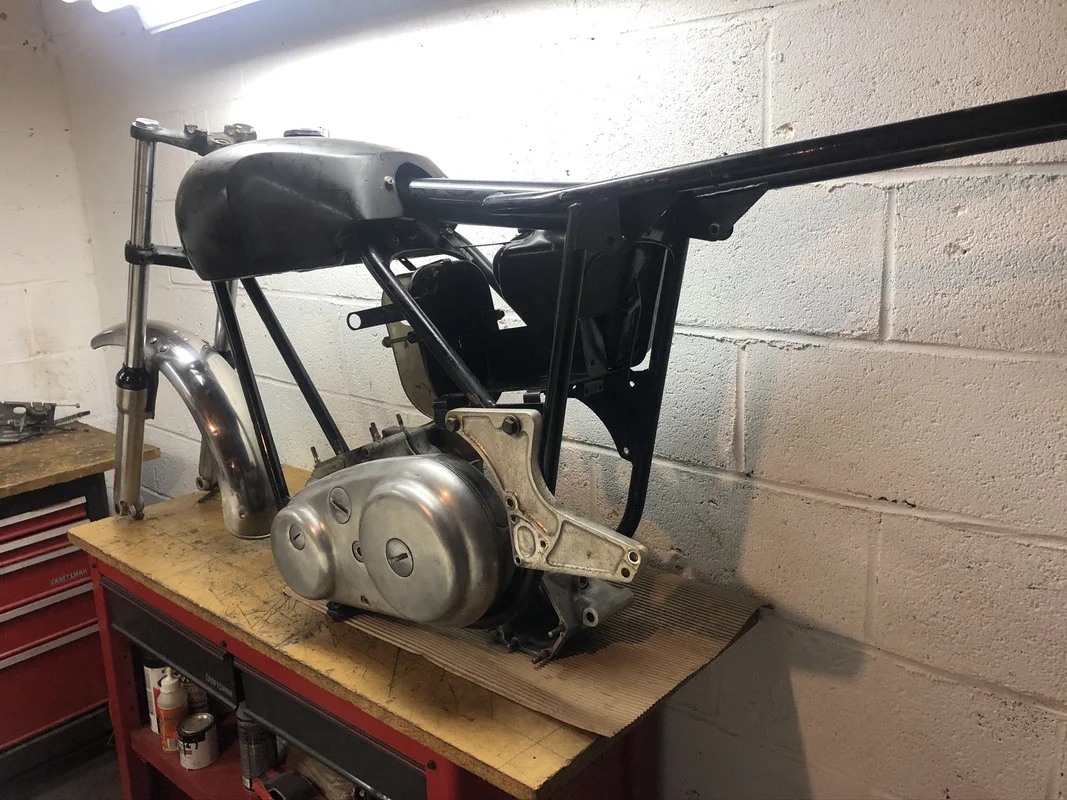

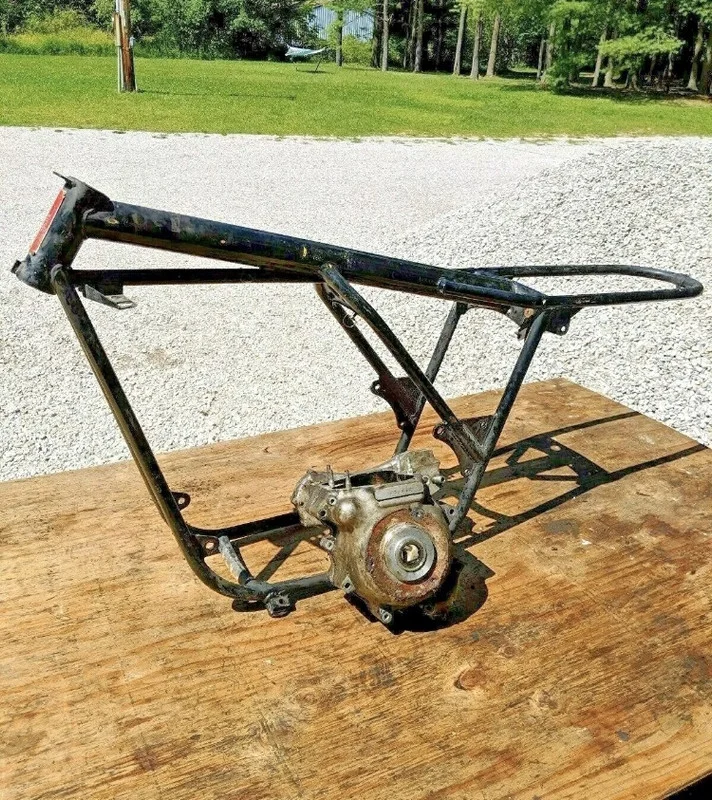

    Here is some pics of Monday’s bare frame and then tonight.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Dec 13, 2019
    gortnipper likes this.
  2. Scout63

    Scout63 VIP MEMBER

    Joined:
    Nov 24, 2016
    Looking forward to watching the build.

    Norcoastal likes this.
  3. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    Another labor of love has begun. May the gods smile upon your labors and reward you handsomely.

    Norcoastal likes this.
  4. Danno

    Danno

    Joined:
    Feb 7, 2010
    I notice your frame has the rear loop-strengthening gussets inboard of the upper shock mounts. LAB thought mine ('73 also) was a bit of an anomaly.

  5. Richard Tool

    Richard Tool

    Joined:
    Aug 3, 2019
    Looking forward to watching this one . I have some bits from my 1972 750 Roadster - LMK what you need.

  6. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Not sure what you mean, what specifically are loop strengthening gussets and are they an advantage?

  7. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    At the time I was under the impression that the extended gussets were introduced on the "Mk2" frames hence the reason for the change of 850 frame part number from 064140 (Mk1) to 065404 (Mk2/2A) according to the parts lists.
    However, it appears that extended gussets were in fact fitted to many (or the majority of?) 850 Mk1 frames.

  8. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Hi Richard,

    Hahaha, I need just about everything!

    What you see is what I have, however, I have new fenders, swing arm , side stand, shocks and fork ears coming.

    I need wheels and axles, disc brake, chain guard and on and on and on...

  9. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
  10. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
  11. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
  12. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
  13. jbruney

    jbruney

    Joined:
    Jan 5, 2019
    There's gussets crawling all over my '74 as well. I pretty much assumed they were commonplace on all.
    Can't wait to see that thunder chicken ready to roll.... Just not enough Nortons on the road these days. One gets the feeling of being stared at all too often by folks which have never heard them run.

  14. Richard Tool

    Richard Tool

    Joined:
    Aug 3, 2019
    PM sent re : Available parts

  15. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    PM replied

  16. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    I have a single Z-plate to compliment your stray. I'd like to donate it to the project, but it will have to wait till mid-January as we are off to Germany to visit our son for Christmas.

  17. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    I also have a complete sprung box-type top steady with spring & saddle, but I'd like a reasonable price for it.

  18. cjandme

    cjandme

    Joined:
    Feb 5, 2011
    I have an extra rotor and a caliper if interested. I think they should fit in a medium sized flat rate box. Not looking to get rich off of them, let me know. Cj

  19. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016
    Hi, it’s been a long time since I logged on. What are you thinking on the rotor and caliper?

  20. Norcoastal

    Norcoastal

    Joined:
    Aug 21, 2016

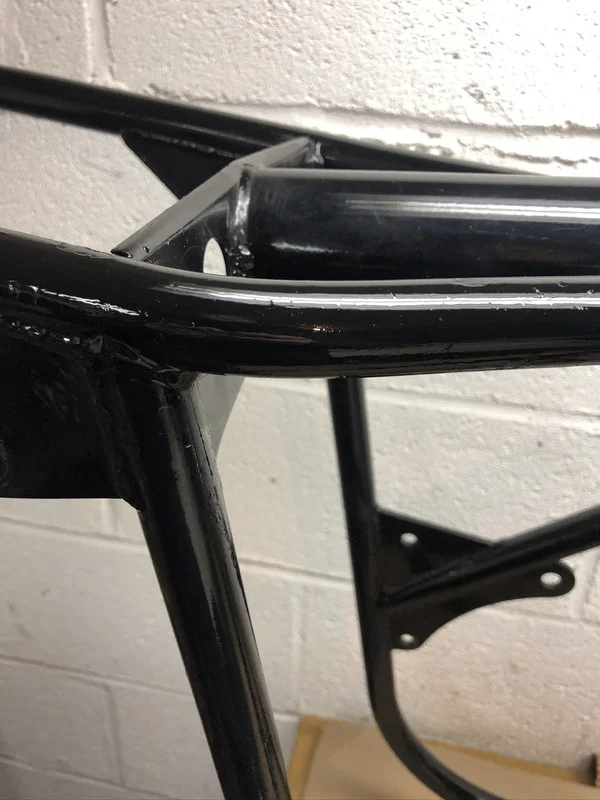

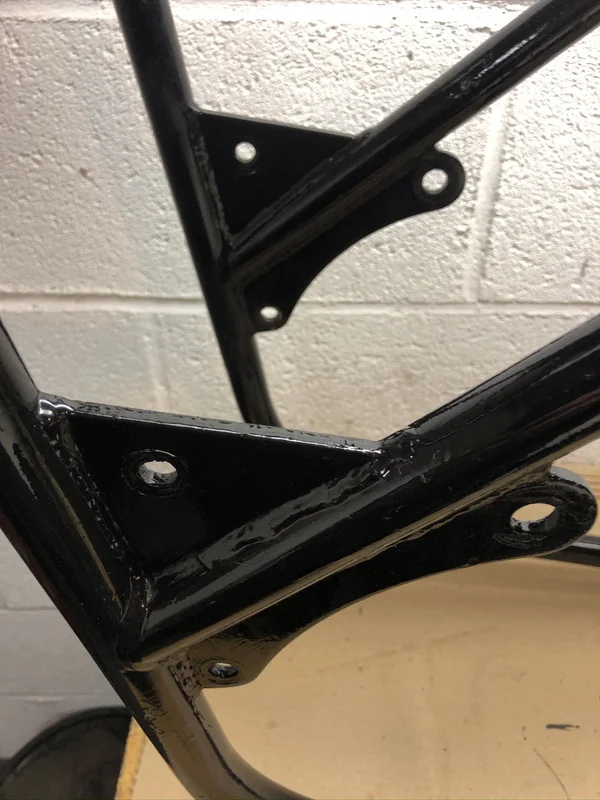

    Been spending time tuning up my frame with Rustoleum gloss enamel with an artists brush. Ended up touching up more than not but it looks pretty good.

    Painted the oil tank, and some small parts. Also picked up a cradle finally. Been also gathering parts.

    Merry Christmas everyone.

    [​IMG]

    [​IMG]
