Centre stand-Side stand

olympus · Feb 5, 2019

Hi Gents
Would someone be able to provide me a fairly close up picture of the left side commando taken with both side stand & centre stand up (in the riding position) ... i need to gauge the resting positions of them both where & they both sit in relation to one another.

Thank you

Bob Z. · Feb 5, 2019

olympus said:
Hi Gents
Would someone be able to provide me a fairly close up picture of the left side commando taken with both side stand & centre stand up (in the riding position) ... i need to gauge the resting positions of them both where & they both sit in relation to one another.

Thank you

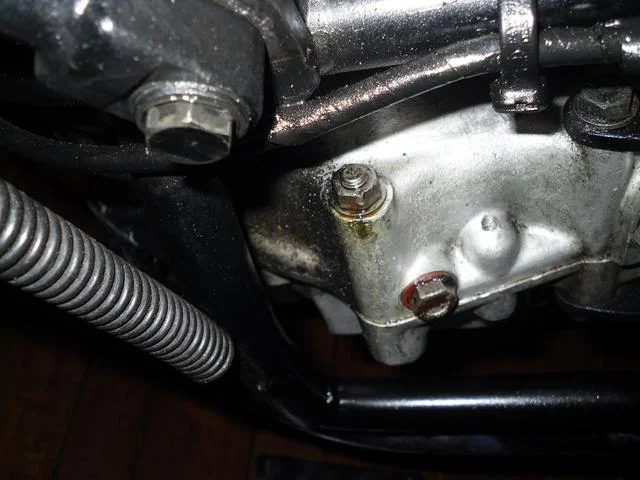

If this question is in relation to your new welded cross member fouling the drain plug,
here is a photo from Old Britts that may help with the correct re-placement.

olympus · Feb 5, 2019

Hi,
The plan is to leave the X brace where is and modify it to clear the plug.... as the side stand is about 5omm rearward than it should be my question relates to, will two stands touch?? so a photo of them in the riding position would be really good

L.A.B. · Feb 6, 2019

olympus said:
Would someone be able to provide me a fairly close up picture of the left side commando taken with both side stand & centre stand up (in the riding position)

Time Warp said in the "Setback" thread:

Time Warp said:
1971 750 about 95 mm from the front frame Iso mount centre to the back of the cross member, about 125 mm for the same on my 1974 850.

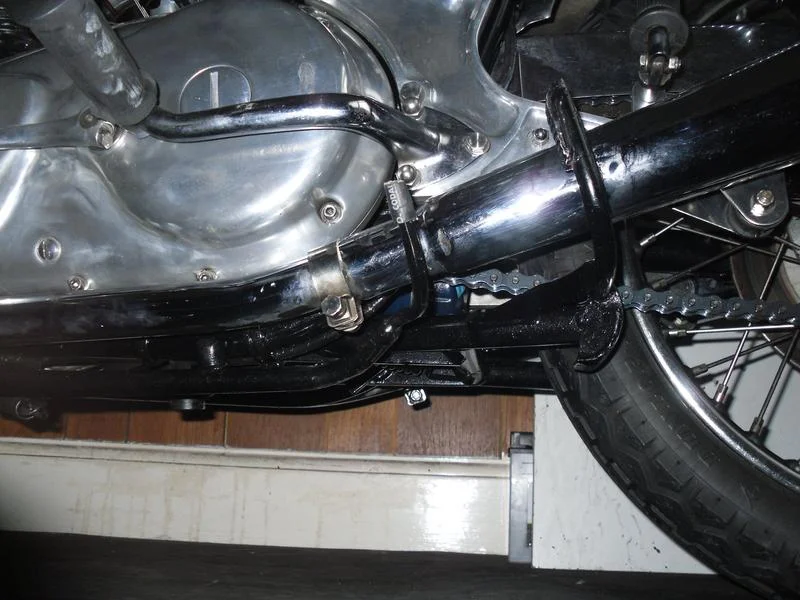

My Mk3's frame is approximately 6"/150mm from 'Iso. mount centre to back of cross member':

olympus · Feb 7, 2019

Many thank Gents.

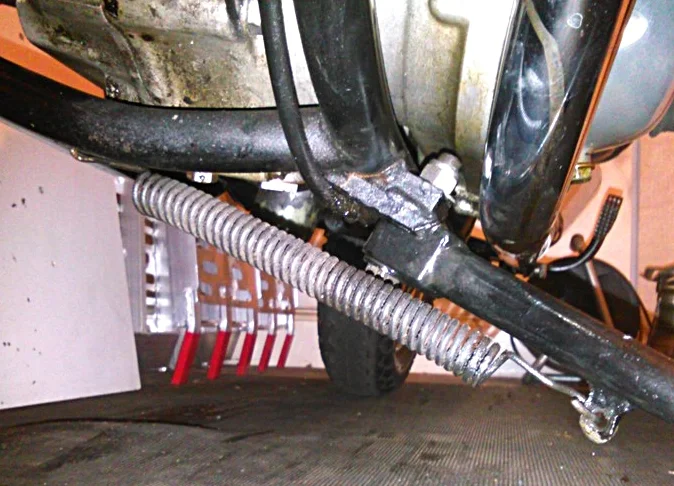

The new cross brace come with no hole drilled for the return spring to locate into, can some one give me a photo of where the hole should be drilled??

Many thanks

L.A.B. · Feb 7, 2019

olympus · Feb 7, 2019

Nice one, many thanks Les

L.A.B. · Feb 7, 2019

Approximately 60mm from the RH frame tube.
