whats in the box

Joined
Feb 5, 2011
Messages
1,874
Country flag
Okay I went back and re-read to thread and new carb & Pipe are in the works------what about the 200cc motor that you could hace dropped in, wouldn't that have been more cost effective etc....later maybe that one could have been modded to 250 ? anyway cool project getting neater everyday. Hell, you'll probably have someone walk up to you sone day when you're out on it and offer to buy it off of you on the spot. :)

Joined
Jun 6, 2012
Messages
1,438
Its a pushrod? Ok, so more of a CG, than CB crib.
I have 'bucket' raced some of those little buggers, & from memory, the CG design had better stock porting/camming but once you ported & put a big cam [Yoshi or Powroll & etc] with stiff springs in the OHC Hondas they`d take more revs & give more top-end.
Of course an MX chassis is going to weigh more, it does have to be robust, & has proper suspension, but engine mass-wise, the KTMs would naturally be even more tiddly.
As for classic status, all those Yamaha sports twins with racing parallels , R/RD/RZ/TZR.. qualify as classics nowadays, & justly so, too.

Joined
Aug 26, 2010
Messages
8,216
That is (obviously) a very different bike - looks more like a clone of the ohc series, with leccy start grafted on ?
Some of those things were little rockets. Even more so with a cam...

Joined
Jun 6, 2012
Messages
1,438
Well, Rohan, if its a poppet valve 4-stroke, its not going to run very well without a cam, is it?
Which is not to say that designs which dont need `em... dont rocket even harder..

Joined
Jun 6, 2012
Messages
1,438
I guess that would not be a legal issue in your area, but I reckon Aussie cops would likely get stupid about the names being different, on bike - to rego details.
Does anyone know if mighty Honda gets all 'Disney'-like [legal writs to cease & desist & etc] about brand name mis-use matters?

Joined
Aug 26, 2010
Messages
8,216
madass140 said:
well at least I was gonna put some Honda stickers on mine
And since it looks like a Onda somewhere in its heritage, not unnacceptable.

Can't see much MV in there myself, but thats folks...

Joined
Jun 6, 2012
Messages
1,438
A mate of mine put Ducati tank strickers on his other-wise unaltered XR 500 Honda, but purely as a joke..& got derided for it by fans of both makes..
Fair-enough I suppose if its a badge engineering deal like AMC/Norton/Matchless & etc, or a special that combines major components from different makers -but bogus labels?
I think they reveal more about the mind of the perpetrator, esp` if its for a con-job.


madass140

VIP MEMBER
Joined
Nov 6, 2011
Messages
2,037
Country flag

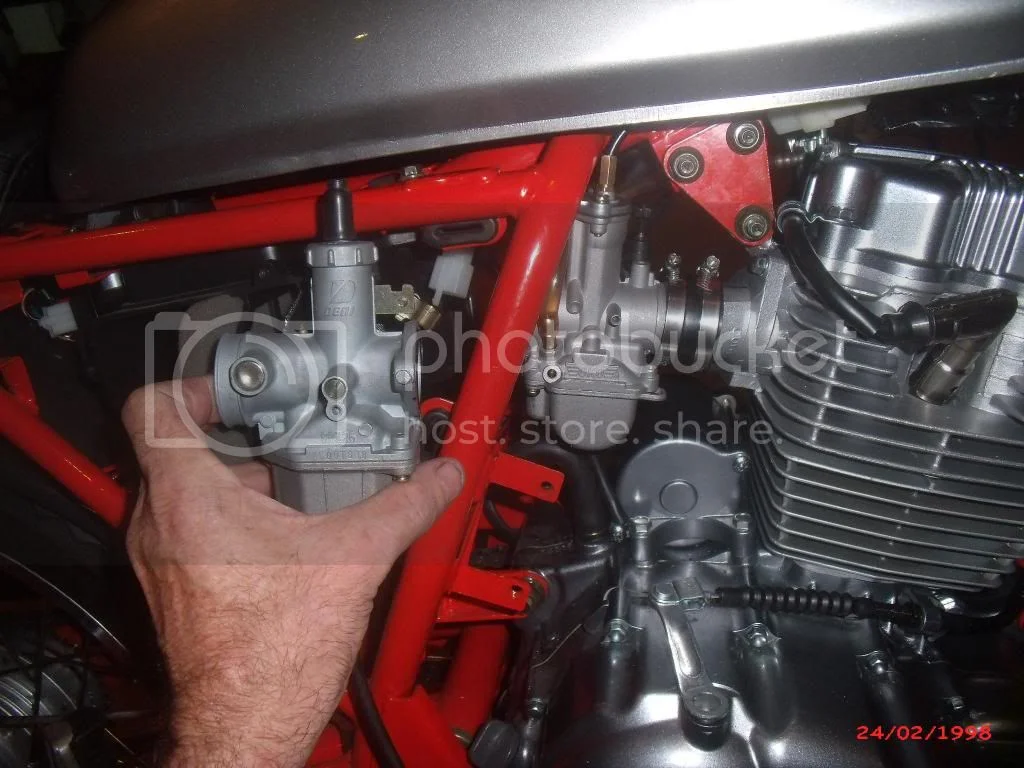

well, back together a few problems, the inlet valve was touching the piston so I had to fly cut the relief a bit deeper, started it with the standard 26mm carb which is nothing special, it has a 20m slide, so I made a manifold and fitted one of those 30mm 'D" slide carbs which seem to be popular now, I have a couple of these on some of my other bikes and they are pretty good, only $60, debaffled the muffler, now its a bit loud, so some rebaffling and lots of tuning ahead of me, but it sure does sound promising,
125/150, big cam, bigger valves, ported head,. new CDI and new coil to fit yet.

Joined
Aug 26, 2010
Messages
8,216
Hey, I got here first, before 'someone' made a stoopid comment.

So I'll ask a (not so) stoopid question.
How do you 'rebaffle' a muffler. ?


madass140

VIP MEMBER
Joined
Nov 6, 2011
Messages
2,037
Country flag
well I removed the end of the muffler and removed existing baffles and welded the end back on with a less restrictive baffle inside, but its a bit loud, so I'll operate again,no big deal.
