Shipping a crankcase

Discussion in 'Norton Commando Motorcycles (Classic)' started by swooshdave, Aug 7, 2018.

  1. batrider

    batrider

    Joined:
    Aug 9, 2008
    Don't combine heavy with fragile. Two boxes is the way to go.

  2. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]

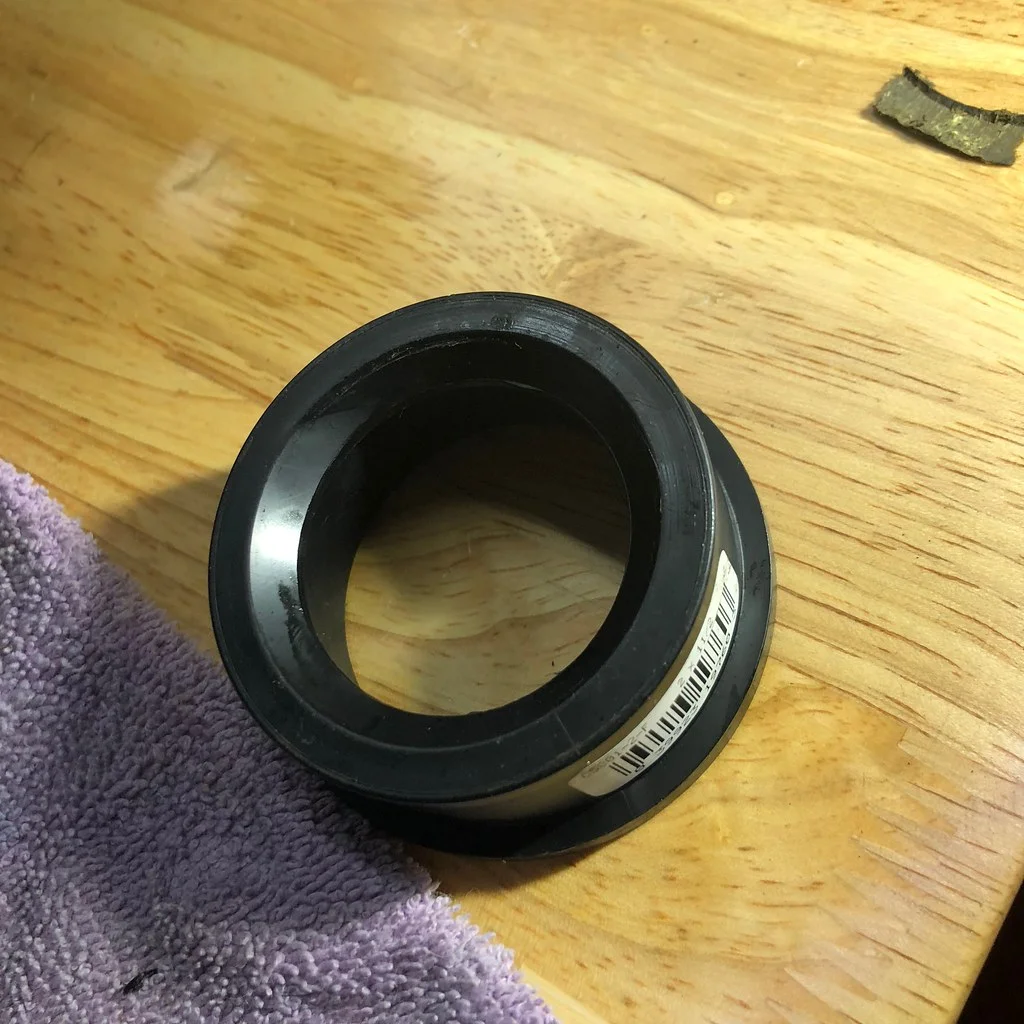

    I found these couplings at Home Depot. About a buck each.



    [​IMG]

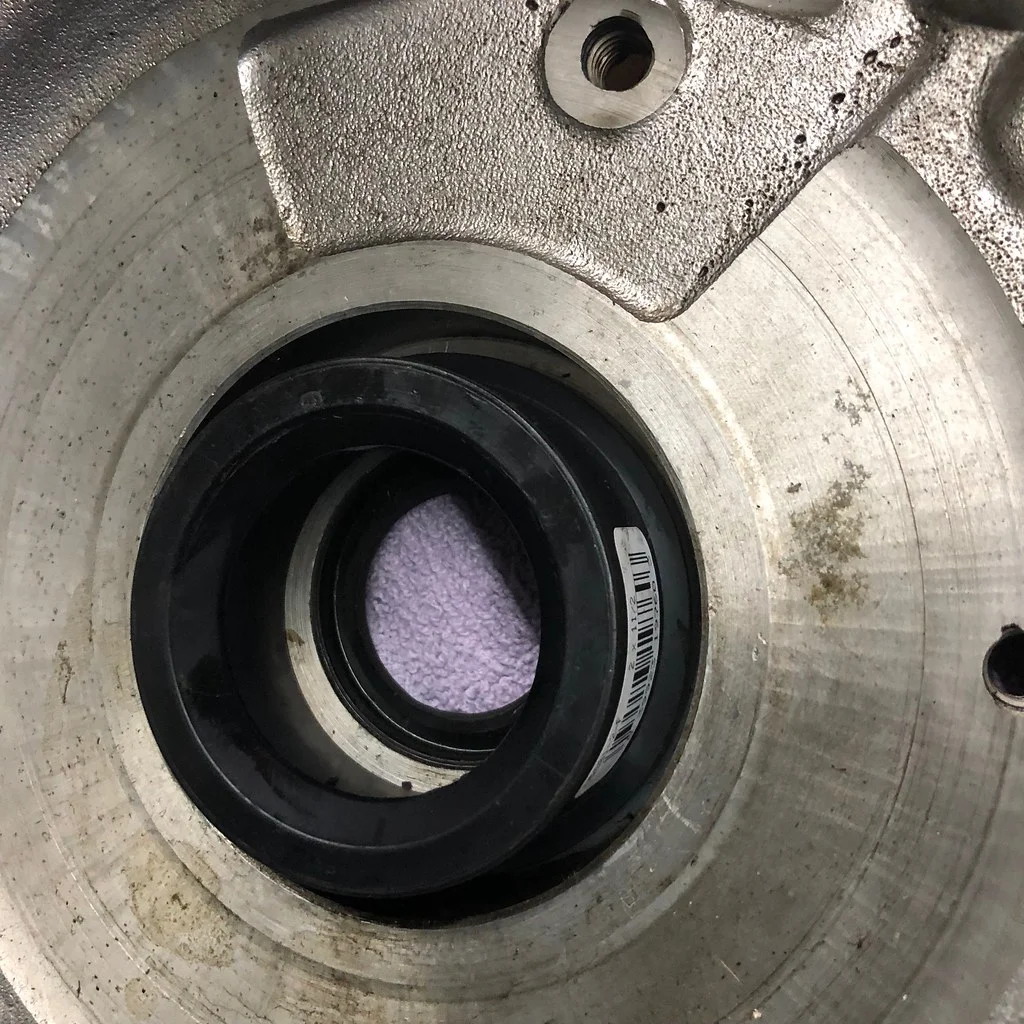

    Approximately the size of the bearings but wider.


    [​IMG]

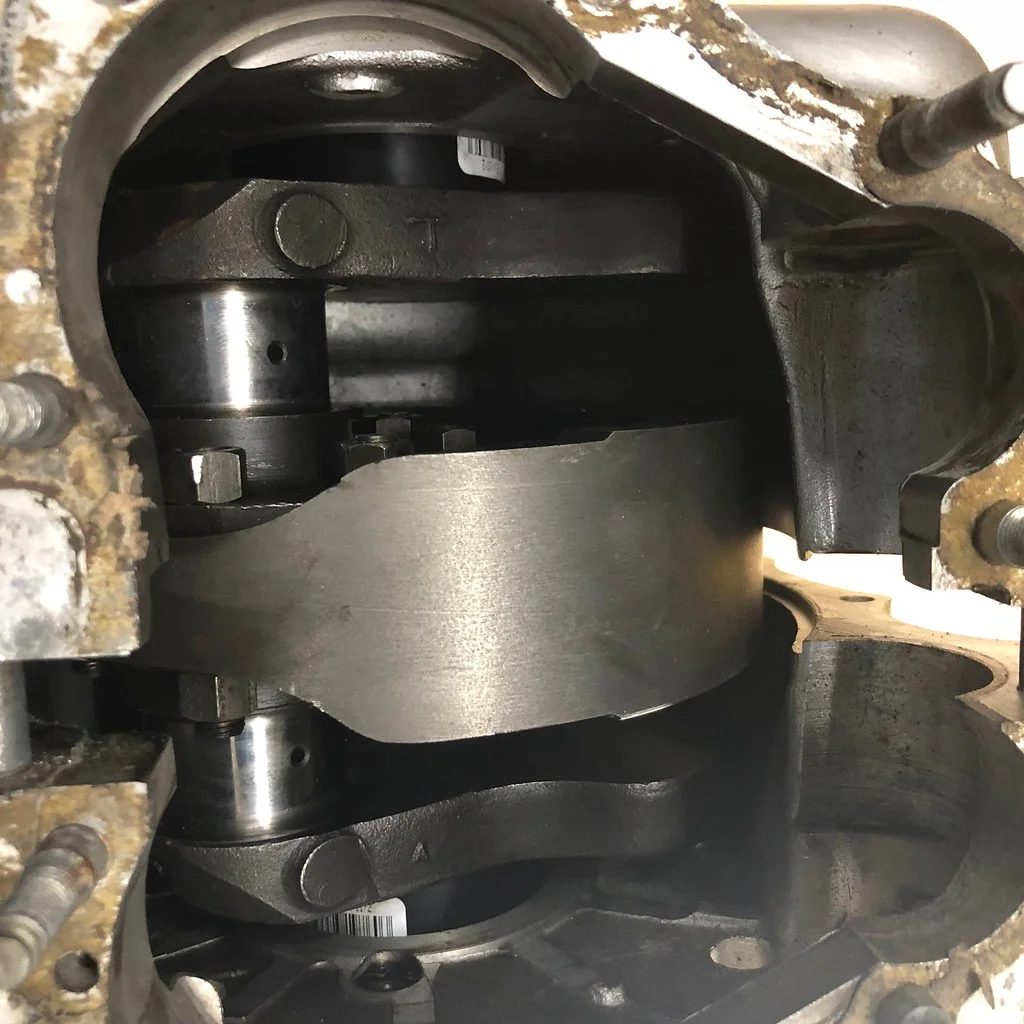

    Once I sandwiched it all together there was a gap. The cases are held with zip ties. The crank can't really move. And the cases won't rub.

    [​IMG]

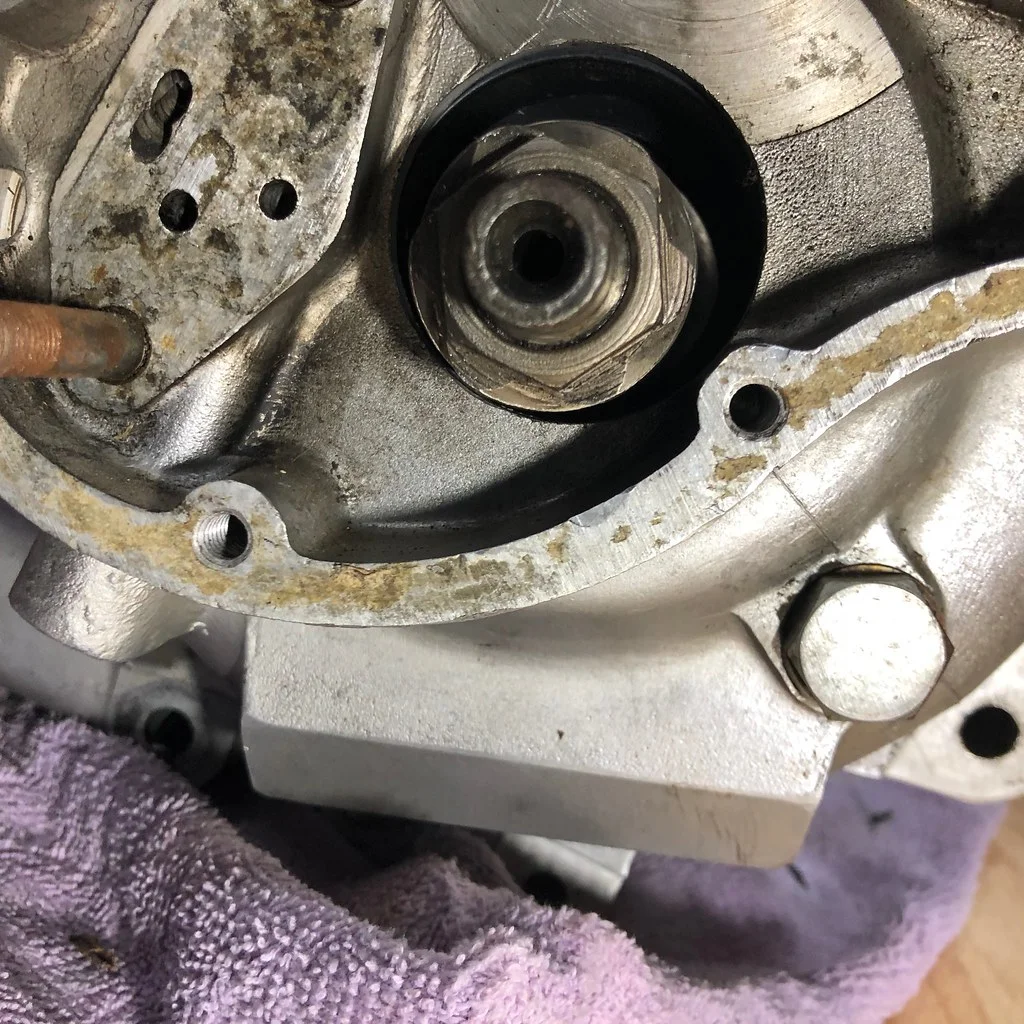

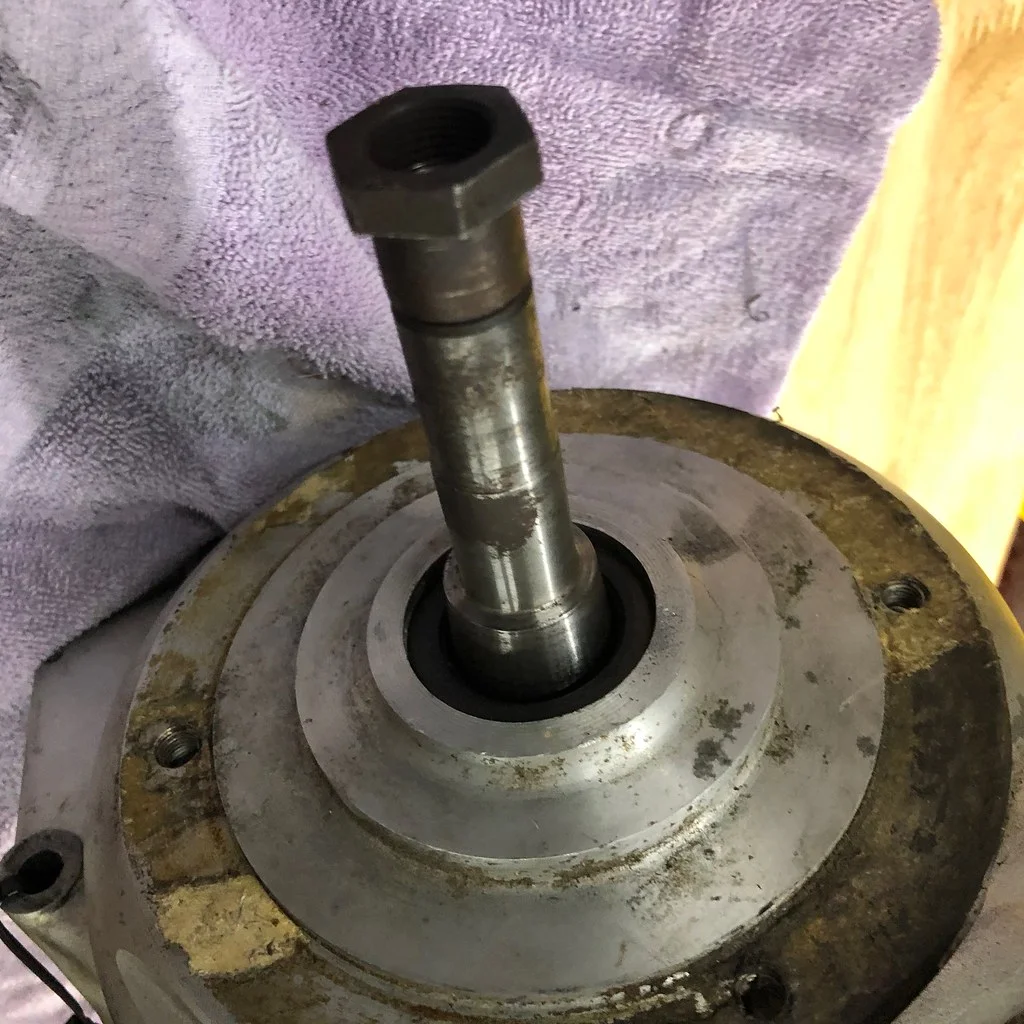

    The drive side has the seal and the crank is nice and centered.

    [​IMG]

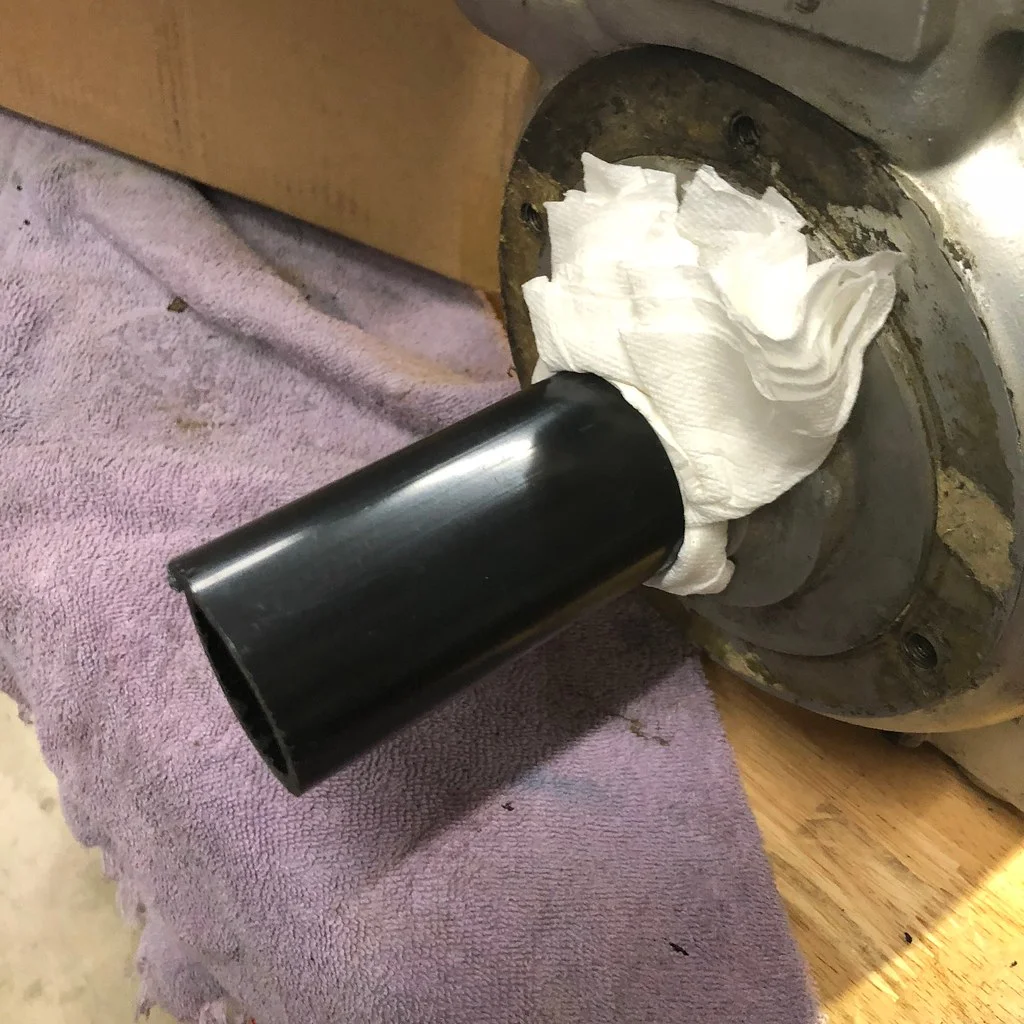

    Protected by a piece of pipe.

    cyclegeezer likes this.
  3. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]

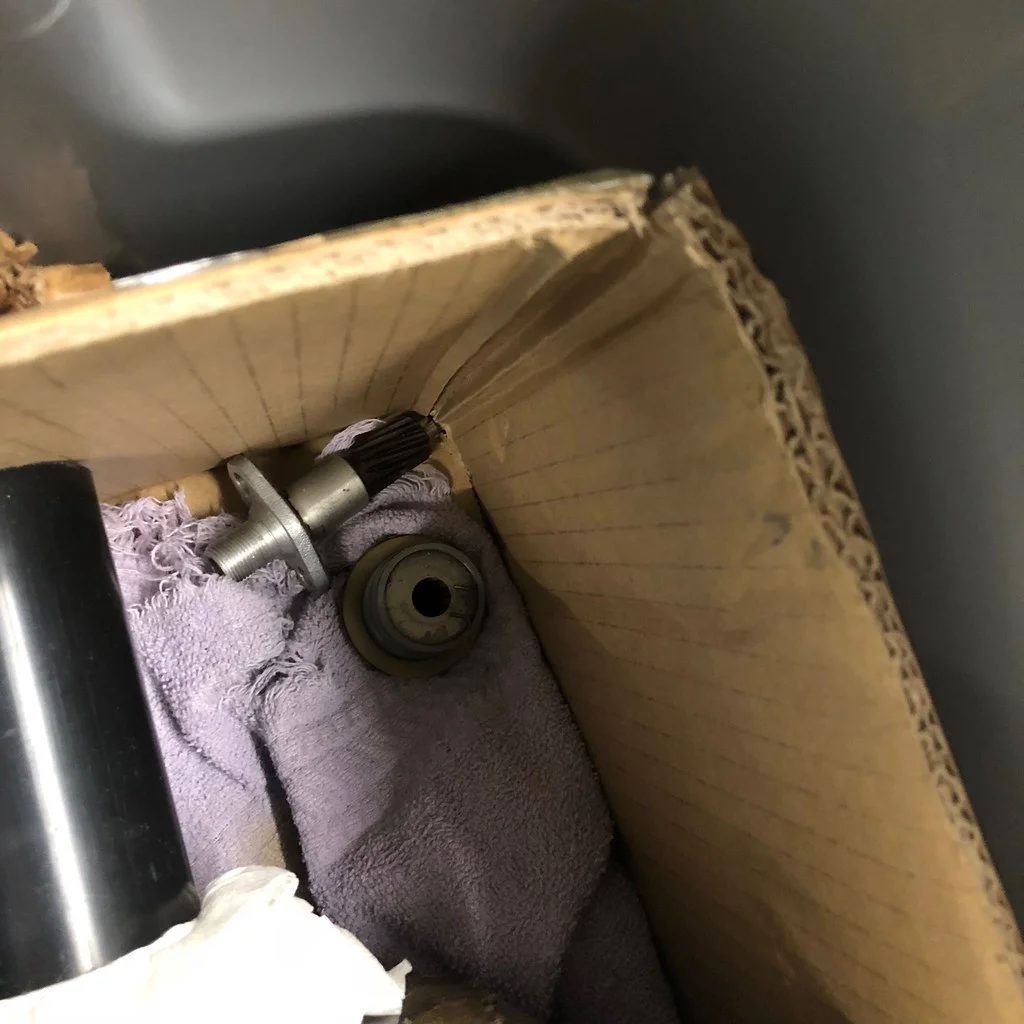

    The oil pump drive can't hit the case on the other side.


    [​IMG]

    Extra thick sturdy box inside the bin. And a blanket.


    [​IMG]

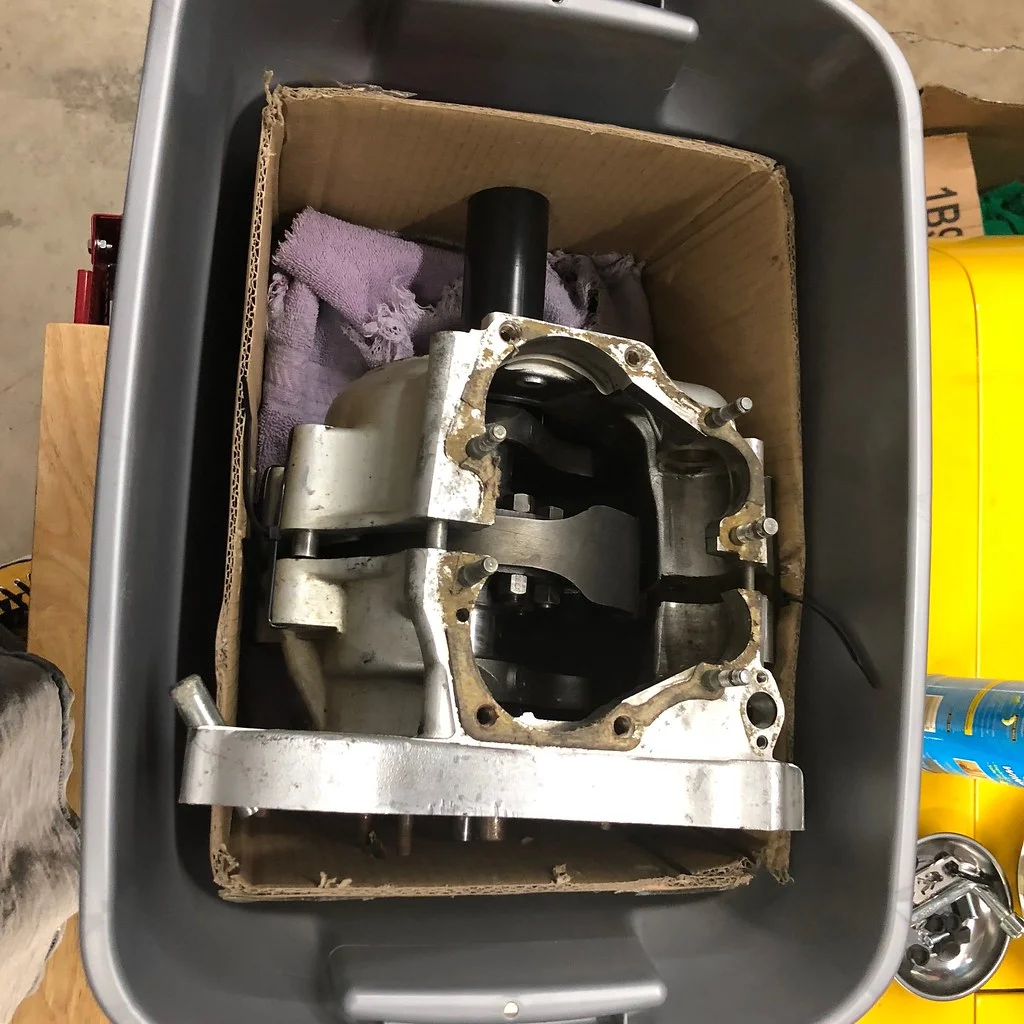

    It sits in really nice. There will be additional protection for the sides and top.

    [​IMG]

    Some extra goodies for @manx850. I haven't heard from him since I called him. He said to text but I'm not sure that will work. I'll call him tomorrow to confirm shipping.

    Last edited: Aug 8, 2018
  4. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    I would remove that oil pump drive worm gear, too close for comfort.

    You still want some plywood under that cardboard...

  5. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I'm going to protect that gear better.

    The cardboard box is the thickest cardboard I have ever seen. No need for a board.

    Just the crankcase and crankshaft is relatively light. I'll weigh it this morning and report back on the box weight.

  6. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    28# is my guess.

  7. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Not even close.

  8. manx850

    manx850 VIP MEMBER

    Joined:
    Aug 15, 2012
    Do you think Redline 20/50 will be OK for those new style bearings?

  9. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    I'd probably use Amzoil. But 20/50w does sound about right. :cool:

  10. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    [​IMG]

    I swear you could drop this out of a plane and it would survive. Unless it was going to Alaska...

    I'm sure we'll get a full report from @manx850 when he gets it. Heads out tomorrow.

  11. Mr. Rick

    Mr. Rick VIP MEMBER

    Joined:
    Feb 6, 2009
    Looking good. So what was the all-up weight?

  12. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    I have shipped lot of tube amps. Heavy iron transformers and some of them pretty much a two man lift. I would be nervous shipping that. Roll some cardboard into tubes and pack around the cases cuz they look like they'll move. The tub is great idea. But it looks like the case is in direct contact with the top, which might not be so great.

  13. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    42.5 lbs

  14. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    The case will not move. I picked it up and shook the hell out of it. But you have to be nervous shipping anything, especially heavy stuff.

    We'll find out how it made it on Wednesday when it's due to arrive. I'm sure if it's bad that @manx850 will post pics and call me nasty names.

  15. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    I assume you insured it for maximum value?

  16. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Shipped through work. They have a predetermined maximum value.

  17. manx850

    manx850 VIP MEMBER

    Joined:
    Aug 15, 2012
    Well Dave the package arrived today in one piece, nice job on your part all looks good on first inspection!....Thanks!

    swooshdave likes this.
  18. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    Thanks for everyone and the shipping recommendations!
