Ok, so I have the Old Britts kit to blank/insert/mask the areas not to be powder coat but......

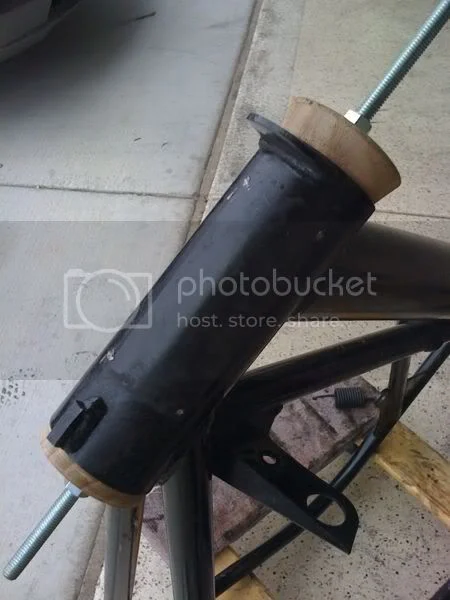

The areas where the triple tree bearings & the front back iso's go are critical not to get any powder coat on. So, with my wood lathe and some 5/16 threaded rod and hardware, I came up with tapered plugs that only took minutes to make on the lathe. I have no worries now. Maybe a bit much, but it was ez to make.

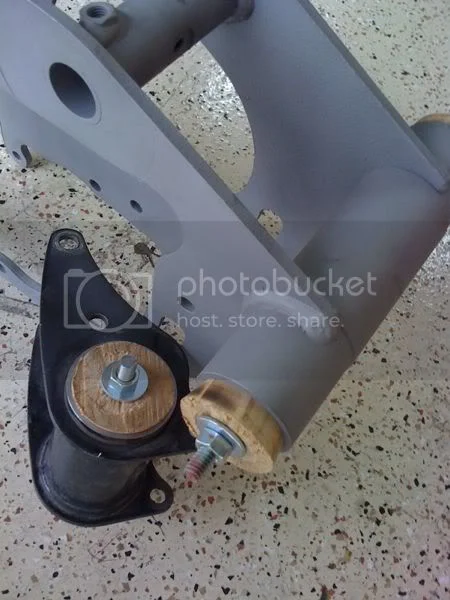

*The grey gear box cradle was milled by CNW to accept the gearbox fitting easier.
Nearing powder coat...


Nearing powder coat...

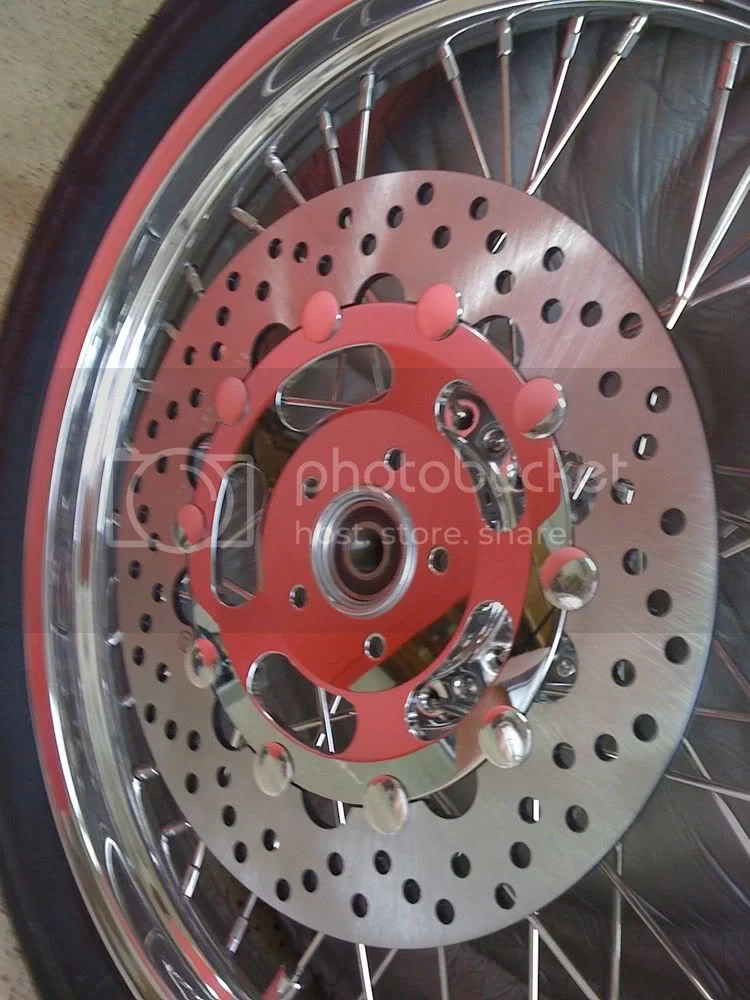

*Also, my wheels from CNW came and I test fitted the front disc...PERFECT!
