N15 Tool box mounting

Discussion in 'Other Nortons' started by jcurryfisher, Feb 9, 2017.

  1. jcurryfisher

    jcurryfisher New Member

    Joined:
    Feb 9, 2017
    Messages:
    4
    I am restoring a 1965 N15 that has been without its tool box etc. for I assume many years. I found the correct tool box for a 1965 (they can be different by year) but some idiot removed the frame mounting tabs. Can someone show me pictures of exact location and the size of these mounting tabs. You must have a 1965 to help me. Any actual dimensions would help as well. The people in the local Norton Club have 1967s which mount very differently. Thanks everyone!

  2. dave M

    dave M Well-Known Member

    Joined:
    Oct 19, 2005
    Messages:
    1,556
    There are some good photos of restorations in progress in the AJS Matchless section on this site, simply use the search function or else trawl through the titles on that page, there are not so many that it will take too long. i myself have a 1967 G15 with the points rather then the magneto, the tool box mounts to a bracket on the top part of the seat rail, another tab some way down the frame tube from the shocks to the swing arm area and the lower mounting is part of the battery bracket - it seems that this tab is often missing as I think it is prone to vibration.

  3. jcurryfisher

    jcurryfisher New Member

    Joined:
    Feb 9, 2017
    Messages:
    4
    Thanks for your help.I did go to the Matchless site and I could see one of them but not all. For any of you with a 1965 N15 I still need the question answered. Thanks

  4. grandpaul

    grandpaul Well-Known Member VIP MEMBER

    Joined:
    Jan 15, 2008
    Messages:
    9,785
    I doubt that this would help, but you never know...

    [​IMG]

  5. franko

    franko Well-Known Member VIP MEMBER

    Joined:
    Dec 29, 2013
    Messages:
    47
    Mike Harrod has a 65 N15 on youtube. I've looked at the bike while at the INOA rallies. Mike sometimes post on the INOALIST. If you look up the Tennessee Norton Owners Assoc., The email address there is for Jon Harrod, his son. Both men are approachable and willing to help, from what I have seen at the rallies.

  6. jcurryfisher

    jcurryfisher New Member

    Joined:
    Feb 9, 2017
    Messages:
    4
    Thanks for the lead. Mike is a very nice guy and was happy to help but his N15 is a 1967. I need someone with a 1965.Also thanks to grandpaul. I have the battery holder my issue is the tool box.

  7. dave M

    dave M Well-Known Member

    Joined:
    Oct 19, 2005
    Messages:
    1,556
    The battery holder incorporates the lower mount for the toolbox by way of the downward facing tab - it may be missing from yours as they break off from vibration.

  8. franko

    franko Well-Known Member VIP MEMBER

    Joined:
    Dec 29, 2013
    Messages:
    47
    Sorry about the mix up with Mike Harrod. I could swear that the you tube video had 1965 imprinted on it.
    Anyway, Walridge has this posted it its' HELP AND ADVICE section.


    Norton/Matchless G/N15 Hybrids

    Almost daily we get asked for an illustrated parts book and workshop manual for these bikes. I have never seen one but if I ever find the time I’ll try to do one. I remember asking Gus Kuhn motors in the late 60′s for one for my AJS “33″ and they gave me a mid 60′s AJS Instruction book (as supplied with the bikes) and a Norton Atlas factory workshop manual.

    The 1964/5 parts book has limited pictures, ie motor, transmission and forks. 1966-8 has no pictures so you need time and an imagination because parts are not always listed in the most logical places. For 1968-70 a few pictures crept into the early Commando parts book and then from 1971 onwards they did a beautiful job.

    "If anyone has specific questions about what goes where on these bikes I try to help them, time permitting."

    -Mike

    I've seen them with their van at a couple of swapmeets with N15s and others in it.
    So with what he has said in the last line,Maybe give the sight a look http://www.walridge.com/ and give them a call

  9. nortless

    nortless Member

    Joined:
    Oct 11, 2017
    Messages:
    5

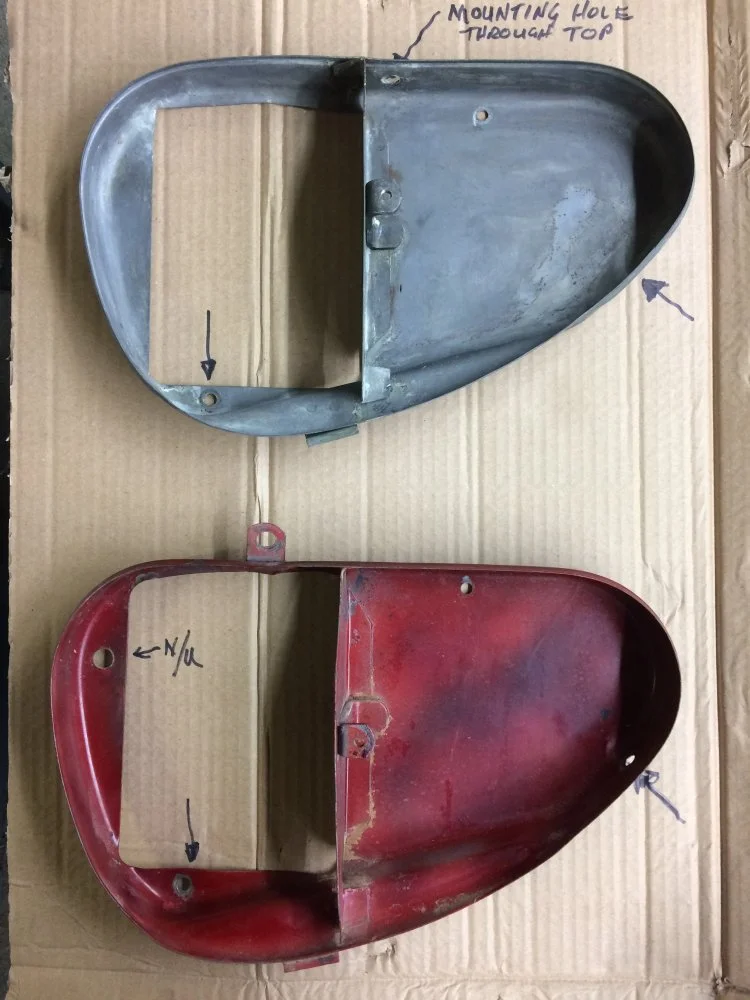

    I have a tool box with the upper mounting tab and another without.
    My early G15cs frame does not have the mounting lug on the seat rail but the '65 g15csr frame does have it.
    I'll have some pictures of the 2 boxes and the battery holders as well today.

  10. nortless

    nortless Member

    Joined:
    Oct 11, 2017
    Messages:
    5

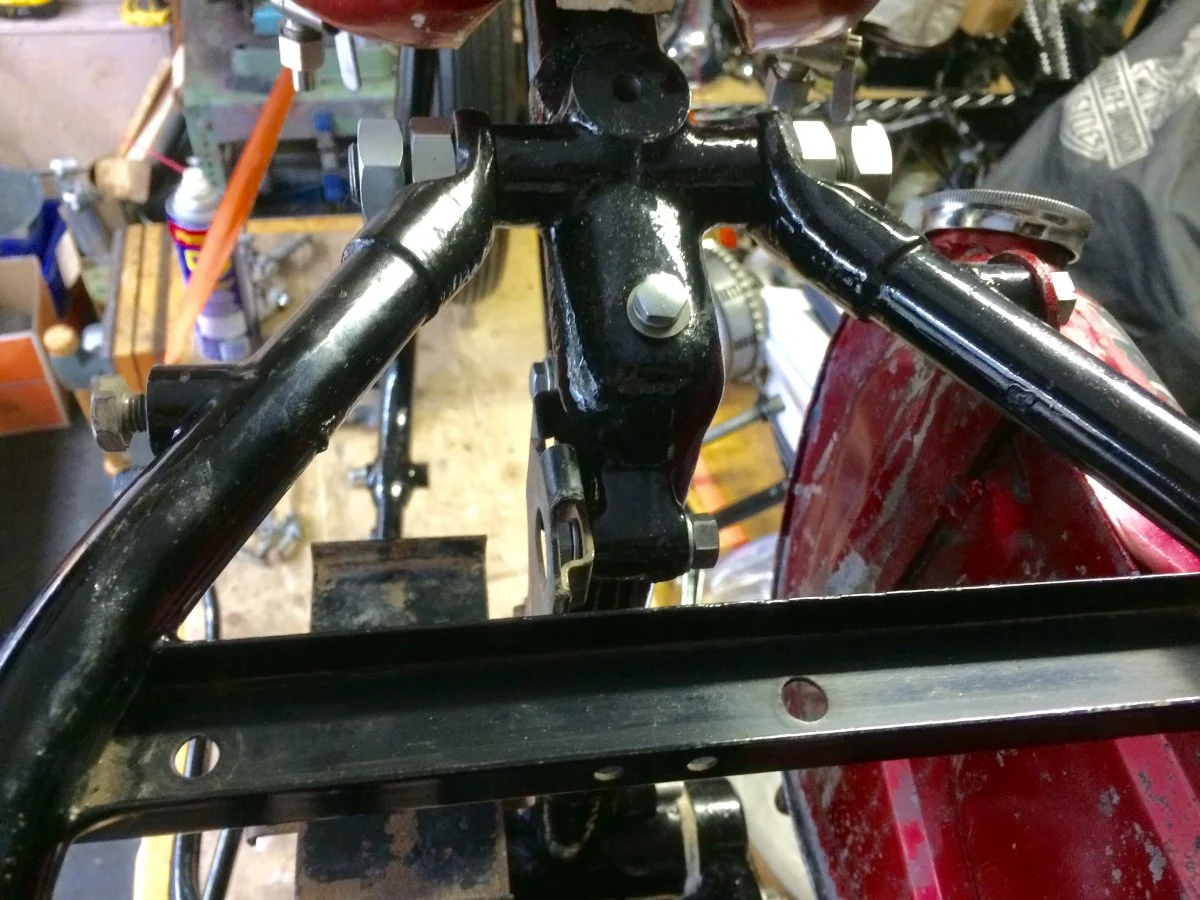

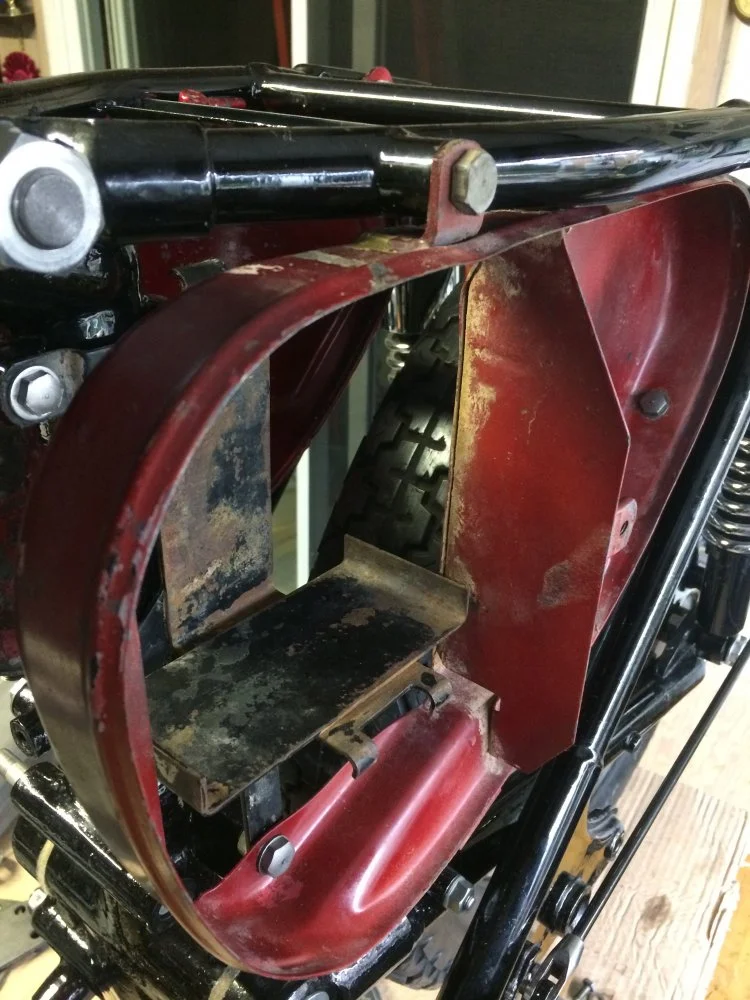

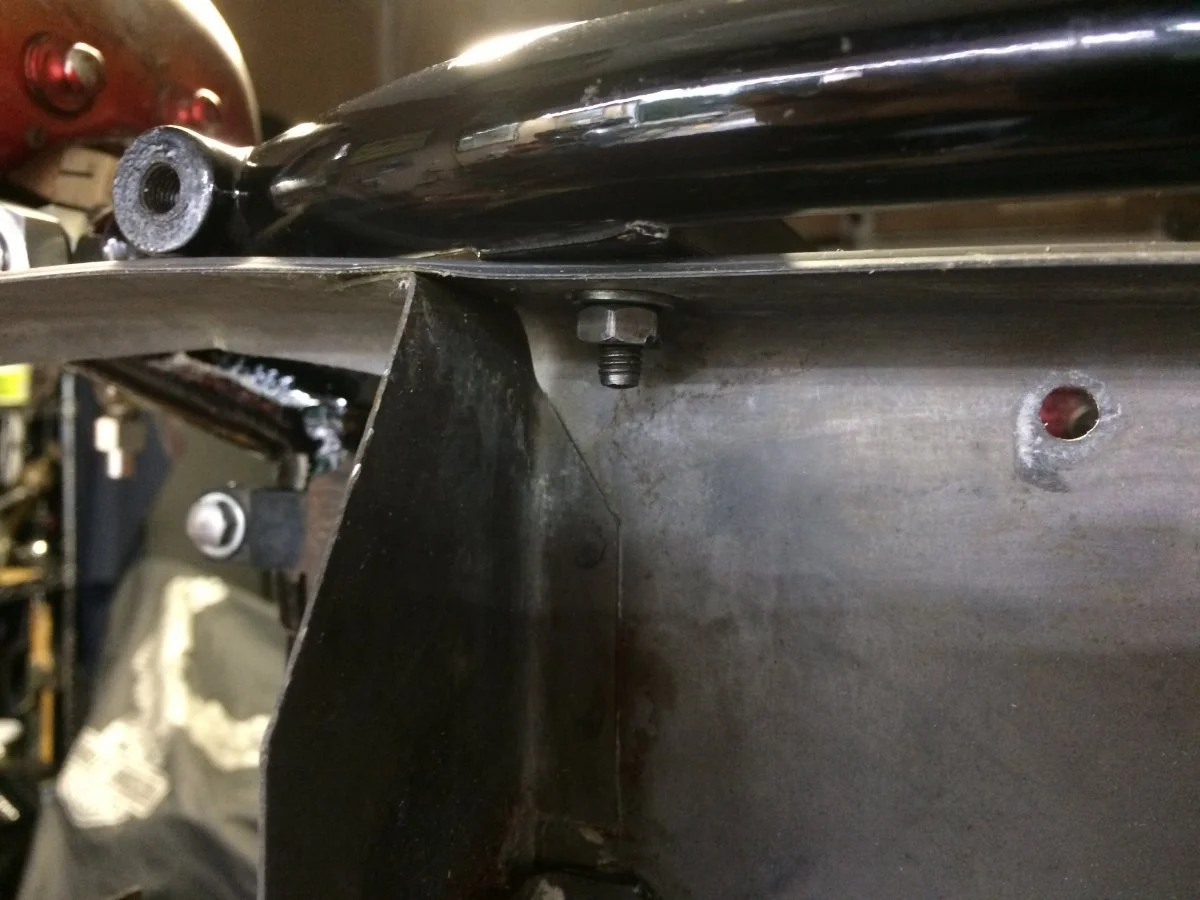

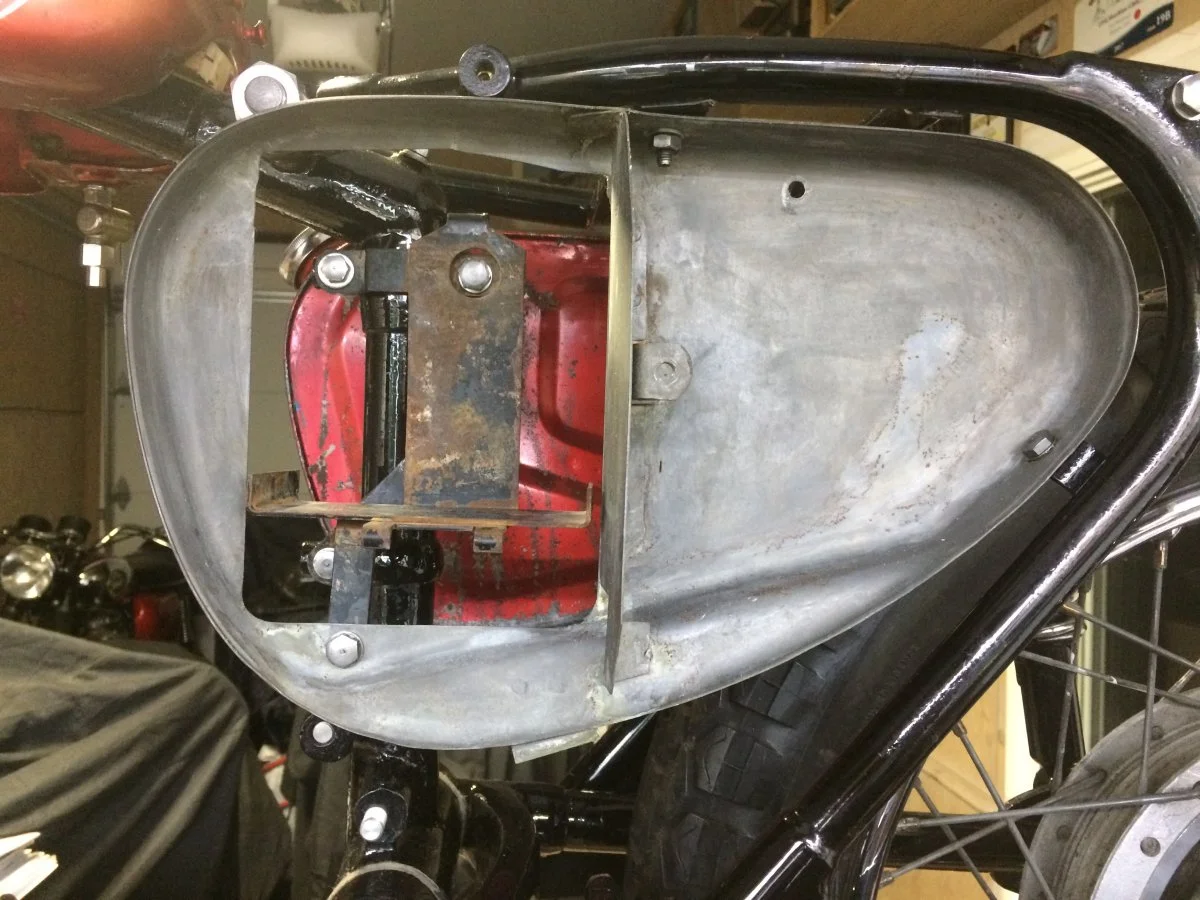

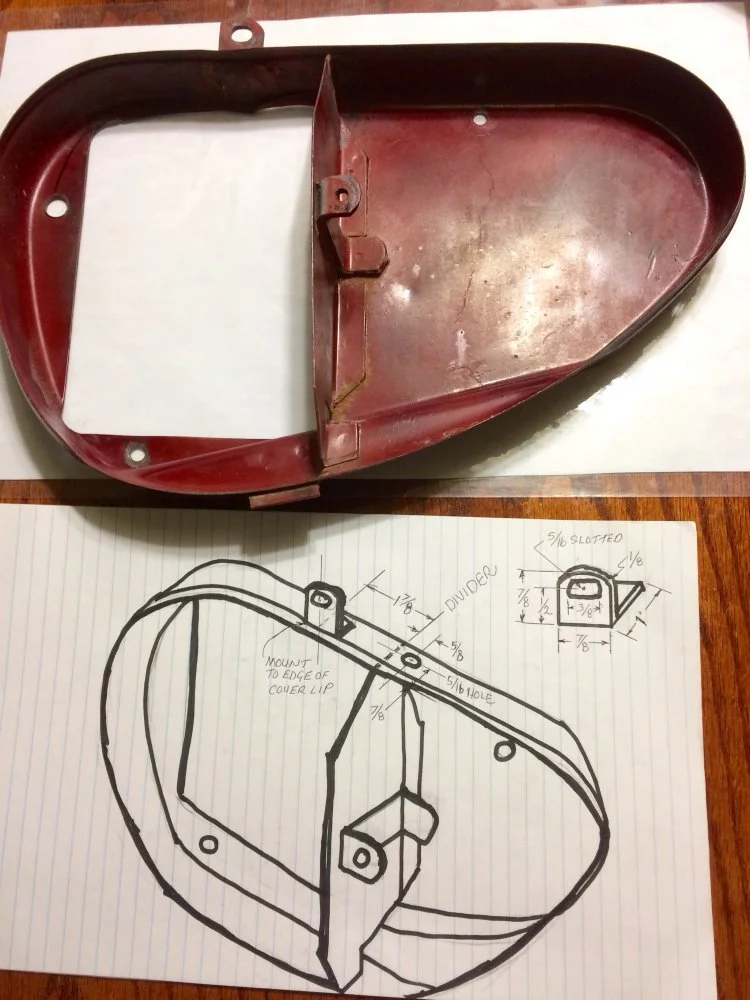

    IMG_4433.JPG IMG_4432.JPG IMG_4428.JPG IMG_4426.JPG IMG_4434.JPG


    Attached Files:

  11. franko

    franko Well-Known Member VIP MEMBER

    Joined:
    Dec 29, 2013
    Messages:
    47
    NortLess: Thank you for your detailed reply. I appreciate it.
    Frank

  12. nortless

    nortless Member

    Joined:
    Oct 11, 2017
    Messages:
    5
    Glad to help,
