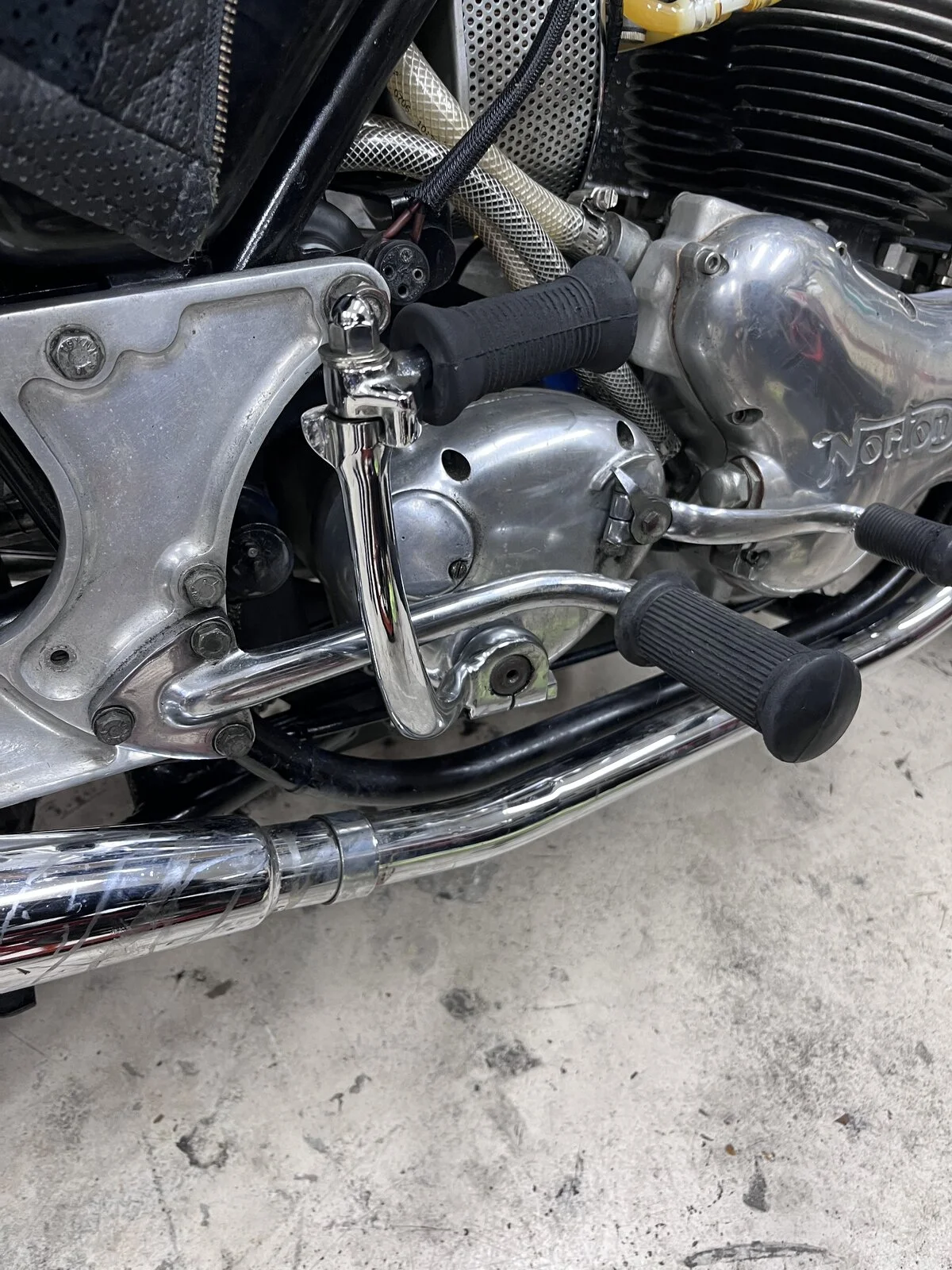

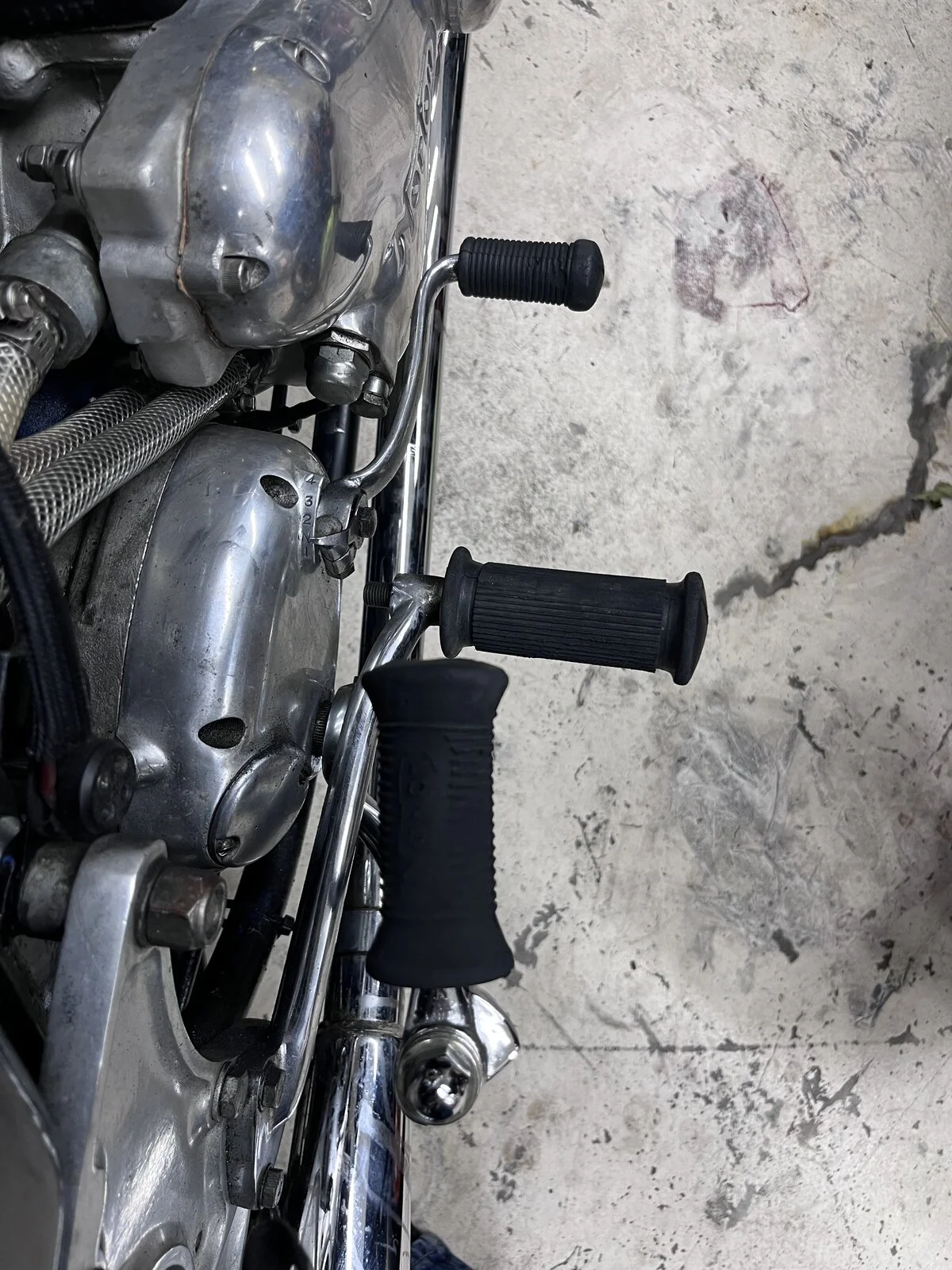

My kickstarter is driving me nuts. It often hits my exhaust when starting, the lever never stays in while riding and when it does it’s right where my leg wants to be.

Any suggestions or mods?


Attachments

  • Kickstart position
    381.2 KB · Views: 109
  • Kickstart position
    404.2 KB · Views: 104
Coolhands said:
My kickstarter is driving me nuts. It often hits my exhaust when starting, the lever never stays in while riding and when it does it’s right where my leg wants to be.

Any suggestions or mods?
Click to expand...

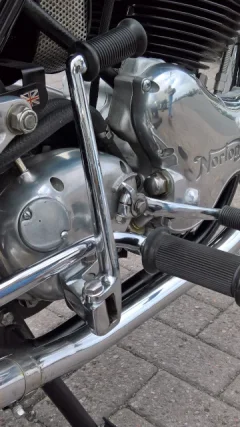

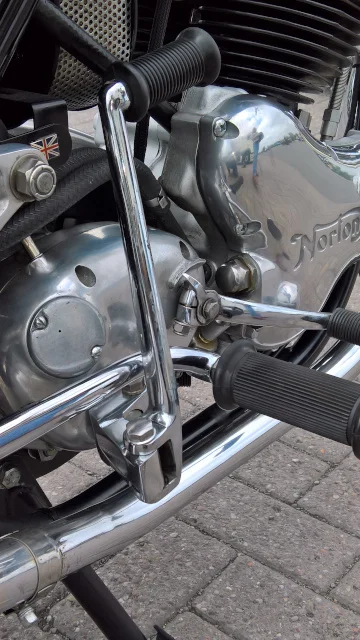

You're a golden candidate for the long RGM folding type:
1. Folds up completely inside your leg (instead of behind it)
2. MUCH more clearance from exhaust (or rearsets)
3. Significantly longer = better starting leverage.
As the man says - do yourself a favour!
CheersKickstart position

Last edited:
So funny I was just about to post this for opinions. This is the one correct?

www.rgmnorton.co.uk

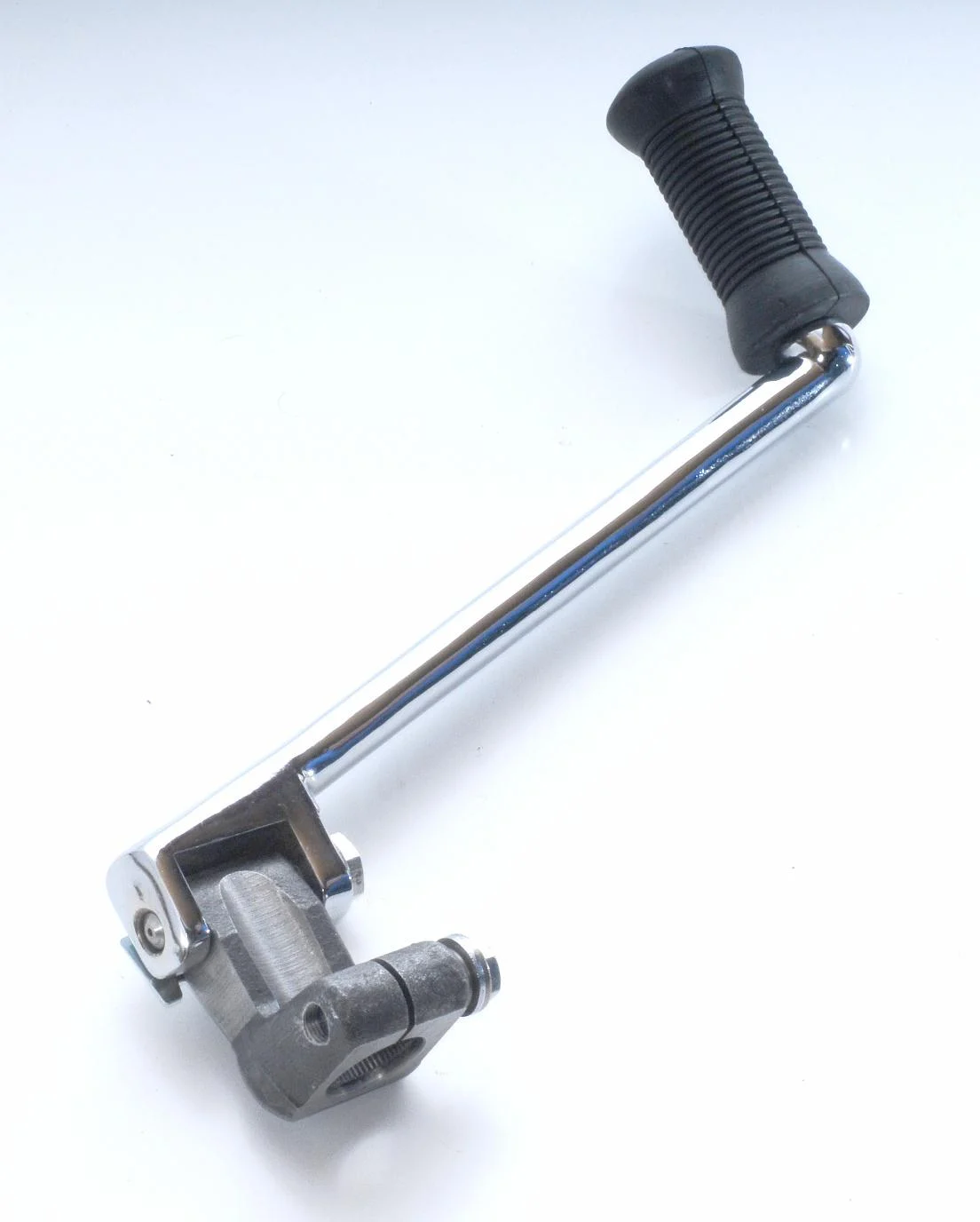

KICKSTART, OUR OWN DESIGN, SWIVELS AT BASE

FOR DIMENSIONS OF ALL OUR KICKSTARTS PLEASE CLICK LINK BELOWhttps://s3-eu-west-1.amazonaws.com/rgmnorton/fs/pdf/kickstartdimensionspdf.pdfFOLDS NEATLY AWAY,
www.rgmnorton.co.uk

Coolhands said:
So funny I was just about to post this for opinions. This is the one correct?

www.rgmnorton.co.uk

KICKSTART, OUR OWN DESIGN, SWIVELS AT BASE

FOR DIMENSIONS OF ALL OUR KICKSTARTS PLEASE CLICK LINK BELOWhttps://s3-eu-west-1.amazonaws.com/rgmnorton/fs/pdf/kickstartdimensionspdf.pdfFOLDS NEATLY AWAY,
www.rgmnorton.co.uk
Click to expand...
Yep - that's it. Got it on two bikes.
Buy a couple of spare rubbers while you're at it. They are a different size to OEM ones.
Cheers

You might want to check if either extended kicker has a detent that holds it folded in. The one I got from RGM has no detent . There is a hole but no spring or detent ball, when I questioned it they simply did not answer. It also did not come with any bolts!

mean gene said:
You might want to check if either extended kicker has a detent that holds it folded in. The one I got from RGM has no detent . There is a hole but no spring or detent ball, when I questioned it they simply did not answer. It also did not come with any bolts!
Click to expand...
Yeah - both mine are like that (no detent ball)
Fixed them by replacing the standard washer with a thin belleville spring. Now stays wherever I want it to.

What? No pivot bolt or spline clamping bolt? That is definitely not on!

Remove the exhaust pipe and footrest , and fit a straight kickstart lever !

Um,

P. R. Kickstart levers a workable length . And WHAT is wrong with your kick start return spring ? .

Kickstart position


These offend my sesabilities , as the pivot bolt SHOULD be INLINE with the clamping bolt . so theres No OVERHANG , to overload and distort things .

THIS is More Like It . " FOLDING MOTOCROSS KICKSTART ASSEMBLY – NORTON DOMINATOR/ATLAS/COMMANDO " but then youd have to get
knobblies & a kidney belt . Pity the levers not straight & 20 inch long . Maybe just buy the Bottom Bit , and go from there ?

Kickstart position


Probly do with more meat on the vertical bit adjacent to the bolt ,
Could always whip one up from a block of solid , but the splines
are a schwine to file in .

Just loctite a H.T. Bolt in .

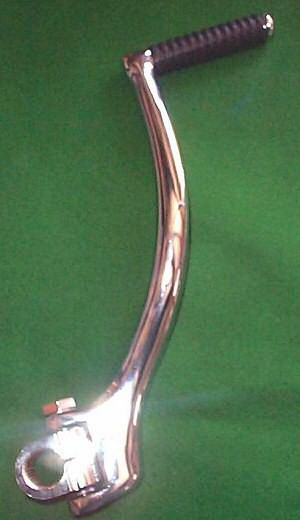

Ducati 750 / 900 SS lever , ANYONE Tried One ?

Kickstart position


Pure inspired Italian artistry in metal , engineered to perfection .

Pity no ones capable of it these days .

Anda herea isa the SPORTa One. a .

Kickstart position

Last edited:
Before changing levers try a new belleville washer as mentioned above and move the lever back a notch or two so that it engages the paul with the gear at or just above the 9:00 o'clock position for easier, better leverage, starting. I made an offset bracket for the muffler years ago but I see they are available commercially now.

Put a RGM longer kicker on and you never go back to the stock Commando kicker, I have had my RGM T160 long kicker for over 12 years now and always keeps tight on the kicker spline, my stocker kicker always came loose after 2 or 3 kicks, the RGM kicker stays in the fold away position and the best thing no more lever in the back of the leg and now can keep my foot fully on the foot peg.
It also makes it easier to kick the Norton to life and with my Joe Hunt Maggie it fires up on 1/2 swing on the kicker everytime.
Don't know why Norton used such a small low kicker in the first place.

Ashley

mean gene said:
You might want to check if either extended kicker has a detent that holds it folded in. The one I got from RGM has no detent . There is a hole but no spring or detent ball, when I questioned it they simply did not answer. It also did not come with any bolts!
Click to expand...
robs ss said:
Yeah - both mine are like that (no detent ball)
Fixed them by replacing the standard washer with a thin belleville spring. Now stays wherever I want it to.
Click to expand...

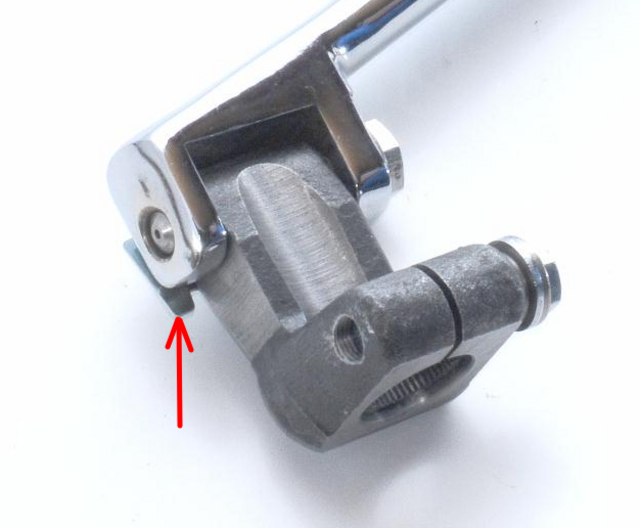

The original RGM extended lever had a leaf spring detent attached by a bolt (as it was adapted from the T160 kickstart lever).
Kickstart position

sjmotorcycleengineering.com

TRIUMPH T160 KICKSTART LEVER SPRING PLATE 57-4861 1975-76

Triumph Trident 1975-1976
sjmotorcycleengineering.com

Last edited:
On my MK2a I have had a pattern MK3 and an RGM. They are the same length and both easily clear the pipe/silencer but the MK3 has the detent. I bought my MK3 kickstart in the 80's, as its the same length as the RGM it must be pattern as RGM have the MK3 as shorter than the RGM. Or RGM could be wrong ?
