These guys are doing an equivalent.
http://www.themagnetoguys.co.uk/

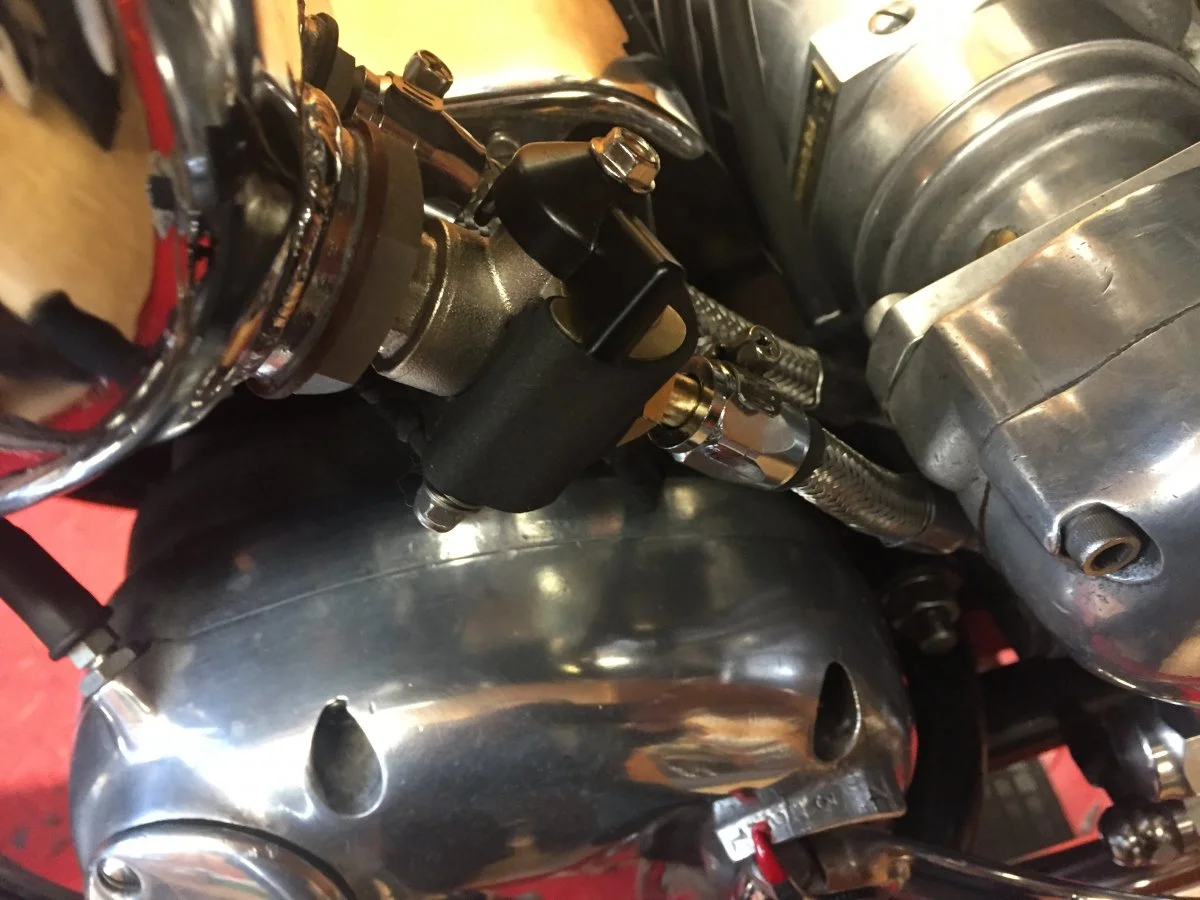

We fitted the magneto version to the 650ss
It’s a little less bulky than that monstrosity that Iron John was trying to sell.
http://www.themagnetoguys.co.uk/
We fitted the magneto version to the 650ss
It’s a little less bulky than that monstrosity that Iron John was trying to sell.
Tornado
VIP MEMBER
- Joined
- Dec 5, 2017
- Messages
- 4,869

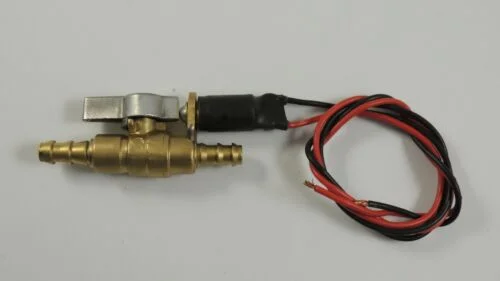

MotoParts Inc in Alberta seems to have the Iron John valve with electrical switch:
Their ebayisting:
https://m.ebay.com/itm/BSA-Norton-Triumph-Anti-Wet-Sump-Valve-64102-/202619149237?nav=SEARCH

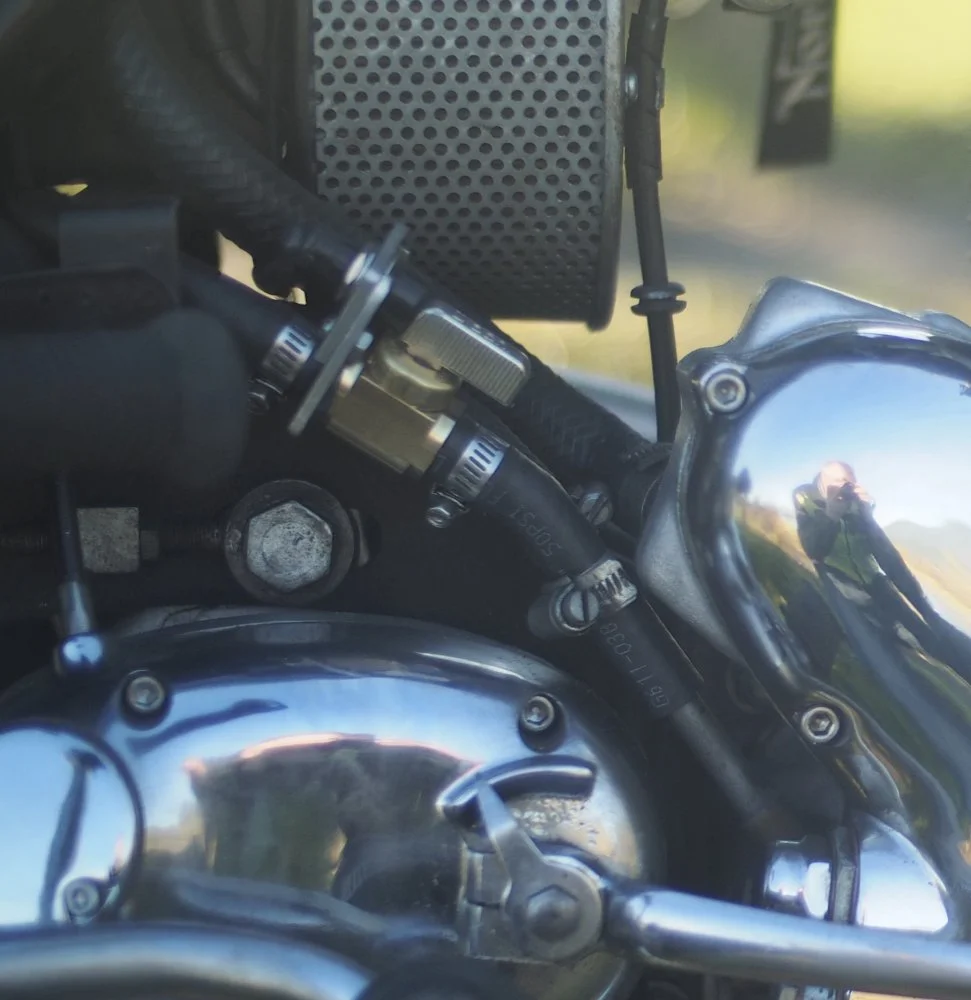

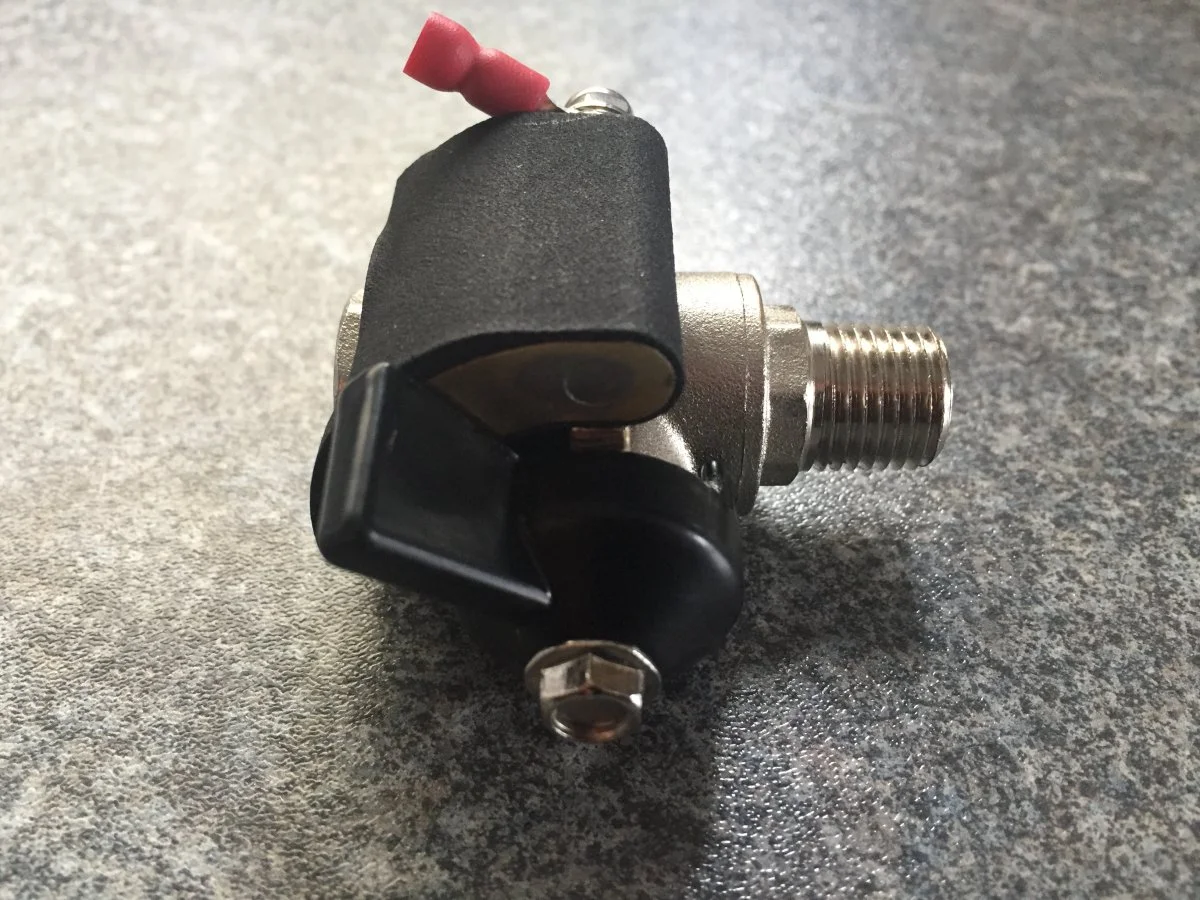

I'm to cheap to spend that much on such a simple device so I cobbled one together from a stainless ball valve from a local hardware store and a Normally Open microswitch. the valve operating lever closes the switch only when turned to valve open position. Switch is wired in series to the white line to the ignition switch.
Works great.
Cost about $15 total.
Their ebayisting:
https://m.ebay.com/itm/BSA-Norton-Triumph-Anti-Wet-Sump-Valve-64102-/202619149237?nav=SEARCH
I'm to cheap to spend that much on such a simple device so I cobbled one together from a stainless ball valve from a local hardware store and a Normally Open microswitch. the valve operating lever closes the switch only when turned to valve open position. Switch is wired in series to the white line to the ignition switch.
Works great.
Cost about $15 total.
Last edited:
ntst8
VIP MEMBER
- Joined
- Feb 14, 2004
- Messages
- 1,757
Alternative source for the smaller tap above.
http://www.kingpincomponents.co.uk/products1
http://www.kingpincomponents.co.uk/products1
- Joined
- Aug 5, 2017
- Messages
- 1,414
Hi link doesn't openMotoParts Inc in Alberta seems to have the Iron John valve with electrical switch:
Their ebayisting:
https://i.ebayimg.com/images/g/wnAAAOSwpWBazWId/s-l500.jpg
I'm to cheap to spend that much on such a simple device so I cobbled one together from a stainless ball valve from a local hardware store and a Normally Open microswitch. the valve operating lever closes the switch only when turned to valve open position. Switch is wired in series to the white line to the ignition switch.
View attachment 9079
Works great.
Cost about $15 total.
Tornado
VIP MEMBER
- Joined
- Dec 5, 2017
- Messages
- 4,869
I've edited original link, but here it is again:
https://m.ebay.com/itm/BSA-Norton-Triumph-Anti-Wet-Sump-Valve-64102-/202619149237?nav=SEARCH
DogT
VIP MEMBER
- Joined
- Jan 20, 2009
- Messages
- 7,394
I cobbled together one with a PEX valve and microswitch. The microswitch finally broke. Tornado's looks more robust than mine was. I have some magnetic prox switches I was going to try with a relay, but never got around to it. Seems to me IJ used to sell his for about $120 so the price has gone up.
There's some interesting stuff on tonight, like the LED headlamp and the petcock lube as well as this one.
There's some interesting stuff on tonight, like the LED headlamp and the petcock lube as well as this one.
