I'm fitting a Grimeca caliper to a Triumph twin, does the ball bearing go in the bleed nipple port ? Does the feed port have one or not.
thanks
thanks
Grimeca caliper
- Thread starter trident sam
- Start date
- Joined
- Nov 20, 2004
- Messages
- 19,211

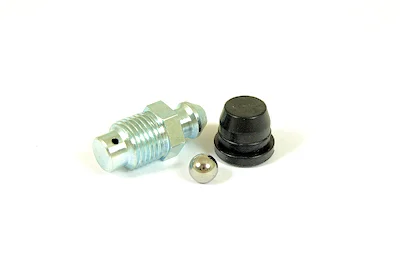

Yes, as the ball is pressed against the seating by the blunt-ended Grimeca bleed nipple so the ball seals the port, unlike other types where the tapered bleed nipple closes off the seating.
No (see above).
baz
VIP MEMBER
- Joined
- May 26, 2010
- Messages
- 6,133
Never seen that set up beforeYes, as the ball is pressed against the seating by the blunt-ended Grimeca bleed nipple so the ball seals the port, unlike other types where the tapered bleed nipple closes off the seating.
No (see above).
Interesting
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 19,288
That depends why it is done.
Is it to improve the part in some way?
Or to simplify the product to allow for cheaper / lower quality machining ops?
I suspect the latter ?
cliffa
VIP MEMBER
- Joined
- May 26, 2013
- Messages
- 3,393
Actually, if you think about it, it must be better than the common or garden tapered nipple when you are bleeding the brakes, as the ball should act like a non return valve, dropping back on it's seat between pumps.
Fast Eddie
VIP MEMBER
- Joined
- Oct 4, 2013
- Messages
- 19,288
That’s a bloody good point !
Chris
VIP MEMBER
- Joined
- Jan 21, 2008
- Messages
- 1,552
I've also found the seat doesnt get buggered up with the ball. I've had a few Lockheed's where the brake nipples have been dreadfully over tightened & left a smear or cut on the seat. I know I shouldn't buy rusty knackered second hand shite but I just cant get out of the habit! Lol
