Final Proddy Build

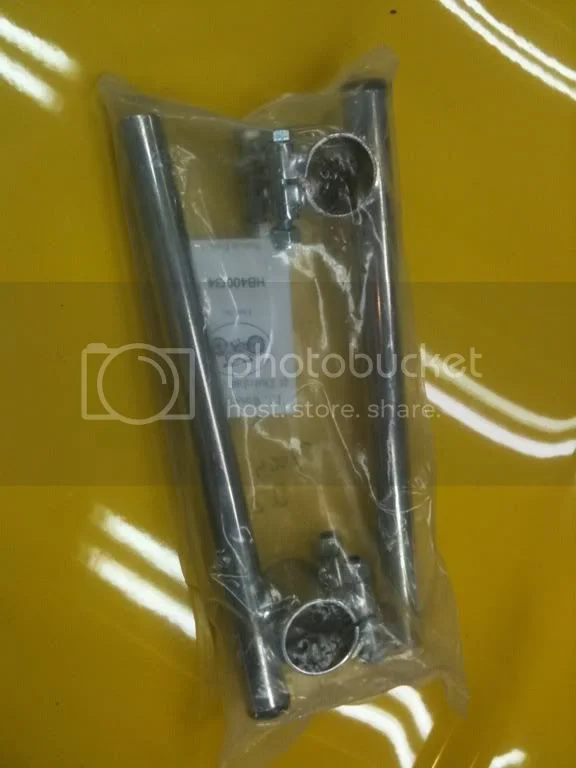

So the key component came back with me from the Barber trip, the clip ons.

So I decided to tear into the front end tonite. Now a smart person would have waited until they had the gaiters. Well, you know where this is going...

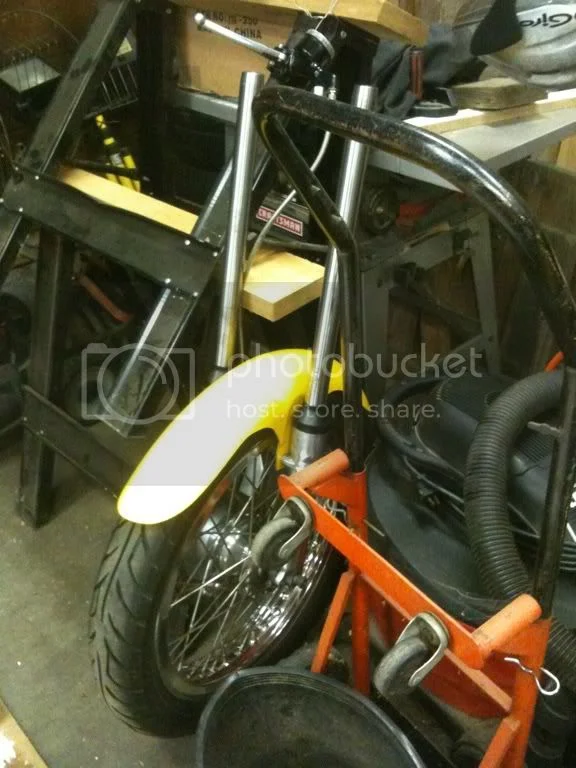

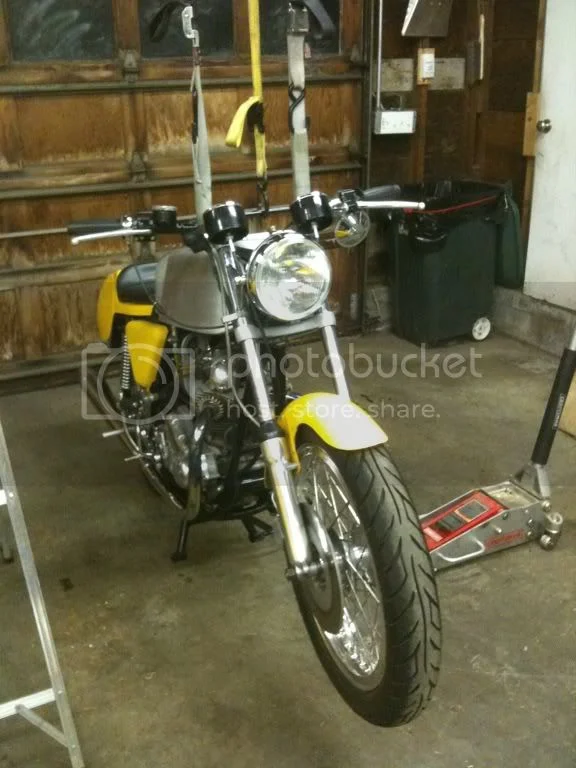

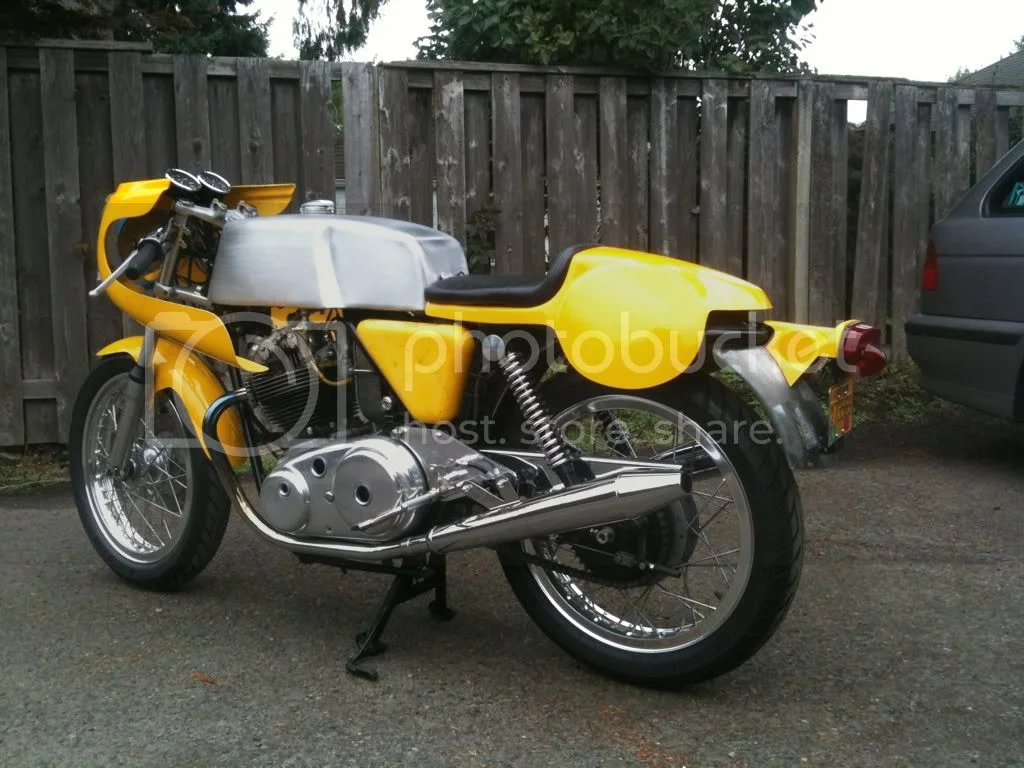

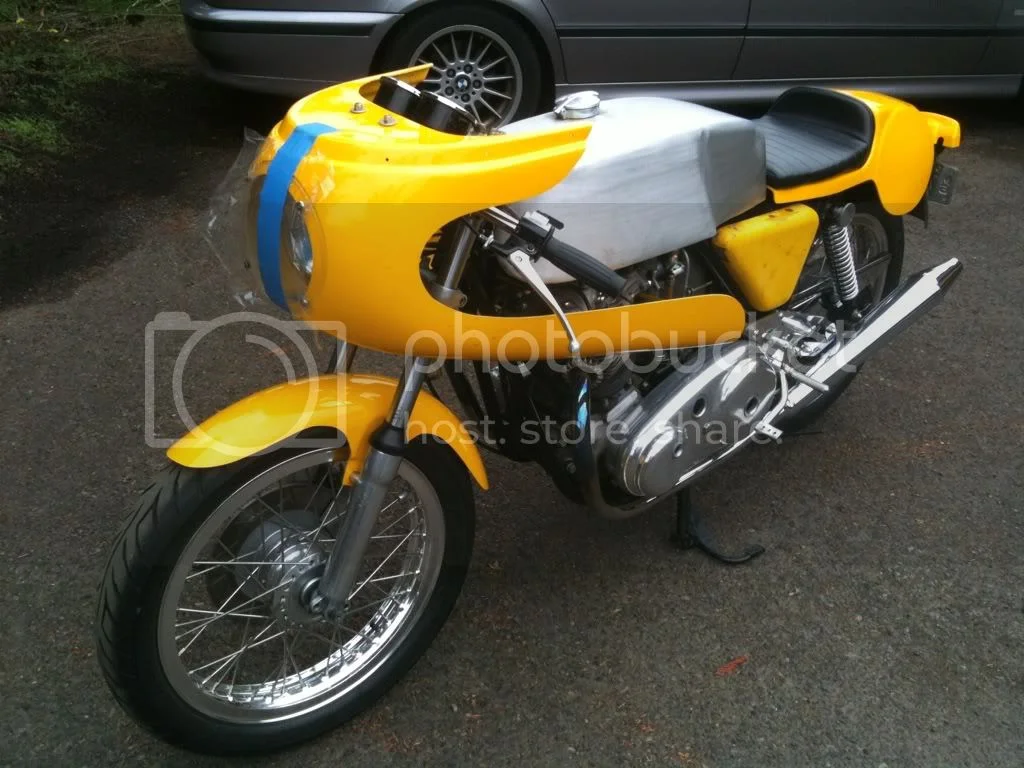

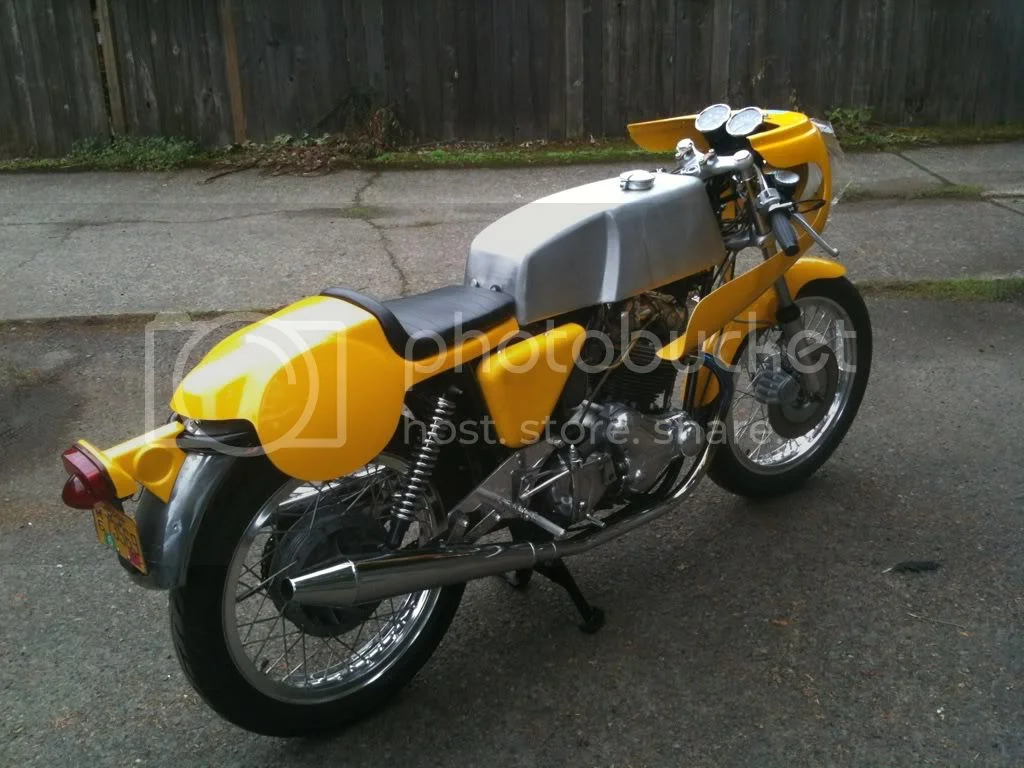

Here's the before, in case you'd forgotten.

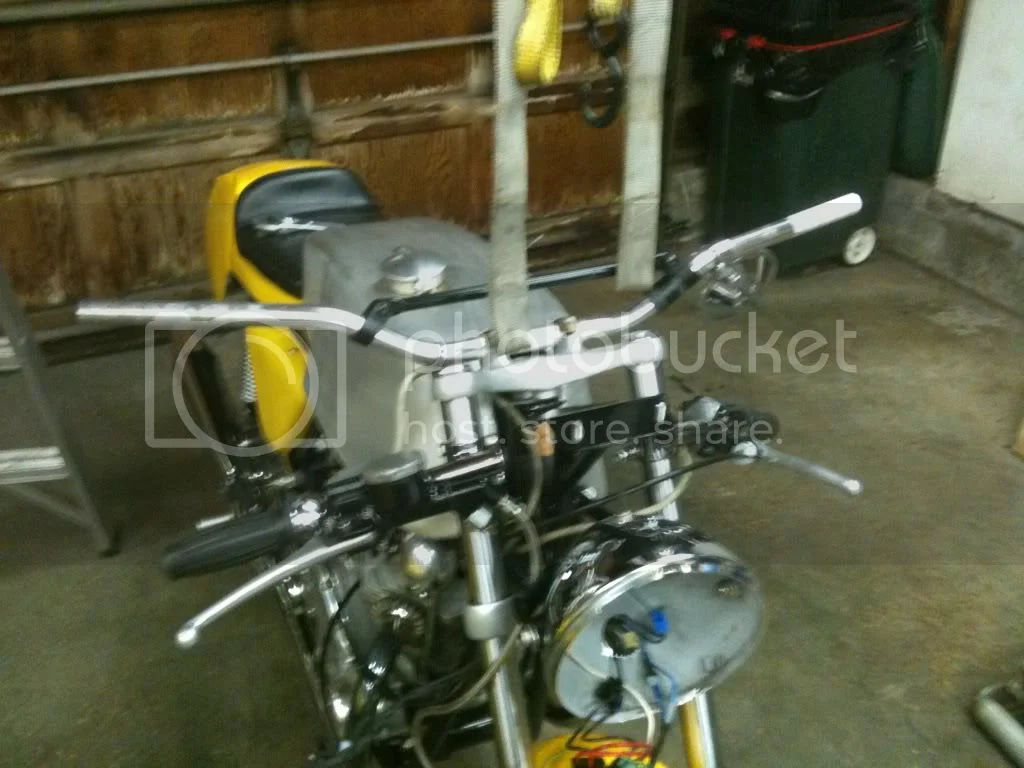

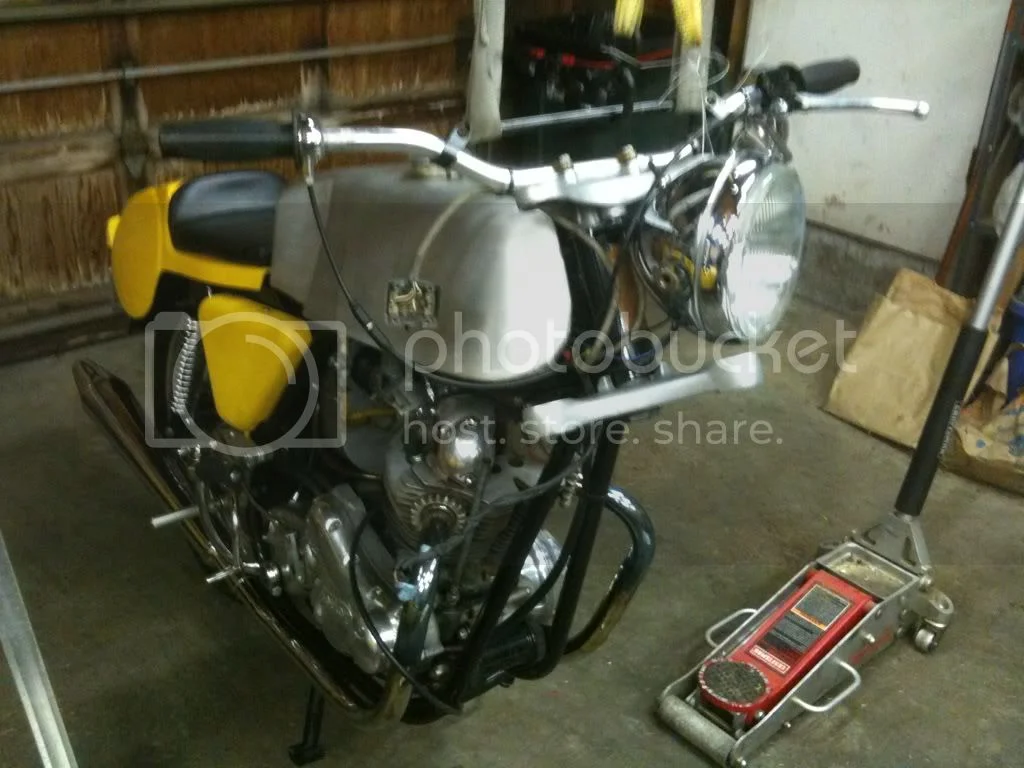

I then jacked up the front and used tie downs to suspend the bike from the ceiling. It worked better than I thought.


I was determined to not disconnect the brake line although I will at some point to shorten the line and put a banjo fitting on it. I had to loosen the lower yoke to get the headlight ears off. Someone remind me to tighten that back up, will ya'?

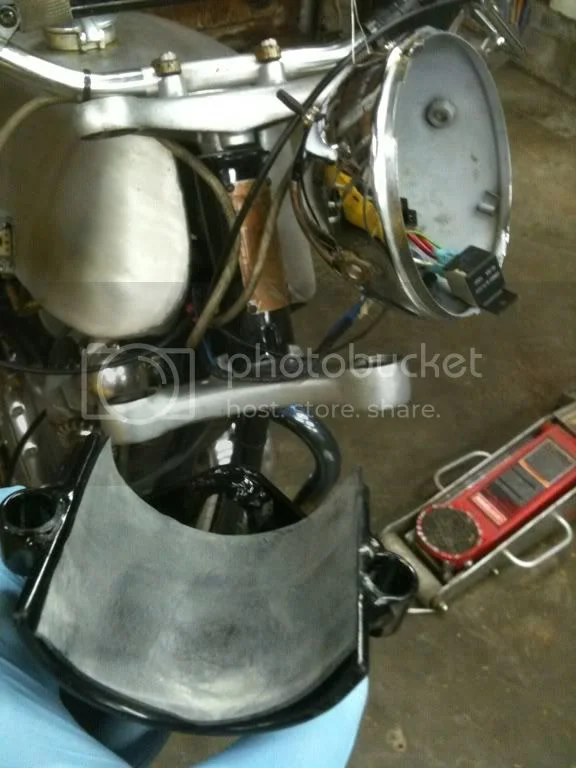

Here's the front end with master cylinder propped up out of the way.


I cut a piece of inner tube to cushion the VIN plate (yes, Les, I know it's not really a VIN…)

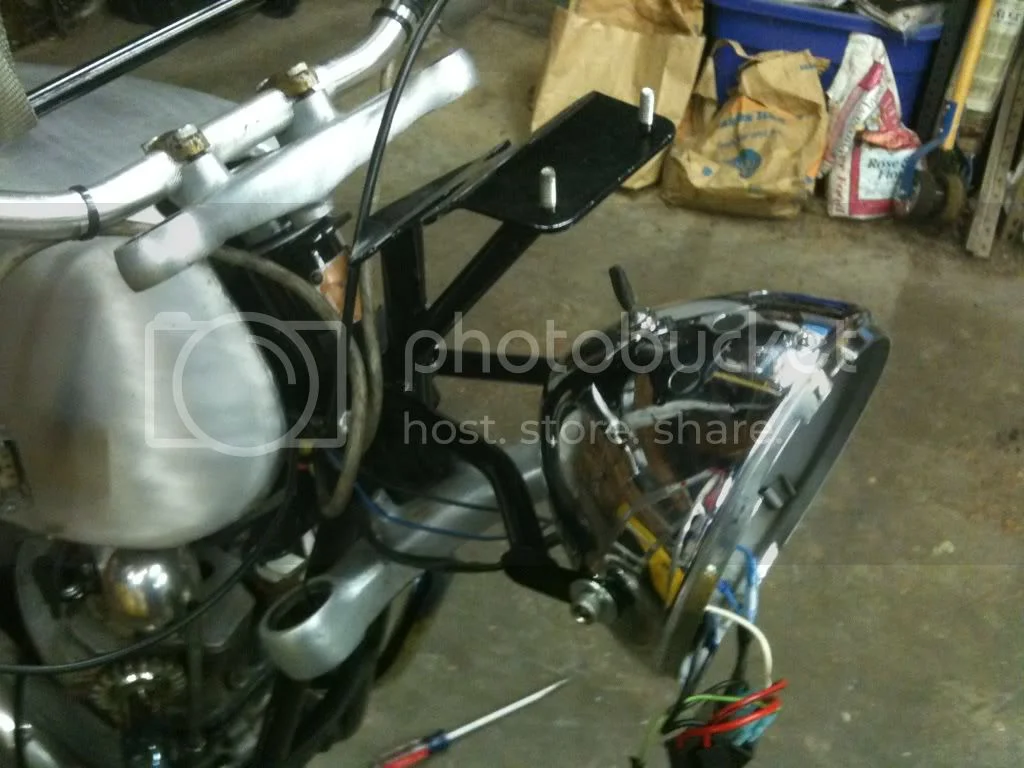

Fitting the fairing bracket. Everything will be loose until the fairing is set. At least that's how I think it should be done.

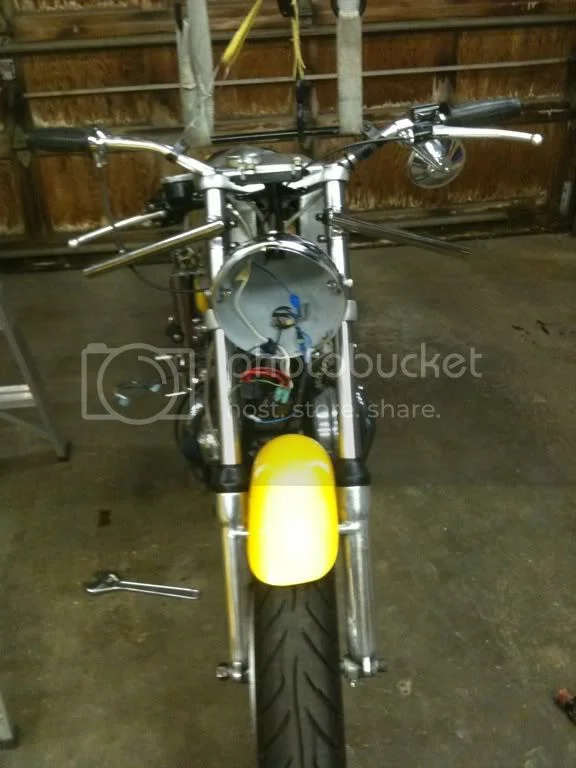

Mating up the front end. Noticed I actually remember to fit the clip ons first.



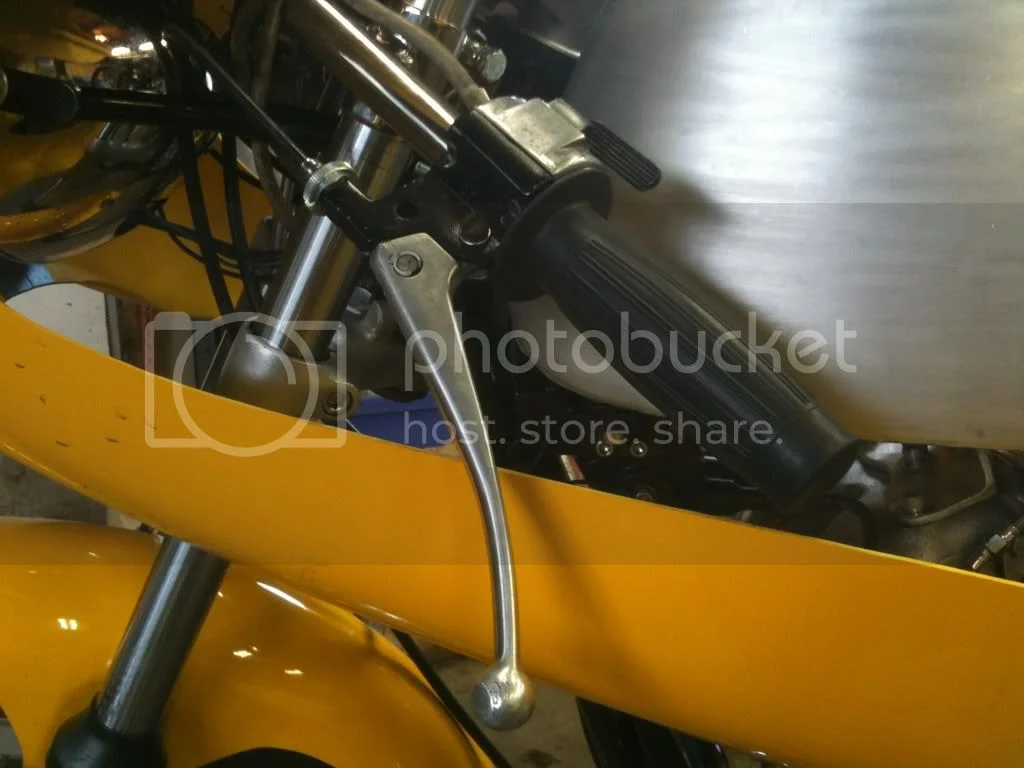

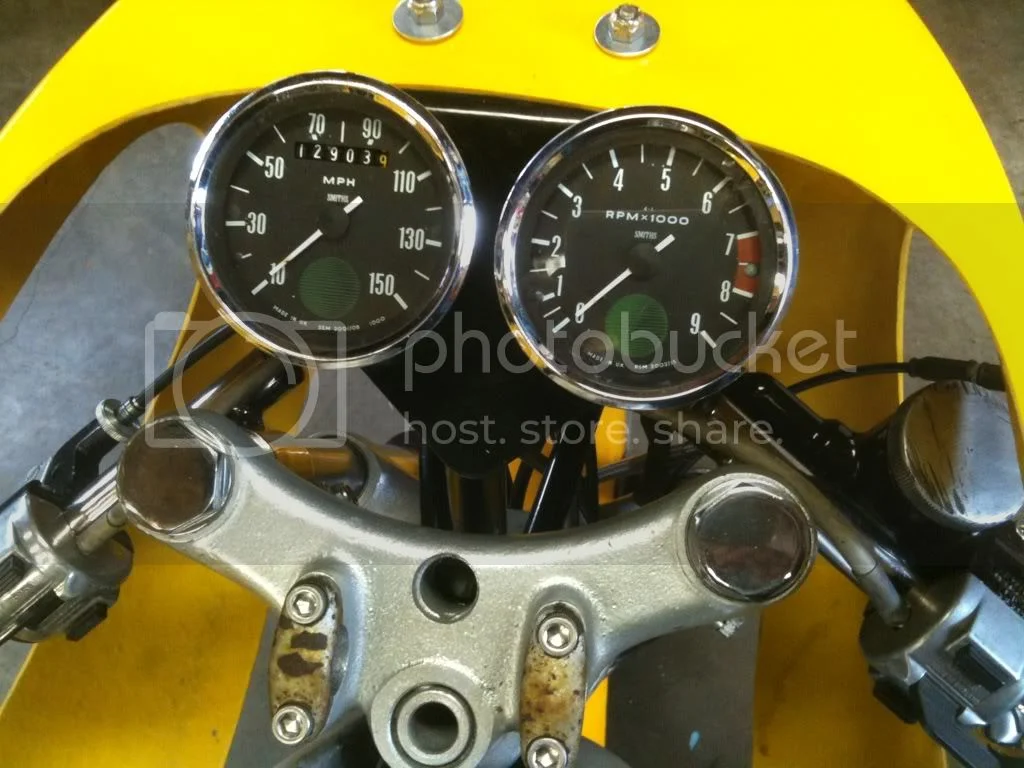

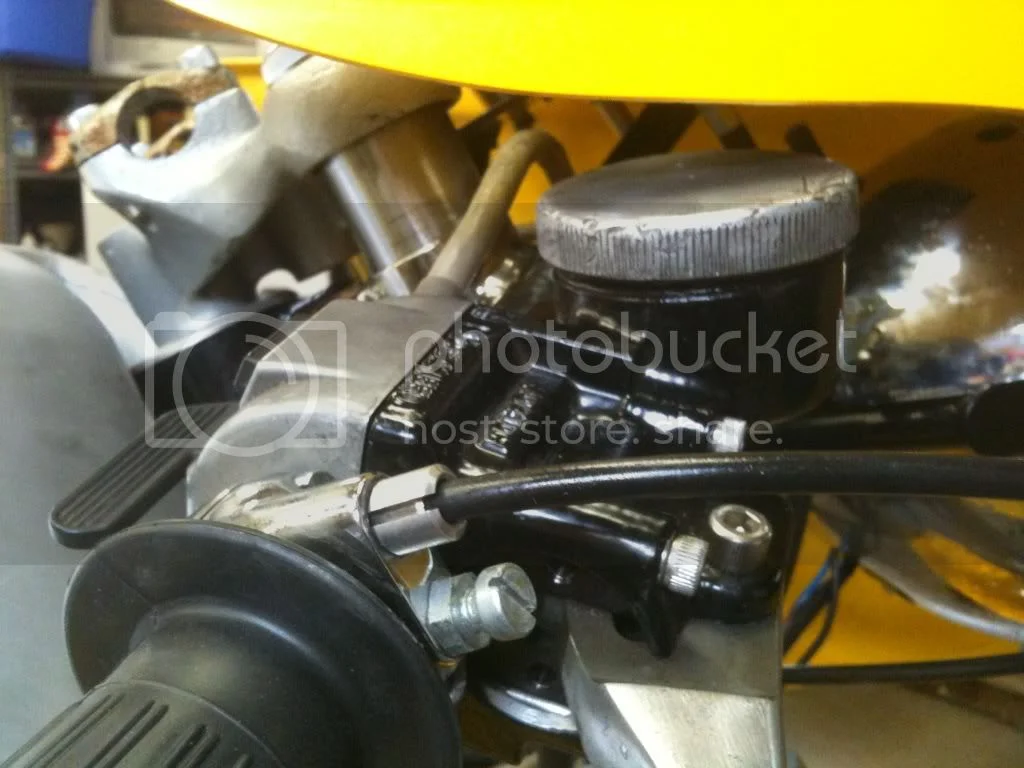

Transferring the controls. (Sorry for the crappy pictures).

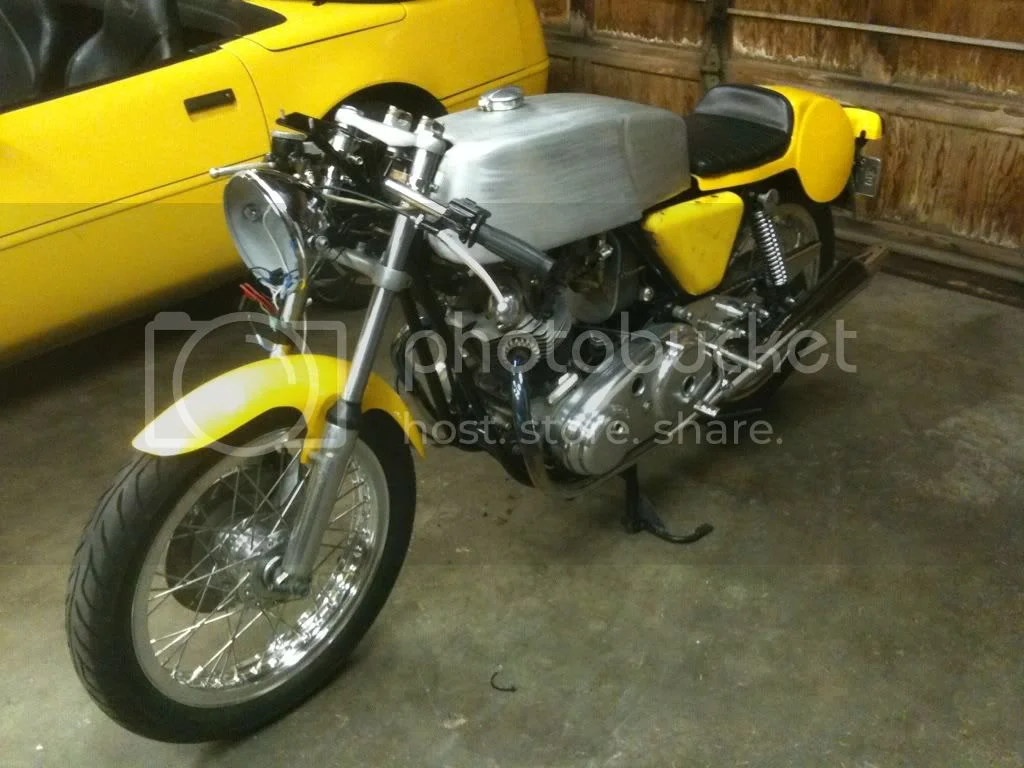

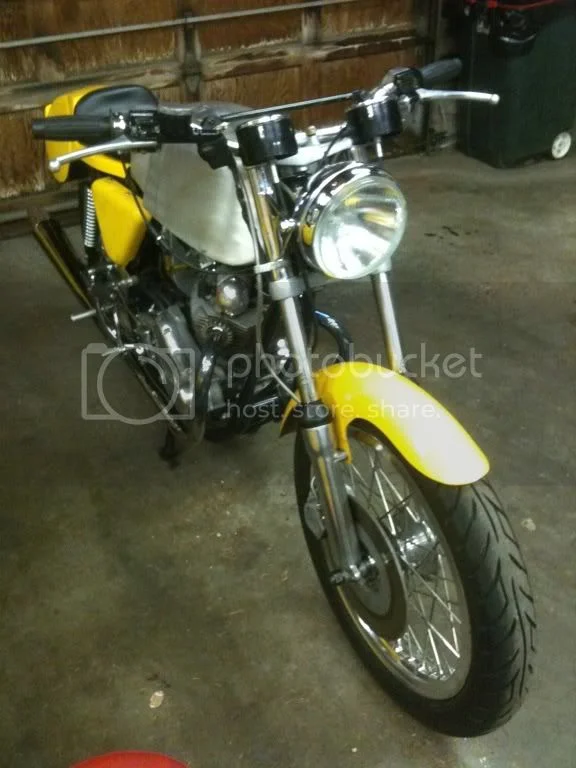

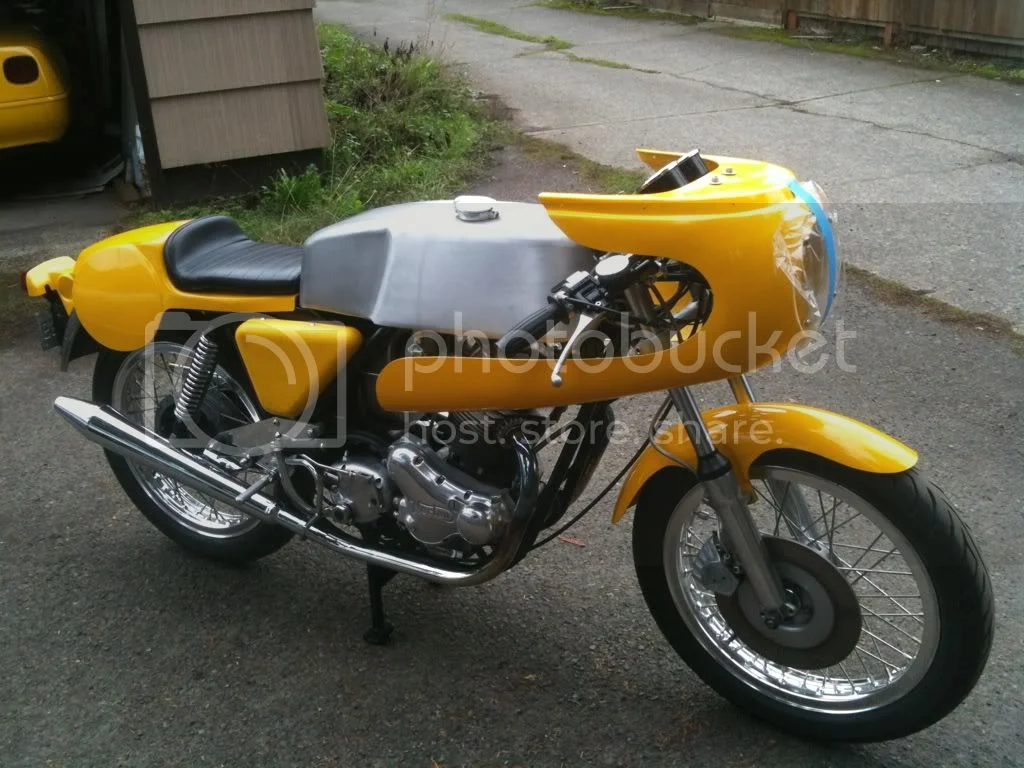

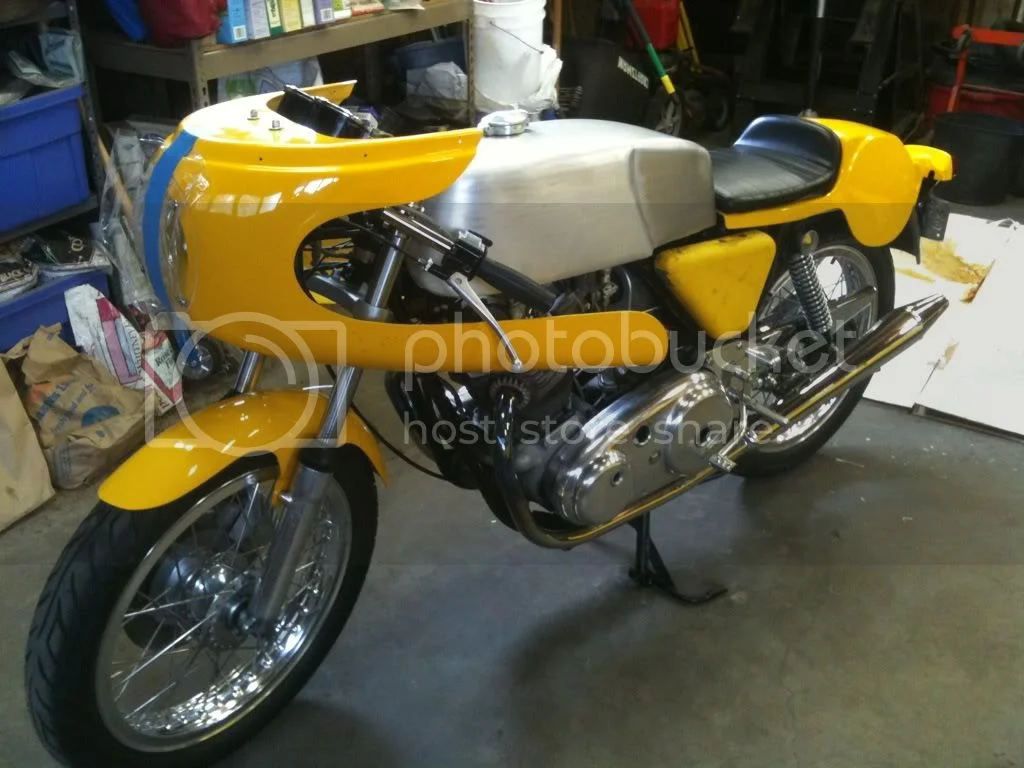

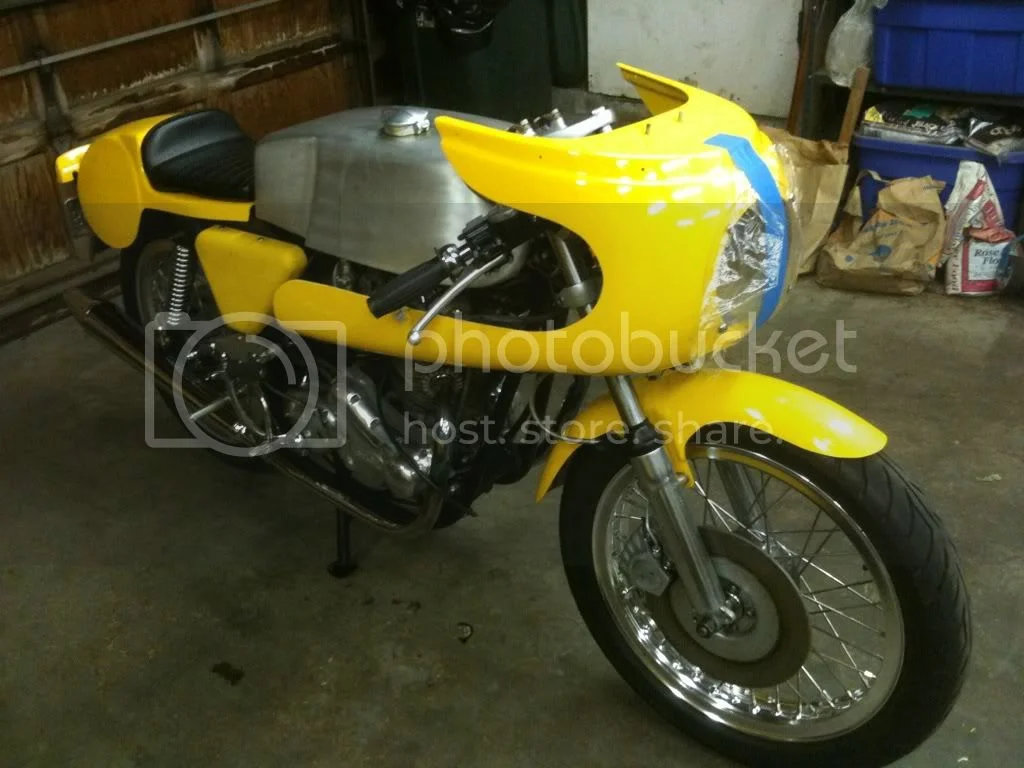

Back on the ground. So glad to have gotten rid of those horrible Honda bars.

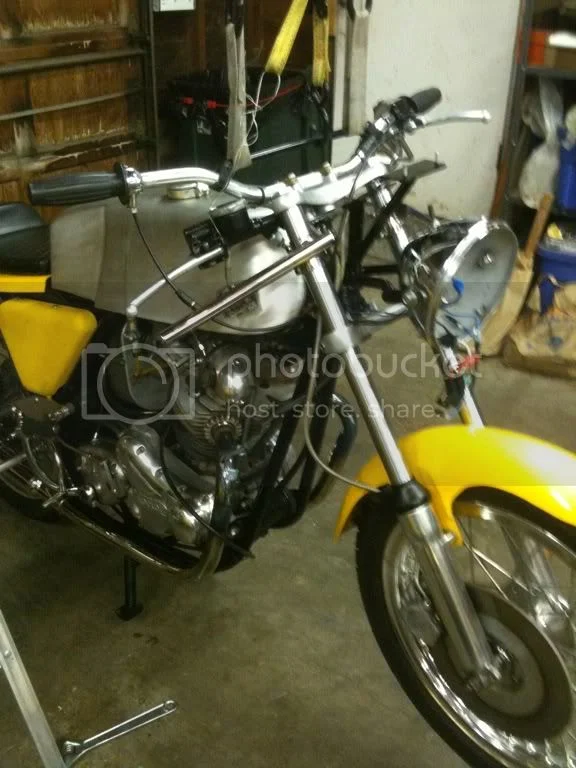

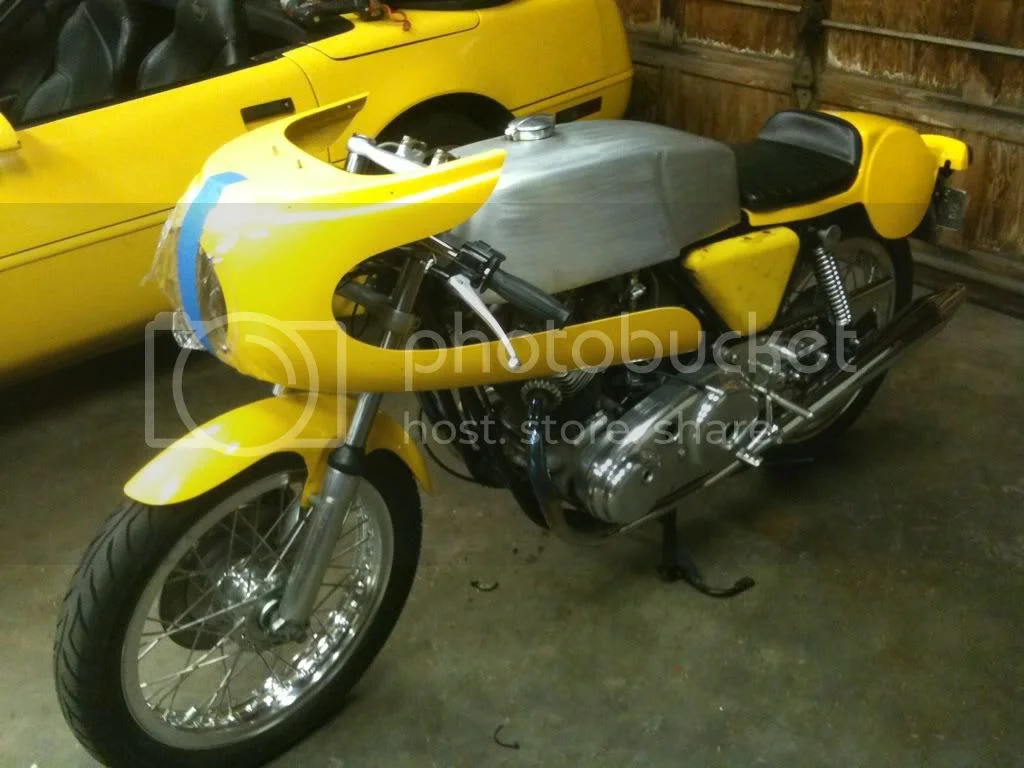

Turning radius is virtually nil. With my short little arms I have to rest my big gut on the tank to reach the bars. But it looks cool! :mrgreen:

There's just enough wiring to the headlight so that worked. The brake line is way too long. I don't know if I can get away with the throttle cable, it might be ok. I have to see where the speedo and tach cables end up, they may be ok too.

I think the next step is to line up the fairing with the headlight and then finalize the fairing bracket location. Then I think I start messing with the bars and see if I'll have any clearance for the master cylinder. Then just fiddle with all the controls and instruments. Probably the last thing that will go on is the windshield. Then just wait 8 months for the sun to come out so I can take it for a spin.
