Does anyone know how to wire the "Ducon" switch?

7

74cafe

Joined

Jul 16, 2006

Messages

25

• Sep 12, 2006

• #1

I bought the switch off Ebay and it came with no diagram. I know the brown wire goes to the horn, but I don't know where the blue, blue&white, or blue&red go.. Little help!!



T

TheFrib

Joined

Sep 30, 2005

Messages

33

• Sep 13, 2006

• #2

ducon switch

The two wires you speak of may be for the headlight. Main beam and high beam,you will have to sort them out with a test light.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,415

• Sep 13, 2006

• #3

Try:

Blue/white = headlamp high/main beam.

Blue/red = headlamp low/dip beam.

Blue = headlamp feed wire, so should connect to the lighting switch.



Ron L

VIP MEMBER

Joined

Feb 27, 2004

Messages

3,239

• Sep 18, 2006

• #4

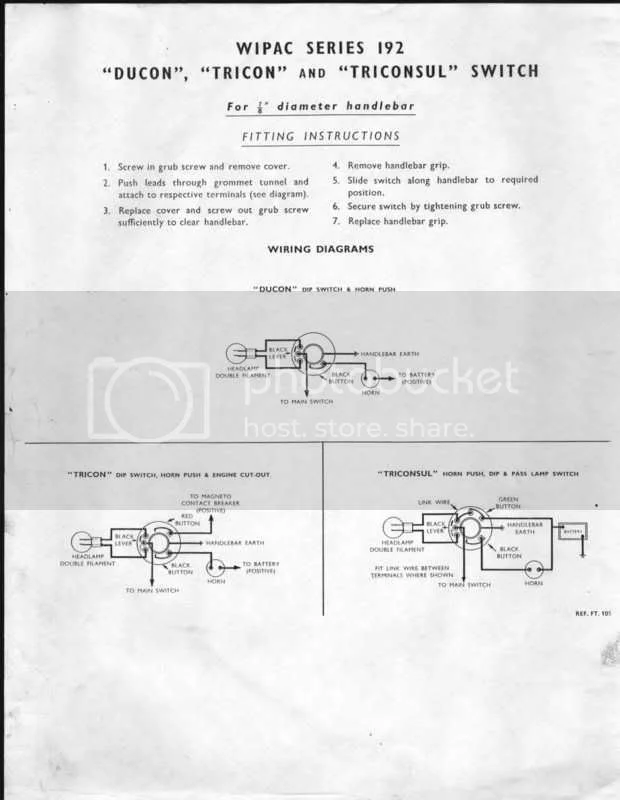

Here's a wiring diagram for the Wipac Ducon, Tricon, and Triconsul series.



Ron L

VIP MEMBER

Joined

Feb 27, 2004

Messages

3,239

• Sep 18, 2006

• #5

OOPs!
