Discussion in 'Norton Commando Motorcycles (Classic)' started by maylar, Apr 21, 2019.

  1. maylar

    maylar

    Joined:
    May 13, 2007
    I pulled the trigger and clicked the buy button for a cNw electric start yesterday. I'll probably put up a build log on the forum once work begins.

    Can anyone offer advice or caveats? What can I expect?

    Thanks

    swooshdave likes this.
  2. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017
    I will be watching this closely, mine arrived recently and I hope to get to it soon.
    Jim

  3. lazyeye6

    lazyeye6 VIP MEMBER

    Joined:
    Feb 28, 2014
    Install a new crank seal while everything is opened up.
    Use a sealant for the bolts that fasten the inner primary to the crank case.
    Don't over tighten the drive belt.
    Expect a blue mess after running the belt as it sloughs off it's coating. Normal.
    Think about whether you want to change the transmission drive spocket while
    it is opened up. I went back in later to go from a 20 to a 21 tooth sprocket
    I am glad I did. I'm a sucker for long legs.
    I didn't like the clunky looking starter button/kill switch supplied with the kit
    and opted to use the existing unused button on the OEM switch. Easy.
    Choose your EI well. This and the Alton kit don't take kindly to kick backs. I
    installed a TriSpark.
    Expect the best tech support available anywhere from Matt.
    Be amazed at instantaneous starting by the press of a button.

    norton73 and maylar like this.
  4. 1up3down

    1up3down

    Joined:
    Jan 12, 2011
    Get a very good battery with at least 270 cranking amps
    My Estart battery finally failed after 6 years a month ago, replaced at Batteries Plus

    - keep a good battery tender with digital percent charged readout

  5. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017
    How do you remove the old one?

  6. bill

    bill

    Joined:
    Jun 1, 2003
    if it does not come with a dual transmission adjuster than order one as belt tracking is critical.

  7. maylar

    maylar

    Joined:
    May 13, 2007
    Where can I get that?

  8. swooshdave

    swooshdave

    Joined:
    Apr 15, 2009
    CanukNortonNut likes this.
  9. lazyeye6

    lazyeye6 VIP MEMBER

    Joined:
    Feb 28, 2014
    Remove the crank oil seal by screwing a couple of small sheet rock screws into
    the rubber. Then use a couple of pair of pliers to work/pull the old seal out.

    Atlas Commando likes this.
  10. lazyeye6

    lazyeye6 VIP MEMBER

    Joined:
    Feb 28, 2014
    Not saying it isn't a good idea, but I've had no belt misalignment issues with my
    cNw belt system after 3000 miles.

  11. Guido

    Guido

    Joined:
    May 23, 2011
    CNW E-Start is a game changer. I lost some strength in my right leg so I couldn't kick it over anymore. This saved my riding.
    Worth every penny.

    norton73 and maylar like this.
  12. EaglEOD

    EaglEOD VIP MEMBER

    Joined:
    Oct 20, 2018
    I’m in the middle of installing a CNW E start. I also upgraded the alternator and opted for the hydraulic clutch plus a few other CNW items that I just HAD to have. I don’t live too far from Matt’s place so I drove over to his place to pick up my kit. Too much eye candy in his shop.
    The install is pretty straight forward. I had to call Matt a couple of times just to clarify a couple of procedures but otherwise no issues. I still have to power it up but I’ve decided to rewire the bike so I’m a week or so away from finishing.

  13. lrutt

    lrutt

    Joined:
    Jan 16, 2008

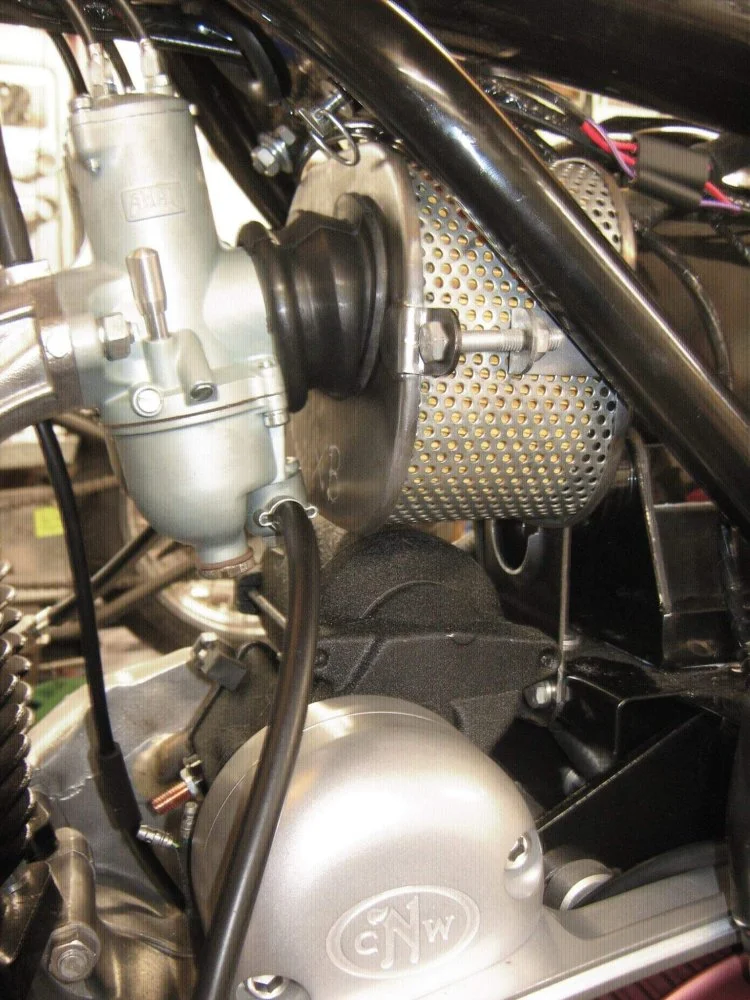

    I really like the CNW estart but I hate to get rid of my ham can air cleaner. I whish they would make a smaller one that looks like a ham can to kind of keep the original look. I do not want just an KN hanging off the carbs.

    B+Bogus and peter12 like this.
  14. maylar

    maylar

    Joined:
    May 13, 2007
    I hear ya. That's my biggest down side too. But I figure having e-start will allow me to ride it again instead of just looking at how pretty it is.

  15. cyclegeezer

    cyclegeezer

    Joined:
    Jul 15, 2010
    I recall seeing a part made by a company in Western Australia that was a smaller ham can to accommodate the CNW starter, but lost the link. Maybe someone here remembers?

  16. gtiller

    gtiller VIP MEMBER

    Joined:
    Nov 5, 2012
    @cyclegeezer I think it was Murray from Cycle Craft Engineering based out of Perth

    He doesn’t have a shop or webstore, I think he made a one-off for a project he was doing.

  17. milfordite

    milfordite

    Joined:
    Feb 13, 2012
    I've installed a couple of these, and they are a quality product. It would be nice (and easy to do) if CNW included photos in the instructions that made it clear how things fit together.

  18. cyclegeezer

    cyclegeezer

    Joined:
    Jul 15, 2010
    That name rings a bell, too bad it was a one off.

  19. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
  20. lazyeye6

    lazyeye6 VIP MEMBER

    Joined:
    Feb 28, 2014
    I spoke with Matt about this almost a year ago and he expressed interest in making them. But I think he has a lot on his plate as it is.
