961 Cush drive rubbers (damping rubbers, part number 6010049)

Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,371
Country flag
If I’m going to pull the wheel to check the rubbers, I may as well just change them and the rear sprocket and wheel bearings.
I see the rubber part numbers listed as Norton p/n 6010049-R1 or TALON p/n TCDR-1

Anyone know the wheel bearing part numbers or a upgrade brand / number?

At the same time I’ll be going with the ThreeD chain as well.


MAK

VIP MEMBER
Joined
Mar 15, 2018
Messages
255
Country flag
If I’m going to pull the wheel to check the rubbers, I may as well just change them and the rear sprocket and wheel bearings.
I see the rubber part numbers listed as Norton p/n 6010049-R1 or TALON p/n TCDR-1

Anyone know the wheel bearing part numbers or a upgrade brand / number?

At the same time I’ll be going with the ThreeD chain as well.
As an alternative to Talon I used to get aluminium sprockets made for my F1 by B&C Express.
They used a Renthal blank sprocket and machined it to pattern.
Also hard anodised.
I seem to remember sending down my old sprocket.


MAK

VIP MEMBER
Joined
Mar 15, 2018
Messages
255
Country flag
As an alternative to Talon I used to get aluminium sprockets made for my F1 by B&C Express.
They used a Renthal blank sprocket and machined it to pattern.
Also hard anodised.
I seem to remember sending down my old sprocket.


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,371
Country flag

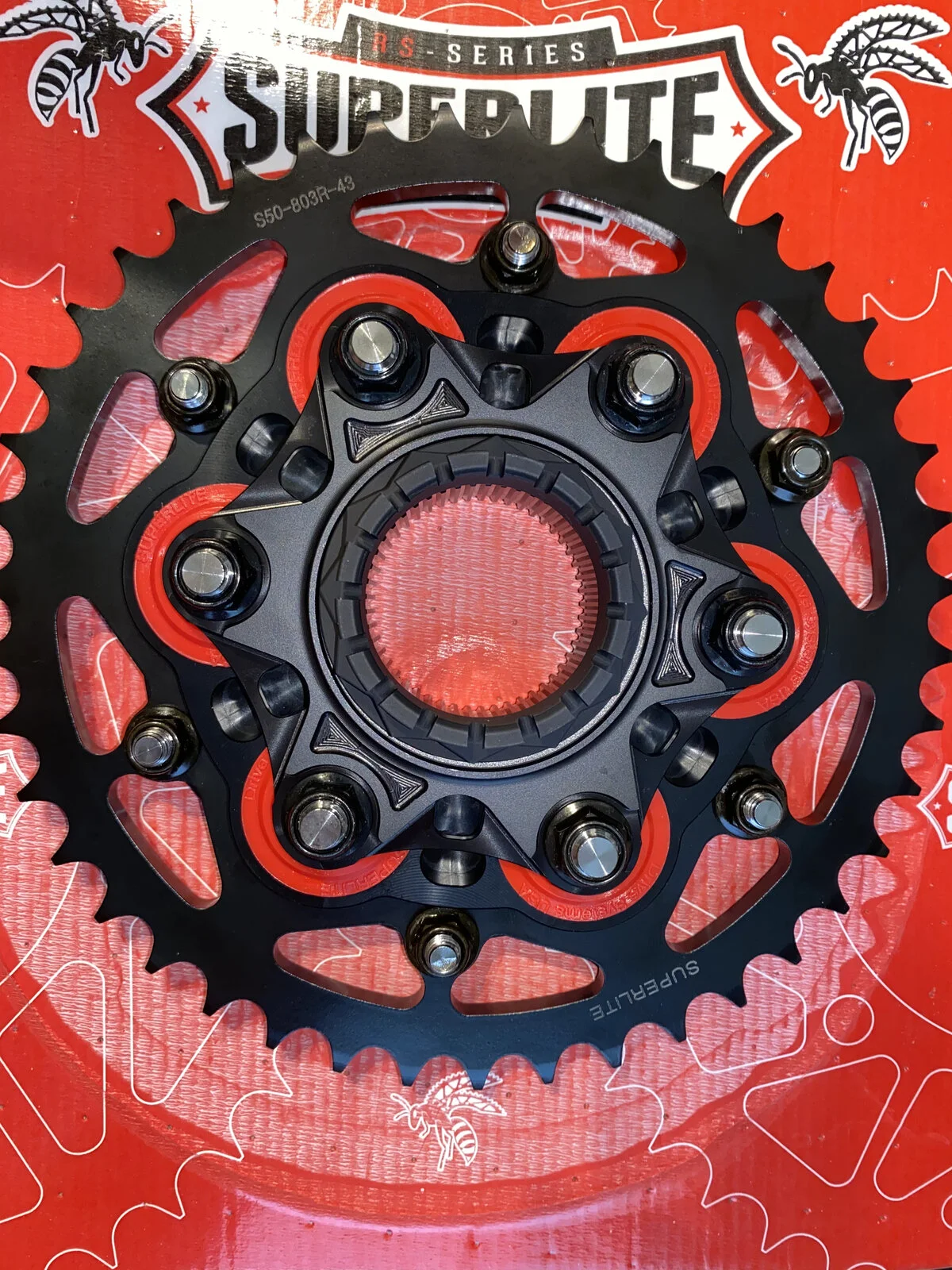

Today I received my Superlite quick change sprocket and hub assembly for my 2020 Diavel 1260S.
The crush drives used are polyurethane. They don’t mention the duro ratings but I wish the Talon / Norton’s were this easy to check and change.
This hub assembly is 40% lighter than stock and is all cnc billet aluminum. The sprocket is steel.


Attachments

  • 819D1530-2FEB-4A4E-82F1-392A4A2EC2E8.jpeg
    548.9 KB · Views: 30
Joined
Apr 10, 2020
Messages
16
Country flag

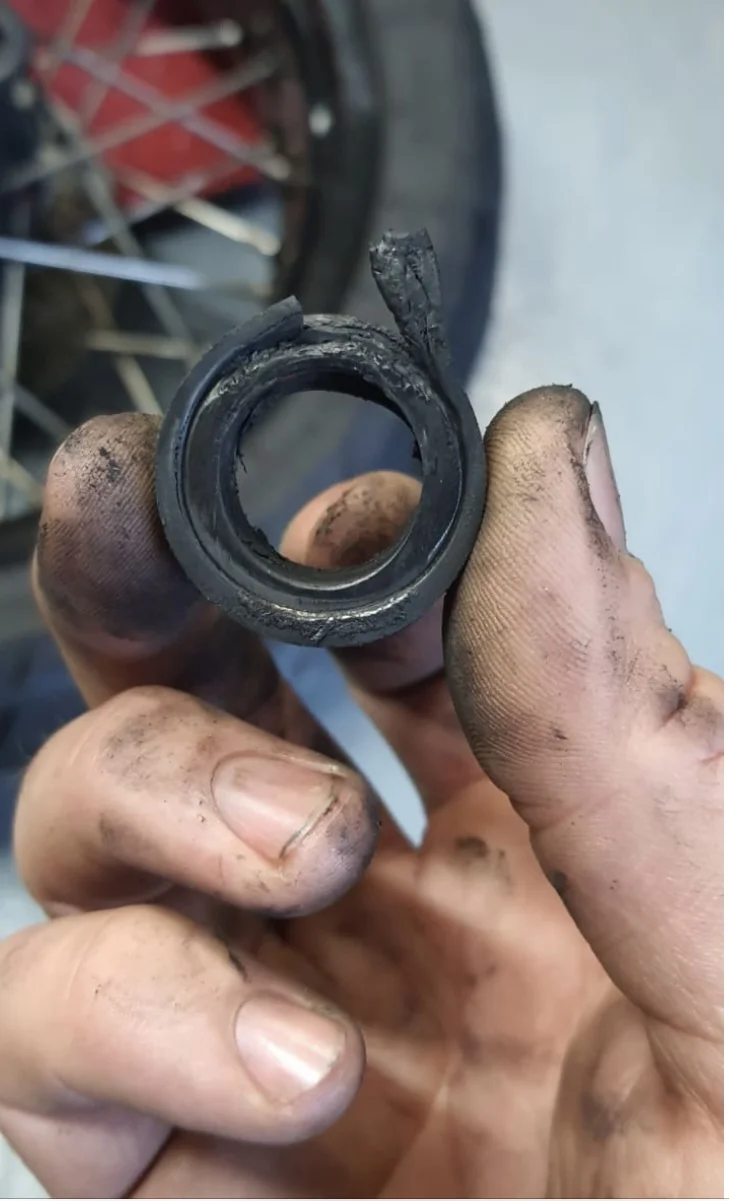

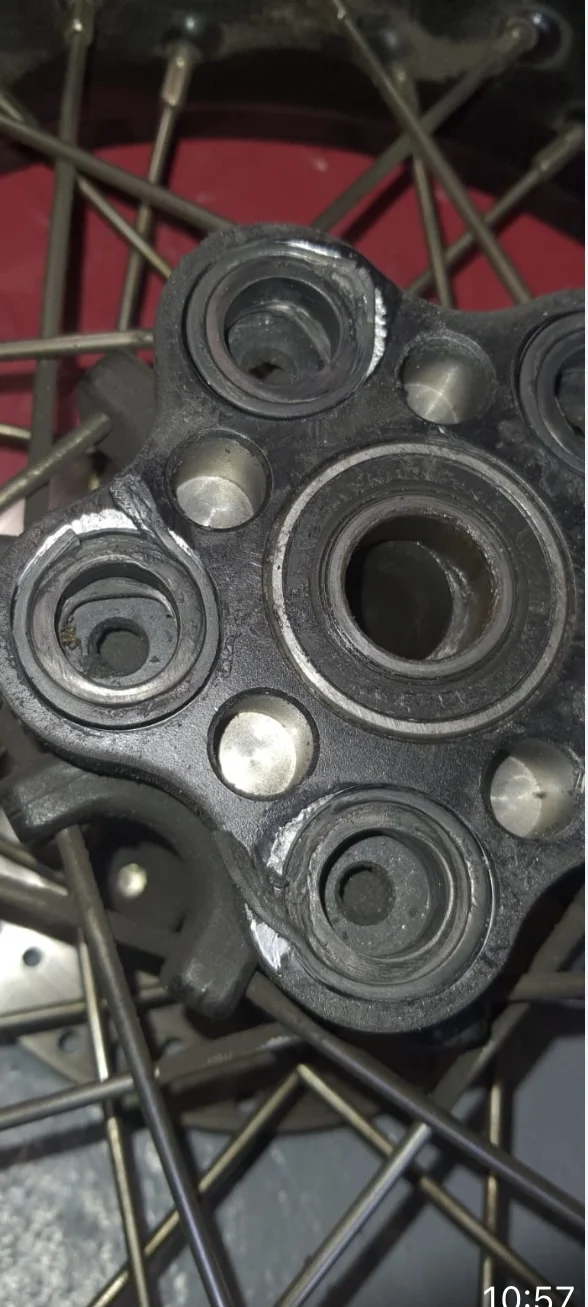

Well my Cush drive rubbers truly are knackered and have damaged hubs a bit ?, anyone machined the pegs a mm or so shorter or the sockets a mm or so deeper?

Joined
Jan 16, 2015
Messages
3,793
Country flag
Well my Cush drive rubbers truly are knackered and have damaged hubs a bit ?, anyone machined the pegs a mm or so shorter or the sockets a mm or so deeper?
Hello Spike , This is what Norton did on their latest version of Cush drive bolts. The heads are about 1mm shorter and you can order these bolts from Norton. How many miles on the cush rubbers ?


Voodooo

VIP MEMBER
Joined
Aug 10, 2016
Messages
1,371
Country flag
Click on reply.
then click on attach flies.
Then click on the pics you want to post
Then click post reply.

Joined
Jun 4, 2018
Messages
9
Country flag
I was smugly thinking mine were going to be OK at 5500 miles as I had given them a reassuring wiggle but after reading this thread I checked and guess what, just in time! Thanks to the people who paved the way, Talon had two sets to me within 24hrs, just waiting for the grease!

Joined
Jan 16, 2015
Messages
3,793
Country flag
You are not VIP member so no direct posting of images. You can use a photo hosting website like flickr and put your pictures there and then you can copy links to that to here. This is what I do now. Like this :


Joined
Apr 10, 2020
Messages
16
Country flag
replaced rubbers yesterday - as everyone says tight fit getting the sprocket carrier into the rubbers but rather than hammer as others have suggested it’s simpler and less brutal to simply use the axel and some spacers ( I used the chain tensioner pieces) to pull the carrier into the hub...

Joined
Jan 16, 2015
Messages
3,793
Country flag
replaced rubbers yesterday - as everyone says tight fit getting the sprocket carrier into the rubbers but rather than hammer as others have suggested it’s simpler and less brutal to simply use the axel and some spacers ( I used the chain tensioner pieces) to pull the carrier into the hub...
Good Idea ! Some PVC pipe as spacers and after some miles they should loosen up a bit one would think ?
