'76 MK III Rectifier location?

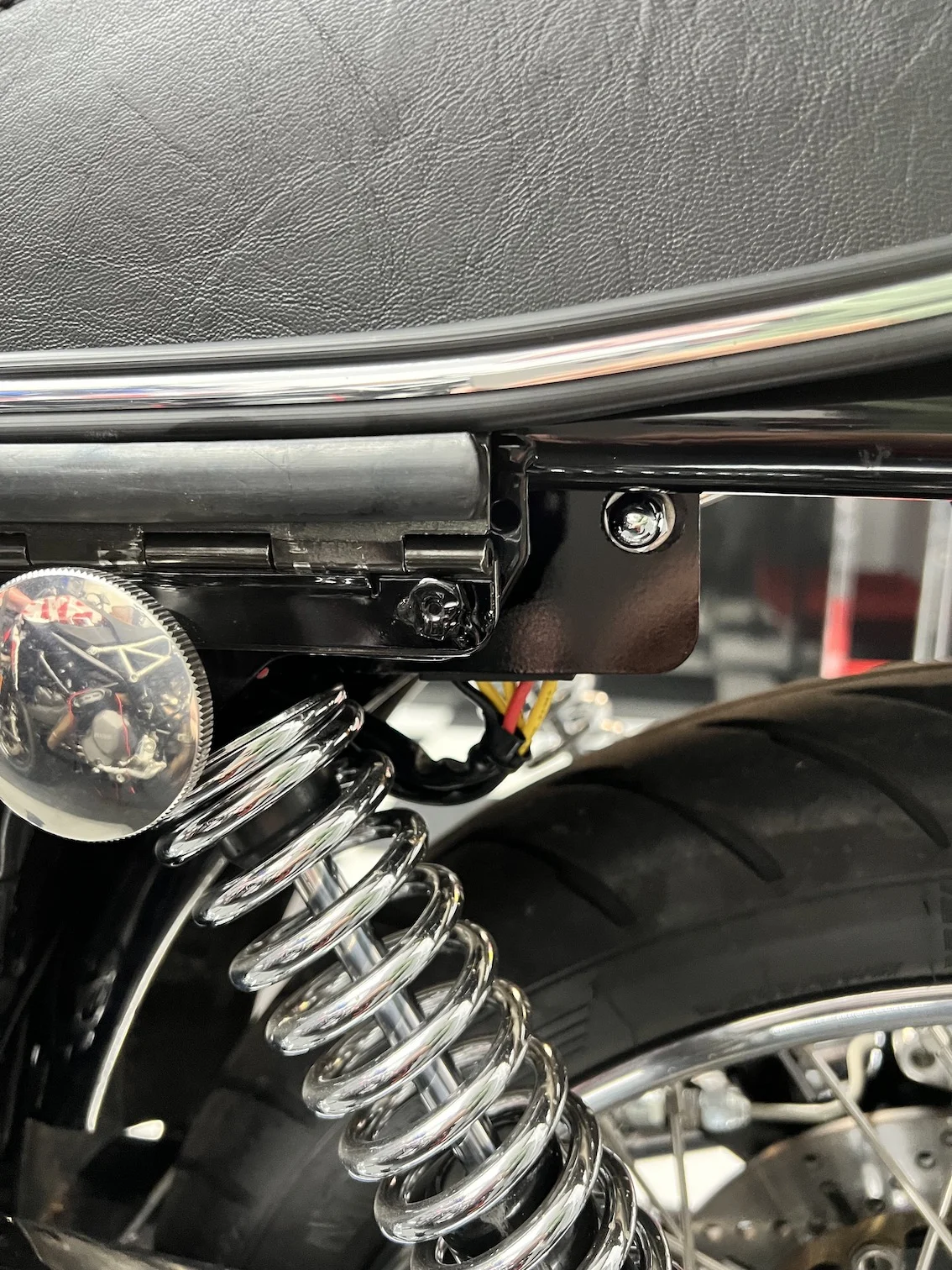

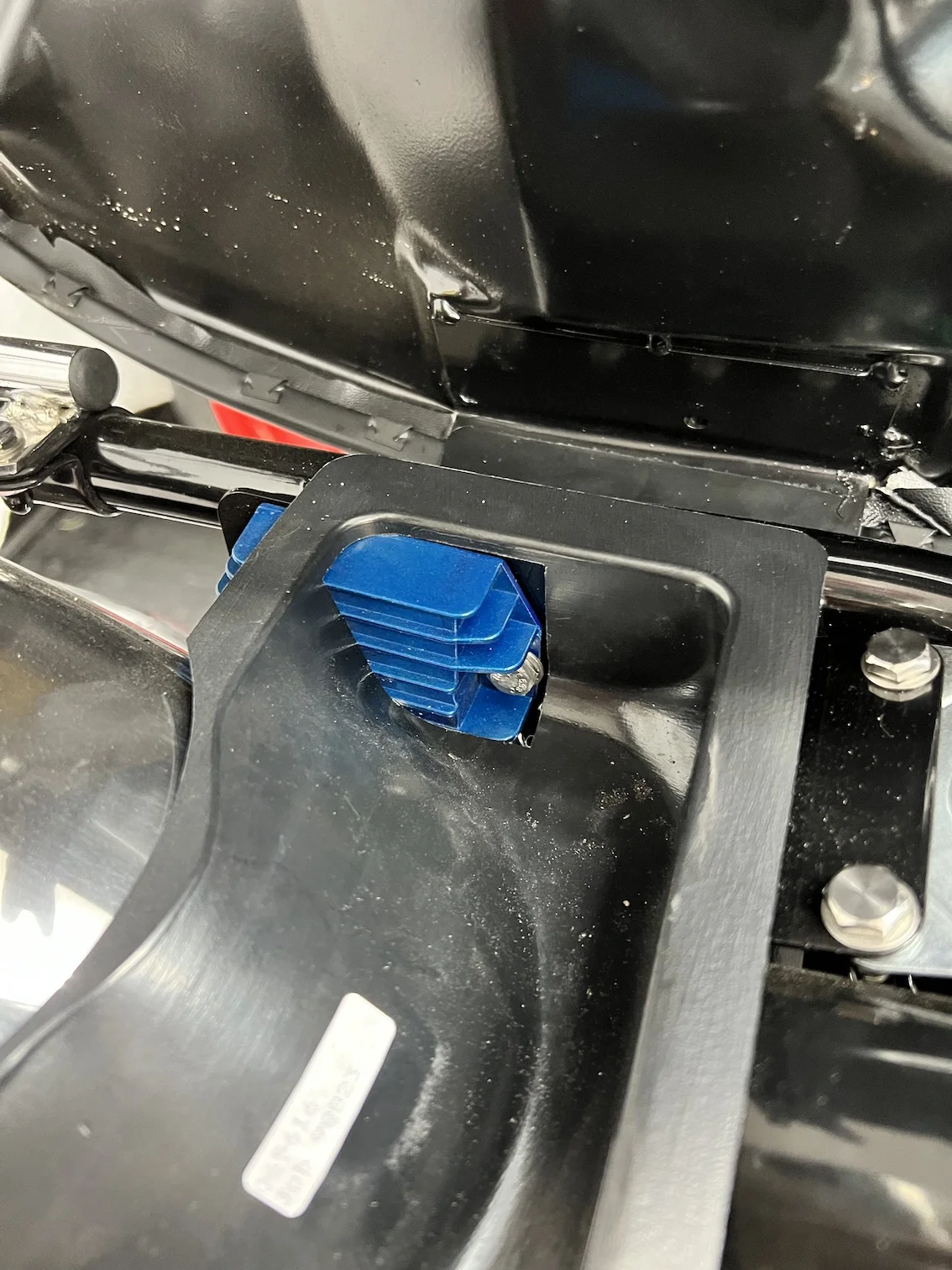

I just noticed in that second picture the rectifier is shown mounted 'Wires up". This is how the instructions tell you to do it, but I switched it to 'wires down' so it wouldn't foul the seat base.

I also painted the bracket black in keeping with the frame.


Attachments

  • '76 MK III Rectifier location?
    353.7 KB · Views: 230
  • '76 MK III Rectifier location?
    222.6 KB · Views: 241
Recently a mounted the Trispark Mosfet-RR below the Starter-Solenoid on the BRACKET - RECTIFIER (06.4063). It has enough Space, but watch out that it does not interfere
with the sidecover especially the cables. The space is limited but still enough, because there is no capcitor and rectifier.

Last edited:
