WOO HOO!!.... oh bugger

A

Alpha

Joined

Mar 13, 2005

Messages

54

• Aug 28, 2009

• #1

2nd kick! & off down the road

http://www.youtube.com/watch?v=jruvMkYwUxI

and back again

http://www.youtube.com/watch?v=iK1hiReNxqE

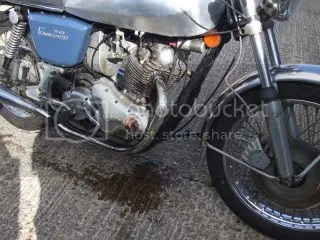

and oh bugger, I know one should expect leaks but this is taking the mick

more expence!



S

Seeley920

Joined

Jan 6, 2009

Messages

877

• Aug 28, 2009

• #2

Hi Richard,

Well done!! i probably have a spare one as we have to use braided rocker feeds for racing. I'll check when i get home.....should be around Sunday and Monday!

Cheers

John



swooshdave

Joined

Apr 15, 2009

Messages

11,525

• Aug 28, 2009

• #3

That doesn't look like the stock tubing.



C

Coco

Joined

Aug 14, 2006

Messages

1,451

• Aug 28, 2009

• #4

swooshdave said:

That doesn't look like the stock tubing.

Click to expand...

That's almost translucent. My stock ones are black.



P

pelican

Joined

May 2, 2009

Messages

1,390

• Aug 28, 2009

• #5

stainless is the way to go



B+Bogus

Joined

Jun 28, 2009

Messages

2,176

• Aug 29, 2009

• #6

Great sounding bike!

Are you sure that cap is ACU gold approved? A full-face helmet would have hidden that broad grin though!

I've just replaced the rocker feed pipe which the PO cut with pliers :shock: with a 'standard' assembly from RGM, and it's got black tubing (which is available seperately, and pretty inexpensive). The tubing seems very stiff and resilient.
I wasn't keen on the stainless set-up because of the piggy-back single banjos and long bolt needed for the dual pipe connection - unless someone knows of a stainless set-up which retains the original style of dual-feed banjo?



A

Alpha

Joined

Mar 13, 2005

Messages

54

• Aug 29, 2009

• #7

I think they are the original pipes, I certainly aint changed them and the PO before me didnt, leaves the original owner who may have altered them in 72-73, yep stainless I'd go for but for the price!

John you're a saint give me a call when you have a min please.

Heck yeah can't but help smiling, still grinning now even after the oil pipe letting go.



Triton Thrasher

Joined

Feb 10, 2009

Messages

2,941

• Aug 29, 2009

• #8

My experience (yours too now!) is that clear PVC oil pipes will crack eventually.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,326

• Aug 29, 2009

• #9

Alpha said:

I think they are the original pipes, I certainly aint changed them and the PO before me didnt, leaves the original owner who may have altered them in 72-73, yep stainless I'd go for but for the price!

Click to expand...

I don't think they ever used clear pipe? The original pipe was normally black.



cash

Joined

Nov 10, 2006

Messages

1,518

• Aug 29, 2009

• #10

Looking at the photo the failure looks more like the tube at sometime has been folded over causing material stress not a true burst. I've never had a problem with nylon tube feeds. However, on a brighter note, looks like you've got good oil pressure.

Cash



maylar

VIP MEMBER

Joined

May 13, 2007

Messages

4,213

• Aug 29, 2009

• #11

I've just ordered one of the Venhill braided lines for my MKII. The stock black hose is leaking at the right side head joint. I can't tell if it's the hose or the junction that leaks, but I've replaced the sealing washers and it's still spewing so I assume the hose is at fault. A failure there would be a real mess and if you're far from home you're screwed. I just returned from a 450 mile trip, watching that connection with great fear the whole time.

It's interesting to note that oil leaking from that fitting finds its way between the head fins and even to the exhaust collar when moving. There are some funky air flow patterns around a Commando head I guess.



J

Jeandr

Joined

Jan 22, 2008

Messages

2,585

• Aug 29, 2009

• #12

B+Bogus said:

unless someone knows of a stainless set-up which retains the original style of dual-feed banjo?

Click to expand...

You can always drill the intake rocker shafts, use a single line from the timing case to the head and plug up the other side.

Jean

I should have read all the posts before replying, just goes to show that it can be done



D

dave M

Joined

Oct 19, 2005

Messages

1,625

• Sep 1, 2009

• #13

I have had this happen to me before, now when doing a new project I generally take the old unions down to a commercial hose shop and they fit braided stainless hose for me for about US$15.



ILLF8ED

Joined

Dec 30, 2003

Messages

3,683

• Sep 1, 2009

• #14

I've had a stainless oil line on mine for the last several years. One word of caution, with the engine vibration, the stainless braid can act like a hack saw on you gas (petro) tank. Make sure to use some type of padding. Also cuts through high tension spark plug leads.
