What lube? Assembling ignition lock 03.3044 into ignition master switch 06.6395.
- Thread starter Jdub
- Start date
- Status
ashman
VIP MEMBER
- Joined
- Jul 11, 2010
- Messages
- 6,006
Grafith powder is best it's a dry lube also great for tight keys, when working in a maintenance work shop at a Tec College one of my big jobs was replacing locks and fixing door locks as well installing new ones, powder was the only lube that I used. sprays are no good in locks.
PS I love Herman Munster a few month back watched all the old shows, so funny, my wife was wondering what I was laughing so much when I watch an episode, watch it when I was a kid but this time around you pick up the one liners so funny.
Ashley
PS I love Herman Munster a few month back watched all the old shows, so funny, my wife was wondering what I was laughing so much when I watch an episode, watch it when I was a kid but this time around you pick up the one liners so funny.
Ashley
Last edited:
ashman
VIP MEMBER
- Joined
- Jul 11, 2010
- Messages
- 6,006
Thats it spell check keeps changing the graphite, bugger didn't do it this time lol.
ashman
VIP MEMBER
- Joined
- Jul 11, 2010
- Messages
- 6,006

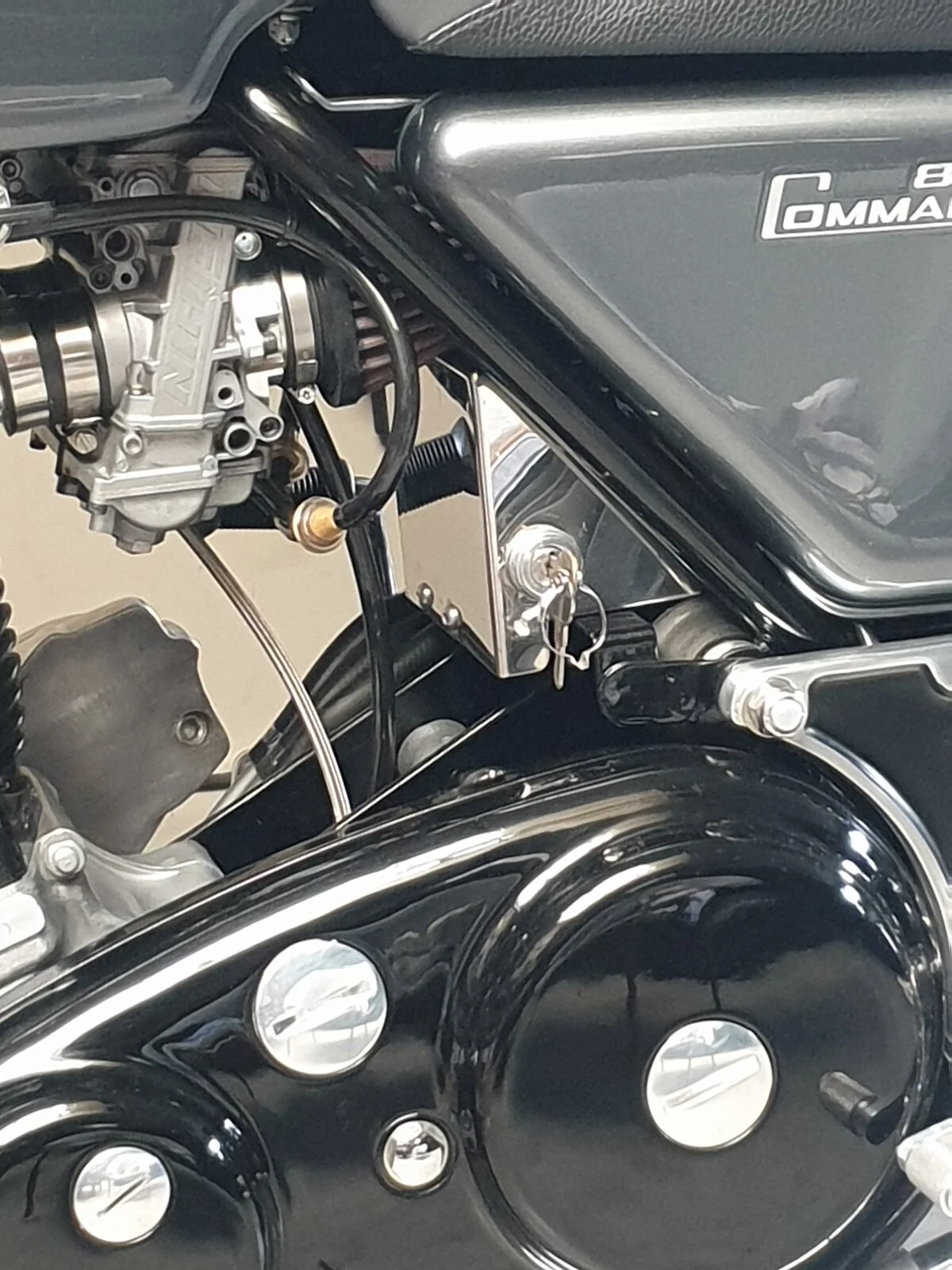

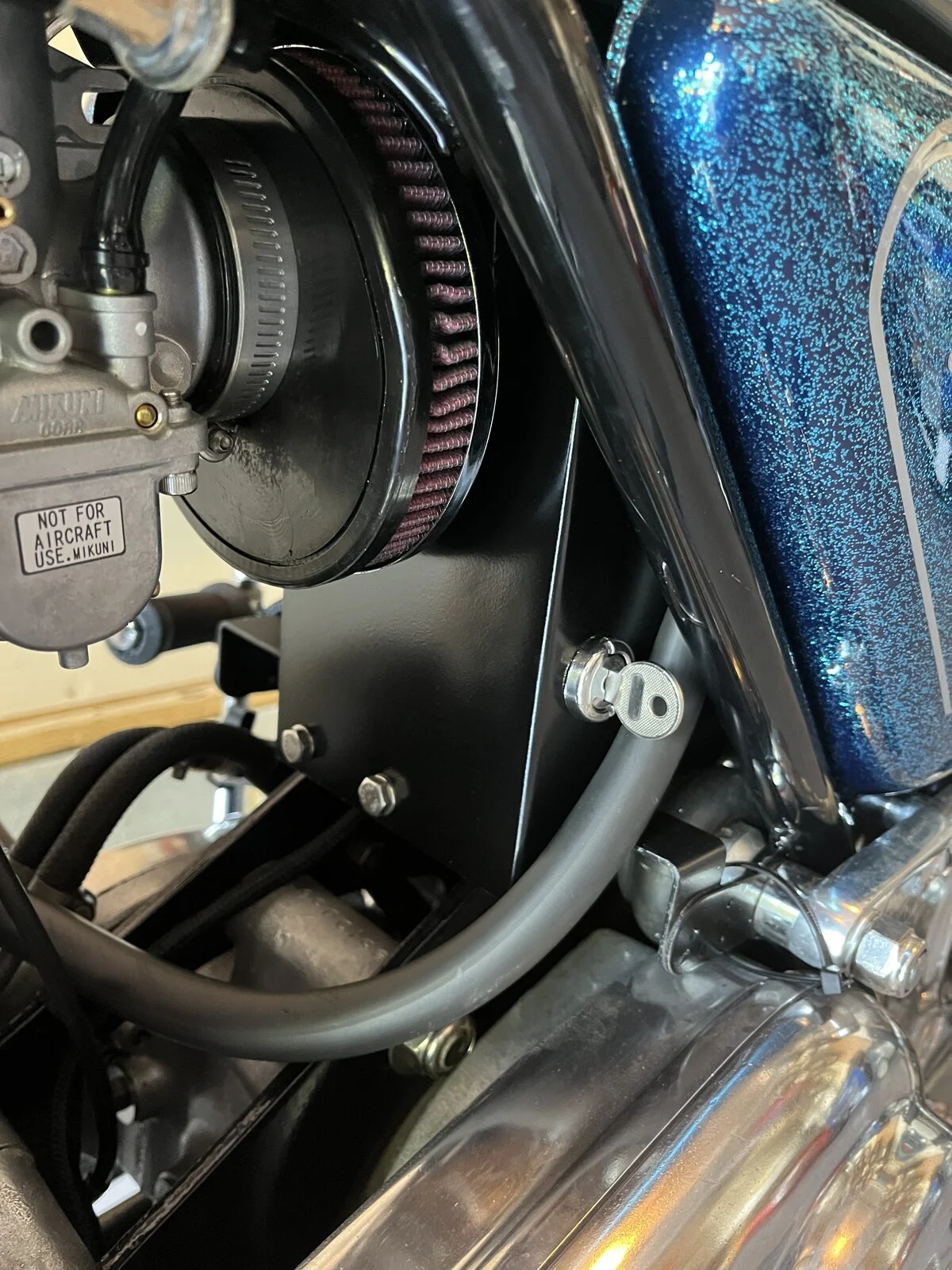

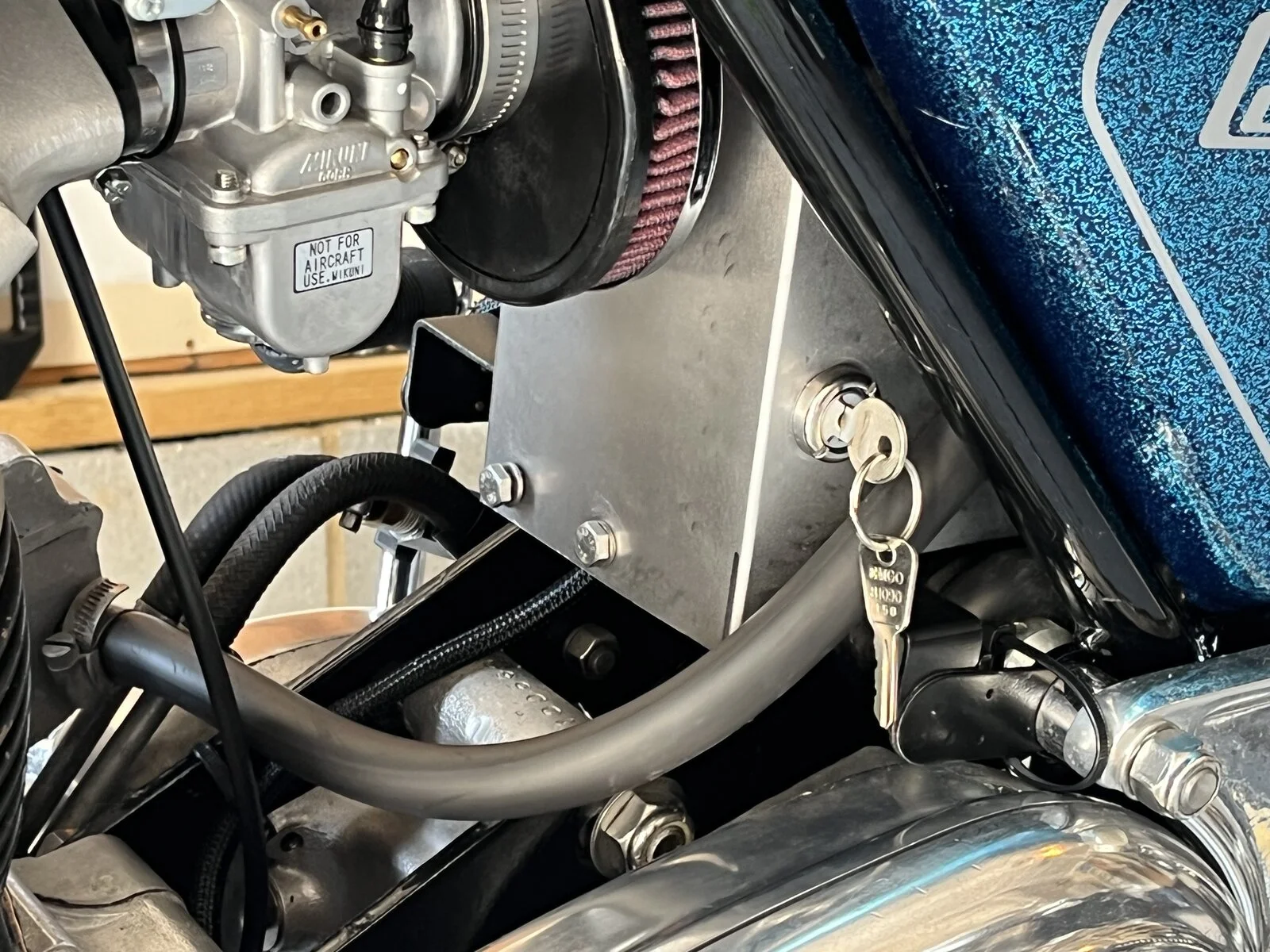

Can't see no problems there, my old 81 Triumph had the key mounted on the dash it had a cap cover when the key was removed and on the key itself had a cover for when the key was in the lock to keep water out, one of the reasons they had a rubber boot over the ignition lock on the side mount ignition.
- Joined
- Jan 13, 2022
- Messages
- 76
- Joined
- Dec 28, 2009
- Messages
- 5,427

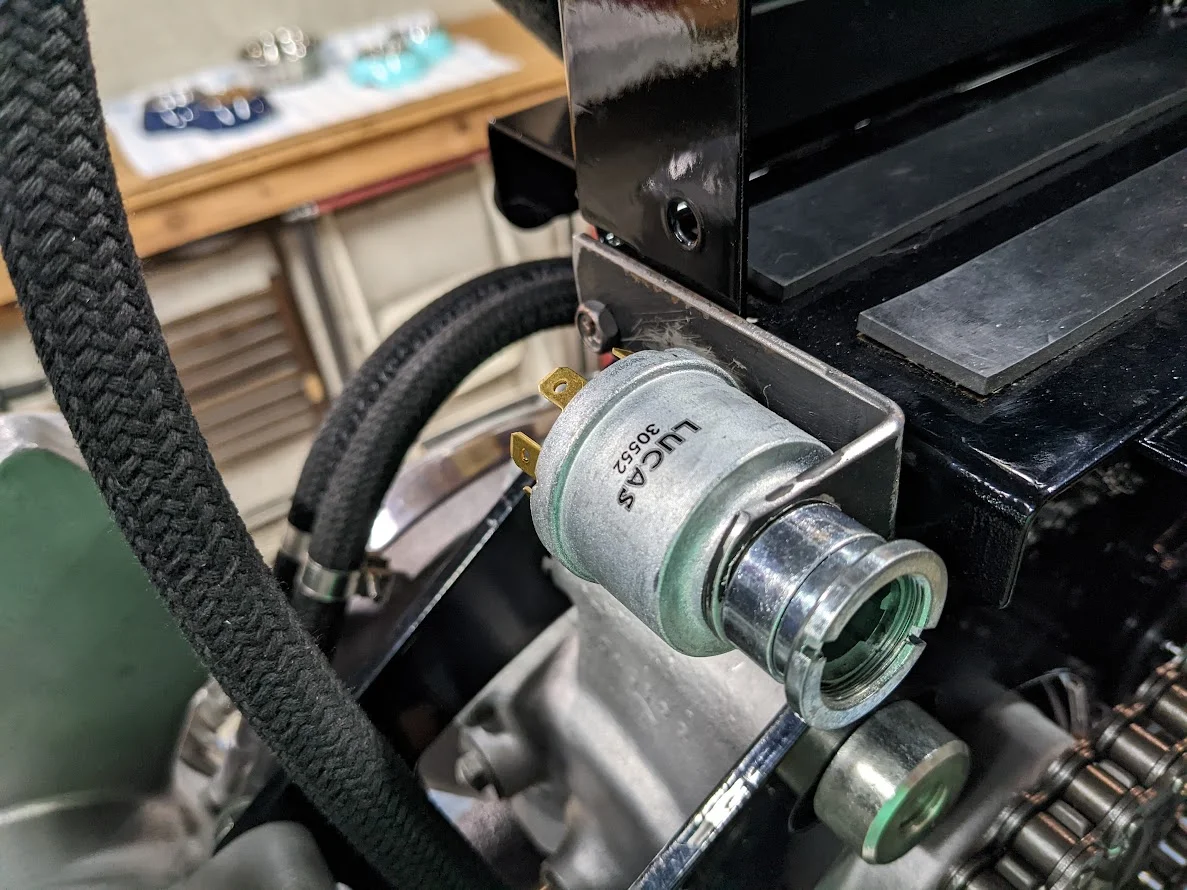

How timely . Just received my new 4 position switch (new) , bare , without key tumbler . Apparently this can be removed easily from the old one , through the side hole ( using a drill bit ? ) and refitted to the new switch . About to try it.
- Joined
- Mar 22, 2021
- Messages
- 2,379
Chur
Attachments
- Joined
- Nov 20, 2004
- Messages
- 20,423
28 TPI (1/4" UNF)
Motorcycle parts and spares for Norton motorbikes - Genuine Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Genuine Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
- Joined
- Aug 19, 2021
- Messages
- 1,456
- Joined
- Dec 28, 2009
- Messages
- 5,427
Switch to new switch tumbler removal and insert into new switch was successful today . Used Graphite powder as lube.
Used small flashlight to peer down small hole in the side of the body , turned the key until the small brass pin showed up ( one of the 4 key positions as possibilities ) . Then used a straight pick to insert and depress the tiny brass pin and voila , the key with tumbler pulled out easily.
The new switch ( as new out of the box ) was not aligned up to accept the key/tumbler assembly so used a medium screwdriver on the center of the plastic central rotator to move/rotate it into position where the tumbler would accept the insert . Went in with a slight click and all 4 positions are now working great by key turnings . Next is install and test but too cold out here now. 6 C. It will warm up soon.
ashman
VIP MEMBER
- Joined
- Jul 11, 2010
- Messages
- 6,006
I always used graphite powder in locks as it dry not too sure about graphite spray if it liquid form the powder comes in plastic puff bottles a small bottle goes a long way.
- Joined
- Aug 19, 2021
- Messages
- 1,456
Lock-Ease has a light liquid vehicle that evaporates quickly leaving the dry graphite powder lube. I have used it for years in all sorts of applications. It has never caused lock tumblers to stick as liquid lubricants are prone to.
