What is this part inside the inner race?

brian4.2 · Mar 19, 2018

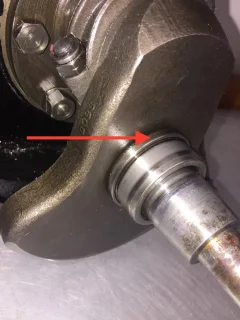

I am trying to make a bearing splitter with a harbor freight tool to remove the inner race. I don't want to damage the spacer inside the race thats against the crank. I cant find this part on any parts drawing so I can't replace it if I damage it.

Thanks, Brian

What is this part inside the inner race?

Hortons Norton · Mar 19, 2018

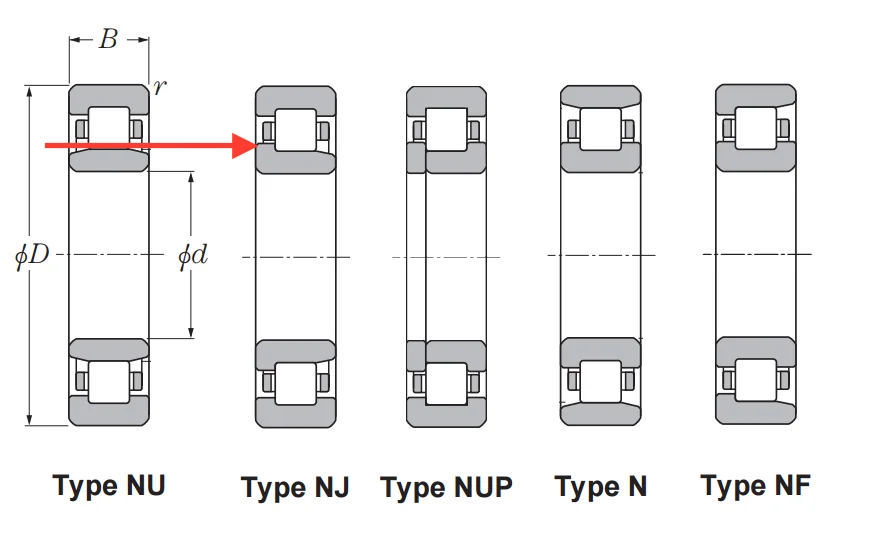

I think it's part of the race itself.

Atlas Commando · Mar 19, 2018

Agree. That is part of the race. I bought a clamshell bearing splitter from Autozone that is sharp enough to get behind that lip and got the inner races removed. It was $50 but if the Commando goes well I've got an Atlas quagmire waiting, so figured the tool would come in handy.

comnoz · Mar 19, 2018

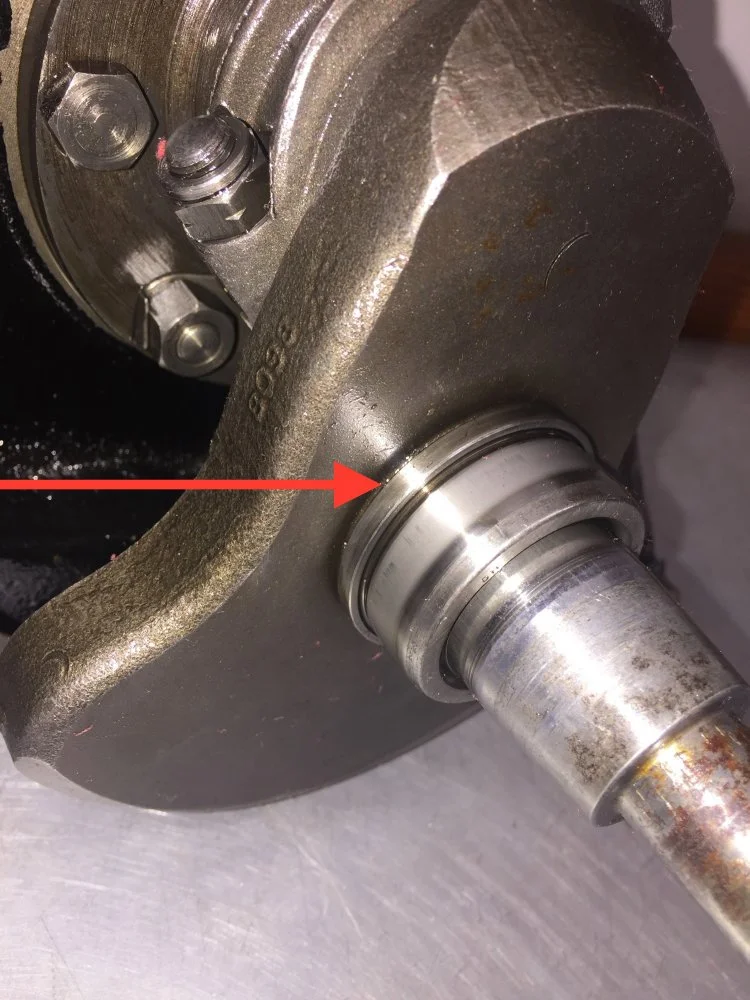

The protrusion that is right at the tip of the arrow is part of the crank.

brian4.2 · Mar 20, 2018

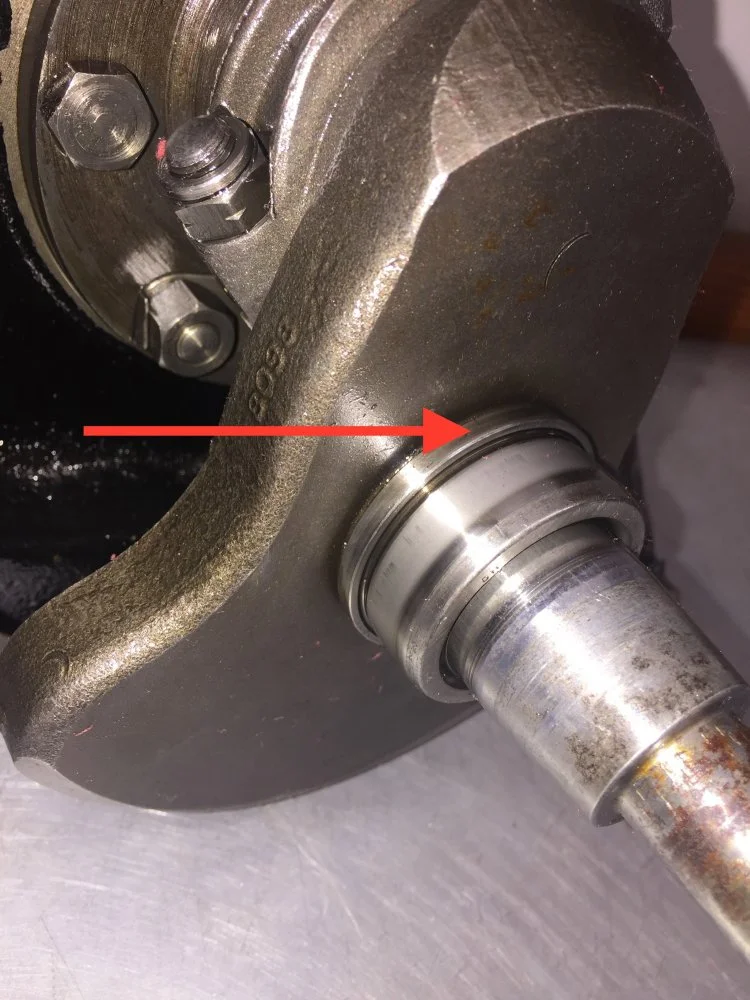

Ooops, sloppy with my arrow. I see it now. I was trying to fit the bearing splitter between what appeared to 2 parts.

Time Warp · Mar 20, 2018

I am sure you will (or did) but heat the inner race on the crank to expand it at removal and at installation of the replacement to avoid damage to the journal surface.
A hot air gun is enough.

What is this part inside the inner race?

brian4.2

Hortons Norton

Atlas Commando

comnoz

brian4.2

Time Warp

.......back to the 70's.
