I'm in the final stages of completing my 73 Commando. I decided to install an oil cut off valve to stop any possible wet sumping. The valve has a buzzer alarm to let you know that it's in the off position. I also wired it so that the bike cannot be started unless the valve is in the open position. I'm a retired telephone repairman, not an electrician so there may be easier electronic methods to accomplish what I have done. I made the same setup on my Atlas and it worked very well. I don't think there are any wiring faults with these circuits although I'm open to any suggestions that would improve on my design. I'm showing how I did this for any who may be interested. I think we have all heard and discussed the pros and cons of having a valve in the oil line. For me, I think this is well worth the effort, I know a lot of members disagree, but for those who want to do something like this, here it is.
What you'll need.

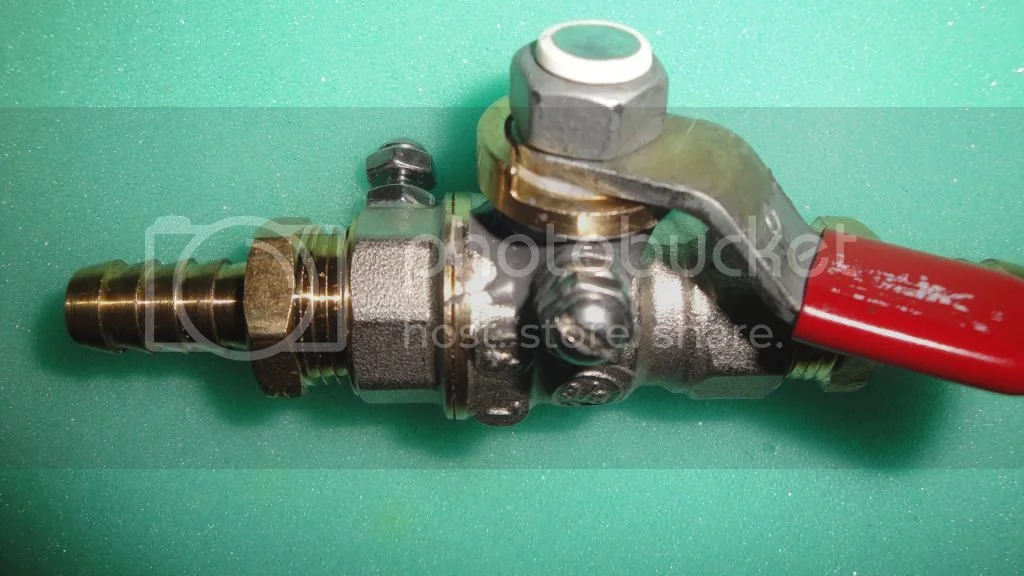

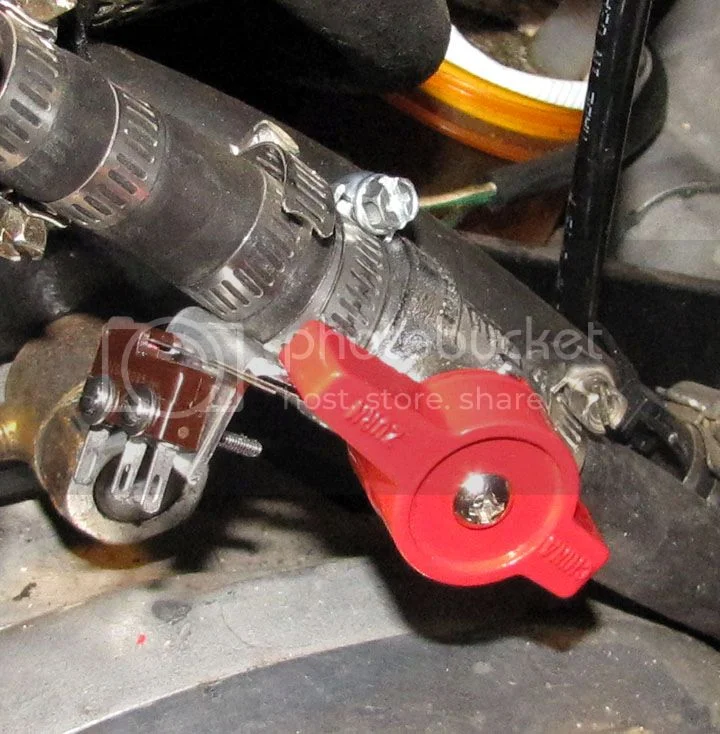

1. A good quality 3/8" ball valve, like this. Notice there are two 6-32 screws with nuts. Drill and tap a hole for one of them, use JB Weld to attach the other so that it is insulated from the ball valve. The ball valve handle will act as the switch when it comes in contact with the insulated screw. Adjust the height of the screw so that it makes good contact with the underside of the handle. It will be locked in place when you connect the wire terminal and tighten down the nut.

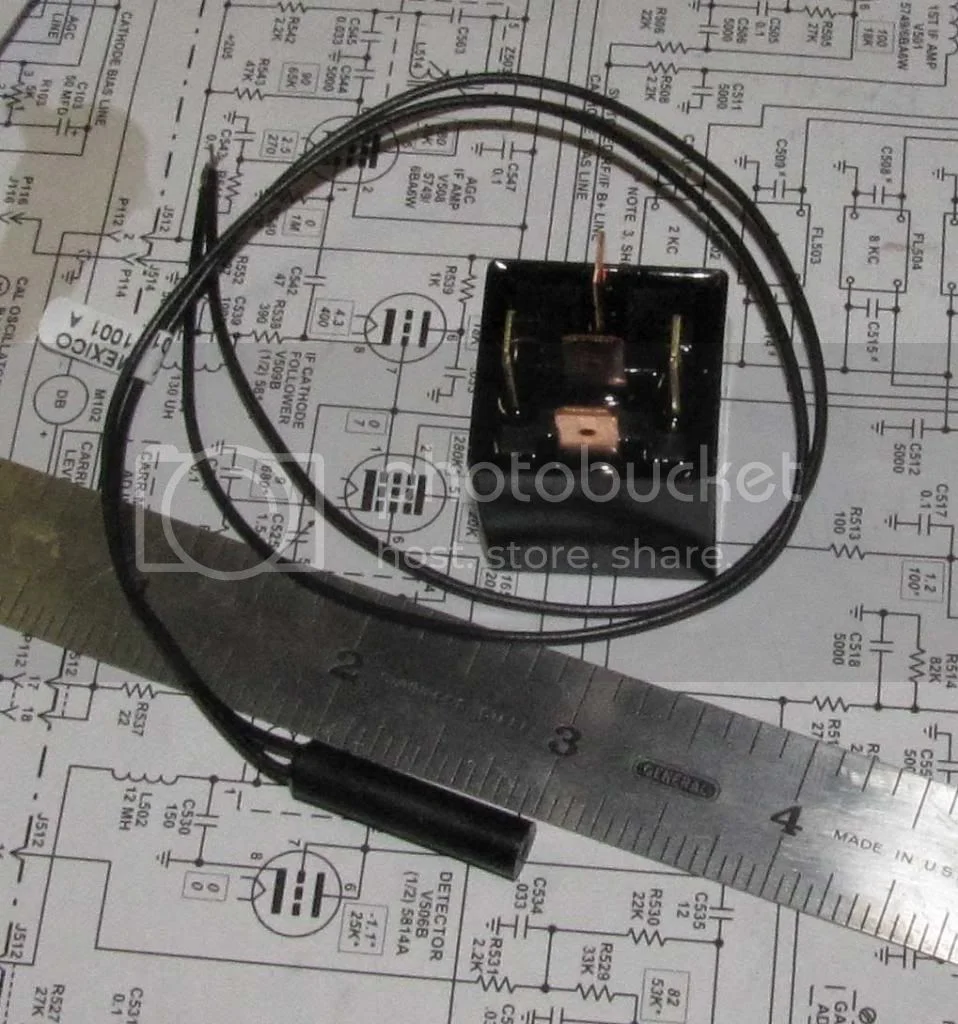

2. A zl44 relay. I got this one at the auto parts store. The terminal numbers are the numbers on the circuit diagram pictured below.
3. Any 12v buzzer that's loud enough to be heard clearly. I got this one at Radio Shack.
Here's the circuit diagram.
Some notes: 1. The y/bl wire from the master switch is cut, the end from the switch gets terminated on terminal 85 of the relay, then connect a wire from terminal 87A to the other end of the y/bl wire that heads out to the ignition ckt.
2. This is a positive ground setup.
3. I have not tested to see if the system will work if the key is is position #3
4. I'll post pictures when the system is finished and installed on the bike. Electrically, everything functions as I planned.
Flame away!
Art
