Side Stand Spring Hole Location

NorWash850

Joined

May 26, 2012

Messages

2

• Aug 11, 2019

• #1

Can anyone advise the location of the frame hole for the side stand spring? Measurements from the welds as a reference? Thanks.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,078

• Aug 11, 2019

• #2

There should be a hole in the cross-tube approximately 2 1/4" - 2 1/2" from the RH weld.



Last edited: Aug 11, 2019

acadian

VIP MEMBER

Joined

Mar 5, 2010

Messages

1,376

• Aug 11, 2019

• #3

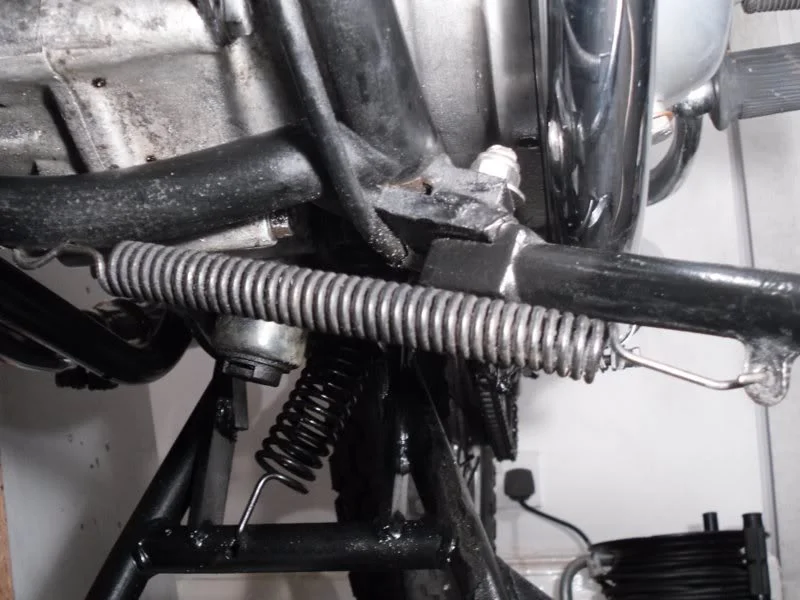

I found it helpful to weld a hardened washer around that hole
