RGM Reline Kit Confusion

So I've bought the RGM reline kit and the sleeve is now installed. Problem is I'm struggling to understand how to install the rest of the kit?

The RGM instructions are next to useless as they contradict the pictures.

I understand the piston assembly goes in first, but what order do the remaining parts go in? (rubber boot, piston pusher and retaining clip).

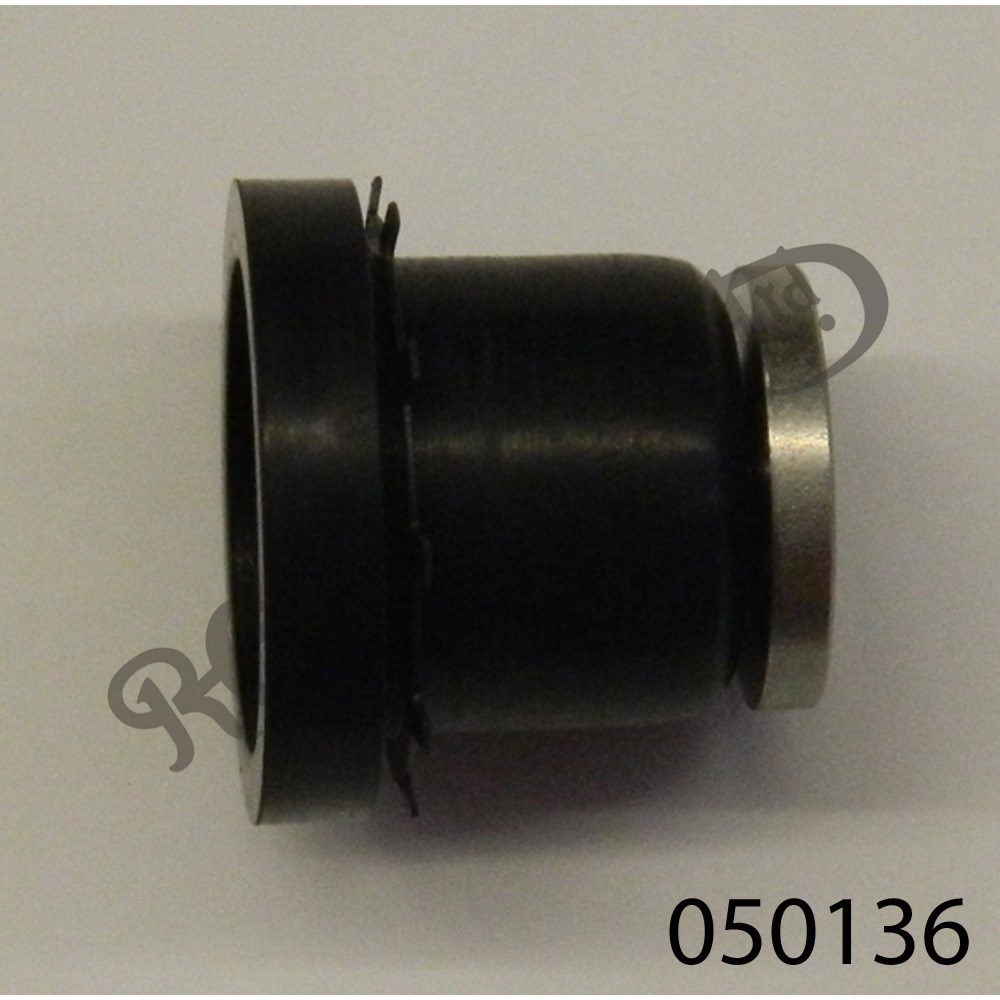

The first pic on the RGM site shows the piston pusher next then the rubber boot but this doesn't make sense as the brake lever will be pushing on the rubber boot. The next picture shows the piston pusher outside the rubber boot, which makes more sense, but how do I gain access to the screw adjuster if it's inside the rubber boot?

I've done a search and read the other threads but they seem to concentrate on installing the sleeve, not the rest of the kit.

Bilko said:

I understand the piston assembly goes in first, but what order do the remaining parts go in? (rubber boot, piston pusher and retaining clip).

Click to expand...

Boot, retaining clip, pusher.

Bilko said:

The next picture shows the piston pusher outside the rubber boot, which makes more sense,

Click to expand...

Yes.

Bilko said:

but how do I gain access to the screw adjuster if it's inside the rubber boot?

Click to expand...

You have to remove the lever and the pusher to adjust it and then replace the pusher and lever.

Wow, fast clear and concise response!

Thanks L.A.B

Thus:

I'm wanting to do this modification myself. Is there a good source for the kit in the USA?

Bilko said:

Wow, fast clear and concise response!

Thanks L.A.B

Click to expand...

Perhaps you should mention this to RGM, they’re usually very interested in feedback.
