Removing gauges for polishing.

Status
Not open for further replies.
Joined
Nov 23, 2017
Messages
113
I tried to remove my gauges to polish them on my buffing wheel but once I unscrewed the nut it won't vome off. I think I have to unscrew something off and remove the spring right? Might not be worth it. Any suggestions ? Or should I leave it alone ? Lol

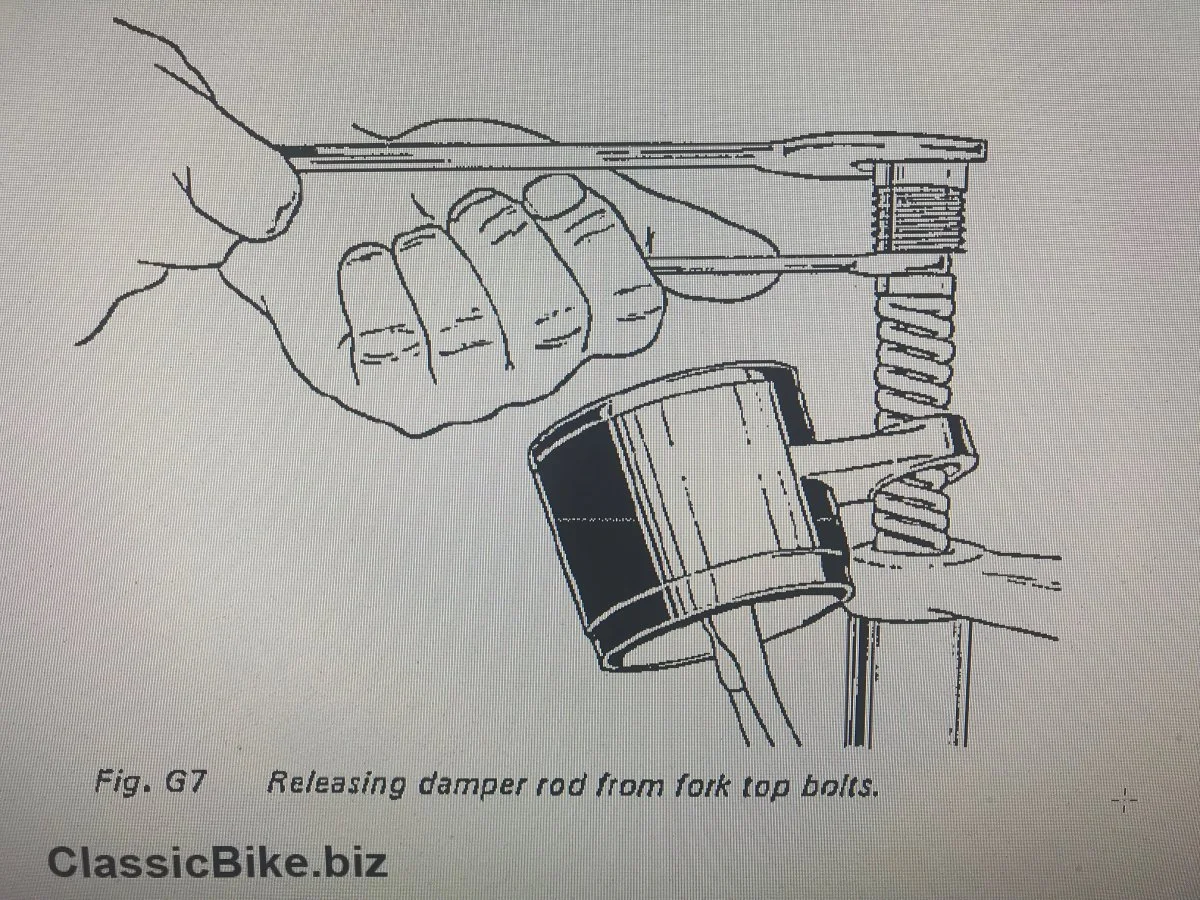

The damper rods are screwed into the large chrome top nut,undo the lock nut then unscrew the top nut this will release your guage housings

Yes, but the damper assembly comes up with that large bolt. You need to put a wrench on the top nut of the damper assembly and release it from the large chrome bolt. Then reverse it to put it together.

Removing gauges for polishing.

Just don't do them both are the same time or the motorcycle's front end will dive, the machine will come off its center stand and may crash or cause you some serious hurt, or both.

If you are set on removing both cups (at the same time), be sure that the center stand is secured in the deployed position with a tie-down or a turnbuckle, you will need to weight down the rear wheel or use a tie-down between the top triple clamp and a rafter. I use a hydraulic lift/jack (made for larger cruisers), where I use tie-downs to secure the Norton to the lift/jack with enough wood to insure that the motorcycle is not bearing weight on the exhaust system, but rather the frame rails; not as straightforward as raising a Victory or a Hardley with flat bottoms

No matter how you support the motorcycle you will still need to load the fork sliders with about 25mm of sag, or you won't be able to get the fork cap nuts/damper rods up high enough to un-seat the jam nuts. If you strip the front end you can change the fork oil while you are at it; amongst other operations.

Before you begin, plan your moves so you don't end up needing three hands. Make sure that your tach/speedo are completely disconnected and that you have a safe place within reach where you can put the cup with the instrument installed; even if you remove the instruments prior to removing the cups, just know where you are going to put things (within reach), and you'll do fine.
