Oil cooler MOUNTING locations/designs on Commandos, let’s see ‘em

Discussion in 'Norton Commando Motorcycles (Classic)' started by concours, Jun 7, 2019.

  1. concours

    concours VIP MEMBER

    Joined:
    Dec 29, 2011
    Pice & details please.

  2. jimbo

    jimbo VIP MEMBER

    Joined:
    Sep 25, 2004

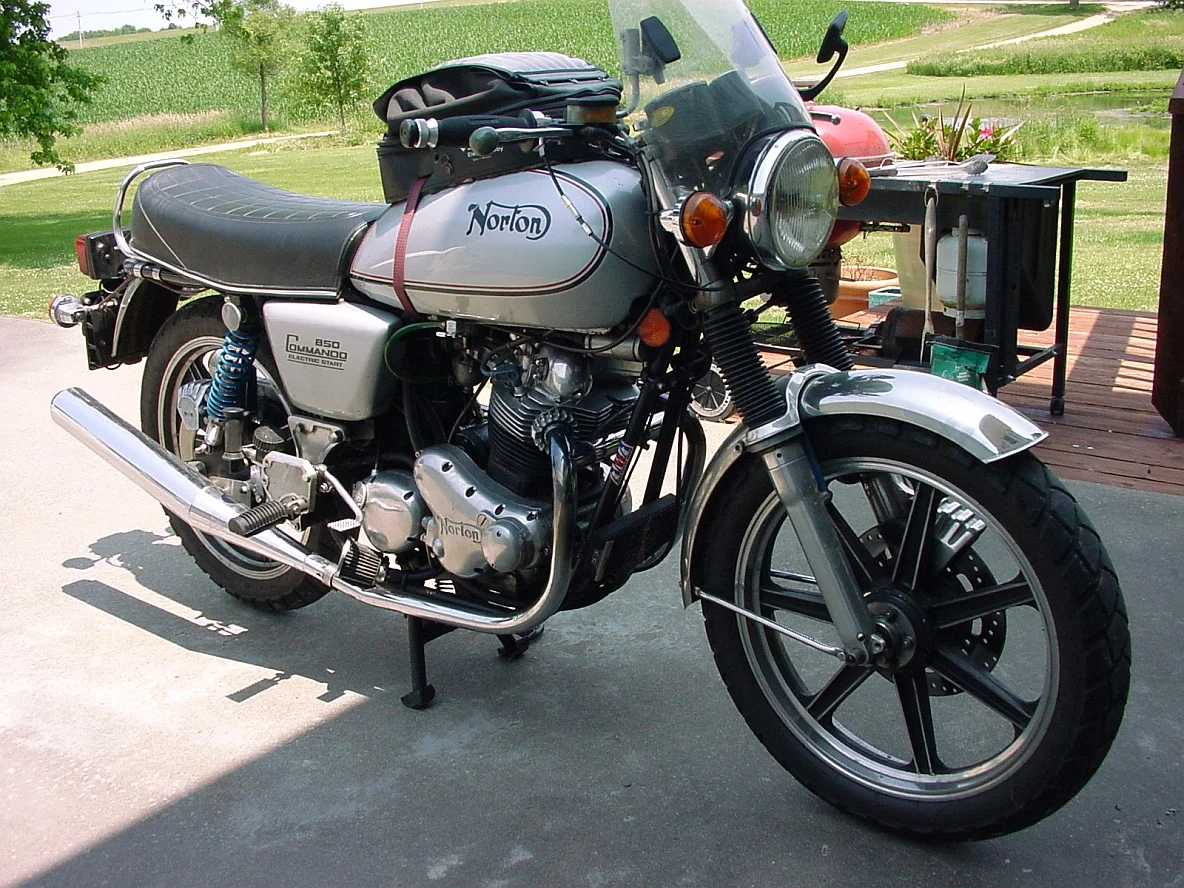

    and it does get hot


    concours likes this.
  3. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010

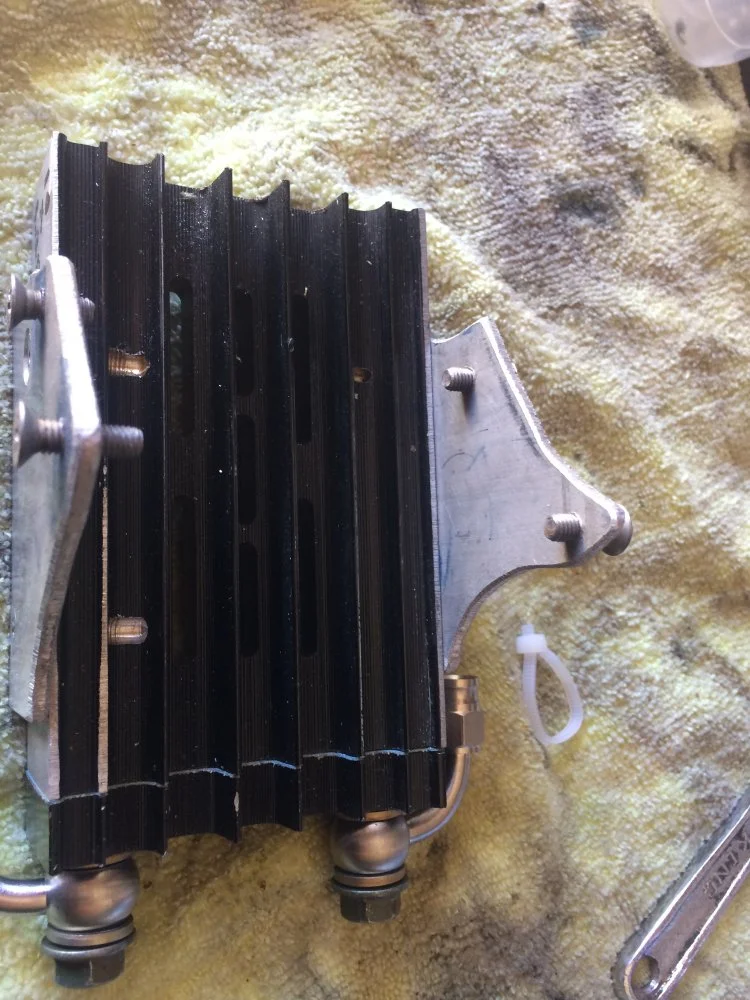

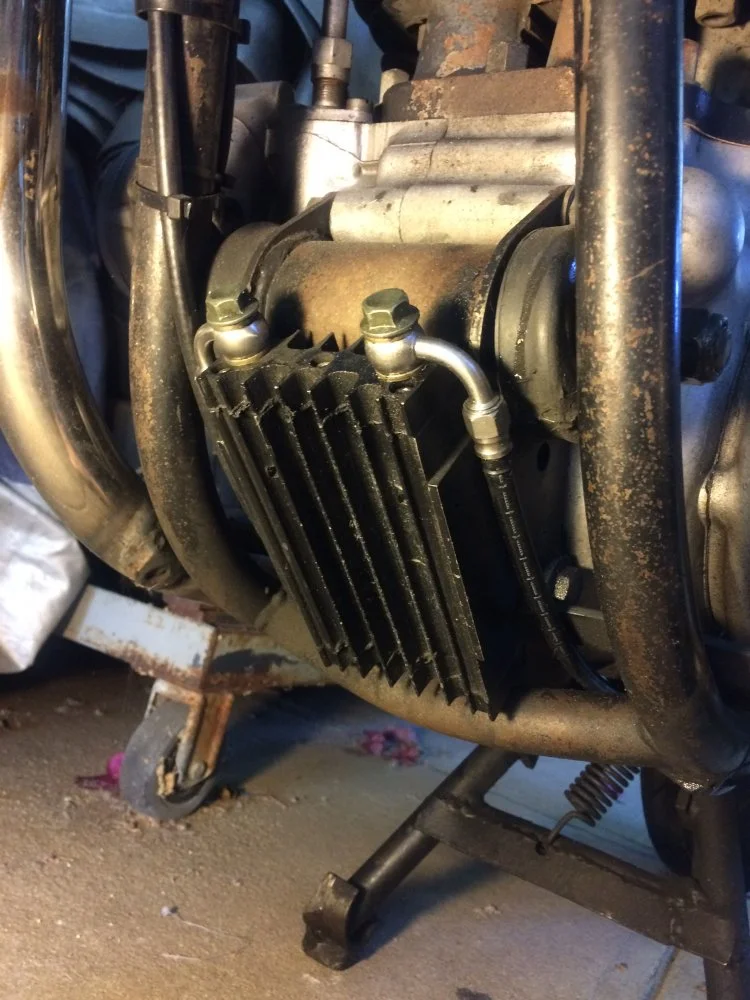

    upload_2019-6-7_8-27-44.jpeg pic is upside down. Fits between and in front of front iso. Cooler is extruded aluminum, not fragile foil and tube

    mdt-son and concours like this.
  4. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010

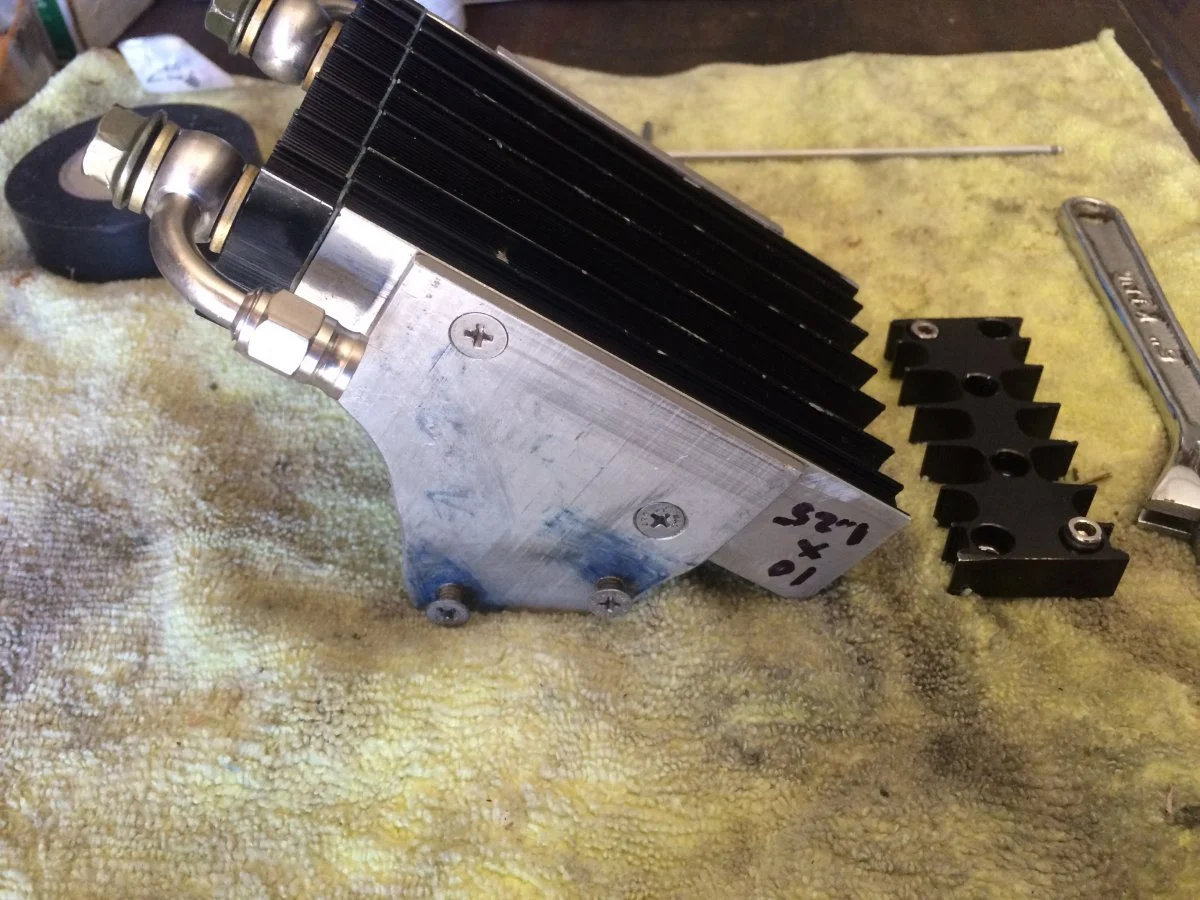

    Top at left. Black thing at right is one of the end plates that cap the extrusion

    mdt-son and concours like this.
  5. jimbo

    jimbo VIP MEMBER

    Joined:
    Sep 25, 2004

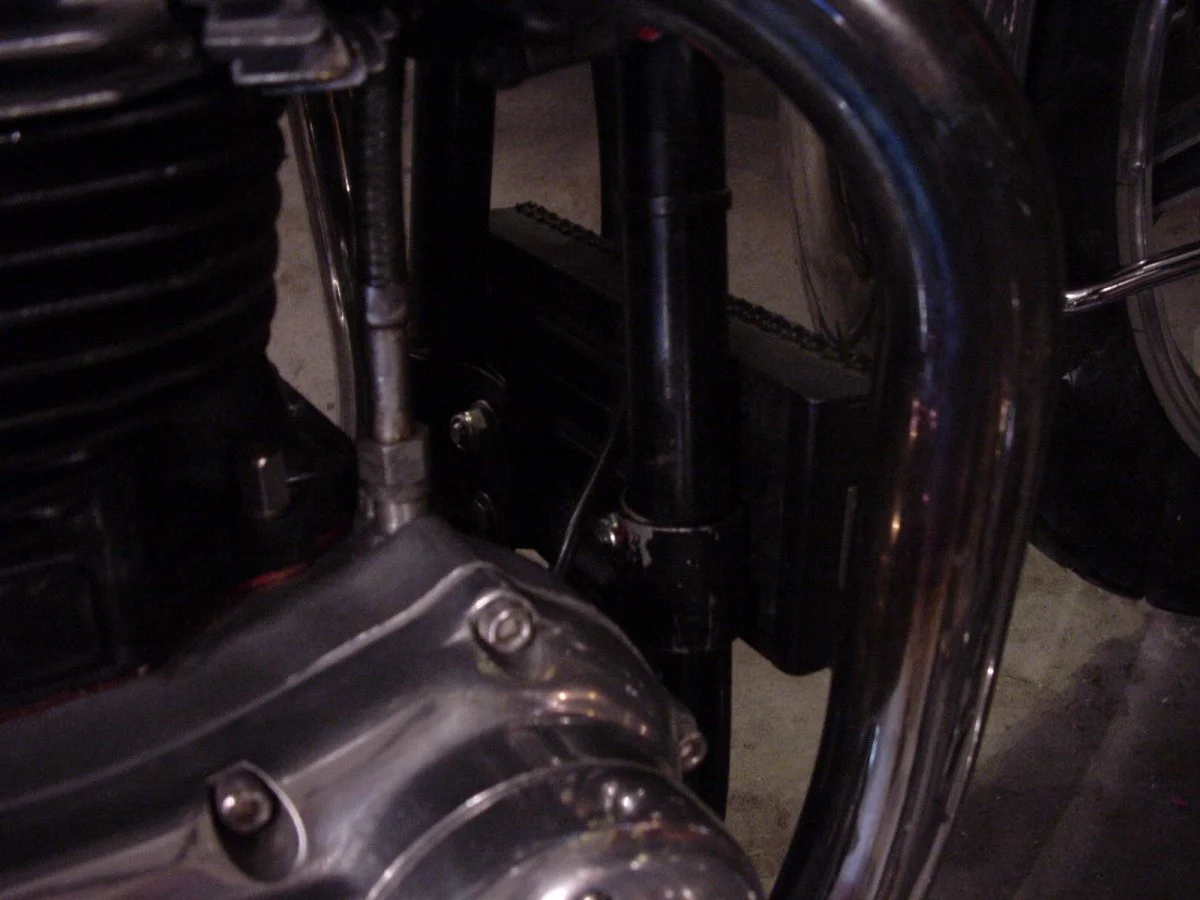

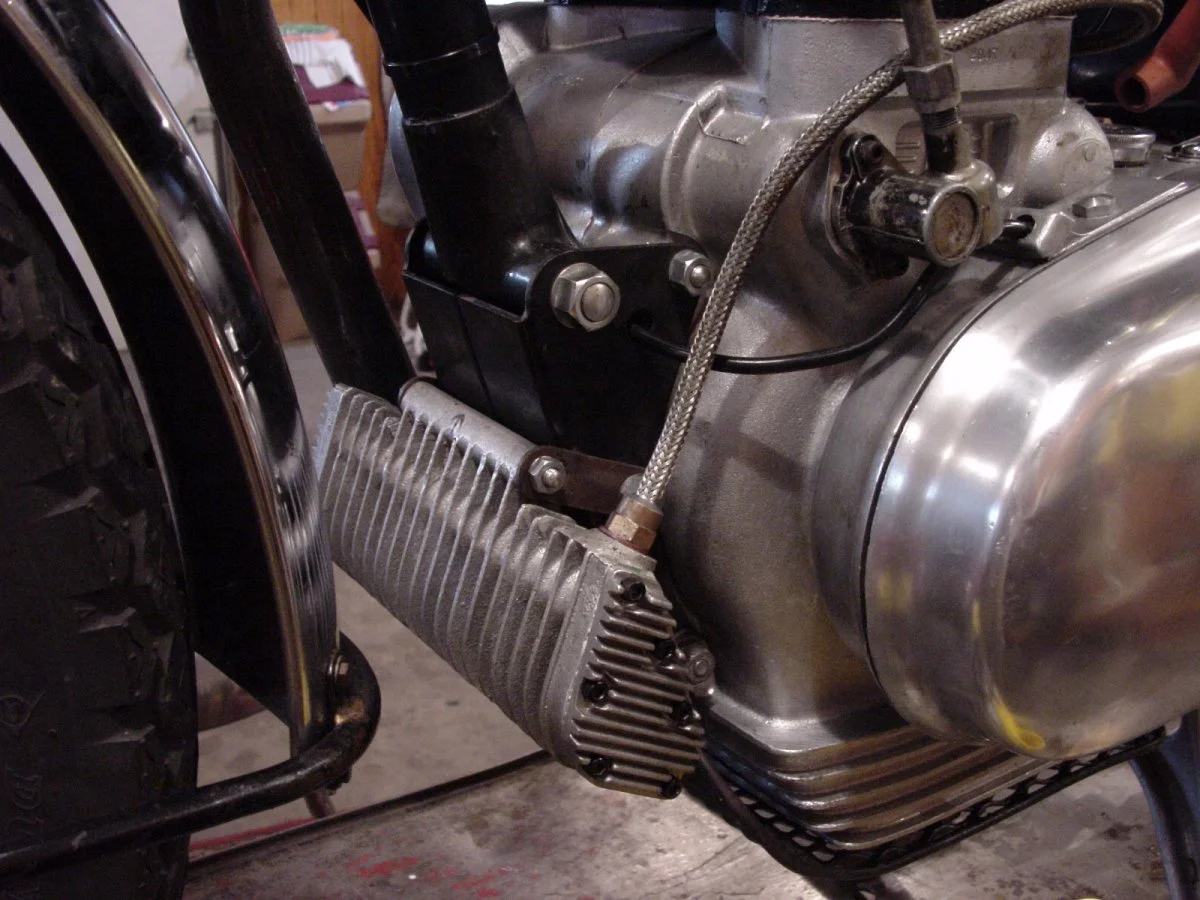

    This factory OEM oil cooler is made of cast aluminum ;), and a screen on mine




    DSC00012.JPG DSC00013.JPG DSC00014.JPG

    concours likes this.
  6. Onder

    Onder

    Joined:
    May 11, 2010
    Gee isnt that asking for a stone hit when you put that fragile cooler down low like that?
    The Interceptor cooler a good deal less vulnerable.

    concours likes this.
  7. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009

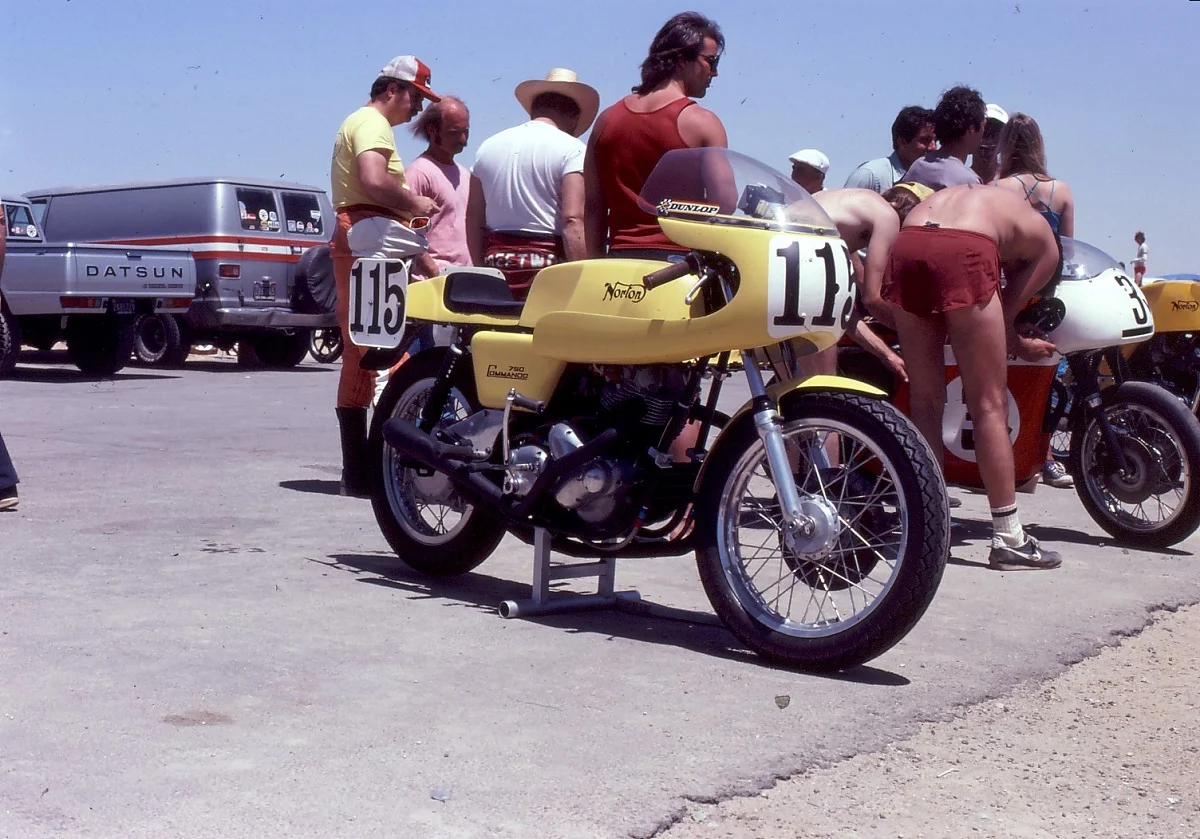

    Lockhart cooler on my PR back in 1982.

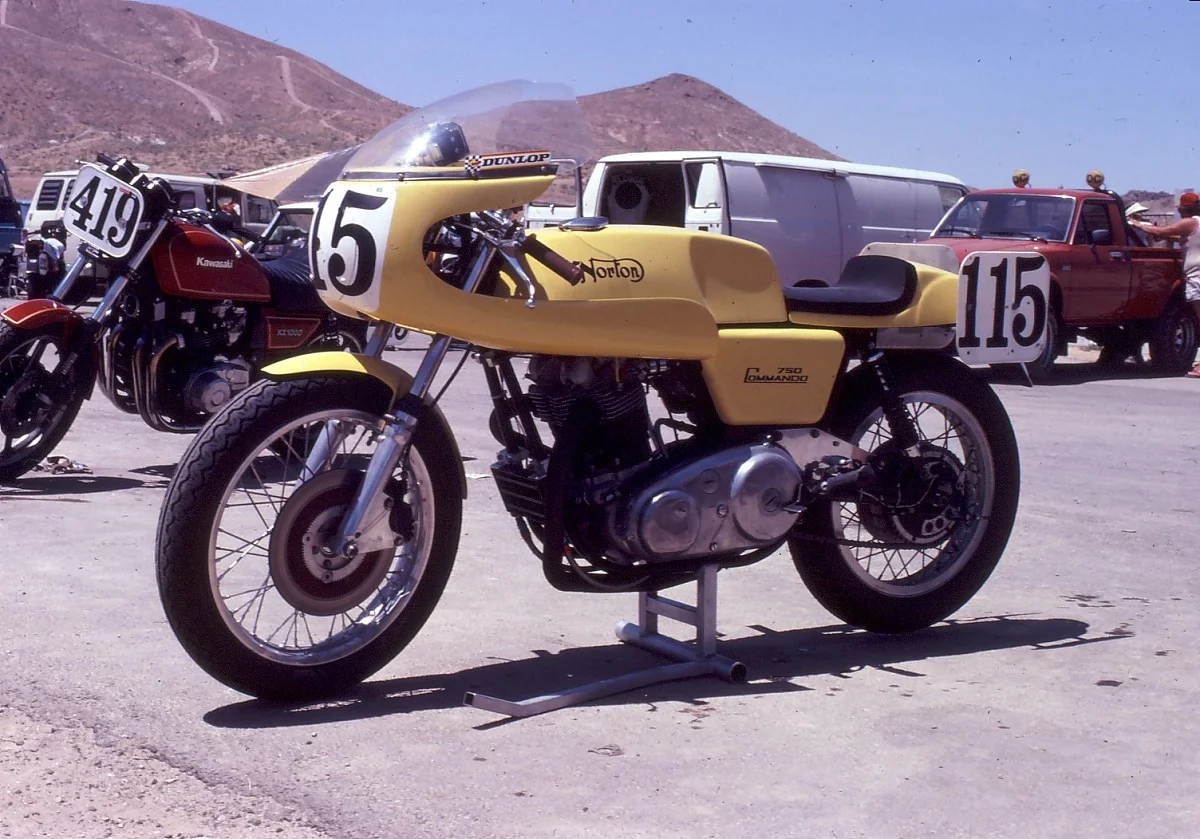

    Right Side in Pits 1200.jpg

    Left Side 1200.jpg

    Ken

    concours likes this.
  8. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009

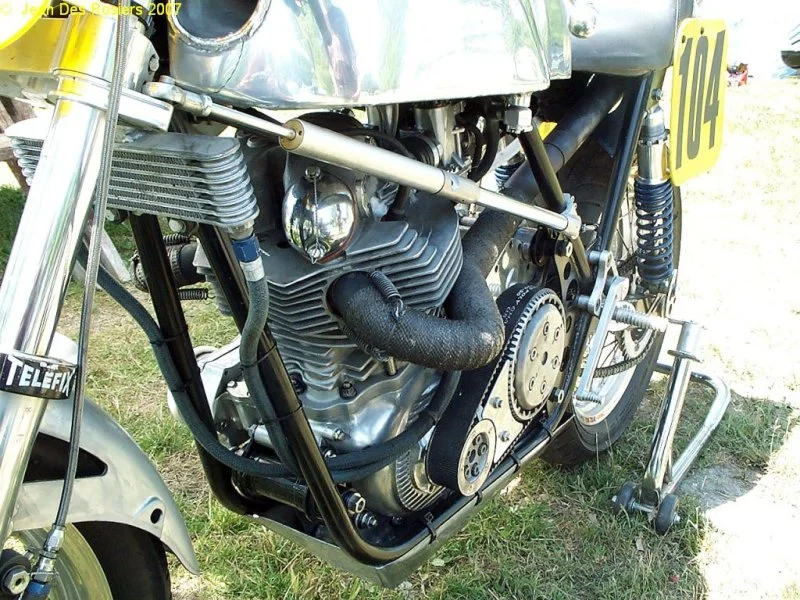

    This picture from Jim Comstock's archives shows one iteration of his race Commando with a high mount cooler.


    Ken

    concours likes this.
  9. jimbo

    jimbo VIP MEMBER

    Joined:
    Sep 25, 2004

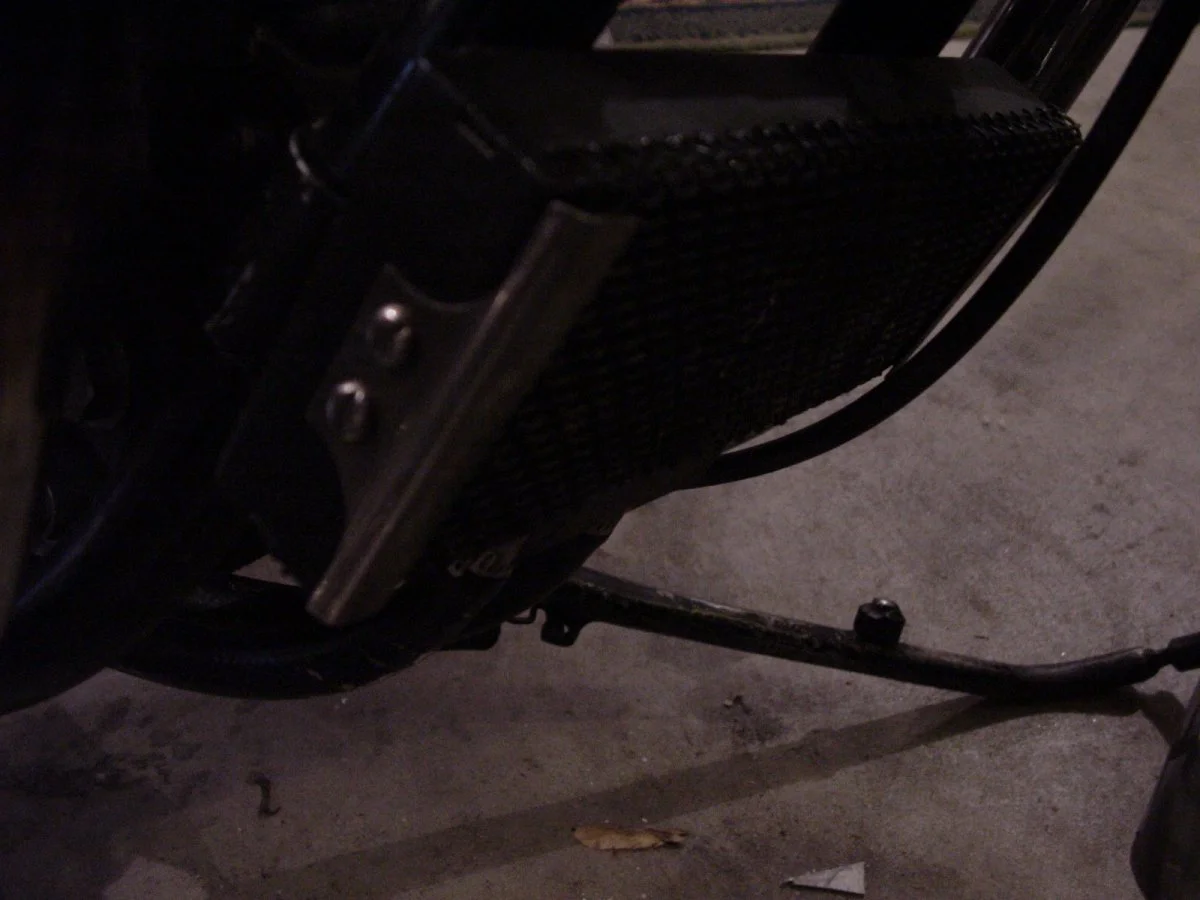

    see the heavy wire screen?

    concours likes this.
  10. Onder

    Onder

    Joined:
    May 11, 2010
    No, I didn't, but I do now. Thanks for pointing it out.

    concours likes this.
  11. ashman

    ashman

    Joined:
    Jul 11, 2010
    Thats the best place for it and is where I put my Lochart oil cooler for last 42 years, only one bolt to mount it and has free unrestricted air flow over the front guard and under the bottom triple tree, down low and you get restricted air flow from your front wheel and guard.

    Ashley

    concours likes this.
  12. zotz

    zotz

    Joined:
    Jul 15, 2007
  13. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010
    Yes, that’s why an extrusion or billet is used. I wouldn’t dream of using a tube and foil design in that location. The fins on an extruded design, compared to a foil and tube design, can take small stone hits and they even shield the drillings through which the oil passes.


    Attached Files:

    Last edited: Jun 8, 2019
    concours likes this.
  14. olympus

    olympus

    Joined:
    Aug 5, 2017
    Now that's what i call a serious steering damper .... more like a high jump pole:D

    concours likes this.
  15. kraakevik

    kraakevik

    Joined:
    Oct 12, 2009
    Mine is the Hyde bottle-brush type between the downtubes with a thermostat behind the engine--it actuates at the first stoplight after any freeway run when the temperature is over 50F


    Tim Kraakevik
    kraakevik@voyager.net

    concours likes this.
  16. lcrken

    lcrken VIP MEMBER

    Joined:
    Mar 15, 2009
    Well, Jim never has been one to do things halfway.

    Ken

    concours likes this.
  17. acadian

    acadian VIP MEMBER

    Joined:
    Mar 5, 2010

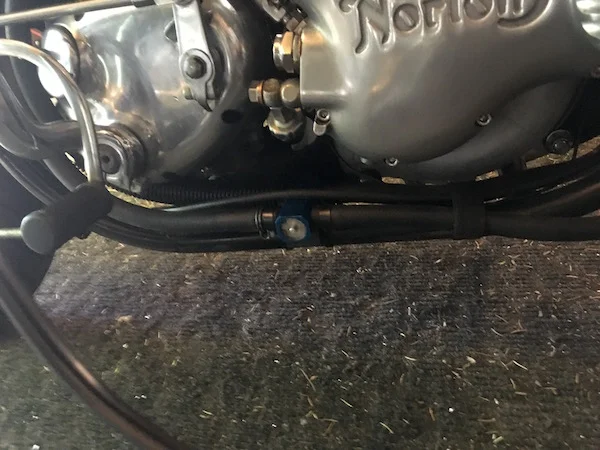

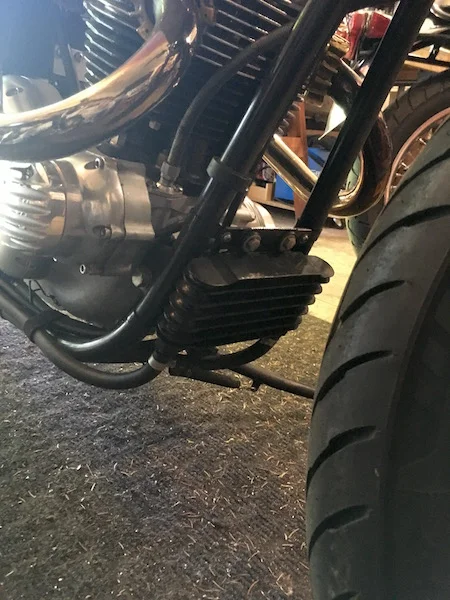

    Cooler mounted down low, bypass valve mounted on lower frame rail
    IMG_2890.JPG IMG_2891.JPG

    concours likes this.
  18. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010
    In the ‘70s I got hold of a Trident/Rocket III cooler and installed it up high on down tubes under steering head but I found that at full fork compression the front fender crashed into the cooler. That was on a ‘71 Roadster.

  19. ashman

    ashman

    Joined:
    Jul 11, 2010
    My Lochart cooler sits up hi and has been there for over 40 years and has never hit the front fender, but the Trident coolers are a lot thicker and would sit out more, but the forks compressing that far up???

    Ashley

  20. xbacksideslider

    xbacksideslider VIP MEMBER

    Joined:
    Aug 19, 2010
    Yep, fender crashed into and dented the fender . . . . Griffith Park, lots of hard downhill braking often over bumps, Being young and dumb, and cheap, once the fender was bashed and the cooler not leaking, I ran it that way for years.
