Norton Wideline frame ID

Joined
Jan 21, 2010
Messages
15

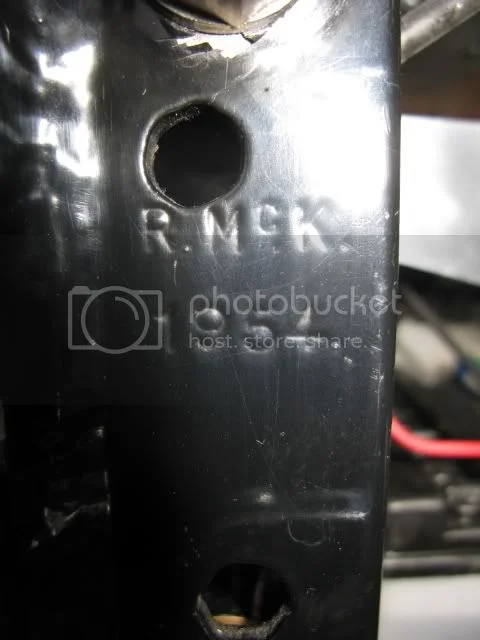

Hi guys, just brought another Triton (I know it's an illness!) and the frame has a strange stamp on it and I wondered if anybody recognised it:

R.McK
1954

Thanks again

Jamie

Joined
Apr 20, 2011
Messages
4,606
Country flag
Need to see a sideways pic of frame to determine if it is a Manx.
Either way, if it is a 1954 frame it's a wideline.

Joined
Jan 21, 2010
Messages
15
The Triton wideline frame I have, has 'R.McK 1954' stamped on it and has some small differences that a normal road featherbed. Can anybody shed any light on this frame?

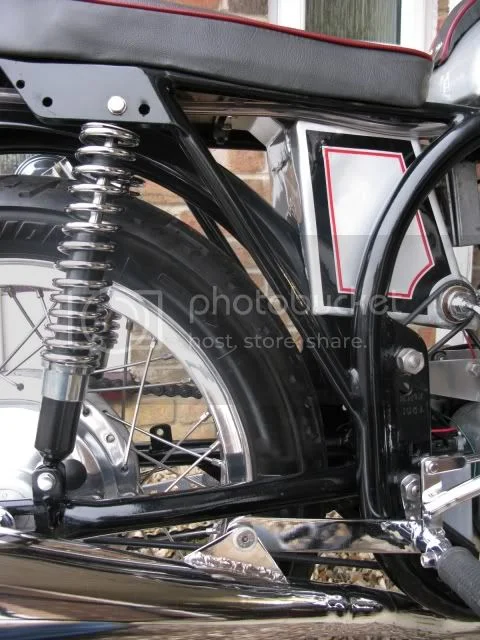

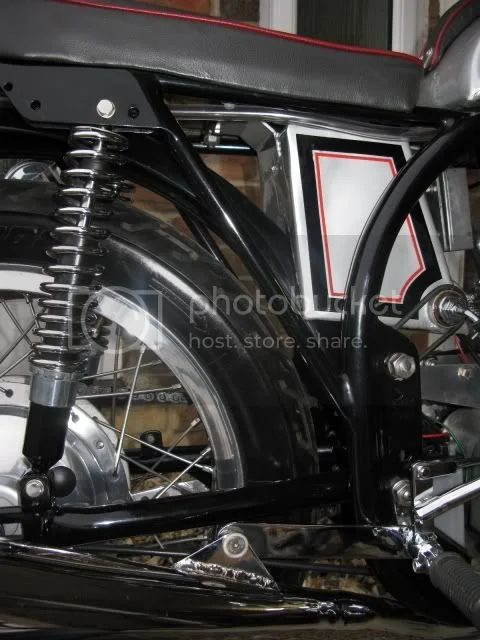

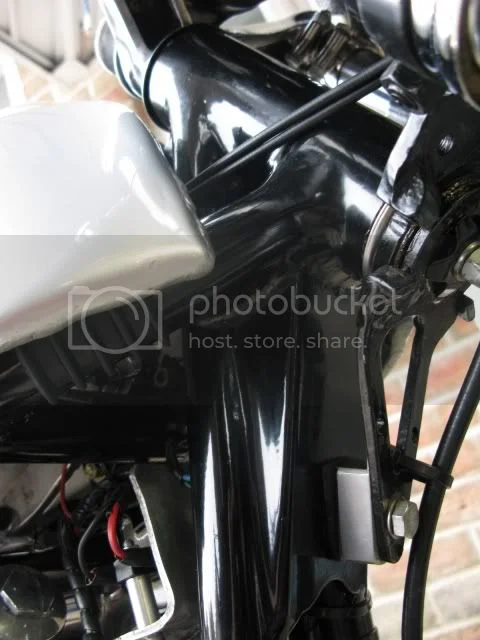

The frame is on a Triton I just brought and it was put together in 1984 (when it was registered). There are no other numbers on the frame that I can see (it looks like powder coat) but it is different than another road wideline frame I have. The diagonal seat tubes (not sure of the proper name) are much thinner guage tube and the seat has a curved bracket supporting it (see pics). I have noticed that the seat tubes also have two rougher patches on them in exactly the same place both sides - looks like the number plate brackets were removed at some point, and also there is a flatter section on the front of the headstock that looks again like it may have had a fairing bracket removed.








I will try and contact the NOC and try and get some more information.

Thanks again

Jamie

Joined
Apr 20, 2011
Messages
4,606
Country flag
You must have a very rare early featherbed frame if it is original!
The initials stand for Rex McCandless, the original designer, along with his brother Cromie, and maker of the featherbed frame, see;

http://en.wikipedia.org/wiki/Featherbed_frame#Origins

the seat sub frame was a bolt-on section originally, and has, without question, been modified with brazed on tubes.


grandpaul

VIP MEMBER
Joined
Jan 15, 2008
Messages
11,062
Country flag
McK = McCandless?

K isn't C; is that how they stamped them?

Curiouser and curiouser...

Joined
Aug 26, 2010
Messages
8,216
All-welded frames appeared later in 1954, for roadgoing frames.
Roadgoing frames were numbered on the left side swingarm gusset - you show the right side ?

Bracing around the headstock looks to be the roadgoing version.
Is it hi-tensile tubing, or unusually light ?

Clearly been reworked at a later date to Triton it, does that make it anything special ?

Joined
Jul 25, 2010
Messages
4,962
Country flag
Could be one of thes4e ' new build ' frames . Must be more than a few around by now .

Manx subframe intercepted frame loops a bit below the top. If you put something flat on top of the tubes were the tank goes , the subframe hits DOWN
from there a way , around 3/4 in down . So the seat rails slope forward, raiseing aft.

Were International & other 500 single frames , with a flat on the inside edge of a lower tube , etc etc .

As someone mentioned , the ' road ' frames had a wrap around gusset under the steering head .

Ow about a few pictures of the owle bike , Gov . issita Pre- Unit ? Wottle she do mista . :) :lol:

Joined
Apr 20, 2011
Messages
4,606
Country flag
grandpaul said:
McK = McCandless?

K isn't C; is that how they stamped them?

Curiouser and curiouser...
Thanks for pointing that out, as I missed that.

If frame is welded and not brazed it could be a recent model by one of the few manufactures making them.

There are several books on the Norton by, amongst others, Roy Bacon. There was also a 6 page article in a Classis Bike Mag Nov.1984 on Rex McCandless, who eventually made some of the first featherbed frames at the Norton factory being paid at £1 per hour, which was a very good rate in those days.

Yes......curiouser and curiouser.

Joined
Jan 3, 2011
Messages
446
Country flag
My Guess (and that's all it is!) is that it's a modified road frame. I would assume that the main loops are original but the rest has been added at at later date. Even the bracing around the headstock looks different than a standard bike. Either way, whoever build it did a very good job.
I think you should start looking for a Mr. R Mc K that was born in 1959.

Webby


grandpaul

VIP MEMBER
Joined
Jan 15, 2008
Messages
11,062
Country flag
Webby03 said:
I think you should start looking for a Mr. R Mc K that was born in 1959.
...or DIED in 1959?

Anyway, newborns can't design or build frames worth a darn...

Joined
Aug 26, 2010
Messages
8,216
The date stamped there is 1954.

We have yet to see a full side-on view of the frame, to see where this fits in the scheme of things featherbed.

Joined
Aug 26, 2010
Messages
8,216
In another thread running here, the name Bob McKeever was mentioned, in connection with racing a Norton at Daytona in the late 1940s. As we all know, Daytona was a happy hunting ground for Nortons in the late 1940s and early 1950s.

His initials would be R. McK.
Ring any bells ?

Joined
Apr 20, 2011
Messages
4,606
Country flag
Rohan said:
In another thread running here, the name Bob McKeever was mentioned, in connection with racing a Norton at Daytona in the late 1940s. As we all know, Daytona was a happy hunting ground for Nortons in the late 1940s and early 1950s.

His initials would be R. McK.
Ring any bells ?
There appears to be yet another UK frame builder that I had not heard of before, who will build in either mild steel or T45 tube, weld or braze. See;


http://www.ebay.co.uk/itm/130577293648? ... 1423.l2649

Joined
Aug 26, 2010
Messages
8,216
I wonder where they obtained 'original drawings' from.
And what year is that, there were so many variations...

Rochedale, isn't that near Unity Equpe ?
Wonder if they have decided to bypass the middleman ?
