Yea no thanks, I would rather have a new gears, case and shafts as it's all apart anyways. I had the money and there was no way I would even try to salvage the case, it was bad. But I can say it's amazing that it was still staying together and it had been that long and that many miles on it since I purchased it. I guess because I don't ride it hard is why it stayed together, But it did teach me a good lesson, don't ever trust someone that says it's been rebuilt and gone through. And matching numbers don't matter to me as safety is much more important to me. Just my thoughts. Chuck.


TomU

1972 Roadster
VIP MEMBER
Joined
Sep 22, 2015
Messages
159
Country flag
I guess i'll replace that set, thanks. A couple of the others show some wear, but not as pitted as the 2nd gear set.

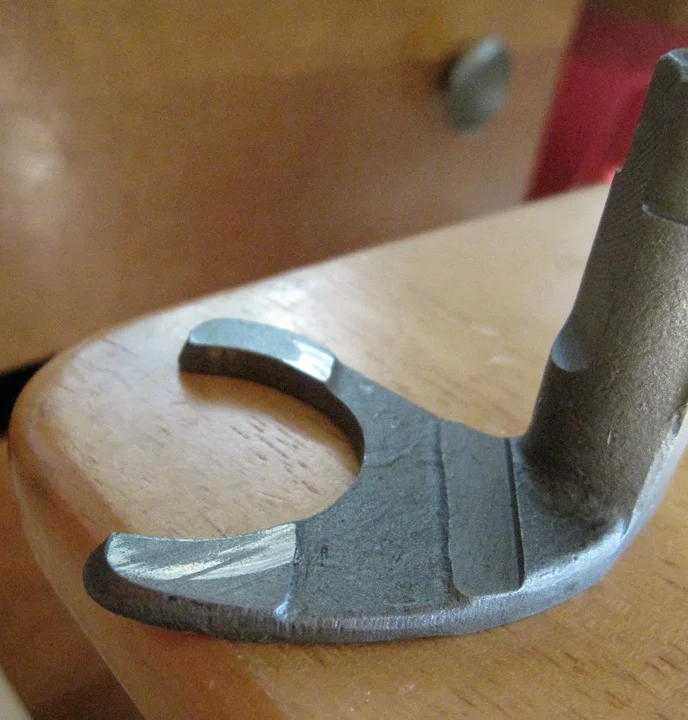

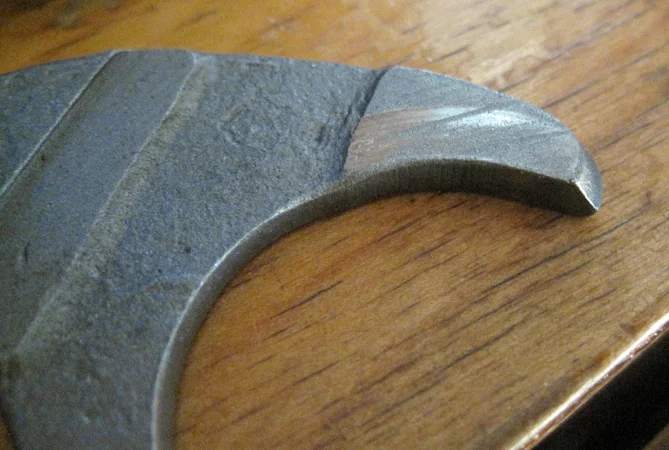

Next question, It's recommended that the entire gear set be replaced, but what about the selector fork? The fork for this set has a little wear, but it doesn't look that bad (to me)




Joined
Oct 12, 2007
Messages
1,838
Country flag
I think the shifting forks look fine, I would change the gears in pairs. My old gears make those look almost new, if the others look better you should be ok. In fact if you don't ride it hard those would last awhile longer, just keep an eye on them and change out bearings and bushings.


TomU

1972 Roadster
VIP MEMBER
Joined
Sep 22, 2015
Messages
159
Country flag
That's my thinking. Probably won't be ridden much (yes, a personal problem). Plan to tear down again in another 15k for a looksey (if i ever get there in my lifetime :p)


TomU

1972 Roadster
VIP MEMBER
Joined
Sep 22, 2015
Messages
159
Country flag

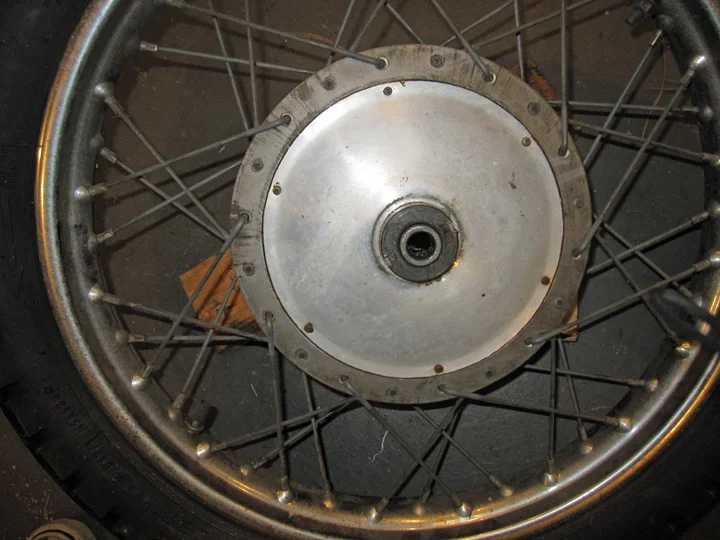

So while i'm waiting on GB parts, thought i'd tackle the rear wheel, but stuck trying to get the speedo lockring off.

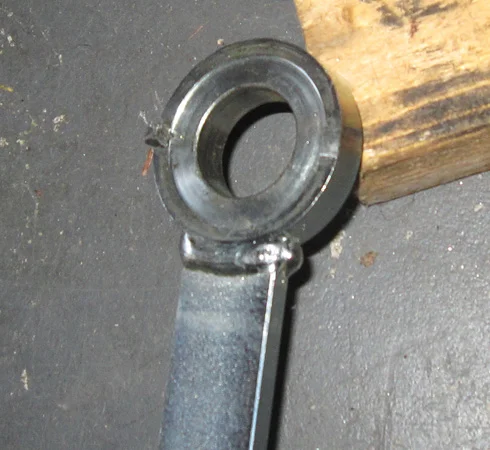

Using the factory peg spanner, i tried first wrenching it CCW. No go. Then tried some soft blows with a hammer CCW (not super hard thinking it might be a LH thread). Sure enough it turns out it's a LH thread. So knowing that, i proceeded to whack it pretty hard CW. Ended up breaking my factory peg spanner :mad:

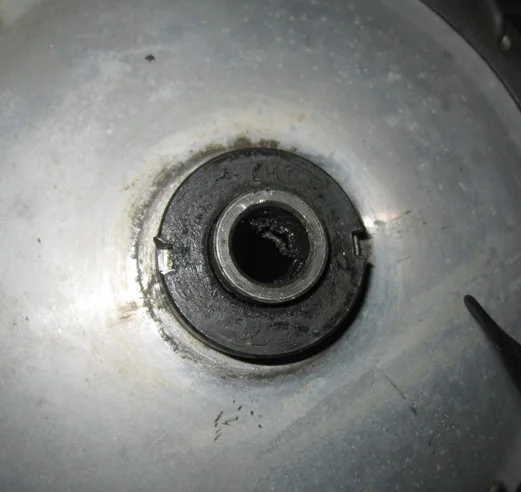

I then heated it up with some propane and whacked it again with a punch. All that did was deform the lockring indents.



Any suggestions. Could this in fact be a right hand thread?


TomU

1972 Roadster
VIP MEMBER
Joined
Sep 22, 2015
Messages
159
Country flag
So the direction is confirmed, thanks. Now any recommendations on removal? I could not find anywhere anyone running into this problem


Time Warp

.......back to the 70's.
VIP MEMBER
Joined
Dec 3, 2012
Messages
2,210
You might as well use a brass drift on it now, a replacement part is under $25.
There is the option of replacing the wheel bearings with 2RS sealed units while there.



L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
15,945
Country flag
So the direction is confirmed, thanks. Now any recommendations on removal?

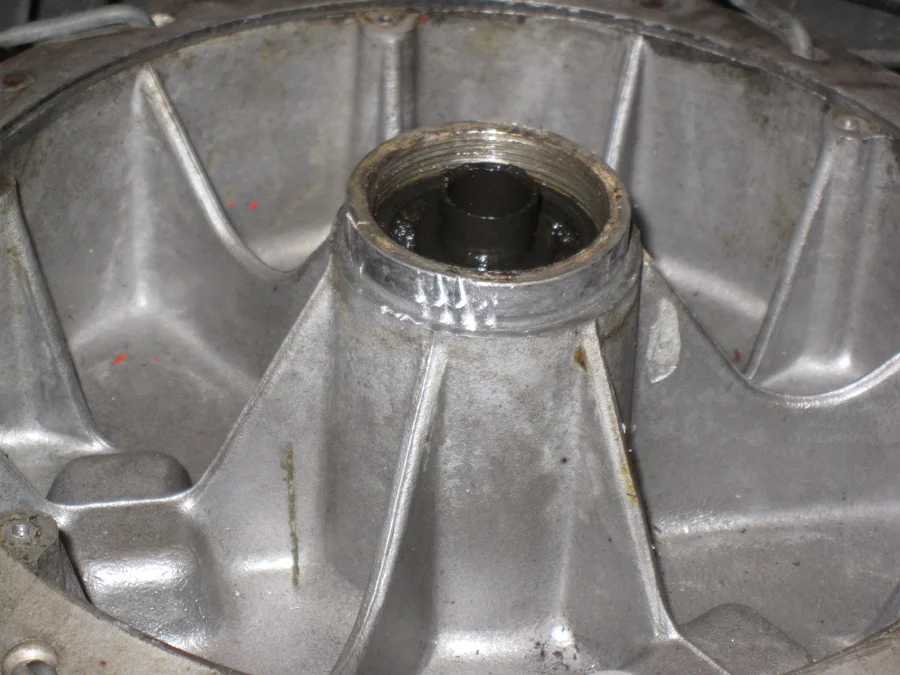

Heat, penetrating fluid and go carefully with drifts or you could end up stripping the hub thread if it has reached a point where it has become stuck.
