Me thinks I may have a problem

Discussion in 'Norton Commando Motorcycles (Classic)' started by Schilling, Nov 22, 2018.

  1. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
  2. speirmoor

    speirmoor VIP MEMBER

    Joined:
    Apr 11, 2010
  3. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018

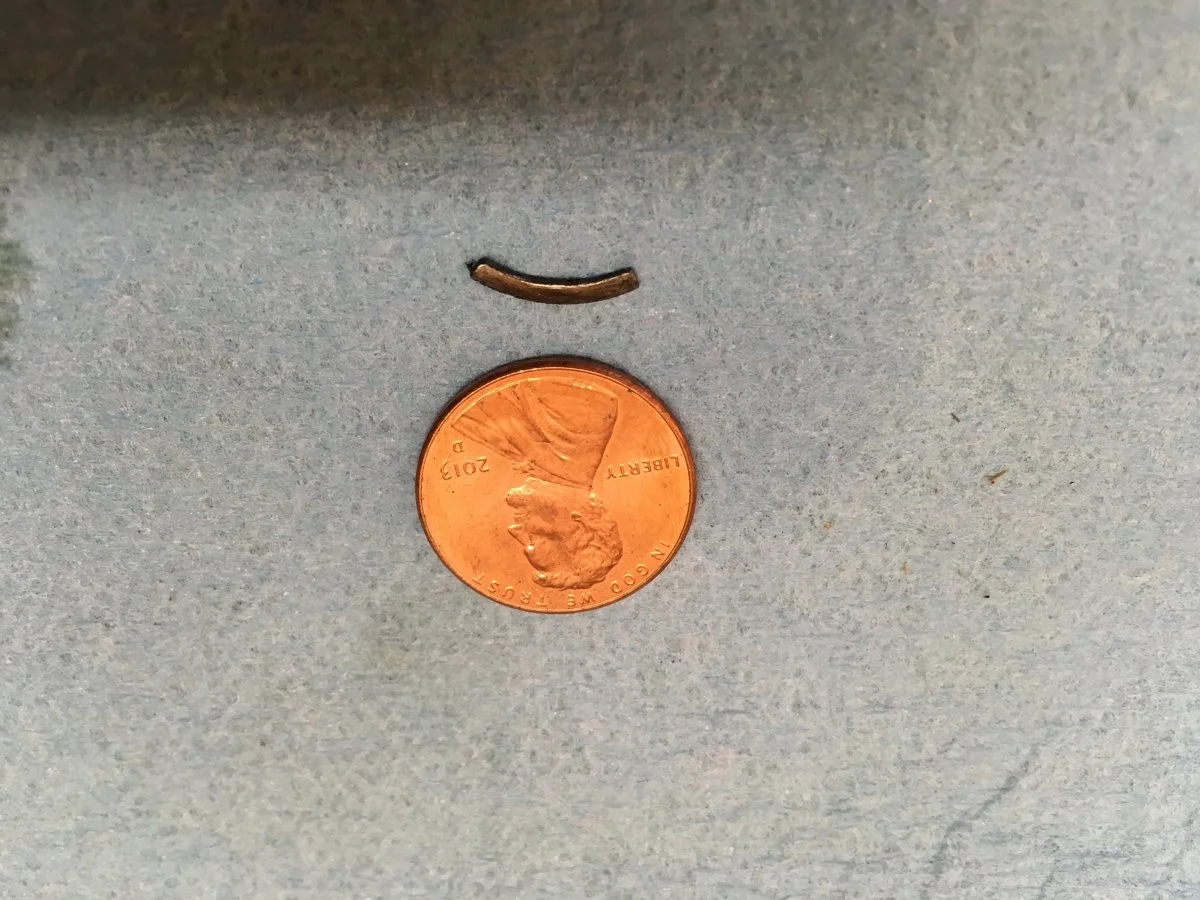

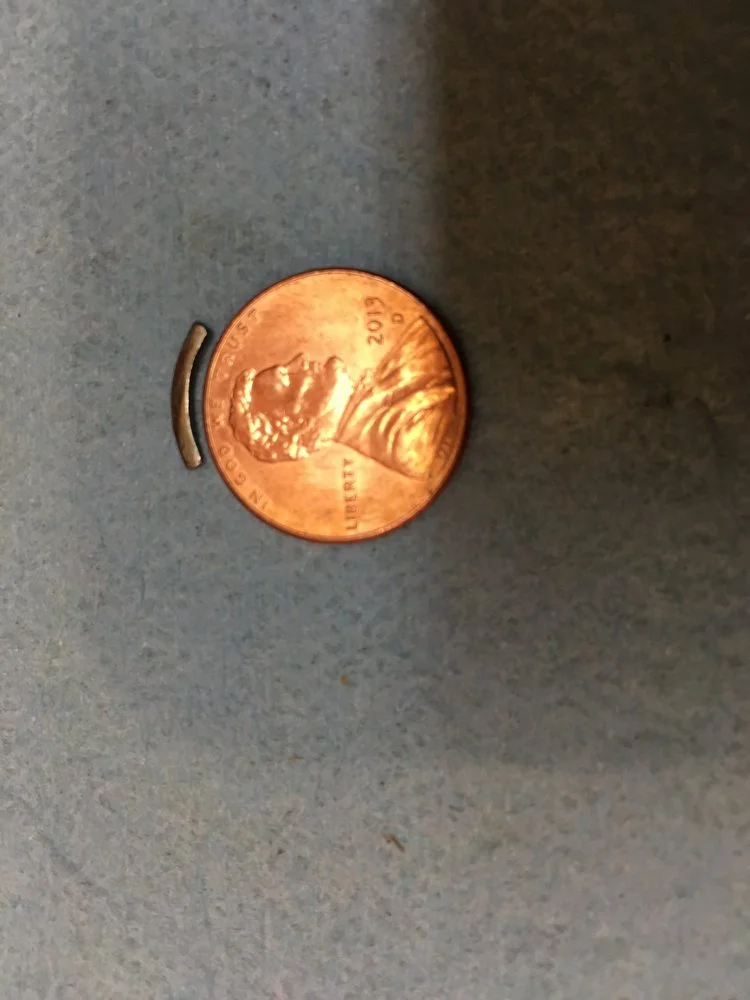

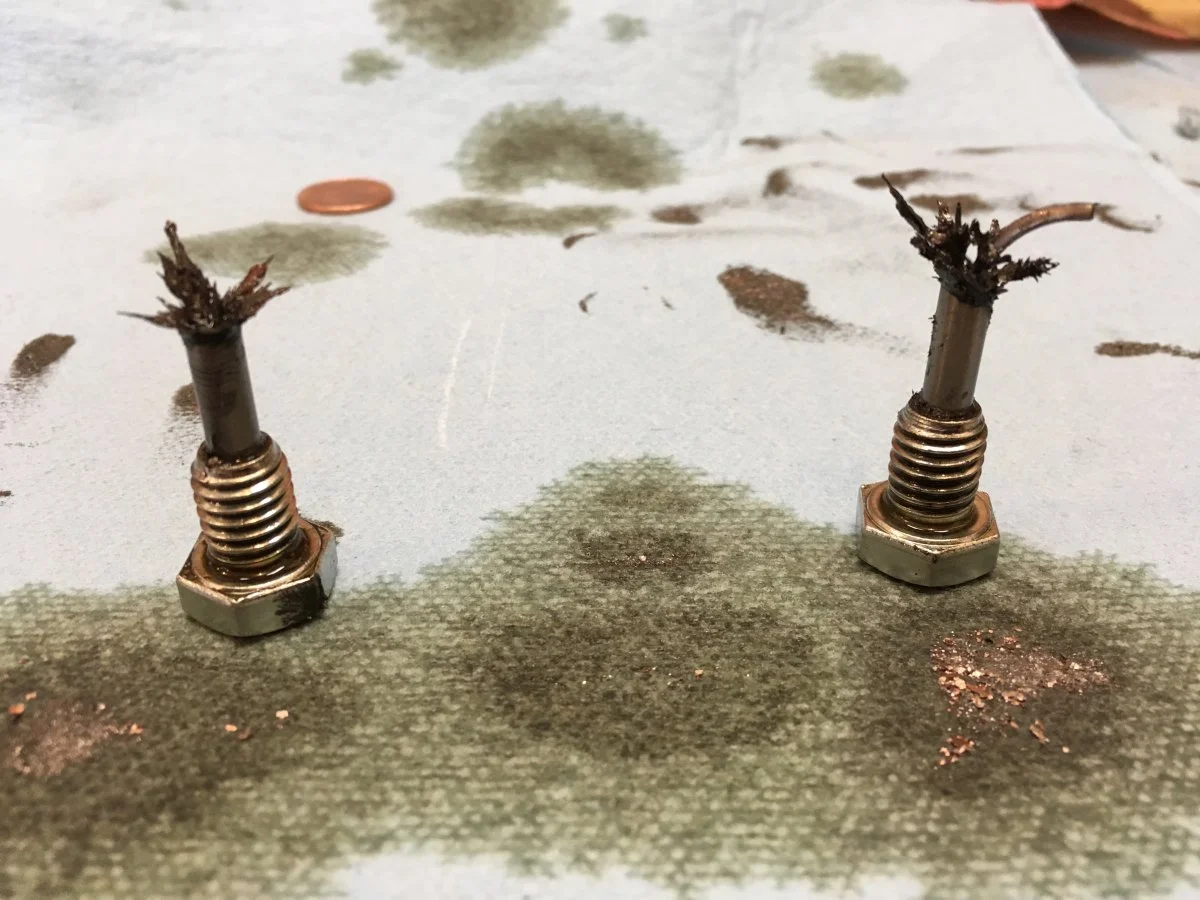

    Sorry,,,I neglected to add any description to the photos, the images are the two magnetic plugs,,,one the engine oil drain plug the other the plug in the sump drain plug. the solid bit sticking up from one of the plugs was then set next to the penny for size comparison. this engine is from a 1973 850 with 12,500 miles on it. I've owned for a year. Ive put about 2,000 miles on it. it had pretty extensive engine work done to it in 2007 and 2008 at about 10,500 miles. I changed the engine oil right after buying it and again about 1,000 miles ago,,,there were virtually no metal bits attached to either plug when the oil was last changed. the last ride on the bike was about 30 days ago and it started to, what i felt, was misfiring,,,,so i rode the 4 blocks home. thought at the time it was a tank of bad gas,,, checking the plugs then i found them to be pretty black and a bit sooty. I also noticed an oil tank leak (unrelated to what i see on the oil drain plugs now). I removed the oil tank, sent it to CNW for upgrade/repair and will be getting it back next week,,,,,so,,,I thought it prudent to drain the remaining engine oil via the two drain plugs in anticipation of the new oil tank and this is what I found... thoughts?

  4. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013
    The chunk next to the penny ...... is it magnetic? It looks like copper in the pic.

    First step: a compression test.

    Slick

  5. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    Yes, the bit next to the penny is magnetic; it was attached to the rest of the particles on the drain plug to the right in the image but I separated it to take a size comparison photo. could be a section of a piston ring?? there are many tiny bits of copper/bronze (not sure which metal for sure) that show up on the blue paper rag in the photo, these non-magnetic bits had settled at the bottom of each drain plug ("bottom" meaning where the threaded portion meets the head)

  6. Deets55

    Deets55 VIP MEMBER

    Joined:
    Oct 3, 2013
    Piston circlip?

  7. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013
    I first thought it to be a piece of a ring, but the color contradicted that. Being magnetic, it is likely piece of a ring.

    Have you been running hot, or idling long on a very hot day prior to the symptoms you described as misfiring occurred?

    I am thinking seized piston, the brass or bronze stuff you see being the expander ring.

    A compression check should be definitive.

    Report back.

    Slick

    Update: just read Deets55 post which came in while I was writing this .... I think he has nailed it as a piece of circlip.

    The rest of the magnetic debris might be the result of the gudgeon (wrist) pin gouging the cylinder wall.

    Sorry .... don't shoot the messengers. Keep us posted.

    Last edited: Nov 22, 2018
  8. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    could be,,,i'm going to try to trace the bit and extend the curve to full circle to find the diameter, thank you for your response

  9. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    Thank you Slick for your response, very little of my riding was/is done hot, no excessive idling either, generally first or second kicks to start, put on my jacket and head gear, and off I go. I'll work on getting the compression test done this weekend, thanks again for your input/insight

  10. texasSlick

    texasSlick VIP MEMBER

    Joined:
    Jan 2, 2013
    O.K. No over heating means rule out piston seizure.

    Circlip coming out of groove can happen anytime.

    A bore scope can determine if there is a groove at the 3 or 9 o'clock position in the bore. I would do the compression test .... if poor, pull the head.

    Slick

  11. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010
    I have to say if I saw that lot I would strip the motor straight away

    concours likes this.
  12. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Yeah, circlip seems most likely I’d have thought.

    Whilst that’s bad news cos it means a top end rebuild... IF you’re lucky and IF you caught it in time, you may get away with the bottom end being OK.

    Fingers crossed for you.

  13. Dances with Shrapnel

    Dances with Shrapnel VIP MEMBER

    Joined:
    Jul 8, 2011
    It looks like a fragment of a square section circlip. Too tight a radius for a piston ring, lack of sharp edges and it looks like a die cut piece. See other threads here about proper installation of these types of circlips. It probably wallowed out the pistons enough to pass the circlip fragment to the crankcase. Well that is my theory.

  14. 850commando

    850commando

    Joined:
    Nov 1, 2014
    i think the radius is to big for a circlip.

    concours likes this.
  15. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    tomorrow (Friday) I'll do a boroscope check as well as a compression test. the diameter of the solid bit turns out to be very close to the same as the penny,,,right about .7 of an inch. thanks again to all that have given input and responses, much appreciated !

  16. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    thank you Sir

  17. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    I'm guessing at least part of the motor will be getting refreshed, could be worse,,,it could have happened much farther away from home,,,and where I live cell phone reception is spotty at best,,,so I was able to get it back here pretty much straight away

  18. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    Thank you, messengers don't get shot by me. I would rather hear as much info/input as possible instead of the other way around,

  19. concours

    concours VIP MEMBER

    Joined:
    Dec 29, 2011

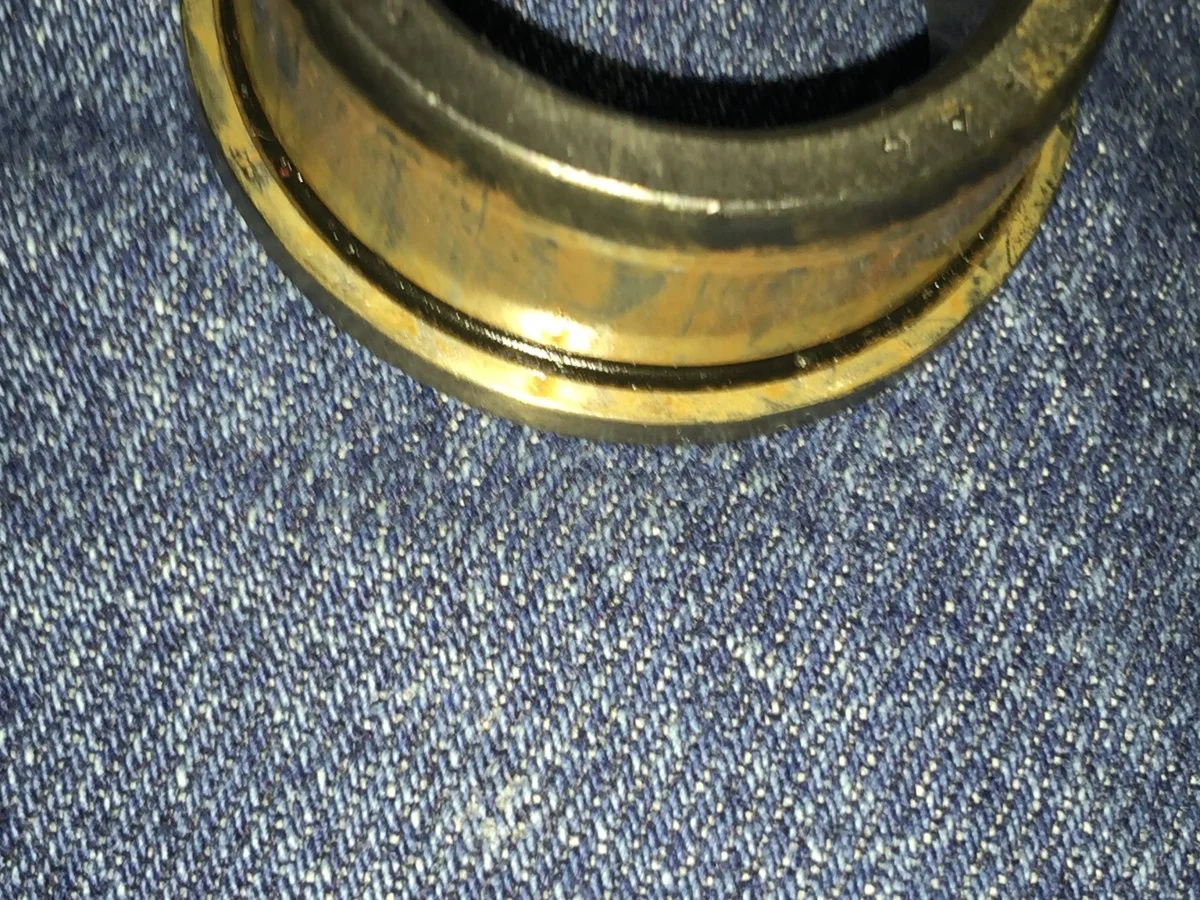

    Crank bearing shoulder 89F87637-97A8-4238-8742-404278EF7F97.jpeg

  20. Schilling

    Schilling VIP MEMBER

    Joined:
    Jan 15, 2018
    the thickness of the solid bit is (right about) .034",,,the thickness of the edge of the penny is right about .059
    the coloring of the solid bit in the picture makes it look more copper colored than it really is,,,it's really just a gray magnetic piece of metal
