Lost Neutral light ?

speirmoor · Sep 10, 2020

Battery totally depleted (again!) and now that everything is back charged up I don’t have a Neutral light. Anyone know if left there’s a fix for this or at least where this circuit starts and ends ? Any leads will be pursued tomorrow, Thanks

TonyA · Sep 10, 2020

Neutral switch is behind the front sprocket cover . This wire will lead up to pin 8 of the 14 pin speedo plug 2 . The neutral switch brings in a ground when actuated to turn on the N light. If you had the flickering Neutral light mod look for this patch cable , it may have broken there.

speirmoor · Sep 11, 2020

TonyA said:
Neutral switch is behind the front sprocket cover . This wire will lead up to pin 8 of the 14 pin speedo plug 2 . The neutral switch brings in a ground when actuated to turn on the N light. If you had the flickering Neutral light mod look for this patch cable , it may have broken there.

That's a great starting point Tony, Thanks

speirmoor · Sep 11, 2020

Bang on! Tony

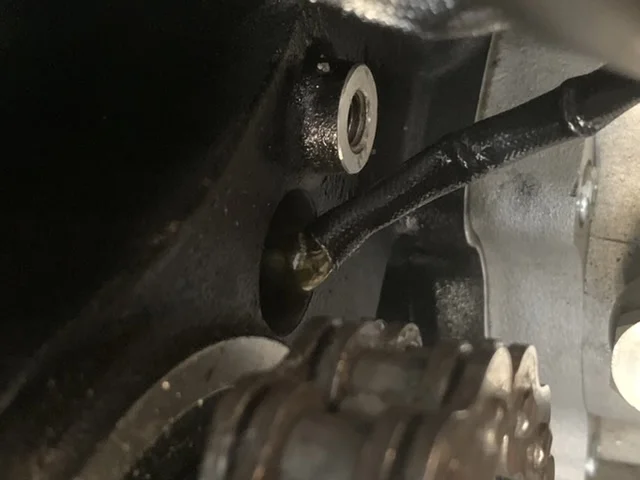

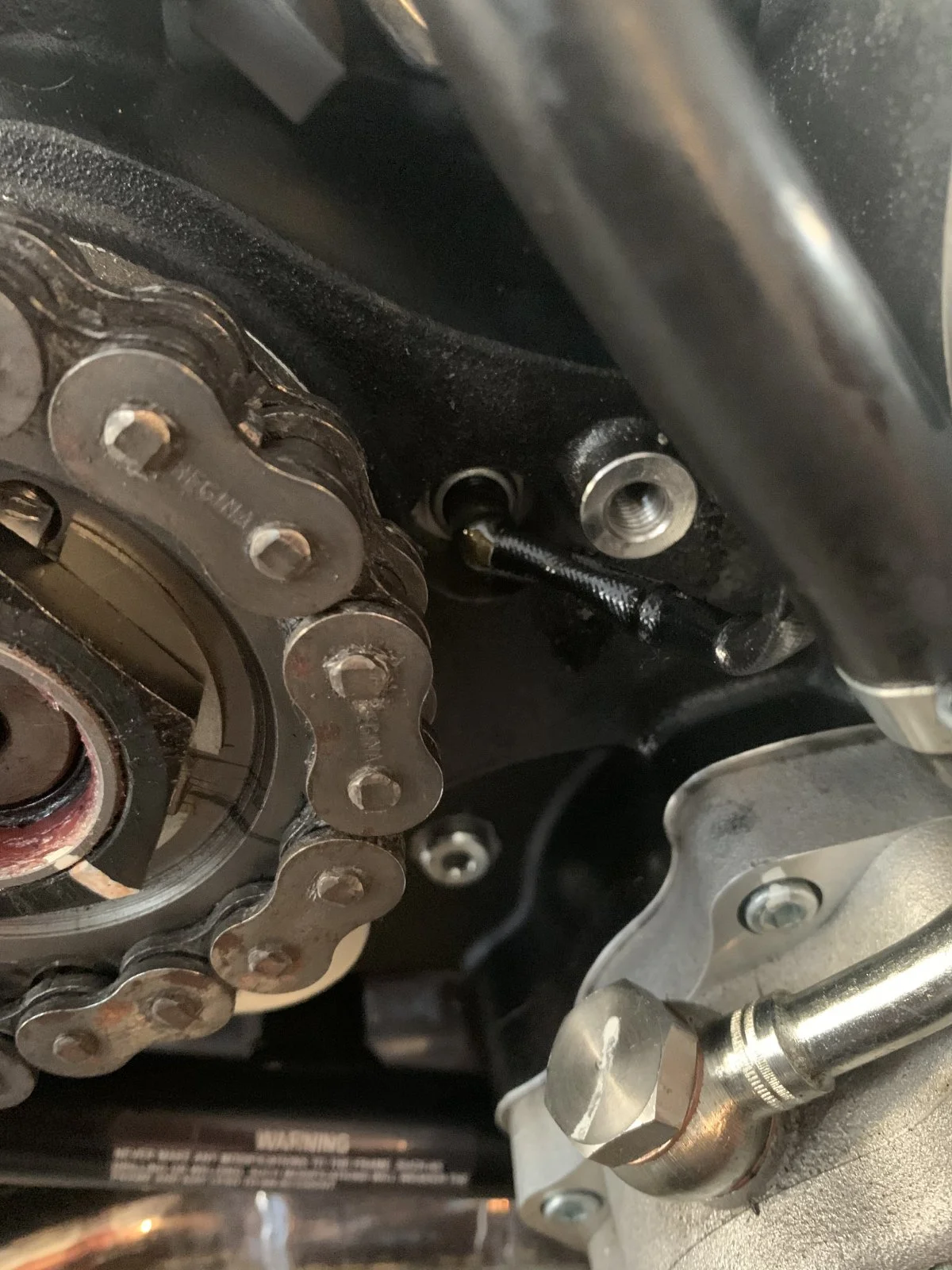

Behind the cover the wire had come undone. I love this forum
