Last train to Glasgow Central..........Last Traaaain......

Discussion in 'Triumph (Classic)' started by auldblue, Sep 29, 2016.

  1. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Re: Last train to Glasgow Central..........Last Traaaain....

    If you get the stubs hot enough (red hot) the braze should become molten once again so you can remove the bolts.

    Brush/scrape it off (with a wire brush/scraper) while still in its molten state.

  2. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Re: Last train to Glasgow Central..........Last Traaaain....

    You won't soften braze up without melting it. Really not sure a whether or not propane touch can do that?

    I was serious about the angle grinder. Cut off the heads and drill out whatever is left, bit of silver spray paint, new bolts and yer sorted.

  3. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Re: Last train to Glasgow Central..........Last Traaaain....

    Cheers guys, I have a small brazing kit Nigel, but I am not confident about softening the braze. The bolt heads are round and not to thick, I thought about buffing them down with a flap wheel on the 5" hand grinder and then drilling them out with a pillar drill. I do not want to bugger up the stubs .

  4. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Re: Last train to Glasgow Central..........Last Traaaain....

    Missed this post Les, I will give this a go later today if I get the stubs off , cheers

  5. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    Re: Last train to Glasgow Central..........Last Traaaain....

    Yowza, this has been one mighty fiddly overhaul!

  6. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Re: Last train to Glasgow Central..........Last Traaaain....

    Could not manage to melt the braze with the equipment I have at my disposal , so cut and drill is the way forward. I have one off and it's ok but I have done nicer jobs but it won't be seen.


    It has Paul , a lot of it down to me not tackling the whole bike but doing one bit at a time and not renewing things I should has eaten up the time. But I am enjoying the process as it's the first Bonnie I have worked on hopefully I will ride it near the end of the month....spanners crossed !

  7. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Re: Last train to Glasgow Central..........Last Traaaain....

    Had a go at putting the head on ,it did not go according to plan . The centre head bolt seemed very tight before torquing , took it back off and the bottom two threads were gone could have been me but I run a tap down the threads and gave it a couple more turns . We will have to see if that improves the situation with a new head bolt.

    Ready for another go tomorrow. I took the oil tank off and gave it a good clean but this has made me think I should have a look at the box and also do the sludge trap bearings shells etc rather than use it with no work to the bottom end as the rest of the machine was in such a poor condition.

  8. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Re: Last train to Glasgow Central..........Last Traaaain....

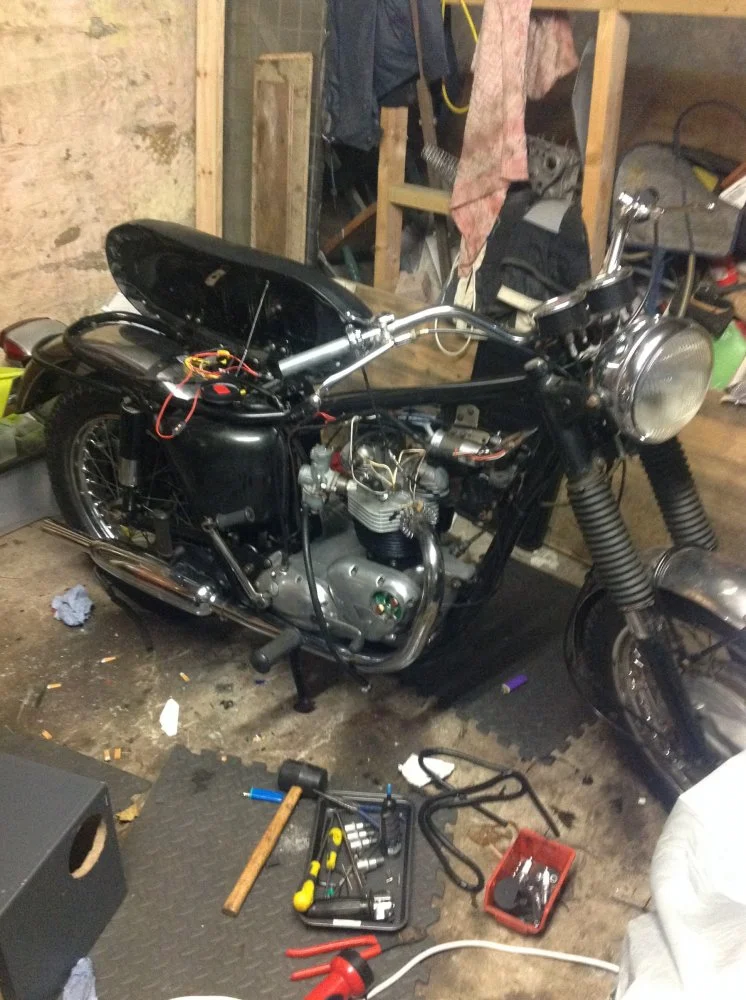

    Stuck the head on ,seemed to go according to plan, however my preparation for this job on hindsight was poor to say the least. As I had changed the head the rocker box 1/4 bolt were not the tidy shaped cycle thread but the later UNC bog standard type which I had neglected to try first so had to order a set up.
    [​IMG]

    [​IMG]

    A fair bit of tidying up of wires and hoses,also an earth wire was connected to the battery box ,I moved it to the rear head steady as I thought it would be a better earth.

  9. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    image.png image.png image.png

    Went to Hinkley for a spin ,to the new museum with the mk1stoc boys . The bikes looked good including the one on display.

  10. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    fuse holder faulty, getting a bit closer! image.jpeg

  11. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012

    T120 started up and running, just a bit of wiring to tidy up. Tried to show a video but said file was too big ?

  12. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Nice one Jimmy.

    What’s next... tidy the workshop...? ;)

  13. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012

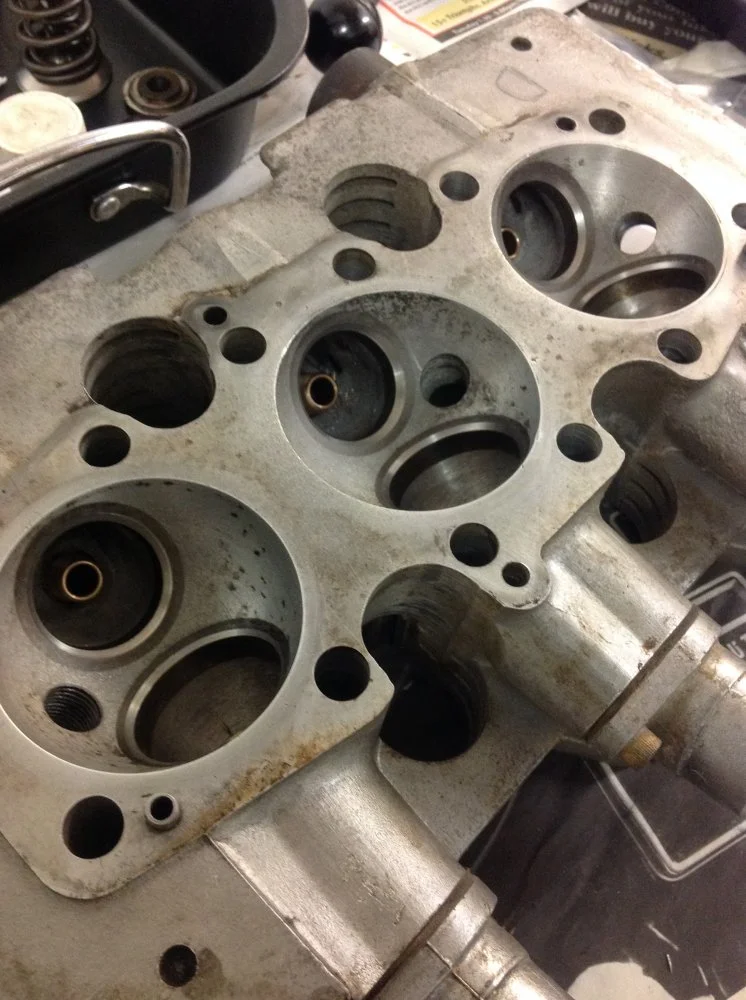

    Cheers Nigel, rapier like wit as per. Next ,well.......getting the guides reamed and exhaust seats cut on the 160. image.jpeg image.jpeg image.jpeg

  14. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Top man... cracking on with the next job straight away... no 'standing on ceremony' !

    Who's valves and guides did you use?

    I fitted NOS to a T160 once, only to find out they had as much slop as the ones that I had removed assuming they were worn out !!

    I imagine modern parts supplied by LP Williams etc would not suffer the same?

  15. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Funnily enough you're the second person to remark on that point! Guides and valves indeed came from LPW and after fitting the guides,the valves will not fit without reaming. All valves measured were a constant two and a half thou under, I should get the head back for the weekend with the three exhaust seats cut.

    You have been a busy boy yourself!! That 68'er has been shown some BIG love any summer events planned with it?

  16. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    My big challenge in life Jimmy is... knowing when to stop...!

    I bought a set of Morgo barrels, billet MAP pistons, 6mm stemmed Kibblewhite valves and conical springs etc for the Bonnie, even though it’s now ‘finished’!

    So... I managed to slap myself just in time... my plan now therefore is to leave the bloody thing alone, and all that kit on the shelf, and ride it !

  17. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012

    You got your 68, next year is the big five oohh.....good times ahead for you Nigel and I hope the family are all well.

    My young daughter is now over a year In remission but we still take it a day at a time. Ride it,build it whatever takes your fancy as long as it's fun.

    The DGR Glasgow was pissin it down but we had a hoot, small child on mando at Glasgow Triumph.

  18. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    A year in remission is a good sign Jimmy. Fingers crossed for her...

  19. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    Thanks Nigel

  20. auldblue

    auldblue VIP MEMBER

    Joined:
    Nov 20, 2012
    @ image.jpeg image.jpeg

    160 head back , getting parts and tools ready for grinding in the valves.
