Inner transmission cover

P

PJFlynn

Joined

Apr 26, 2017

Messages

86

• Apr 17, 2018

• #1

How in the he'll do u get it off.tried every wrench I have nothing fits do I have to make my own?



ashman

VIP MEMBER

Joined

Jul 11, 2010

Messages

6,006

• Apr 17, 2018

• #2

Whitworth socket, orginaly when I first done my GB back in the late 70s I used a AF box spanner to fit the nuts but these days I have full set of WW sockets, ring and open spanners, makes life a lot easier having the right tools without forcing the wrong tools on the nuts.

Ashley



74ok

Joined

Aug 10, 2014

Messages

2,080

• Apr 17, 2018

• #3

http://www.oldbritts.com/gearbox_d.html



Ron L

VIP MEMBER

Joined

Feb 27, 2004

Messages

3,240

• Apr 17, 2018

• #4

The two outer nuts on the inner cover will need an open end wrench or a thin wall socket. Japanese Kokon sockets in British sizes are relatively inexpensive, strong, and thin walled. A hammer and flat punch may be used to remove the clutch operating lever lockring, but be careful not to destroy it unless you plan on replacing it.



G

guest76

Guest

Joined

Nov 5, 2012

Messages

1,034

• Apr 18, 2018

• #5

I also struggled when I stripped the gearbox recently to play with the reversed camplate.

When I reassembled it, I used some of RGM's reduced hex nuts.

LINK to their site.

Hopefully next time the job will be a lot easier!!



norton bob

Joined

Nov 29, 2013

Messages

613

• Jun 30, 2018

• #6

RGM reduced hex nuts make the job a breeze.



850commando

Joined

Nov 1, 2014

Messages

922

• Jun 30, 2018

• #7

RGM is nice if you are on their side of the pond... does anyone in NA carry these nuts?



CanukNortonNut

Joined

Aug 8, 2005

Messages

2,835

• Jun 30, 2018

• #8

850commando said:

RGM is nice if you are on their side of the pond... does anyone in NA carry these nuts?

Click to expand...

I just ordered from RGM whats the problem? Do it
T



CanukNortonNut

Joined

Aug 8, 2005

Messages

2,835

• Jun 30, 2018

• #9

PJFlynn
Welcome to the real world of the Norton Commando. you need to get whitworth wrenches to work on these bikes.
t



Last edited: Jul 1, 2018

RoadScholar

Joined

Dec 28, 2008

Messages

2,035

• Jul 1, 2018

• #10

850commando said:

RGM is nice if you are on their side of the pond... does anyone in NA carry these nuts?

Click to expand...

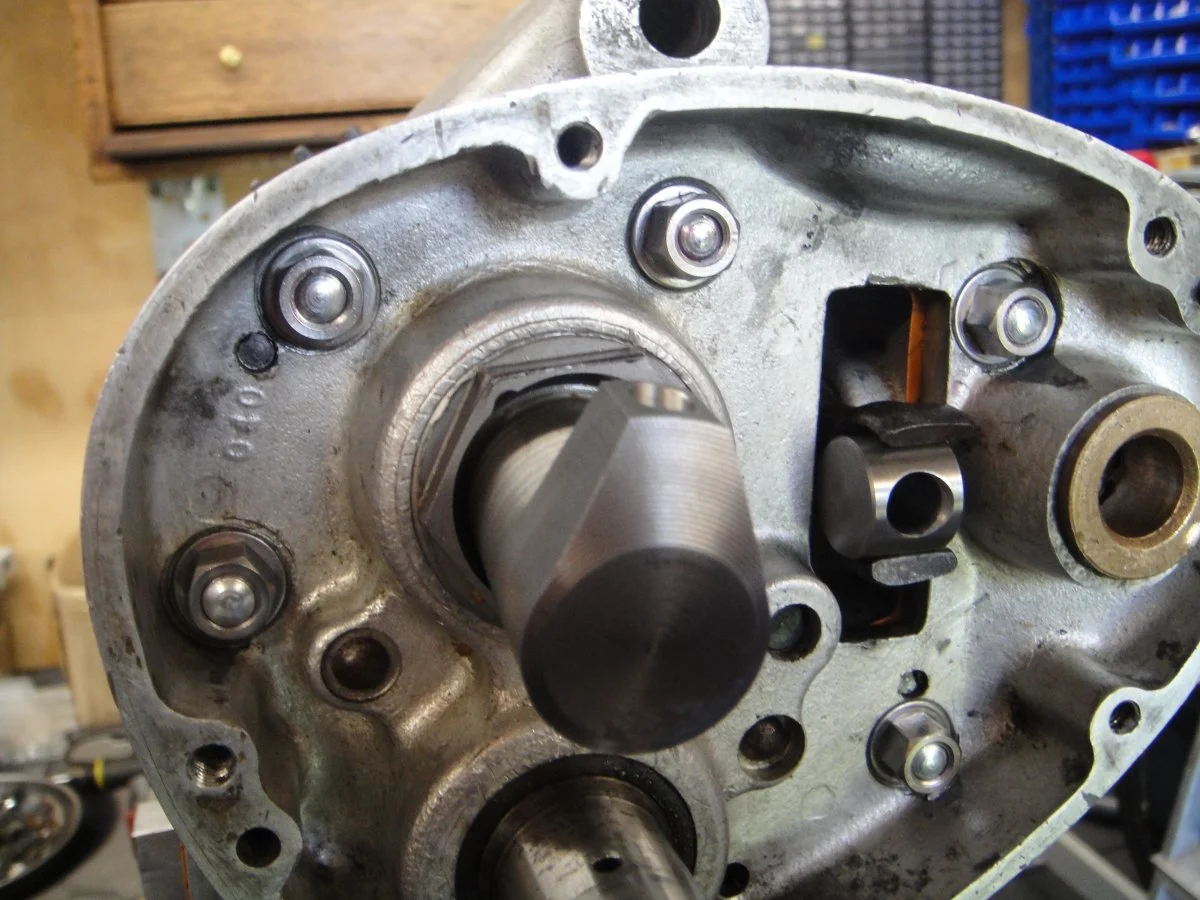

Rocky Point Cycle can get you as many of the 5/16-26 hex nuts as you like, we also carry 5/16-26 stainless steel dome nuts for the two inner cover studs that express themselves to the outside of the cover.



850commando

Joined

Nov 1, 2014

Messages

922

• Jul 1, 2018

• #11

good to know
