FT drum brake plate shoe anchor

Status
Not open for further replies.
elefantrider

elefantrider

Joined
Apr 6, 2013
Messages
1,446
Country flag
Rebuilding a front brake plate in which the shoe has fused to the bottom rivited-on anchor. (the one next to the front screen).
I was able to remove the shoe but the anchor is badly pitted and damaged.

To my surprise, I see this anchor is one of the only un-available parts on AN for separate purchase.
Anyone know of a source?

Possibly close but don't think so.

I need the one positioned in the 5 - 6 o'clock position in the opening of this video:

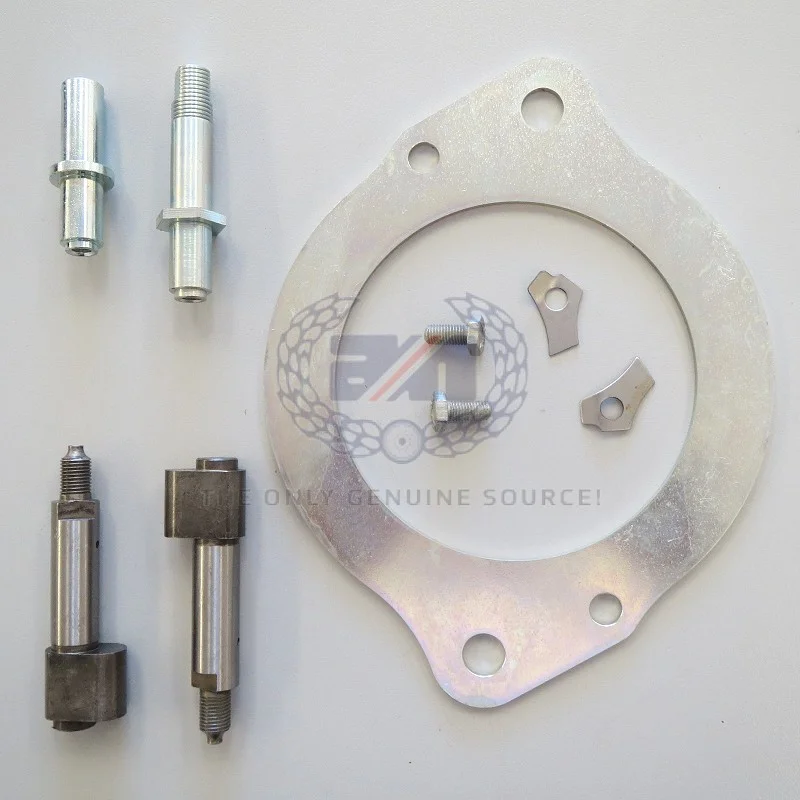

There are two expander cams and two pivot pins. The shorter of the two must be drilled out to fit the 06.3273 stiffening plate pin which is the one in the previous link and I would think should fit without the stiffening plate.
FT drum brake plate shoe anchor


"TWIN LEADER FRONT BRAKE, COMPLETE LIST OF PARTS REQUIRED FOR CUSTOMER SELF ASSEMBLY"

According to the brake stiffening kit instructions, there's a chamfered washer under the peened end of the pin.

Got it, thanks Les.
Looks like I would keep my original washer (not supplied) and peen over the lip of the pin on to it.

The stiffening kit looks to have taller pins and cams than stock. At least this brake plate will be ready for a stiffening kit should I decide to add it and the special cams later on.

Last edited:
