Front mudguards...

Discussion in 'Norton Commando Motorcycles (Classic)' started by Fast Eddie, Jul 17, 2018.

  1. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    I’m going down the same road of hassle as Ken did in trying to find a suitable mudguard for a 100/90/19 Avon Roadrider.

    It ain’t as easy as it seems... the tyre has a large rolling radius, and is quite a large OD at its edges too. And, of course, tyres grow at speed.

    Does anyone know how much a tyre grows and how much clearance is needed? I’m thinking I need about 1/2”.

    Ken, would you mind posting a pic of your set up?

    Anyone else have any good ideas?

    All ideas welcome ... apart from changing to a smaller tyre or rim !!

    Tags:
  2. maylar

    maylar

    Joined:
    May 13, 2007
    Not quite sure what your question is... I run 100/90/19's with stock mudguard on my '74 with no issues. Wasn't the K81 even wider?

  3. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Fair point Maylar, I didn’t clarify... my issue is that due to running a none standard disc, and wanting to minimise weight, I don’t want the stock set at requires stays fore and aft.

    I had a cNw one but the tyre rubbed inside. These are heavier than I’d like, but I liked the fact it also acted as a bit of a fork brace.

    However, I’ve since ridden the bike, on road and track, with any mudguard or brace, so I’m happy that the bracing aspect isn’t required.

    So, the lighter the better...

  4. baz

    baz VIP MEMBER

    Joined:
    May 26, 2010

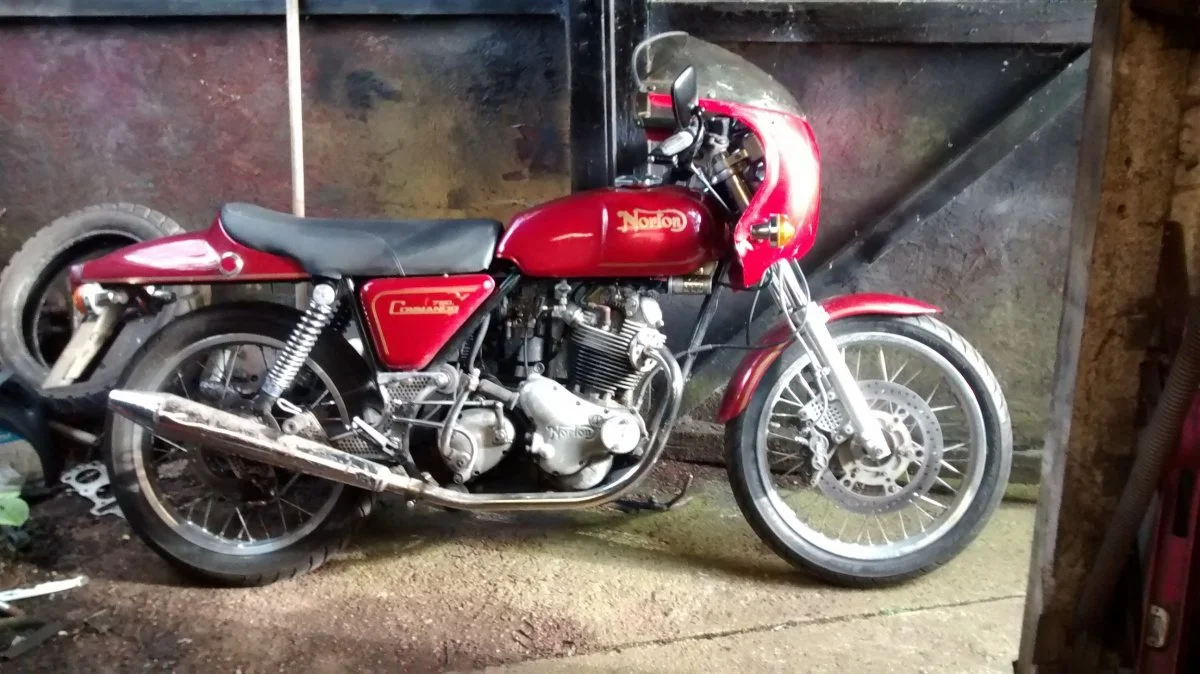

    moto g 159.jpg I have a hinkley triumph one on my commando
    I think it's from a thunderbird but not sure , it fits well to a 90/90 X 19" not particularly light though

  5. Fullauto

    Fullauto VIP MEMBER

    Joined:
    Apr 13, 2009

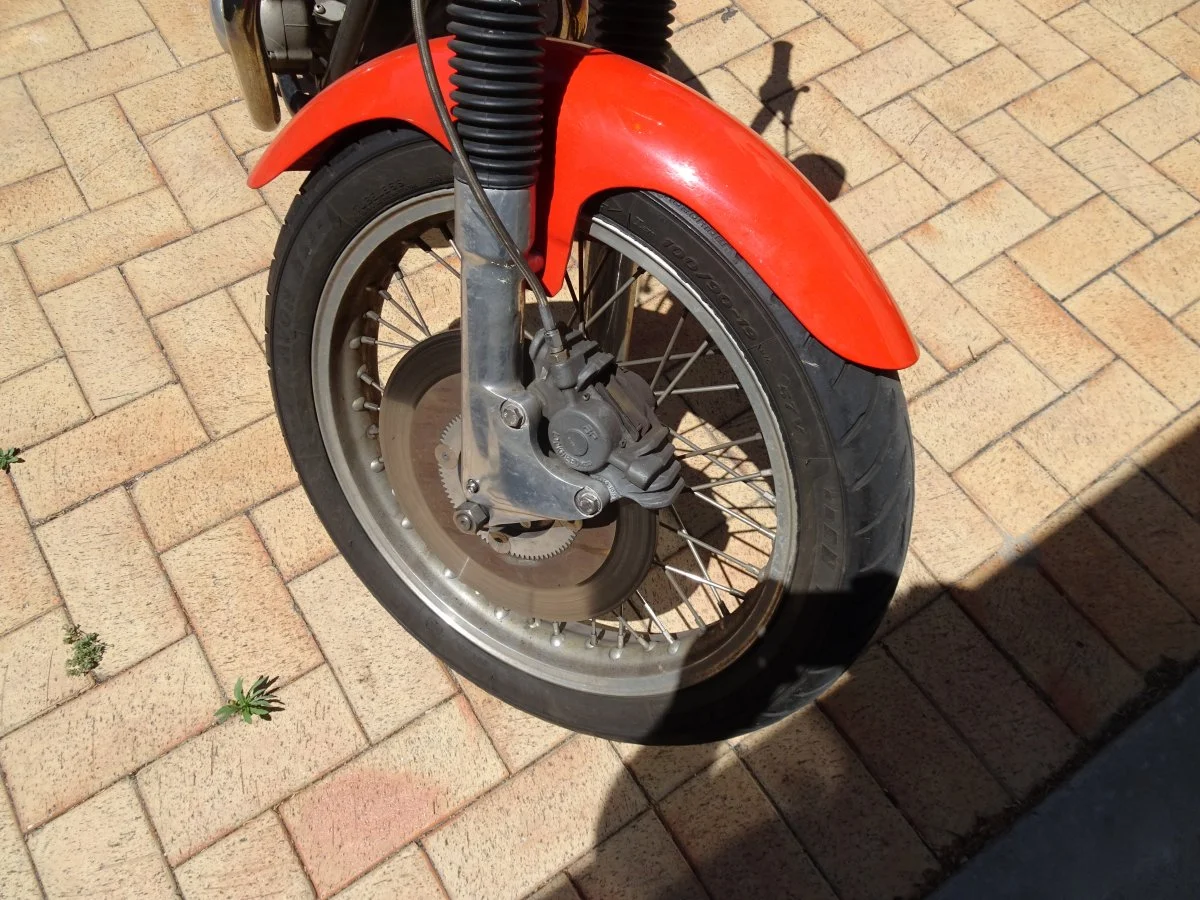

    Proddy racer front guard. Works for me. Still a tight fit with the 2.5 inch rim. Oh, and it looks cool. That seems to be the important thing these days.


    Attached Files:

  6. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    Are you sure this isnt your source of patter?

  7. oldmikew

    oldmikew

    Joined:
    Jul 25, 2015
    Nigel I think a trip to your friendly neighborhood bike breakers is called for ... there must be quite a few Japanese sports bike front guards that could be adopted..

  8. worntorn

    worntorn

    Joined:
    Dec 22, 2006
    They can be made to any old shape and size. One evening to pound the thing out and another to wheel it smooth.

    Glen

  9. dave M

    dave M

    Joined:
    Oct 19, 2005
    A Harley Sportster front guard with a little trimming of the mounts works well, you can buy repros on E- Bay all day for $50. I believe this is the basis of the CNW unit.

  10. dantriumph

    dantriumph

    Joined:
    Apr 27, 2010
    I thought the CNW Mudguard was made specially to fit a 100/90-19. On the photos it looks like there's plenty of space. I fancy a slim stainless mudguard and was thinking of a late T140.
    IF you want light, then maybe alloy. Remember Trading in someone website, that they could roll you a alloy mudguard in one piece. Don't remember where.
    Dan

  11. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013
    Nigel, if you decide to sell your CNW one let me know.

  12. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Thanks for the pic Ken.

    Glen, you make it sound easy, where do I send my order ??

    Dan, ref the cNw guard, Matts own build all have 18” wheels, so there bags of clearence of course. I think he’s about to offer a new version though which resolves the 19” issue. But I’m now thinking I want lighter anyway.

    Gortnipper, yes I’m sure the lack of a mudguard didn’t cause the issues as it started with the mudguard, it was better without it... (but I had also put in new fork oil)... he can sits got me thinking about the unsprung weight ...!

    Thanks for the Hardly Dangerous suggestions gents, but it’s the weight topic again.

    Cab, you’ll be the first to hear... poss Lansdowne dampers too...?

  13. Steves

    Steves

    Joined:
    Oct 16, 2016
    Minnovation do a fibre glass mudguard. Light weight and you get to drill your own holes.

  14. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    I don’t think the ears are quite long enough. It looks the same as the Andy Molnar version I have, and the ears are 1/2” too short.

    I guess that’s cos most racers are running 18”.

  15. Dommie Nator

    Dommie Nator VIP MEMBER

    Joined:
    Apr 2, 2013
    Thanks Nigel.

  16. Ron L

    Ron L VIP MEMBER

    Joined:
    Feb 27, 2004
  17. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Looking good Ron.

    What front wheel / tyre are you running ?

  18. dave M

    dave M

    Joined:
    Oct 19, 2005
    Yes, Ron’s bike had the mudguard I was referring to, I think it’s lighter than a standard Norton one with stays and the mounting is quite strong enough to act as a fork brace.

  19. cNw

    cNw VIP MEMBER

    Joined:
    Apr 16, 2009
    Eddie,

    This information is incorrect. I do not use 18" front wheels, nor have I ever, on my standard builds. They are 19" (only exception are the Cafe's that use a 18"/17" wheel combo). So on my std builds they get a Bridgestone BT45 100/90-19" and I do not have any problems. Been using this set up for 12+ years and they work great. At times when the tire picks up a rock, there can be contact.

    As been mentioned several times in the countless 'perfect wheel size' threads, the manufactures vary greatly as far as the actual size of a tire. An Avon is not the same dimensionally as a Bridgestone. Even within manufacturers, sizes will vary based on the model tire. I use a 120/90-18" BT45 in the rear and it's a great fit with room to move from side to side. A customers really wanted Continental tires on his build and I had to go to a 110/90-18" rear in order to make that fit in the Commando swingarm

    So when you shop for fenders, the actual tire certainly has to be taken in consideration if you want that tight fit. If you are not worried about MX spacing between the two, then it's not as important of course

    Good luck finding the right fender for your application

    Matt / Colorado Norton Works

  20. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Sorry Matt, I stand corrected.
