crankshaft oil seal

Stock seal is about 4.5mm in height

acadian said:

Stock seal is about 4.5mm in height

Metric Oil Shaft Seal 30 x 45 x 5mm Double Lip Price for 1 pc

Stocking distributor of metric o-rings and seals in various materials and sizes. Metric Orings in Buna 70 & 90, Silicone, Viton and EPDM material.

www.oringsandmore.com

Click to expand...

That one looks like it'd work. Bookmarked for the "next time".

I measured the old seal at 4.9 mm thick. The McMaster seals I got are 8 mm, too thick.
Depth of the case bore, 4.75 mm. Distance to the keyway slot, 5.03 mm. Not much room between that and the seal lip.

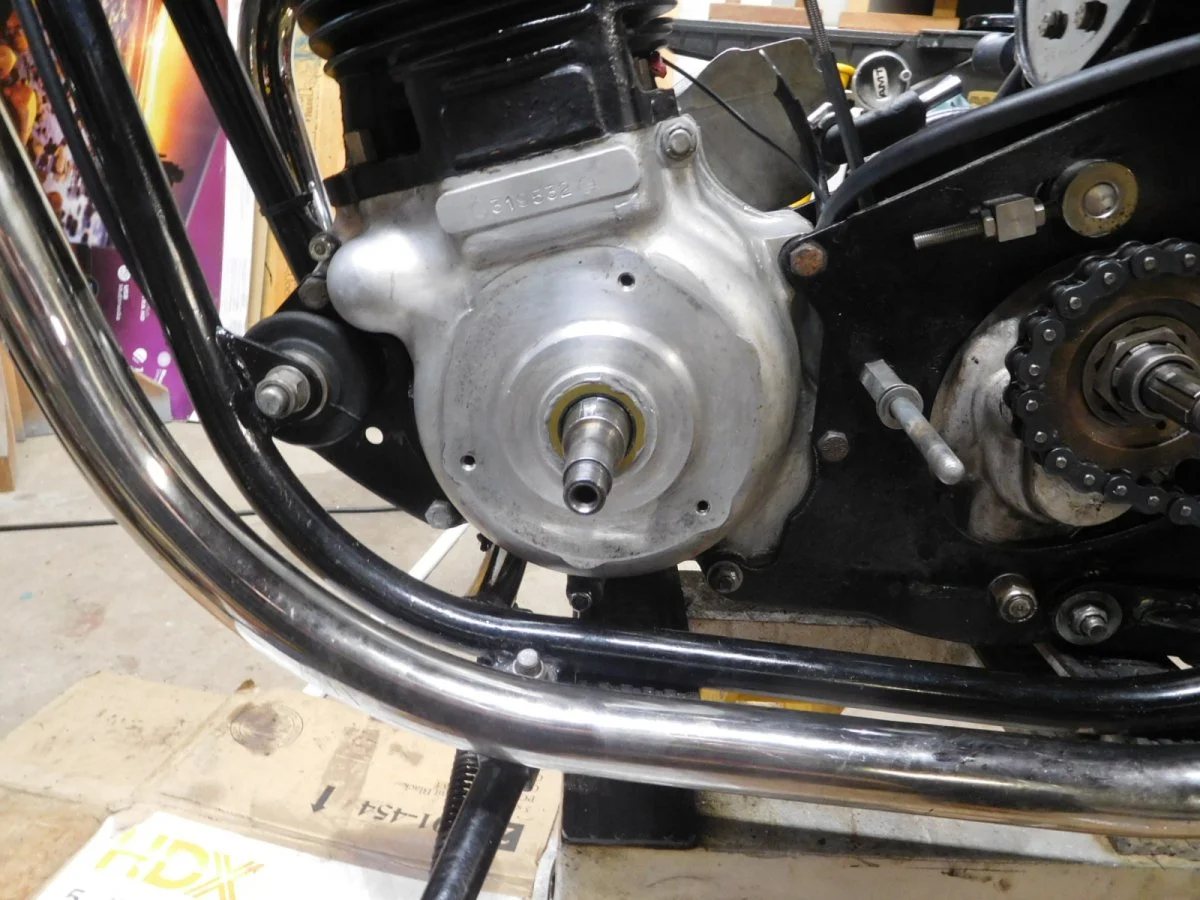

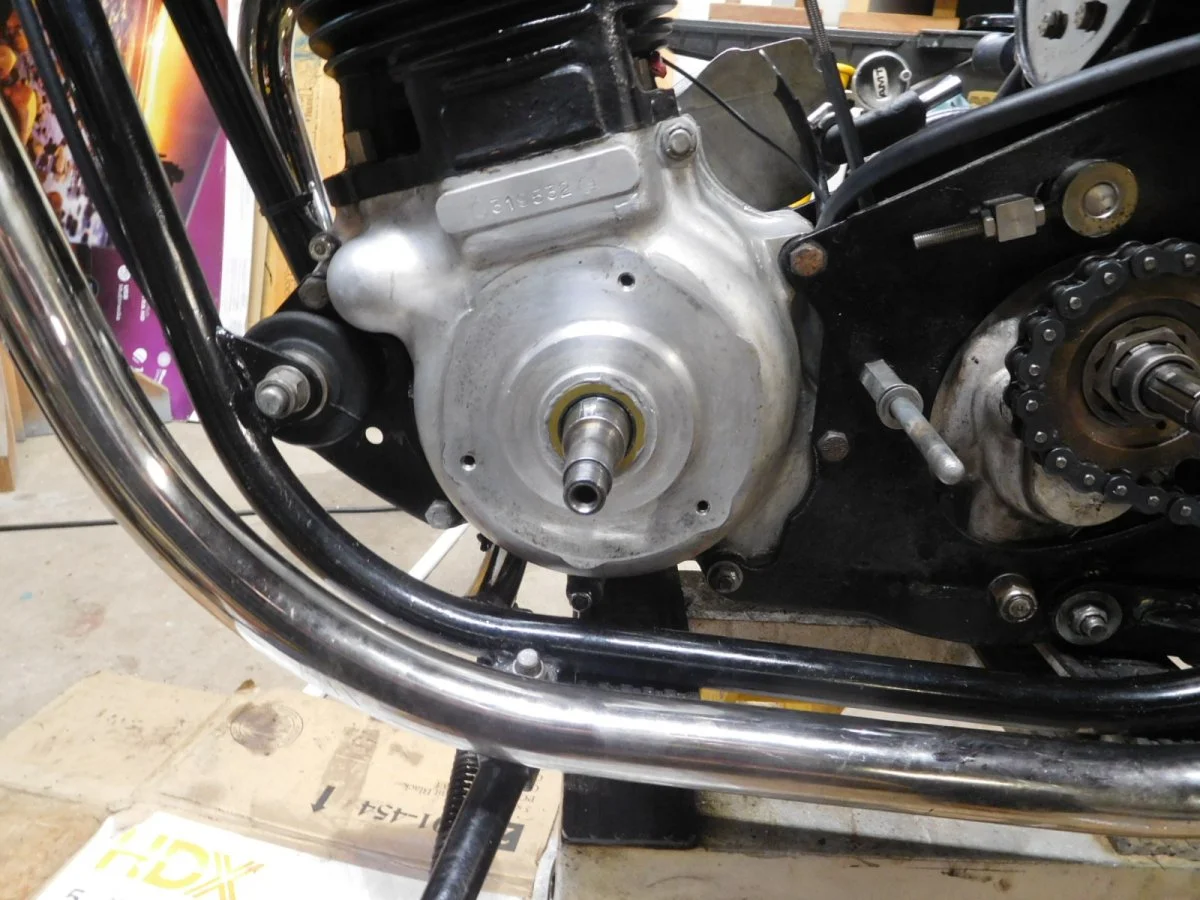

Used a standard Norton part and JB Weld - it ain't going anywhere. No more leaks.

maylar said:

That one looks like it'd work. Bookmarked for the "next time".

I measured the old seal at 4.9 mm thick. The McMaster seals I got are 8 mm, too thick.
Depth of the case bore, 4.75 mm. Distance to the keyway slot, 5.03 mm. Not much room between that and the seal lip.
Used a standard Norton part and JB Weld - it ain't going anywhere. No more leaks.


View attachment 16850

Click to expand...

Glad to see it worked out.

If you ever end up using the metric double lipped seals, you can trim the rubber away from the bottom edge of the OD with a pen knife (the part that seats in the case bore) to lose a mil, this brings the overall height down to about 4mm.

Fast Eddie said:

I can’t quite be sure from the picture, but maybe from here...

CRANKSHAFT DRIVE SIDE OIL SEAL FOR TWINS

NMT2187 RGM NORTON 067567

www.rgmnorton.co.uk

Click to expand...

£18 delivery on 2 off £1.70 parts!

SteveA said:

£18 delivery on 2 off £1.70 parts!

Click to expand...

I think as has been discussed before, the RGM postage calculator is sometimes wrong, and they only charge what it really costs. There’s no way it’d cost that to post to France I’m sure. Well, I think !

Earlier in the thread I commented on the speedi-sleeve. Well I got out on the bike for 65 miles and came back with no leak.
A first I can tell you. Yes 65 miles is no test and it could gush 20-50 shortly but that at least is where I am right now and
figured I should report. Never had the leak around the edge problem. Using stock AN supplied seal. Pretty sure the sleeve
provides a bit more diameter ie a tighter seal and of course a smoother working surface.
May the gods continue to smile upon me.
