Stunning Matt, another nice bike, so you going to build me one for our next Argentina to Alaska trip?
C.N.W. Cafe Racer
- Thread starter Richard Barks
- Start date
- Status
cNw
VIP MEMBER
- Joined
- Apr 16, 2009
- Messages
- 485
worntorn said:
Glen,
Yes, no question the 1 3/8 pipe makes better power than the 1 5/8
The 1 3/8 insert is about 14" long out of the head. After that, we saw a benefit in allowing a larger diameter, so it goes up[ to 1 5/8's all the way through the muffler
Yes, the 1 5/8 had a lot to do with the look of the system. I also had a different head fastening system initially (a screw in spigot like a Triumph) but abandoned that idea after running it for awhile. The pipe has a tendency to discolor less due to the double wall, but that was not the reason I did it that way
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
cNw
VIP MEMBER
- Joined
- Apr 16, 2009
- Messages
- 485
lcrken said:
Ken,
Glad you like it. The bike/design definitely went through a few different phases. It's never as easy as what you think it will be when you set out to do something like this. If someone is building a bike just to look a certain way, that's one approach and you can make some compromises. However, ensuring that the total package works as well as it looks, is a bit more challenging
Leno lost out on this series of bikes.
Matt / Colorado Norton Works
www.coloradonortonworks.com
cNw
VIP MEMBER
- Joined
- Apr 16, 2009
- Messages
- 485
Gino Rondelli said:Stunning Matt, another nice bike, so you going to build me one for our next Argentina to Alaska trip?
Gino,
No problem. Its will be a build with some serious storage capacity, a portable shower and 20 gallon fuel tank. Just the way you like them. It will come with a spare engine since you usually cover enough miles on your trips to require a rebuild
Matt / Colorado Norton Works
www.coloradonortonworks.com
CNW said:Gino Rondelli said:Stunning Matt, another nice bike, so you going to build me one for our next Argentina to Alaska trip?
Gino,
No problem. Its will be a build with some serious storage capacity, a portable shower and 20 gallon fuel tank. Just the way you like them. It will come with a spare engine since you usually cover enough miles on your trips to require a rebuild
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
And a trailer for the polishing gear!
- Joined
- Jan 3, 2008
- Messages
- 329
CNW said:Gino Rondelli said:Stunning Matt, another nice bike, so you going to build me one for our next Argentina to Alaska trip?
Gino,
No problem. Its will be a build with some serious storage capacity, a portable shower and 20 gallon fuel tank. Just the way you like them. It will come with a spare engine since you usually cover enough miles on your trips to require a rebuild
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
I'll remember that offer for the next big trip :lol:
- Joined
- Nov 26, 2009
- Messages
- 3,095
CNW said:hobot said:
Hobot,

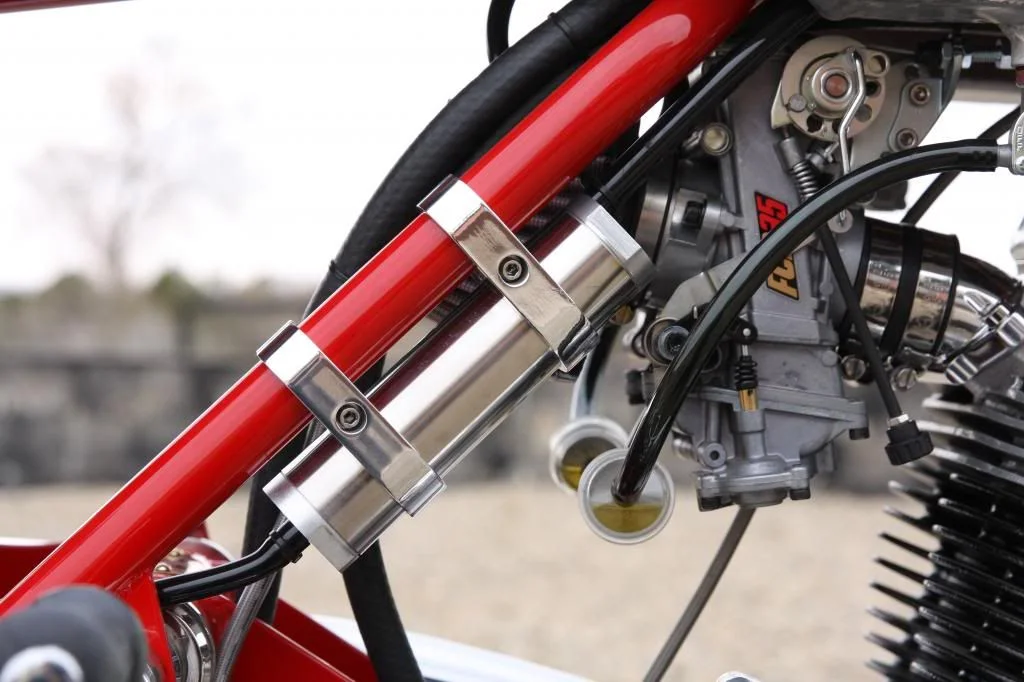

Just under 3 quarts. Runs a std filter set up off the engine cradle. There is also an oil catch can that Comstock designed. This is what's mounted on the right side of the bike, just over the tranny. This catch can returns into the timing chest that due the engine breather virtually runs a vacuum
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
If the oil tank breather catch can is returning oil to the timing chest, why not just run the oil tank spine breather straight to the timing chest? - whats the purpose of the catch can?
- Joined
- Apr 14, 2006
- Messages
- 146
As owner of above bike, its so it runs and produces negative pressure
I.E. air trying to get in instead of air and oil trying to get out !!!!!!!!! no leaks
So as in my case every other commando iv'e ever owned leaked oil including a new 961
also a brand new interstate I bought in the 70s from the dealers
looking back a bad decision it had a combat engine ......................
still I was young and stupid now 'im old and wiser supposedly, 961 was a bad idea too.............
Richard
I.E. air trying to get in instead of air and oil trying to get out !!!!!!!!! no leaks
So as in my case every other commando iv'e ever owned leaked oil including a new 961
also a brand new interstate I bought in the 70s from the dealers
looking back a bad decision it had a combat engine ......................
still I was young and stupid now 'im old and wiser supposedly, 961 was a bad idea too.............
Richard
cNw
VIP MEMBER
- Joined
- Apr 16, 2009
- Messages
- 485
Jim,
The catch can is there so that any oil pushed out of the oil tank will have a larger volume area to settle in. The can has a screen in it and a very small drain back hole.
In other words, you can dump a fair amount of oil into this at one time, if the pressure in the tank increases quickly yet have it return to the engine with a controlled, consistent flow
The catch can is also vented. It has a second line on top going up under the tank with a K&N filter at the end so its allowed to breath.
If the line just went straight back to the engine it would not be able to absorb a larger volume of oil nor would that line be vented
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
The catch can is there so that any oil pushed out of the oil tank will have a larger volume area to settle in. The can has a screen in it and a very small drain back hole.
In other words, you can dump a fair amount of oil into this at one time, if the pressure in the tank increases quickly yet have it return to the engine with a controlled, consistent flow
The catch can is also vented. It has a second line on top going up under the tank with a K&N filter at the end so its allowed to breath.
If the line just went straight back to the engine it would not be able to absorb a larger volume of oil nor would that line be vented
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
I think this is where i went wrongCNW said:hobot said:
Hobot,
Just under 3 quarts. Runs a std filter set up off the engine cradle. There is also an oil catch can that Comstock designed. This is what's mounted on the right side of the bike, just over the tranny. This catch can returns into the timing chest that due the engine breather virtually runs a vacuum
Matt / Colorado Norton Works
http://www.coloradonortonworks.com
my engine was built without drainage holes in the timing chest and so an reedvalve was doubtfull(filled up the timingchest).I thus relied on breathers to let the engine breathe and stay dry.Of course this also meant that the oilreturn was somewhat foamy , filling up the oiltank/spine and spitting oil out after a relative short time. a breathertank caught most of it but meant stoping and putting the spilt oil back in the spine.Running the engine 'vacuum' is a good solution.
Thanks for the idea (still like this too shiny bike a lot , now even more ....)
- Joined
- Apr 14, 2006
- Messages
- 146
it started badly , wanted a £1500 non refundable deposit,olChris said:
and insisted I paid up front the balance before delivery ( not good business ! ) which pissed me off
on my inaugural ride chain guard fell off at 80 odd miles an hour ,
then they had the nerve to ask me if I still had it !!!! as carbon fibre ain't cheap ..........................
I said I retraced my steps found it and flung it in a fu..king hedge.
various problems occurred ,even bought a set of loud pipes. £500.00 , trips out to the factory ,quite a few ,luckily not far,to be fair the service manager mark
was very good , now left ? but as they say silk purse etc....
final straw was as I sat at traffic lights on the way to the factory finally got tired of engine noise lot louder than exhaust
so sold it and got my money back.
VR880 and Kenny and a tale of woe which still hurts for another day !!!!!!!!!!!!!!!!!!1 perhaps
richard
