1962 model 50 rear guard dzus fastener

F

fireflake

VIP MEMBER
Joined
Apr 21, 2015
Messages
318
Country flag
Hi, can anyone please send me a photo of the underside and top of the rear guard dzus fastener on a 1962 slimline model 50, ES2 Atlas etc
cheers David

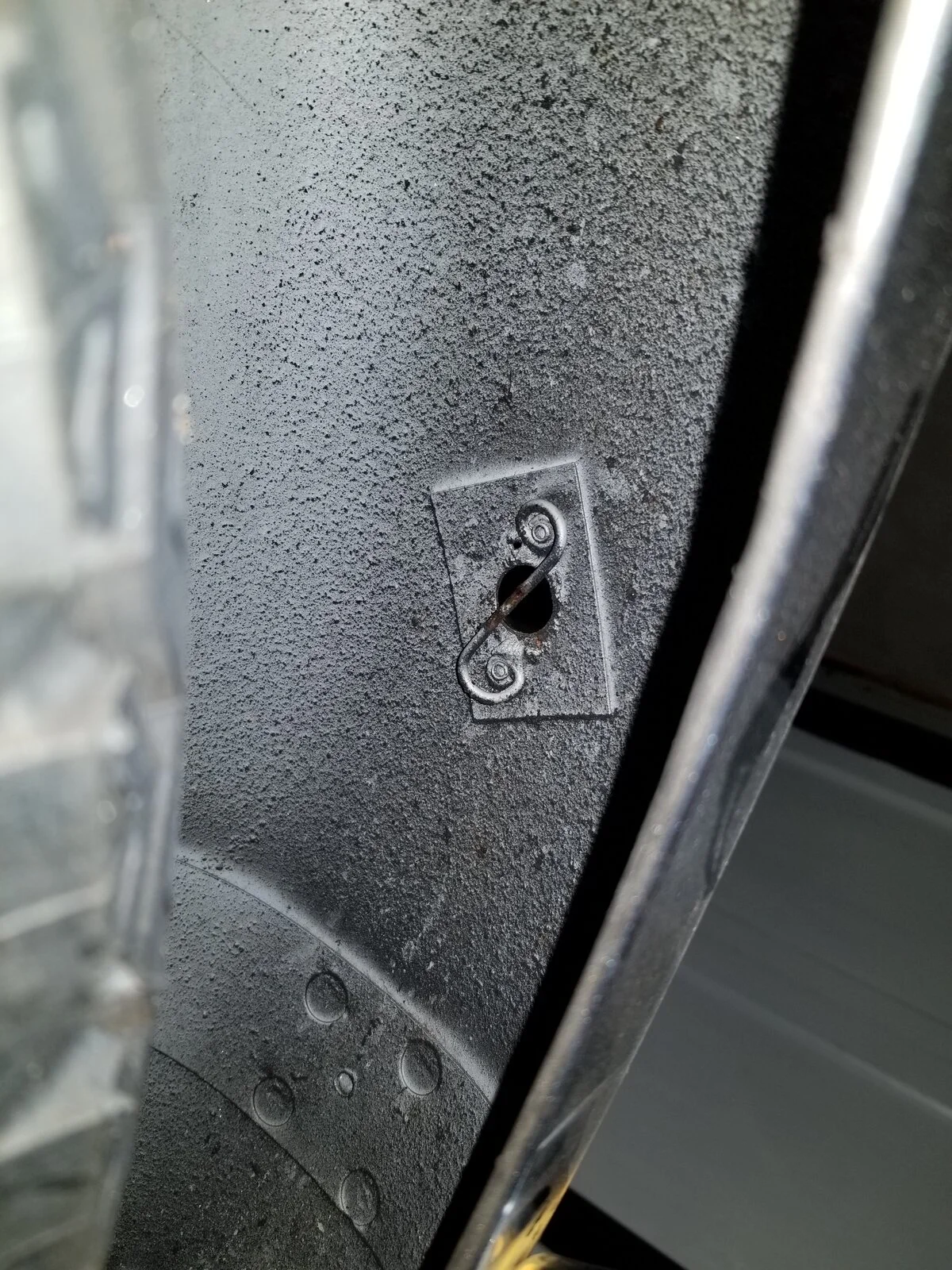

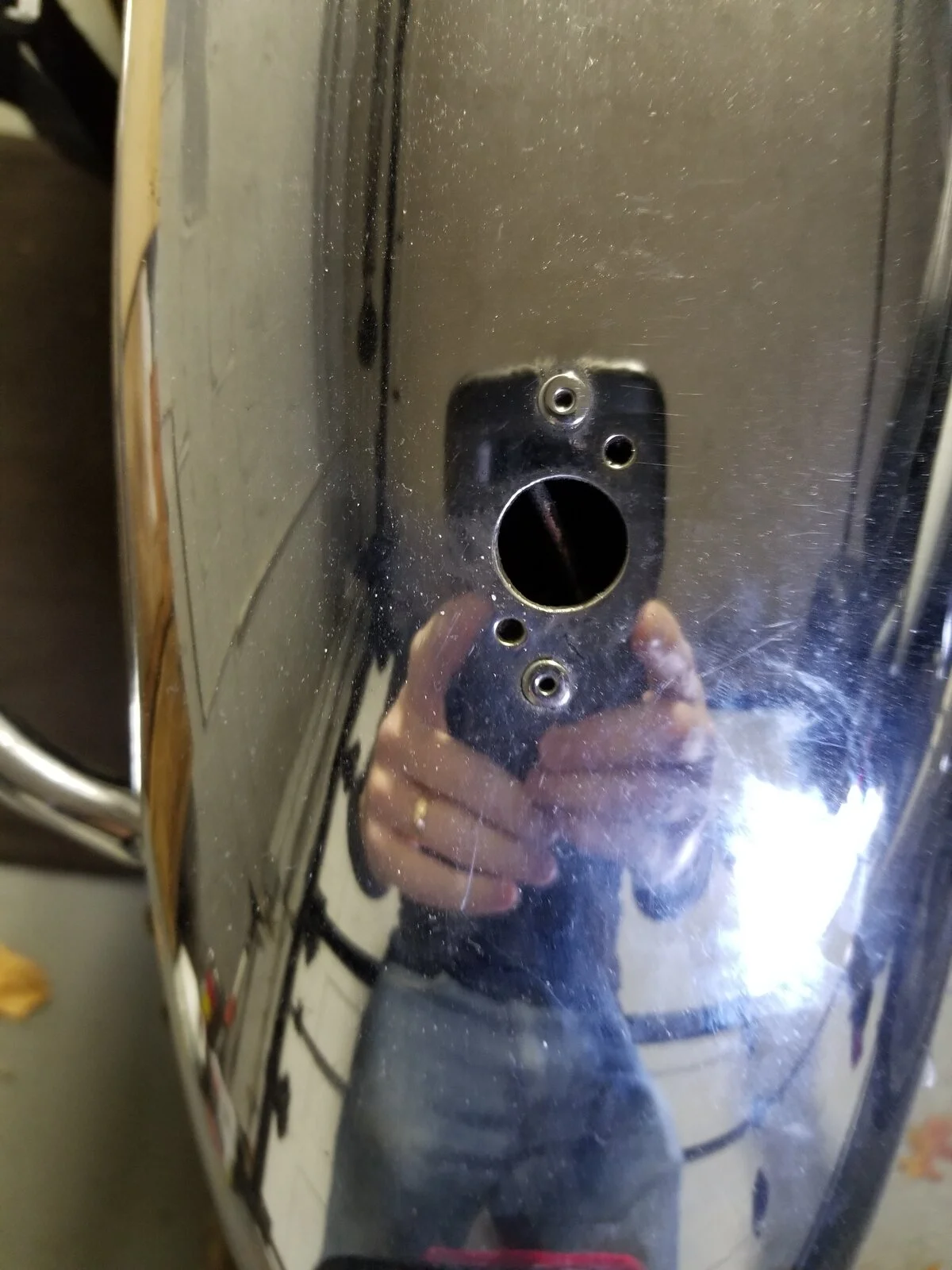

Hi David, I hope these photos are helpful. The bike is a '62 Atlas. Not 100% certain that this is original, but it is similar to my '64 650SS which may also have been repaired. Sorry for the delay in responding to your inquiry. Been busy at work.


Attachments

  • 1962 model 50 rear guard dzus fastener
    131.2 KB · Views: 185
  • 1962 model 50 rear guard dzus fastener
    402.8 KB · Views: 192
