Zener diode and rectifier
- Thread starter pierodn
- Start date
- Status
Re: Zener diod and rectifer
Rectifier takes the AC waveform from the alternator which would measure 0 volts DC, flips part of it over so that the AC humps are all on the positive side of the line and now you have a DC type component. Looks like a series of boobies from the top.
So now you have this lumpy looking waveform. The Zener will take that lumpy waveform and smooth it out some. Zeners can come in different voltage levels depending on the output you want. Ours is roughly 13v to allow the battery to charge and run the lights etc. Any excess voltage is bled off to the ground and dissipates in the form of heat. That is why the Zener is mounted on that big aluminum Z plate. It is a very rudimentary voltage regulator. but it works.
Yes, any of the parts can burn out. It can blow open which it then does nothing, or it can short which will then cause smoke to be released from the wires and the electrical system will shut down until the smoke and wiring is replaced and a new Zener installed.
Rectifier takes the AC waveform from the alternator which would measure 0 volts DC, flips part of it over so that the AC humps are all on the positive side of the line and now you have a DC type component. Looks like a series of boobies from the top.
So now you have this lumpy looking waveform. The Zener will take that lumpy waveform and smooth it out some. Zeners can come in different voltage levels depending on the output you want. Ours is roughly 13v to allow the battery to charge and run the lights etc. Any excess voltage is bled off to the ground and dissipates in the form of heat. That is why the Zener is mounted on that big aluminum Z plate. It is a very rudimentary voltage regulator. but it works.
Yes, any of the parts can burn out. It can blow open which it then does nothing, or it can short which will then cause smoke to be released from the wires and the electrical system will shut down until the smoke and wiring is replaced and a new Zener installed.
texasSlick
VIP MEMBER
- Joined
- Jan 2, 2013
- Messages
- 4,258
Re: Zener diod and rectifer

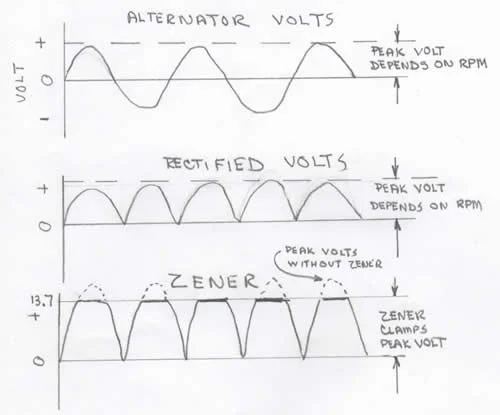

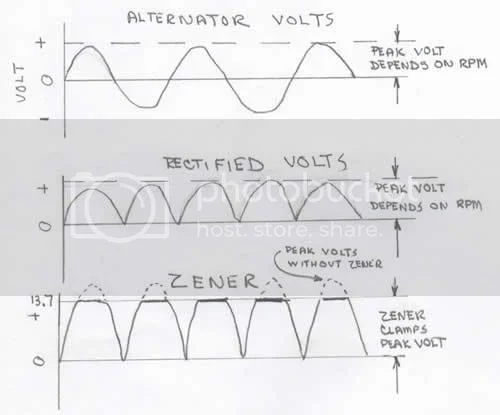

This sketch is not pretty, but a picture is worth a thousand words.
I hope this helps.
Slick
This sketch is not pretty, but a picture is worth a thousand words.
I hope this helps.
Slick
Last edited:
- Joined
- Aug 10, 2014
- Messages
- 2,080
Re: Zener diod and rectifer
first thing to check is all wiring for clean solid connection, if the zener fails, electrical stuff (lights etc) can burn out from too much juice including the batt
a zener can fail for many reasons (could just be a loose connection), if it does, which you need to determine and confirm first, you then need to find out why, then fix, starting with basics, cheap and easy stuff first,
otherwise you can end up replacing good parts until you may get lucky,
what problem are you having? charging? overcharging? blowing fuses? something else?
first thing to check is all wiring for clean solid connection, if the zener fails, electrical stuff (lights etc) can burn out from too much juice including the batt
a zener can fail for many reasons (could just be a loose connection), if it does, which you need to determine and confirm first, you then need to find out why, then fix, starting with basics, cheap and easy stuff first,
otherwise you can end up replacing good parts until you may get lucky,
what problem are you having? charging? overcharging? blowing fuses? something else?
- Joined
- Nov 20, 2004
- Messages
- 20,422
pierodn said:
Lucas rated their auto fuses using the "fusing" or "blow" amp number, so a 30mm glass 35A Lucas fuse as specified in manuals and handbooks has a continuous rating of 17A and will blow(fuse) at 35A.
Any other type of non-Lucas fuse available nowadays is likely to be marked with the continuous amp rating (such as blade fuses etc.) and thus blow at double the marked amp rating, therefore the nearest equivalent continuous rated (blade etc.) fuse will be either 15A (30A blow) or 20A (40A blow).
http://www.groups.tr-register.co.uk/nen ... 20BUSS.pdf

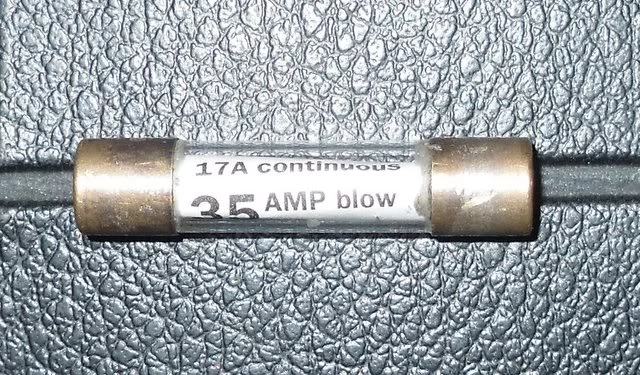

SOME Lucas type fuses are marked with both ratings:
- Joined
- Sep 18, 2014
- Messages
- 131
Re: Zener diod and rectifer
Thanks guys for the explaination quoted above and the prior explaination. I've been wondering about these diodes and want to pick a few up for my road kit. Is there an easy way to test them with a multimeter?
texasSlick said:This sketch is not pretty, but a picture is worth a thousand words.
I hope this helps.
Thanks guys for the explaination quoted above and the prior explaination. I've been wondering about these diodes and want to pick a few up for my road kit. Is there an easy way to test them with a multimeter?
texasSlick
VIP MEMBER
- Joined
- Jan 2, 2013
- Messages
- 4,258
Rusty Bucket wrote:
". Thanks guys for the explaination quoted above and the prior explaination. I've been wondering about these diodes and want to pick a few up for my road kit. Is there an easy way to test them with a multimeter?"
The multimeter, using the Ohms function, can only determine if the diode (either a common diode or a Zener) conducts in one direction, and blocks current in the reverse direction. If it conducts both ways it is shorted; if it does not conduct in either direction, it is open circuited. The diode must be out of the circuit for this test. The test is done by reversing the multimeter's + / - leads on the diodes conductors.
Special test equipment is necessary to test if a Zener diode "avalanches", or suddenly conducts at the Zener reference voltage. This assumes the Zener is not in a functioning circuit. It it is, then the voltmeter on DC voltage scale, should read the Zener reference voltage if all parts of the circuit are working properly and the circuit is energized.
Slick
". Thanks guys for the explaination quoted above and the prior explaination. I've been wondering about these diodes and want to pick a few up for my road kit. Is there an easy way to test them with a multimeter?"
The multimeter, using the Ohms function, can only determine if the diode (either a common diode or a Zener) conducts in one direction, and blocks current in the reverse direction. If it conducts both ways it is shorted; if it does not conduct in either direction, it is open circuited. The diode must be out of the circuit for this test. The test is done by reversing the multimeter's + / - leads on the diodes conductors.
Special test equipment is necessary to test if a Zener diode "avalanches", or suddenly conducts at the Zener reference voltage. This assumes the Zener is not in a functioning circuit. It it is, then the voltmeter on DC voltage scale, should read the Zener reference voltage if all parts of the circuit are working properly and the circuit is energized.
Slick
L.A.B. said:pierodn said:
Lucas rated their auto fuses using the "fusing" or "blow" amp number, so a 30mm glass 35A Lucas fuse as specified in manuals and handbooks has a continuous rating of 17A and will blow(fuse) at 35A.
Any other type of non-Lucas fuse available nowadays is likely to be marked with the continuous amp rating (such as blade fuses etc.) and thus blow at double the marked amp rating, therefore the nearest equivalent continuous rated (blade etc.) fuse will be either 15A (30A blow) or 20A (40A blow).
http://www.groups.tr-register.co.uk/nen ... 20BUSS.pdf
SOME Lucas type fuses are marked with both ratings:
The high 35amp blow is fitted to a lot of British tin boxes in ALL the fuses and is too much when the vehicle gets old, the fuse doesn’t blow, but the wiring harness burns out, as I found to my cost
