Wot's this for?

robs ss · Jun 4, 2020

Okay - with so many of you knowledgable chaps out there, someone must be able to answer this.

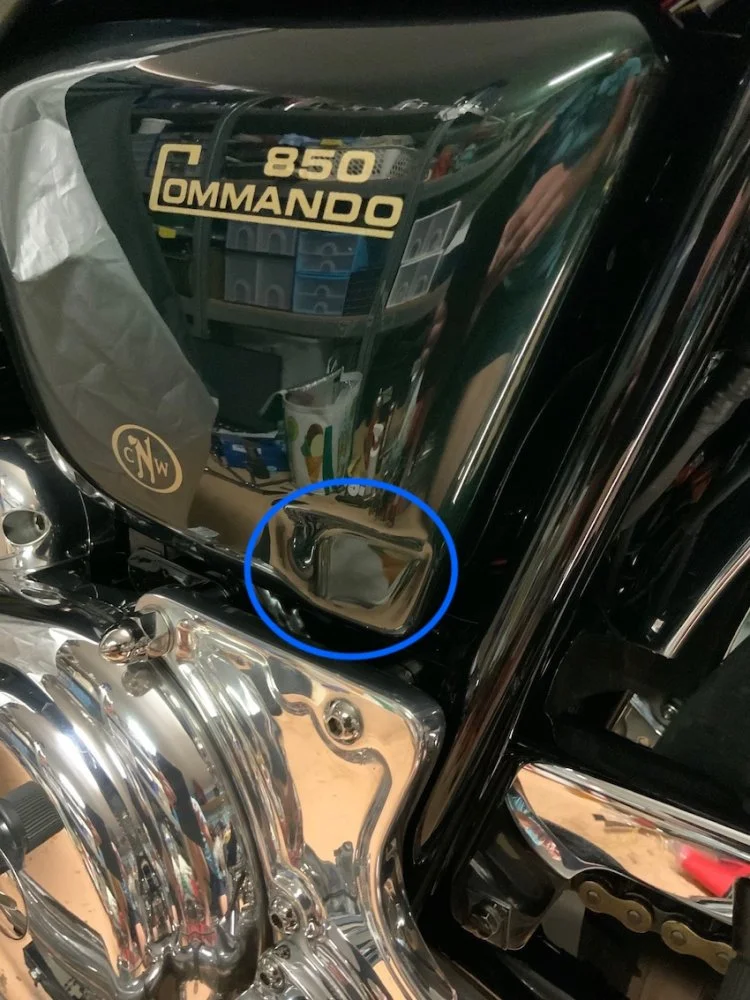

There is a recess at the lower rear corner of the left-hand side cover on my 1974 Interstate - see circled area below.
Anyone know why it's there?
Cheers
Rob

HRD · Jun 4, 2020

robs ss said:
Okay - with so many of you knowledgable chaps out there, someone must be able to answer this.
There is a recess at the lower rear corner of the left-hand side cover on my 1974 Interstate - see circled area below.
Anyone know why it's there?
Cheers
Rob
View attachment 16771

A plastic Dzus fastener for fixing the side panel on an 850 MkIIA.There would be a hole through which the fastener was mounted.

robs ss · Jun 4, 2020

HRD said:
A plastic Dzus fastener for fixing the side panel on an 850 MkIIA.There would be a hole through which the fastener was mounted.

Thanks for that!
No - there's no longer a hole - can't even see where one was.
Funny place for a dzu, given there's that lower "ear" with rubber, 25mm in front of that recess, to locate the cover behind the z-plate.
Still, everything Norton didn't always make sense I suppose.

L.A.B. · Jun 5, 2020

robs ss said:
No - there's no longer a hole - can't even see where one was.
Funny place for a dzu, given there's that lower "ear" with rubber, 25mm in front of that recess, to locate the cover behind the z-plate.

The 850 Mk2A (and Mk1A) panel had the hole and battery tray bracket for the Dzus fastener.

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.

andover-norton.co.uk

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.

andover-norton.co.uk

mk2a commando

Hi I'm new to the forum, but hope you can help. 1. i have a 1974 mk2a. it has fibreglass sidepanels, is this correct or should they be steel? 2. what is the correct position of the rectifier, indicator relay and other relay? 3. there is another relay on a spring clip up near the colis, what is...

www.accessnorton.com

Edit: If there is a lug with rubber insert then it's an 850 Mk3 Interstate panel which had the recess but not the hole for the Dzus.

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.

andover-norton.co.uk

robs ss · Jun 5, 2020

L.A.B. said:
The 850 Mk2A (and Mk1A) panel had the hole and battery tray bracket for the Dzus fastener.

Thanks for that Les - It appears that I have a Mk3 cover - where Norton seems to not have removed that recess even though there is no longer any use for it.
I looked at Interstate images online - which supports your case.
Thanks again
