1974 Commando 850. Need to know which wires go to which plugs on Simulator. Wiring is: Grn/Yellow, White/Red and Red. Connections are: AL WL and looks like an E. New wiring harness. Thanks, the wiring diagram does not show this and I did not take bike apart.



L.A.B.

Moderator

VIP MEMBER

Joined

Nov 20, 2004

Messages

20,082

• Jun 26, 2018

• #2

dennisht said:

Wiring is: Grn/Yellow, White/Red and Red. Connections are: AL WL and looks like an E.

Click to expand...

AL (Alternator) - Green/yellow
WL (warning light) - White/brown
E (Earth) - Red.



Tornado

VIP MEMBER

Joined

Dec 5, 2017

Messages

4,529

• Jun 27, 2018

• #3

Yup..LAB is correct...I just removed my Assimilator today and those are the colours I removed from those positions. It is working correctly, but I have now replaced it with the SparkBright voltage monitoring LED light...making the assimilator a redundant component.



Torontonian

Joined

Dec 28, 2009

Messages

5,133

• Jun 27, 2018

• #4

Tear the assimilator can apart just for fun . Ha what a shock but historical method for sure. Upgrade soon.



Deets55

VIP MEMBER

Joined

Oct 3, 2013

Messages

1,504

• Jun 27, 2018

• #5

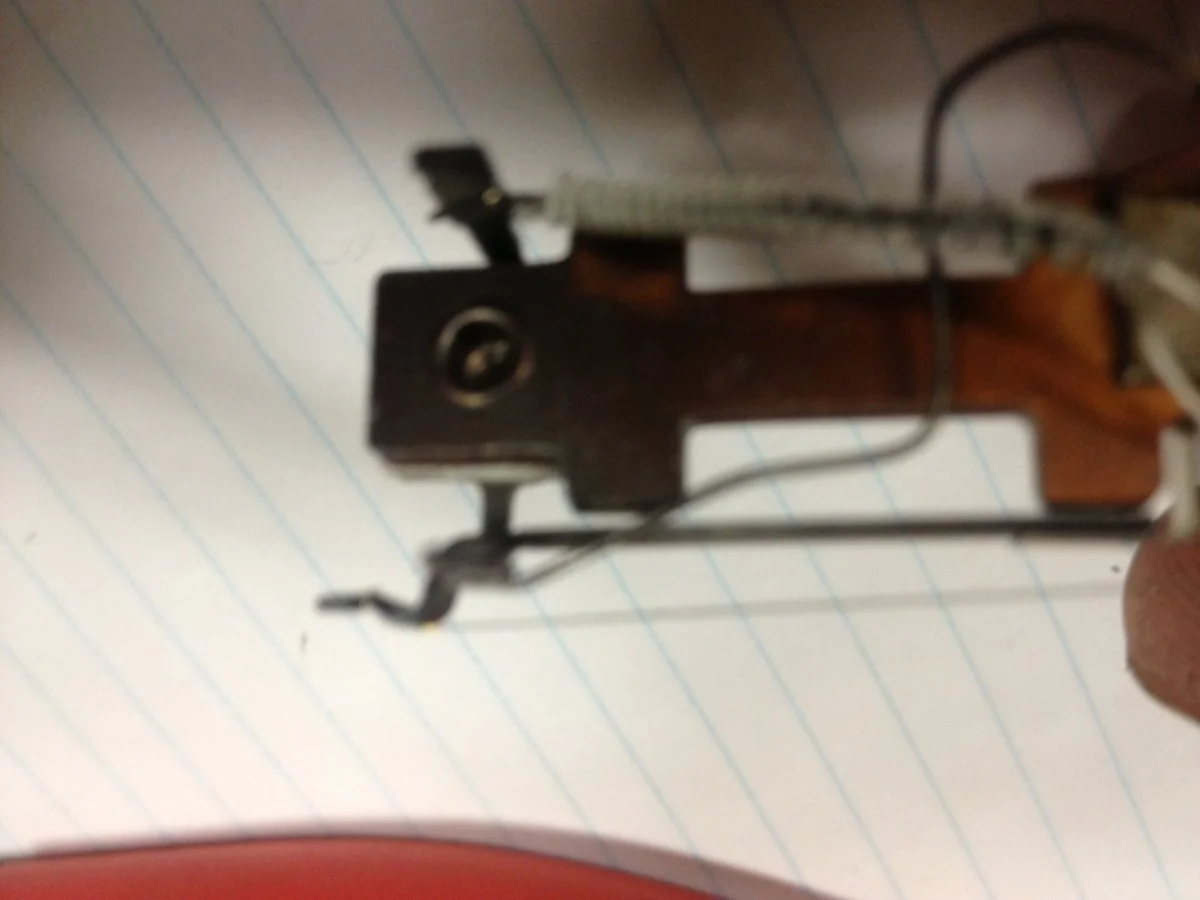

I’ll save you the trouble.



Torontonian

Joined

Dec 28, 2009

Messages

5,133

• Jun 27, 2018

• #6

Warning , Warning , Will Robinson !
