Glad to see you're bringing him up right, with the giants shirt and all. :wink:
Lance

Joined
Jul 12, 2015
Messages
479
Country flag
MS850 said:

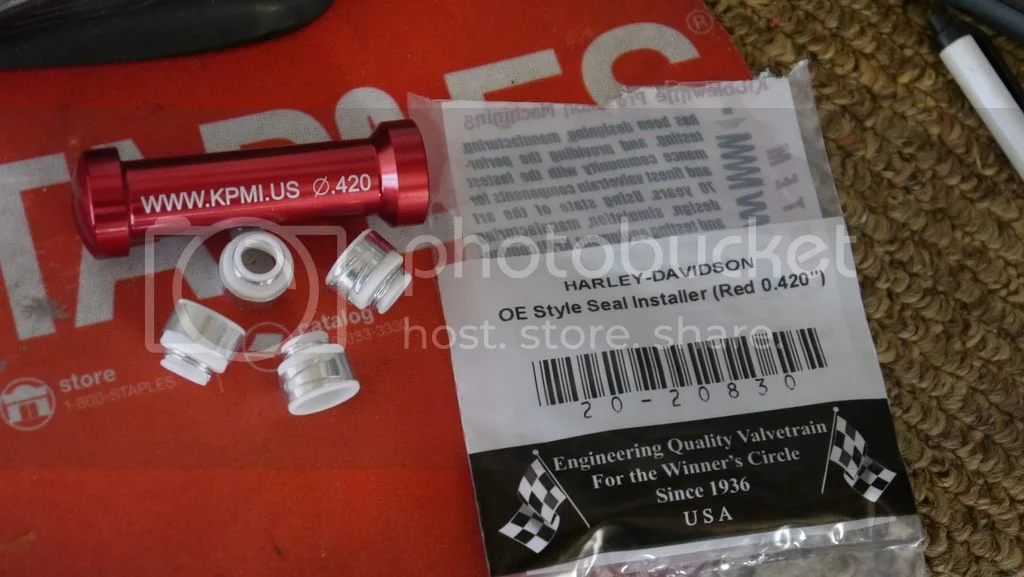

Just got the KW valve seals and installer, installer was $7.78, $12.76 for a pack of four.
Part# 20-20830, 71006


The installer tool didnt work very well for these seals, didnt quite fit correctly on the seal. Good thing I bought 4 seals, screwed up the first two.

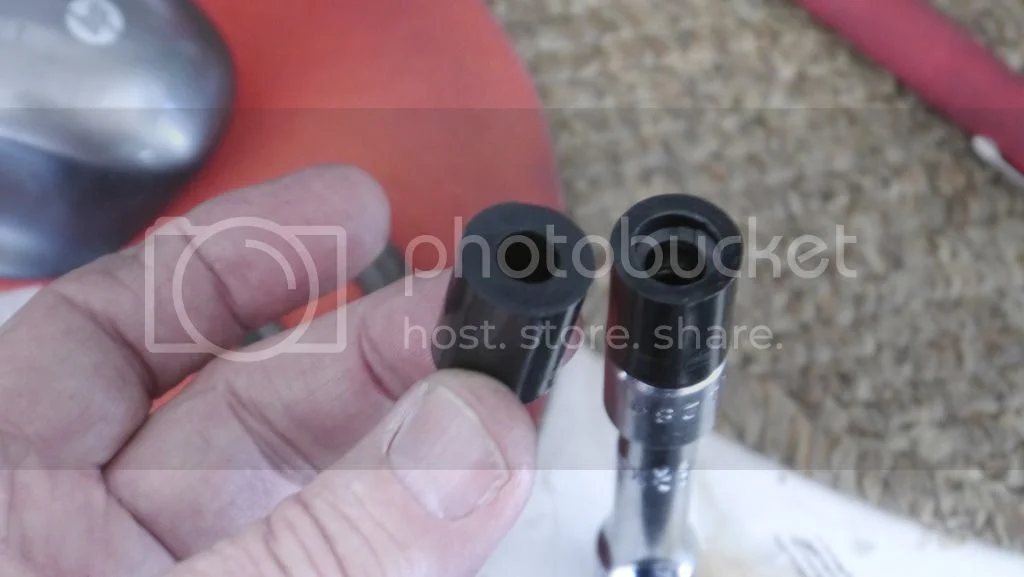

I made a seal installer that Jim showed, worked better, although I did used the tool I bought to knock down the spring. It slid up a bit putting on the seal.



jug

Joined
Feb 14, 2015
Messages
214

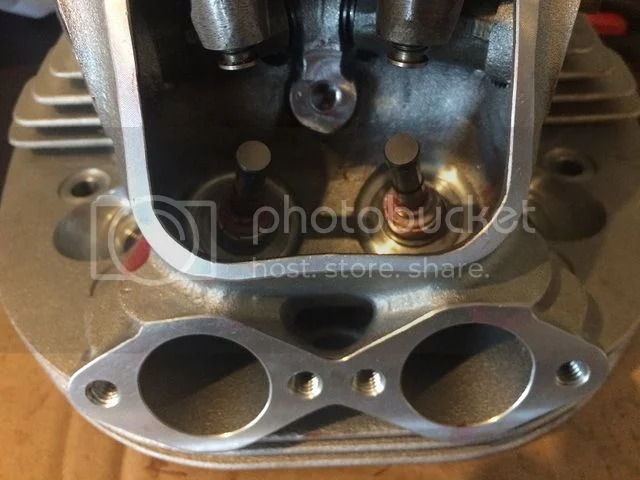

Here are the Kibblewhite white PTFE seals (71006-4) I just installed in one of Ken's heads.



Last edited:
Joined
Jul 14, 2008
Messages
1,130
Country flag
A pilot on the installer would be nice instead of having to use the valve stem
I know the std seals are lower tech, but if you get them on , in the groove and all of the trapped air out of them they are a real pig to remove, but they are very easy not to fit in that condition, or there is probably a lot of valve guides that they don't fit properly


jug

Joined
Feb 14, 2015
Messages
214
A pilot on the installer would be nice instead of having to use the valve stem
I know the std seals are lower tech, but if you get them on , in the groove and all of the trapped air out of them they are a real pig to remove, but they are very easy not to fit in that condition, or there is probably a lot of valve guides that they don't fit properly

I turned up my own installer out of billet alloy using Jim's measurements as a guide, in about 10 minutes. Lubed the seals and guides with assembly lube and they were a breeze to fit. Wont get them back off though without destroying them.

Joined
Nov 15, 2010
Messages
413
Country flag
I turned up my own installer out of billet alloy using Jim's measurements as a guide, in about 10 minutes. Lubed the seals and guides with assembly lube and they were a breeze to fit. Wont get them back off though without destroying them.
I'm trying to install these seals, but the fit on the valve stem is really, really tight. Even with oil on the stem, when I tried to fit the first one, it tore the top of the seal off :-(

Now I've 3 left, question is how to do? I see no mention of having to use a taper tool as a pilot to open up the seal.
It's easy enough to put in on te valve guide, but to get the valve stem through - that's another story....

Joined
Jan 1, 2005
Messages
180
Country flag
I'm trying to install these seals, but the fit on the valve stem is really, really tight. Even with oil on the stem, when I tried to fit the first one, it tore the top of the seal off :-(

Now I've 3 left, question is how to do? I see no mention of having to use a taper tool as a pilot to open up the seal.
It's easy enough to put in on te valve guide, but to get the valve stem through - that's another story....

Steve, I just recently had the same problem. Soaking the seals in very hot water will soften them up a bit. Then try to push the seal on slightly crooked so the stem starts to go through a small portion of the seal to start. The installer tool seemed a little too much blunt force. I ended up using just my fingers and it was somewhat painful for the amount of pressure required. Once the stem is through it slides down nicely.
Ride On
Dave


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
1,520
Country flag
Steve, out of interest, are you doing this in situ or with the head off?

Cheers,

cliffa.

Joined
Nov 15, 2010
Messages
413
Country flag
Steve, out of interest, are you doing this in situ or with the head off?

Cheers,

cliffa.

Head off on the bench. I'm using Steve Maney's inlet valves, and they seen to have less chamfer of the top edge the the standard valves.
I found an extra Mick Hemmings seal (with the spring), so I've fitted that and put the Teflon ones back in the bag for now.
I did try warming then with a heat gun, did not seem to make much difference, Reading your post though, I suspect the trick is to ease them over the valve stem first, then onto the valve guide. Mind you, if I have fit then at a future date, I will probably make up a taper tool.

I was just a bit puzzled that no one else seemed to be having problems.


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
1,520
Country flag
Head off on the bench. I'm using Steve Maney's inlet valves, and they seen to have less chamfer of the top edge the the standard valves.
I found an extra Mick Hemmings seal (with the spring), so I've fitted that and put the Teflon ones back in the bag for now.
I did try warming then with a heat gun, did not seem to make much difference, Reading your post though, I suspect the trick is to ease them over the valve stem first, then onto the valve guide. Mind you, if I have fit then at a future date, I will probably make up a taper tool.

I was just a bit puzzled that no one else seemed to be having problems.
Are they white or red seals Steve?

Joined
Nov 15, 2010
Messages
413
Country flag
I think that making up a tapered tool would solve the problem nicely. I just did not have access to a lathe (its at work and I'm not!) and I had a Hemmings seal lying in my spares box, so I went that way.


cliffa

VIP MEMBER
Joined
May 26, 2013
Messages
1,520
Country flag
I guess that would be the answer. By the way did you buy them in Europe?

Joined
Nov 15, 2010
Messages
413
Country flag
no, Ebay in the US. Could not find anywhere in Europe with these.
Comnoz has them though, I suggest giving Jim a PM and ask him to send.

Joined
May 5, 2017
Messages
256
Country flag
No, that is just what I measured using a cheap digital caliper. Chances are I bored it with a letter size bit.

It just needs to be a little larger than the spring on the top of the seal -after it is expanded over the valve stem.
They are on page 216 of their online catalogue. They always supply me with plenty of them. Jim
Letter Z is .413" so it's not a letter drill. Probably turned it on the lathe. Since it's not critical, 15/32" is .469". The Norton products are located on pages 186 & 187 of the 2021 Kibblewhite digital catalog. The P/N 71006-4 valves seals are on page 300
